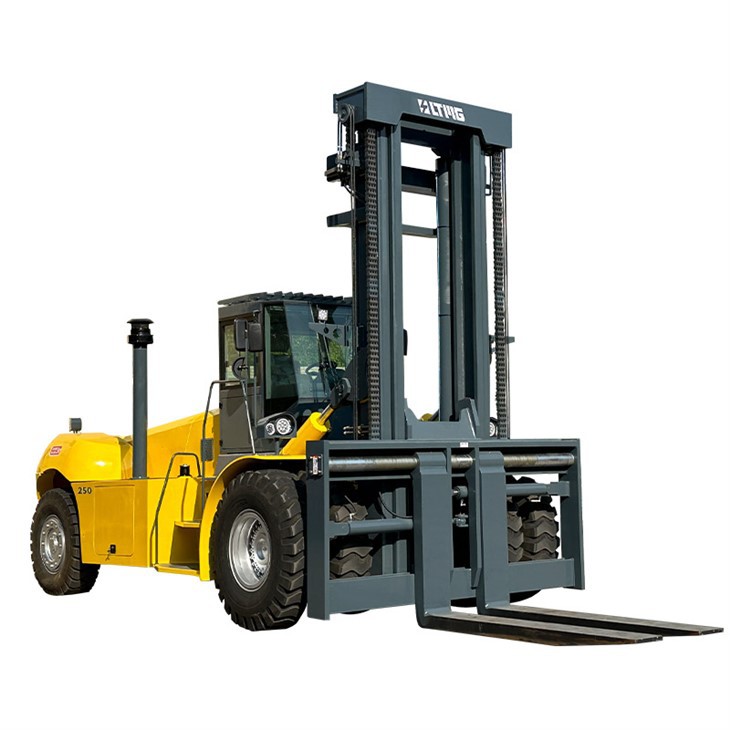

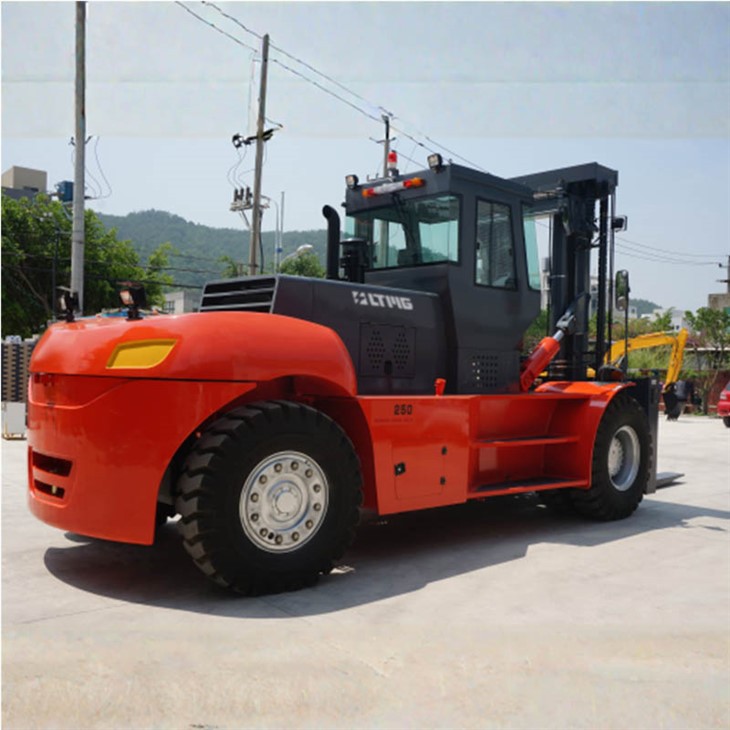

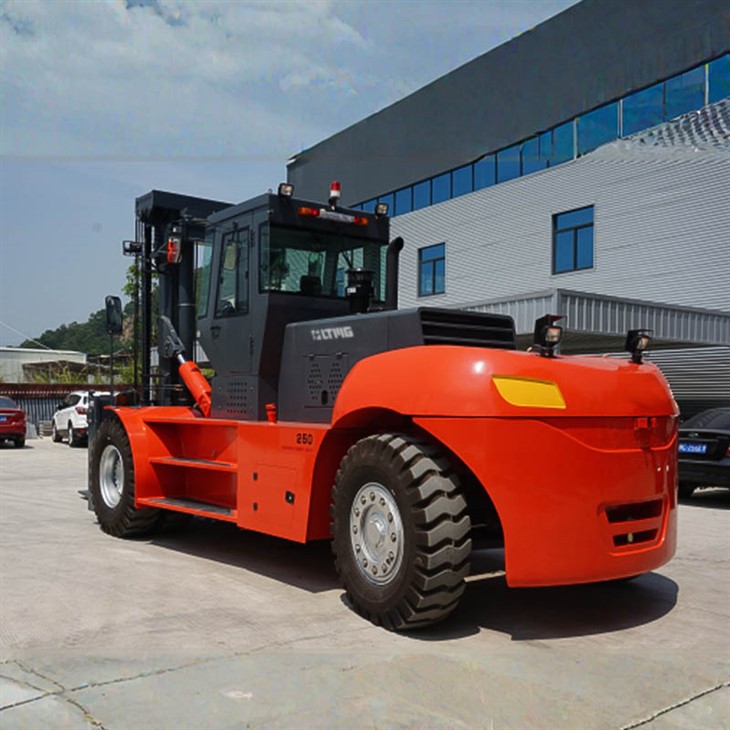

Product Introduction
1. Power system: Large diesel forklift trucks are usually equipped with high-performance, high-horsepower diesel engines, which comply with strict emission standards (such as Euro Ⅲ, Euro Ⅳ, Euro Ⅴ, etc.), in order to ensure environmental protection performance and provide sufficient power output. 2. Engine power, energy consumption is relatively low, suitable for long hours, high-intensity operational needs.
2. Chassis and transmission system: chassis structure is robust and durable, the design usually includes reinforced axles, suspension systems and heavy-duty tires to cope with the challenges of heavy cargo and complex road conditions. The drivetrain includes a highly efficient torque converter and gearbox to provide smooth and powerful torque transmission.
3. Lifting and Carrying Capacity: Large diesel forklift trucks have extremely high load capacity and large lifting height, which can easily handle several tons of cargo and lift it to a height of several meters or even dozens of meters to meet the operational needs of high-rise racking warehouses or large freight yards.
Reasons for water High temperature Of forklift
Factors such as temperature control switch, pump, sub-fan, rusted hose, bad water return, etc. can lead to such a phenomenon. But the high and low water temperature of internal combustion forklift engine is still mainly related to whether the thermostat is working properly, whether the water pump can establish enough pressure, and whether the cooling fan can reach the standard speed.
Then how should we check whether the water temperature of the internal combustion forklift is normal? The first thing we should pay attention to is the cooling system of forklift, which is generally composed of cooling fan, radiator, thermostat and other components. The cooling fan is often driven directly by the engine, and the fan speed is consistent with the engine speed. The control of cooling water temperature mainly relies on the thermostat.
Similar products
1. Telescopic Forklift (Telescopic Handler): - Telescopic Forklift, also known as Telescopic Forklift, is a special vehicle that combines the telescopic boom structure of automobile cranes and the functions of traditional forklifts. The most notable feature of this type of forklift is that it has a telescopic boom, which can be equipped with forks or other work attachments at the top of the boom.
2. Sideloader: - The forks of a sideloader are located on the side of the vehicle rather than the front. This design allows the vehicle to operate in tighter spaces, especially where warehouse aisle widths are limited. Side-by-side forklifts are particularly suitable for pallet-intensive storage and can be easily accessed from the side of the racking, which greatly improves the utilization of warehouse space.
3. Electric Forklift (Electric Forklift): - The power source of electric forklift is battery-powered electric motor. Compared with fuel forklift, electric forklift has the advantages of zero emission, low noise, low vibration, easy maintenance, etc. It is especially suitable for indoor warehouses, food processing, pharmaceutical manufacturing and other places with high requirements for environmental cleanliness.
4. LPG Forklift (Liquefied Petroleum Gas Forklift): - LPG forklift is an internal combustion forklift that uses liquefied petroleum gas (LPG) as its fuel, and its engine burns compressed LPG. Compared with gasoline or diesel forklifts, LPG forklifts have relatively less exhaust emissions and less pollution, and LPG is relatively easy to obtain and store at a moderate cost.
Forklift parametersTechnical Parameter 技术参数 |
||
| Model | FD250 | |
| Rated Load | Q(Kg) | 25000 |
| Load Center | c(mm) | 1220 |
| Wheelbase | y(mm) | 4400 |
| Weight | kg | 33500 |
| Tire Specs:Front | 14.00-24 | |
| Tire Specs:Rear | 14.00-24 | |
| Tires Qty,front/rear(X-dreve wheels) | 4/2 | |
| Wheel tread:Front | b3(mm) | 2220 |
| Wheel tread:Rear | b4(mm) | 2300 |
| Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 |
| Mast height(fork lowering) | h1(mm) | 3970 |
| Mast lifting height | h2(mm) | 3000 |
| Max.height | h3(mm) | 5940 |
| height to head guard(height to cab) | h4(mm) | 3440 |
| Overall height(with forks) | L3(mm) | 8950 |
| Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 6550 |
| Overall width | b1(mm) | 3060 |
| Fork dimension | (mm) | 2400*300*100 |
| Fork carriage width | b2(mm) | 2800 |
| Mast min ground(with load) | m1(mm) | 350 |
| Wheelbase center min ground(with load) | m2(mm) | 420 |
| Min.turning Radius | Wa(mm) | 6160 |
| Travel speed(with load/without load) | km/h | 25/30 |
| Max.lifting speed(with load/without load) | mm/s | 260/270 |
| tractionn | KN | 160 |
| gradeability(with load/without load) | % | 20/22 |
| Driving brake | Hydraulic clamp disvc 液压夹具 | |
| Engine brand/model | Optional one | WeiChai Engine |
| WD10G220E | ||
| Optional two | Dongfeng cummins | |
| Rated Output | 162(Kw) | |
| Cylinder No | 6 | |
| Transmission gears(Front/rear) | 2/1 | |
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;
