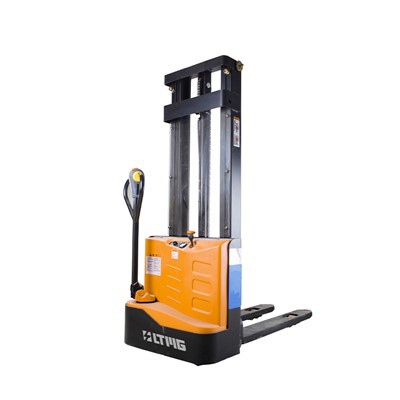

Name: LTMG Electric Walkie Stackers
Brand: LTMG
SKU: 229737233

1. Thickened and Reinforced Forks: LTMG electric walkie stackers come equipped with specially designed thickened and reinforced forks, ensuring exceptional strength and durability. With a strong bearing capacity, these forks can efficiently handle heavy loads without compromising safety. Additionally, their corrosion resistance properties ensure longevity, even in demanding environments. These forks are built to withstand rigorous use and are highly resistant to deformation, providing you with reliable performance time and time again.

2. Stepless Speed Control: The stackers are equipped with a stepless speed control system, making them easy to operate for drivers of varying skill levels. This feature provides enhanced maneuverability and precision during handling tasks. By allowing smooth speed adjustments, the stackers enable operators to navigate tight spaces and narrow aisles with ease, ensuring efficient and safe material transport.

3. Electromagnetic Brake System: Safety is always a top priority in material handling operations, and the LTMG Electric Walkie Stackers prioritize operator and load safety through their electromagnetic brake system. This innovative braking system provides responsive and reliable stopping power, instantly engaging when needed. The electromagnetic brake enhances the stacker's control, preventing accidents or incidents during operation and enabling operators to work with confidence.

4. Ergonomic Design: The LTMG Electric Walkie Stackers are designed with the operator in mind. They feature an ergonomic design that minimizes fatigue and enhances operator comfort during long work sessions. The intuitive controls are strategically positioned for easy access and operation, reducing strain on the operator's body and promoting productivity.

5. Enhanced Battery Performance: These stackers are equipped with high-performance batteries that ensure extended operating times between charges. With their efficient energy utilization and reliable power output, the LTMG Electric Walkie Stackers maximize uptime and productivity within your material handling operations.

Specification

Model		ERB-15E/16E
Power type		Battery powered
Driving style		Pedestrian
Load capacity	kg	1500/1600
Load center	mm	600
Overall length	mm	1950							2050
Overall width	mm	840
Min. overall height	mm	2125	1635	1800	2080	2220	2335	2560	2100	2265
Fork dimension L×b×m	mm	1150×160×56
Outside width of forks	mm	540/680
Ground clearance	mm	29
Wheel base	mm	1250							1415
Wheel material		PU
Driving wheel size	mm	φ250×80
Front wheel size	mm	φ78×70
Balance wheel size	mm	φ125×75
Min. steering radius	mm	1550							1600
Min. width of aisle	mm	≥2250							≥2500
Max. lift height	mm	1600	2000	2500	3000	3300	3500	4000	4500	5000
Max. overall height	mm	2110	2480	2980	3480	3780	3980	4480	5150	5650
Min. fork height	mm	90
Travel speed(laden/unladen)	Km/h	3.5/4.0							4.5/5.0
Lift speed(laden/unladen)	mm/s	90/130
Lowering speed(laden/unladen)	mm/s	95/120
Brake type		Electromagnetic
Power of driving motor	Kw	1.2							1.2
Power of lift motor	Kw	2.2							3.0
Battery capacity/voltage	Ah/V	95/24, 165/24							165/24
Weight of battery	kg	51/160							160
Net weight(without battery)	kg	560	600	640	665	675	690	720	920	960

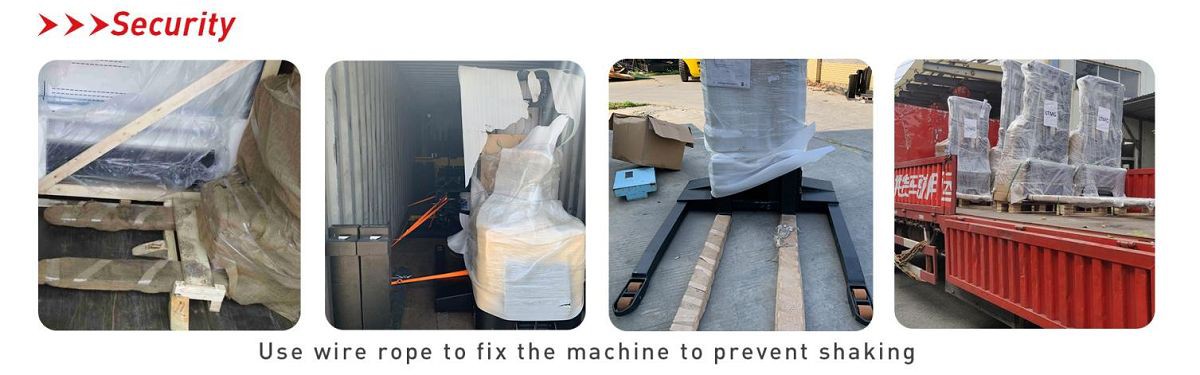

Shipping security

shipping security

Our company

product certificatiom

FAQ

Q: Can the electric walkie stackers be customized or modified?

A: Yes, LTMG Machinery offers customization options for electric walkie stackers to meet specific requirements. This may include features such as different fork lengths, attachments for specialized handling, or additional safety features. It is recommended to consult with the manufacturer or dealer to discuss customization options and feasibility.

Q: What is the difference between a walkie type and a stand-on type electric walkie stacker?

A: The main difference between a walkie type and a stand-on type electric walkie stacker lies in the positioning of the operator. In a walkie type, the operator walks behind the stacker and operates it by walking behind and controlling it using a handle. In a stand-on type, the operator stands on a platform attached to the stacker and operates it using controls conveniently located near their hands.

Q: Which type of electric walkie stacker is better suited for different applications?

A: Walkie stackers are more suitable for applications where the loads are lighter, and the distance for transportation is shorter. Stand-on stackers, on the other hand, are ideal for applications that involve longer distances, heavier loads, or tasks that require frequent mounting and dismounting.

Q: What is the experience of LTMG in the industry?

A: Over the past 20 years, LTMG has become an indispensable backbone of the material handling equipment industry in China by deeply cultivating the industry and accumulating technology.
