Products Description

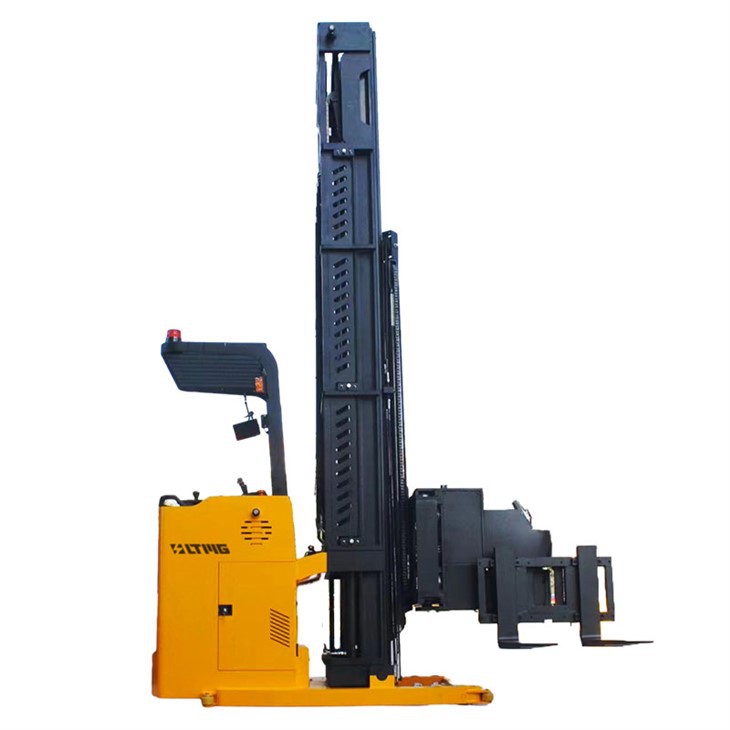

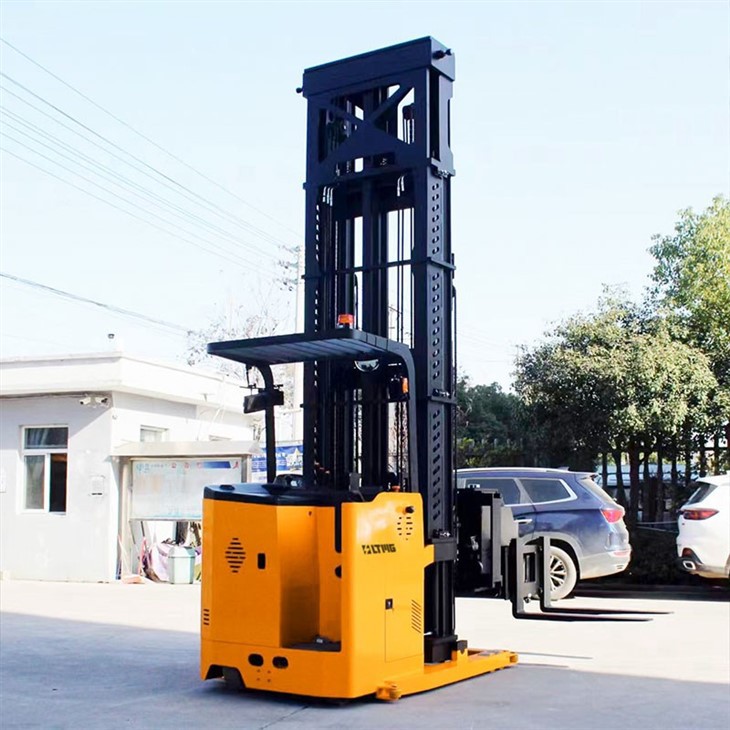

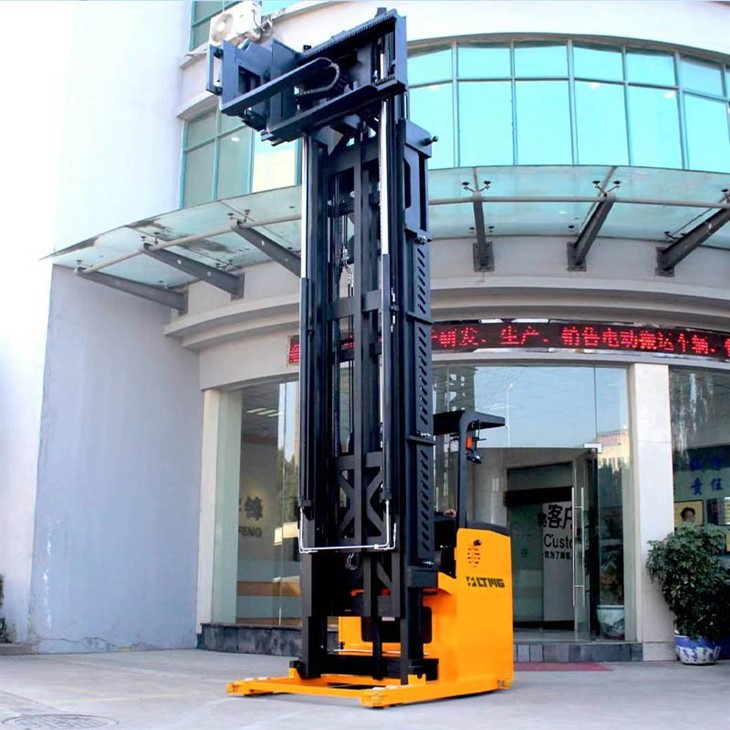

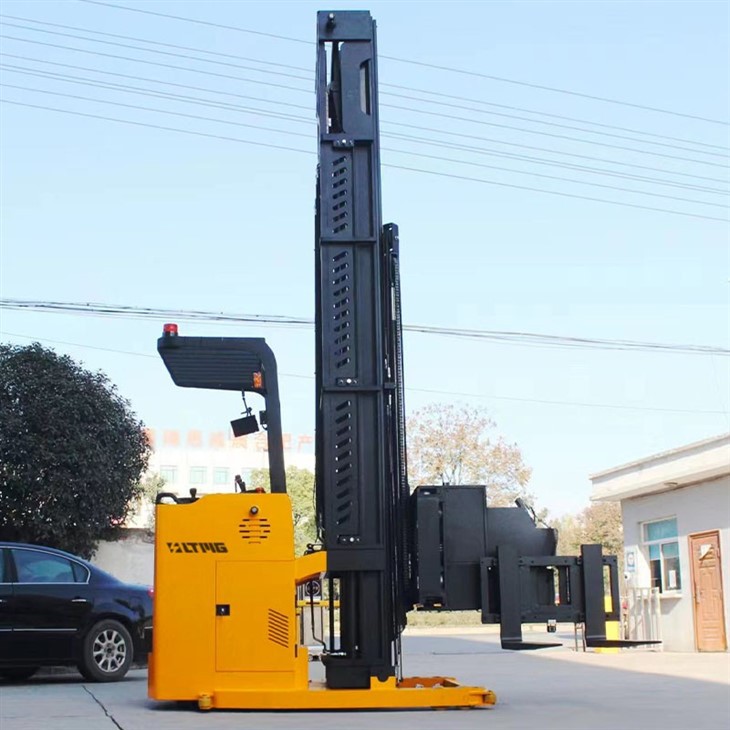

Introducing the 3-Way Electric Pallet Stacker VNA Forklift, a versatile and efficient solution to your material handling needs. Designed for use in narrow aisles and tight spaces, this innovative forklift offers exceptional performance and ease of use.
With its compact size and 3-way functionality, the 3-Way Electric Pallet Stacker VNA Forklift is ideal for use in warehouses, manufacturing facilities, and other settings where space is at a premium. Whether you need to lift and transport materials to different levels, load and unload pallets quickly and efficiently, or handle bulky or heavy items with ease, this forklift has you covered.
Featuring a powerful electric motor and advanced control system, the 3-Way Electric Pallet Stacker VNA Forklift delivers exceptional performance and reliability. Its intuitive controls and user-friendly design make it easy to operate, even in demanding environments.
Other key features of the 3-Way Electric Pallet Stacker VNA Forklift include:
- High-quality construction: This forklift is built to last, with durable materials and components that can withstand heavy use and frequent transport of heavy loads.
- Adjustable mast: The mast on this forklift can be adjusted to accommodate different types of loads, making it versatile and flexible enough to meet your changing needs.
- Narrow turning radius: With its tight turning radius and maneuverability, the 3-Way Electric Pallet Stacker VNA Forklift is ideal for use in cramped spaces or narrow aisles.
- User-friendly controls: The intuitive controls on this forklift make it easy to use, even for operators with little experience. A clear display panel and responsive joystick controls ensure that you can operate the forklift quickly and efficiently.
In short, the 3-Way Electric Pallet Stacker VNA Forklift is a powerful and versatile tool that can help you get more done in less time. With its advanced features, durable construction, and user-friendly design, it is an ideal choice for any business that needs to lift, transport, and handle materials with ease and efficiency. So why wait? Invest in the 3-Way Electric Pallet Stacker VNA Forklift today and experience the benefits for yourself.
Products parameter
| 型号(Model) | FRB15-S | |
| 动力(Power type) | electric | |
| 操作方式(Operation type) | ||
| 额定载荷能力(Capacity) | Q(kg) | 1500 |
| 载荷中心距(Load center) | C(mm) | 600 |
| 含蓄电池时自重(Total weight including the battery) | kg | <6300 |
| 轮子种类(Wheel type) | Pu solid tire | |
| 轮距(前轮)(Wheel tread:Front) | b1O(mm) | 1315 |
| 门架闭合高度(Height―Mast Lowered) | h1(mm) | 3165 |
| 自由提升高度(Free lift height) | h2(mm) | 1980 |
| 提升高度(Max Lifting Height) | h3(mm) | 6000 |
| 作业时门架最大高度Max.height | h4(mm) | 7185 |
| 护顶架高度Overhead guard height | h14(mm) | 2280 |
| 长度(车体/整体)Overall length (Fork back/forward) | I2(mm) | 2690/3920 |
| 车体宽度(Overall width) | b1(mm) | 1550 |
| 防撞护轨宽度(Channel guide width) | (mm) | 1600 |
| 货叉尺寸Fork dimension | s/e/l(mm) | 45/125/1220 |
| 货叉调节尺寸(Fork spread) | b5(mm) | 260-650 |
| 最小离地间隙(轴距中心)(Min ground clearance) | m2(mm) | 32 |
| 堆垛通道宽度(Channel shelf width) | Ast(mm) | 1760 |
| 通道导轨高度(Channel guide height) | (mm) | 120 |
| 最小可转弯半径(Turning radius) | Wa(mm) | 1910 |
| 主通道宽度(Main channel width) | mm | 3560 |
| 行驶速度,空载/满载(Max travel speed)(No load /Full) | km/h | 8/7 |
| 起升速度,空载/满载Lifting speed (No load /Full) | m/s | 0.275/0.215 |
| 下降速度,空载/满载Lowered speed (No load /Full) | m/s | 0.150/0.195 |
| 蓄电池类型(Battery type) | Lead acid battery | |
Shipping plan
Products feedback
Products service
FAQ
Q: Can the forklift handle narrow aisles?
Q: Is the forklift suitable for outdoor use?
Q: How long does it take to charge the forklift battery?
