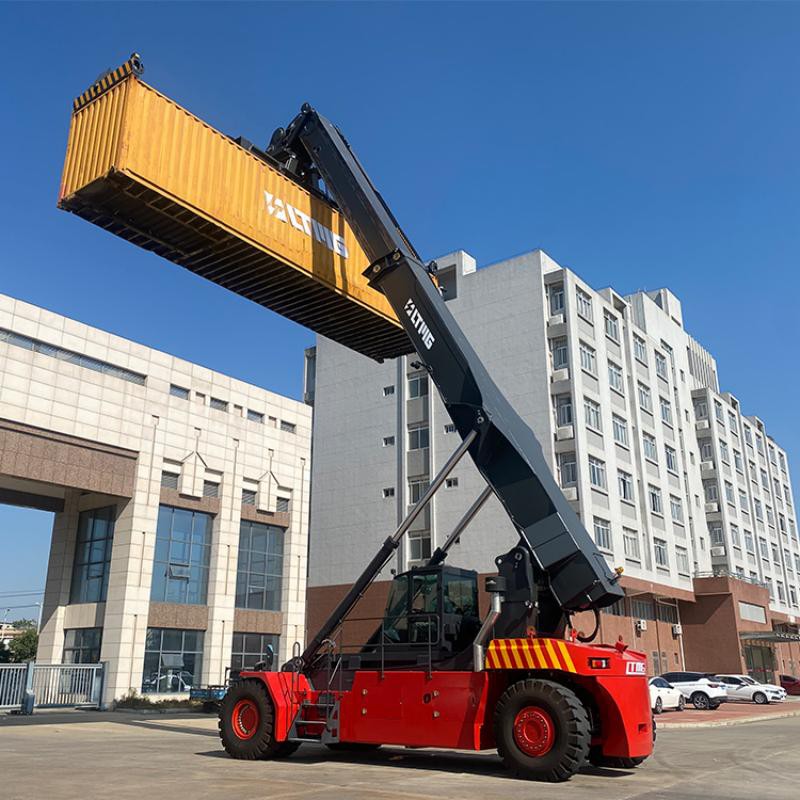

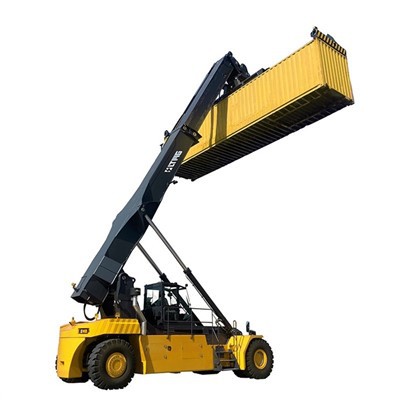

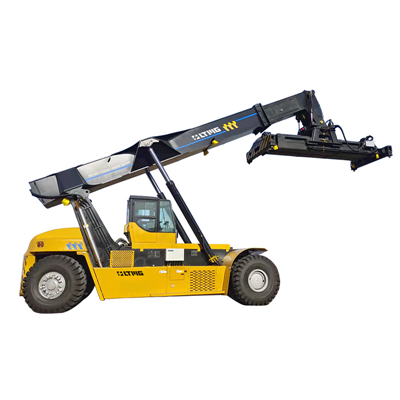

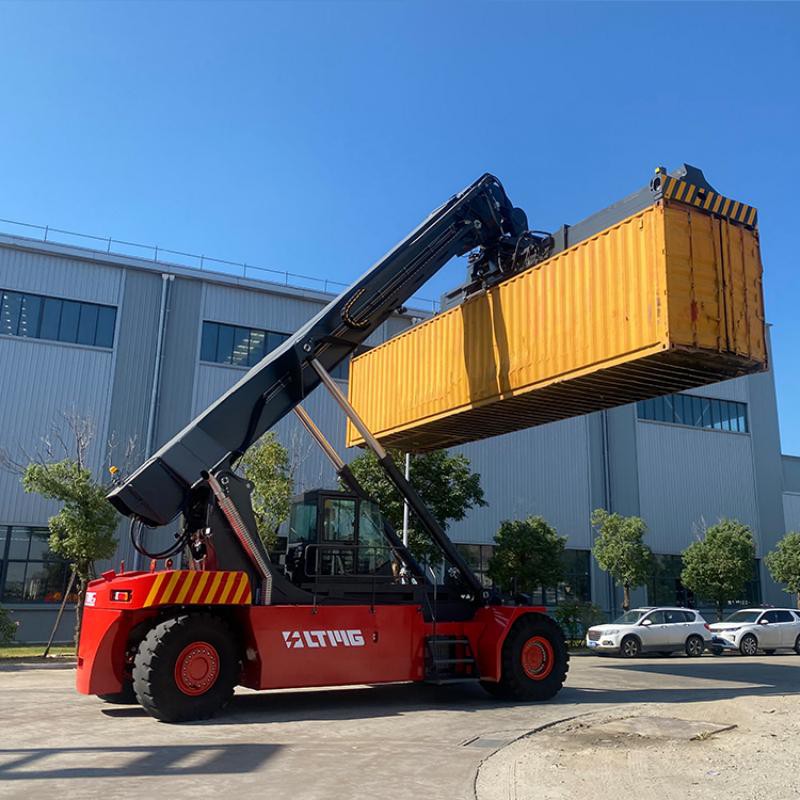

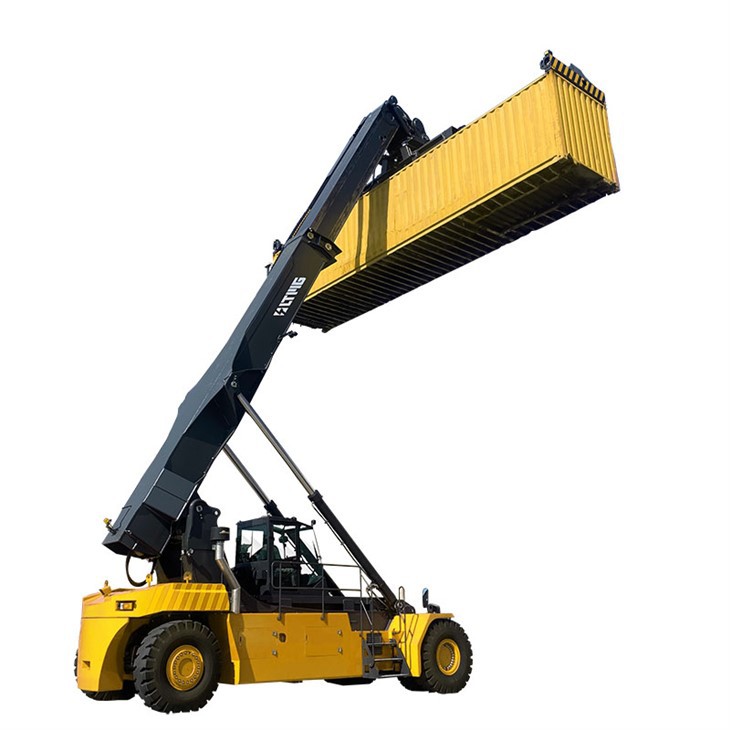

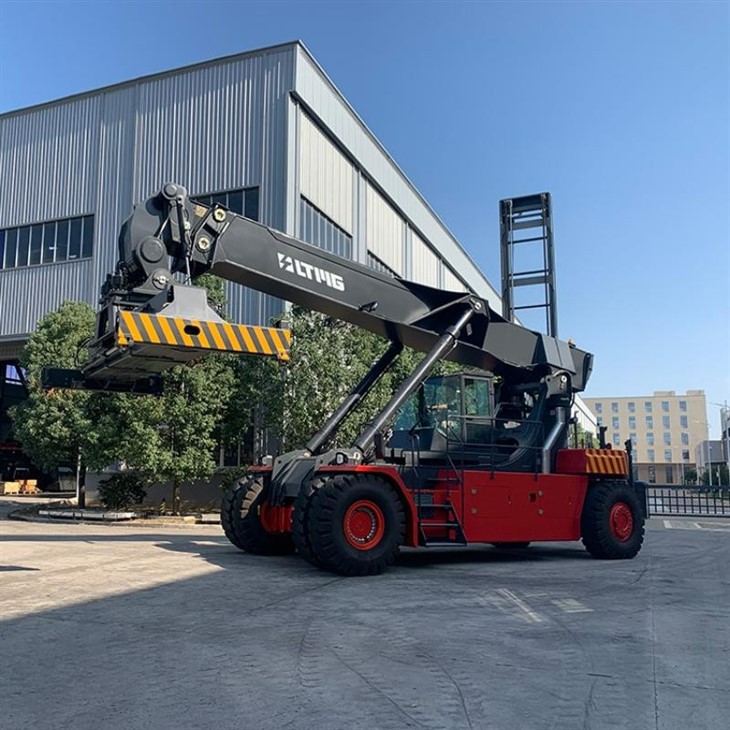

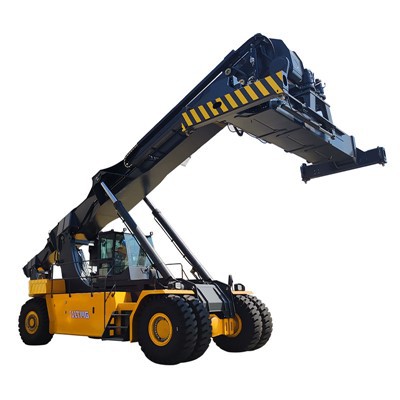

1. High-quality imported components: the LTMG Machinery 45 ton reach stackers empty container handlers, and, feature imported components from well-known brands such as Kessler and ZF from Germany and Linde Hydraulics from Italy.
2. Improved stacking capacity: These machines offer a higher than standard stacking capacity, with an additional 20% in reserve, making them ideal for heavy-duty lifting and transporting tasks.
3. Enhanced engine protection: The reach stacker and other machinery products boast better engine protection features, particularly the turbocharger, to ensure durability and longevity.
4. Superior air filtration: The container lift truck's advanced air intake system provides better filtration, making it more capable of handling tough environments with high levels of dust and other contaminants.
5. Remote monitoring capabilities: These machines offer remote monitoring features that allow fleet managers to monitor performance and manage maintenance schedules efficiently.
6. "Power-on-demand" handle: The handle saves 20% of fuel consumption because the control system automatically delivers power matched to the speed and weight of the load being lifted.
7. Beam material: The big arm is made of steel plate with high tensile strength (can withstand 70KG/MM2).
Specification
| Model | CRS450/5 | |
| Power unit | Diesel | |
| Operation type | Rider seated | |
| Load capacity(L1,L2,L3) | kg | 45000/31000/16000 |
| Load centre, First row(L1) | mm | 1800 |
| Load centre, Second row(L2) | mm | 3860 |
| Load centre, Third row(L3) | mm | 6400 |
| Axle centre to spreader center(L1-1/2 high) | mm | 2800 / 2600 |
| Wheelbase | mm | 6400 |
| Lift height(L1, L2, L3) | mm | 15900 / 14100 /11350 |
| Height, boom extended | mm | 19000 |
| Height of cabin | mm | 3900 |
| Overall length with spreader | mm | 11618 |
| Overall length | mm | 8410 |
| Overall width | mm | 4180 / 3400 |
| Width of soreader 20'/40' | mm | 6050 /12150 |
| Ground clearance minimum | mm | 345 |
| Ground clearance, centre of wheelbase | mm | 300 |
| Stacking aisle 20' container | mm | 10225 |
| Stacking aisle 40' container | mm | 13050 |
| Travelling speed (UnLaden/ Laden) | km/h | 25/21 |
| Climbing ability (UnLaden/ Laden) | % | 30/28.8 |
| Tractive force (UnLaden) | kN | 325 |
| Lifting speed (UnLaden/ Laden) | m/s |
0.39/0.28 |
| Lowering speed (UnLaden/ Laden) | m/s | 0.39/0.39 |
| Engine | Cummins QSM 11 | |
| Rated power @ rated speed | 250Kw @ 2100 rpm |
Customer Feedback
lTMG's container reach stacker has garnered considerable acclaim and been warmly embraced by customers in azerbaijan. esteemed for its outstanding performance, durability, and versatility, this reach stacker has emerged as a reliable and efficient solution for container handling operations. the cutting-edge technology and sturdy design of lTMG's reach stacker have instilled confidence in customers worldwide.

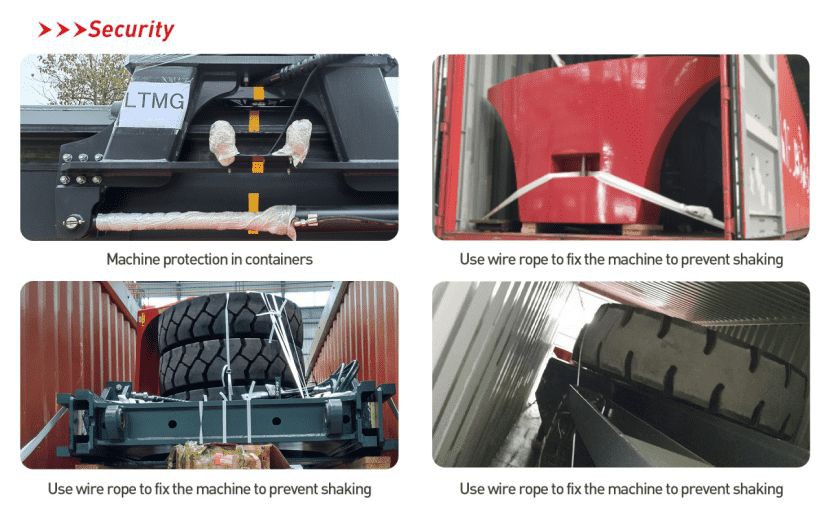

Packing of reach stacker container
FAQ
Q: What is a 45 ton reach stacker?
Q: How does a 45 ton reach stacker work?
Q: What industries use a container reach stacker?
Q: Is your price competitive?
