45 Ton Reach Stacker

Items: 45 ton electric reach stacker
Power type: electric
Rated capacity: 45000 kg
Lift height: 15100 mm
Send Inquiry
Chat Now

Product Introduction

Products Description



LTMG's 45 ton reach stacker is electrically powered and has significant environmentally friendly features, with low noise levels and zero emissions. In addition, it is cheaper to use than the low diesel-driven one, the cost of electricity consumption is about 30% of the cost of diesel.

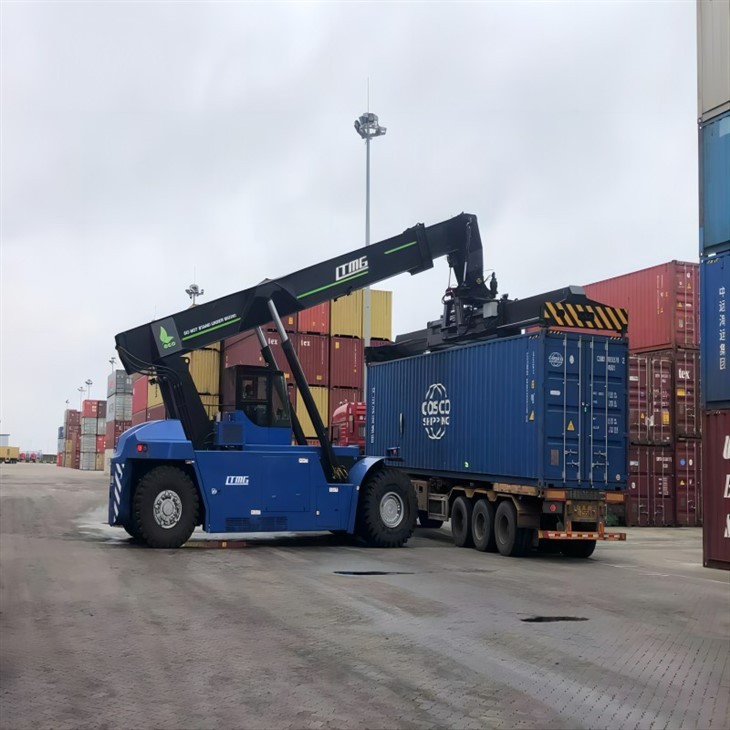

45 Ton Reach Stacker



The large-capacity imported batteries used in the electric container reach stackers are of stable quality, long life and high safety, and the machine can work continuously for 7 to 9 hours under fully charged condition, which meets the actual needs of most working scenes.

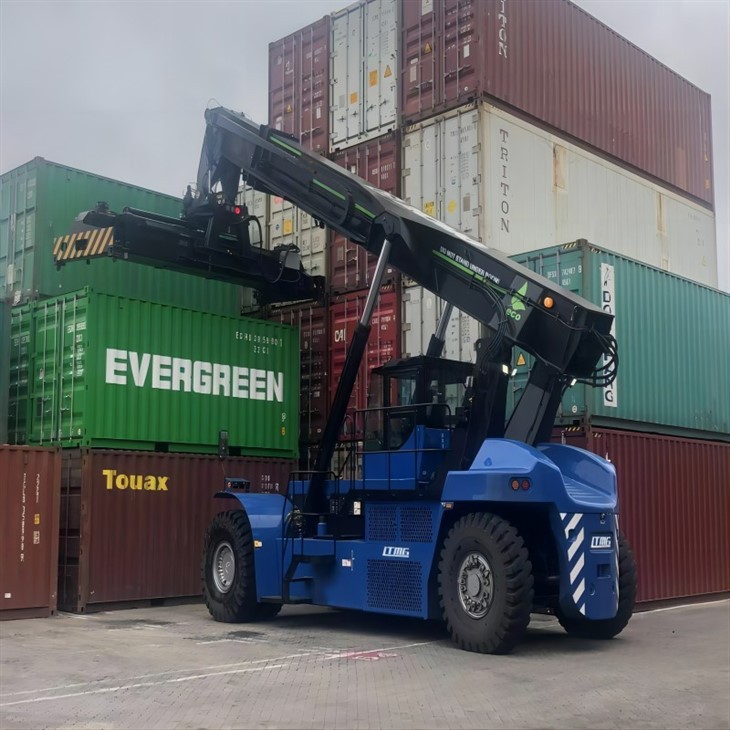

electric reach stacker



This 45 ton reach stacker is equipped with a high-definition color display and real-time monitoring of machine status. The linkage fault alarm function reduces the difficulty of maintenance and strengthens the safety of operation. The container stacker uses a new generation of electronically controlled transmission, which is flexible and smooth in shifting gears and improves work efficiency.



Specification

Item

Unit

CRS4531E

length

mm

11340



Width

Spreader

mm

6053

Front wheel

mm

4200

Height

mm

4670

Wheelbase

mm

6000



Trace

Front

mm

3033

Rear

mm

2790



Overhang

Front

mm

840

Rear

mm

1194

Min. ground clearance

mm

350

Min. turning radius

mm

8000

Max. gradeability

%

13%

Dead weight

kg

71200

Rated lifting capacity

kg

45000

Stacking capacity

--

5-5-4

Max. lifting height

mm

15100



Max. lifting speed

Unloaded

mm/s

420

Rated load

mm/s

250



Max. lowering speed

Unloaded

mm/s

360

Rated load

mm/s

300



Max. traveling speed

Unloaded

km/h

20

Rated load

km/h

14



Aisle width



20'

mm

11300

40'

mm

11300

Voltage of battery pack

V

618

Capacity of battery pack

km/h

422

Motor peak power

kw

346

Motor peak torque

Nm

3800

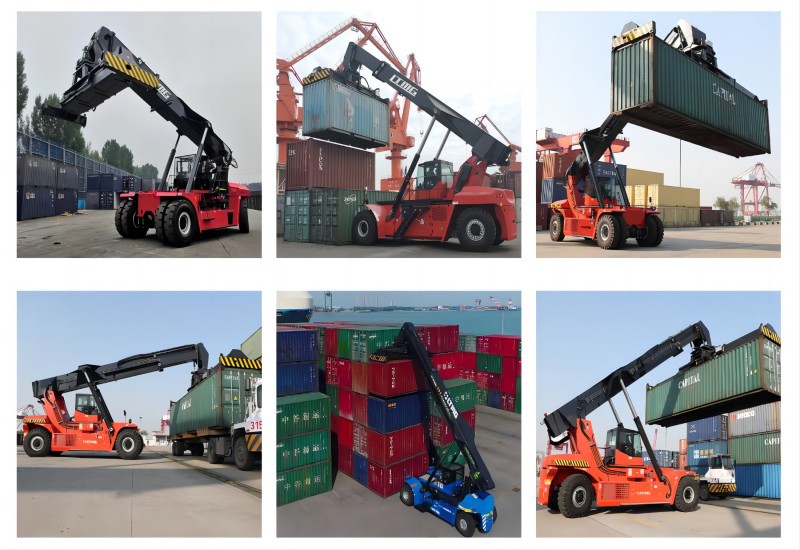

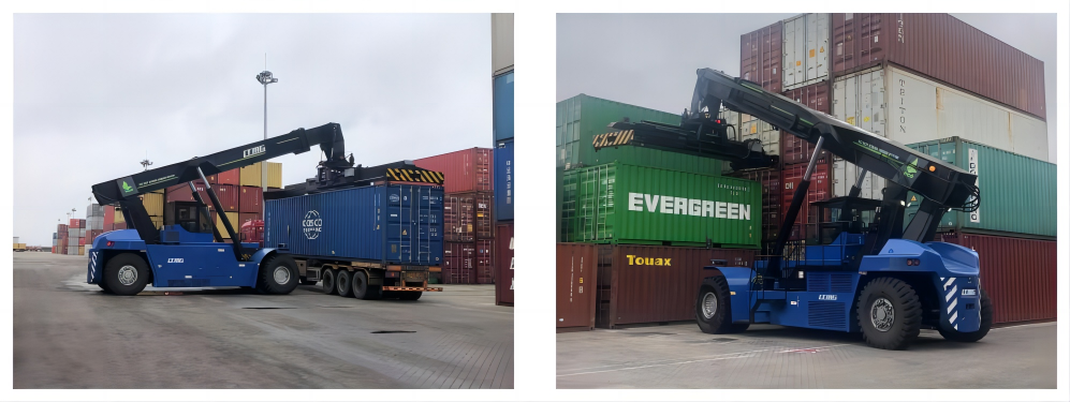

The Real Use of LTMG Container Reach Stackers



LTMG's Container Stacker Trucks are not only reliable in terms of quality but also powerful in performance, and they have been bringing convenience to customers in different countries and regions all over the world. These trucks are well-designed, their powerful performance allows them to stack containers quickly and efficiently, saving customers time and labor costs. Additionally, the trucks' advanced safety features and reliable maintenance systems ensure their safe operation and long service life.

According to these advantage, LTMG's Container Stacker Trucks have been widely recognized and trusted by customers in different countries and regions all over the world.

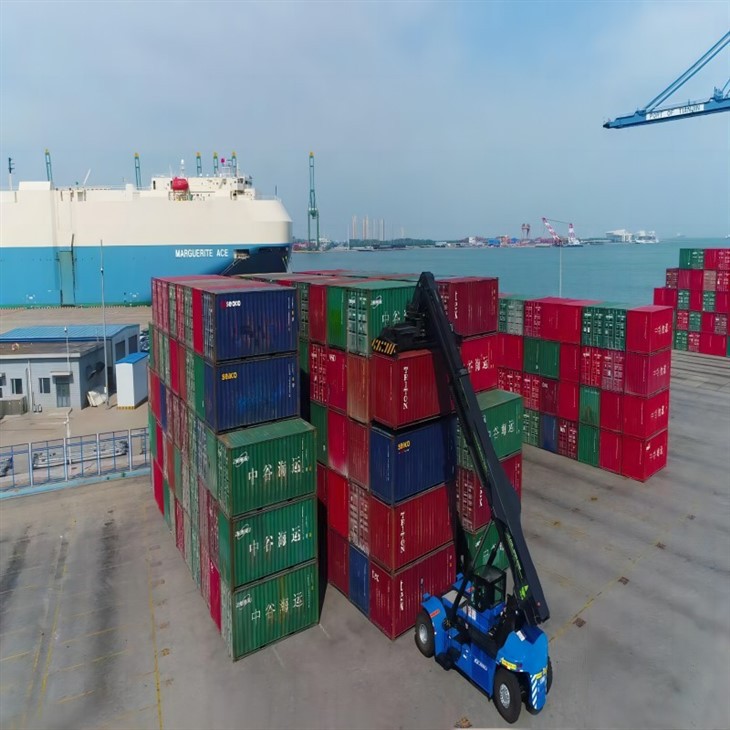

electric 45 ton reach stacker



customer review Video

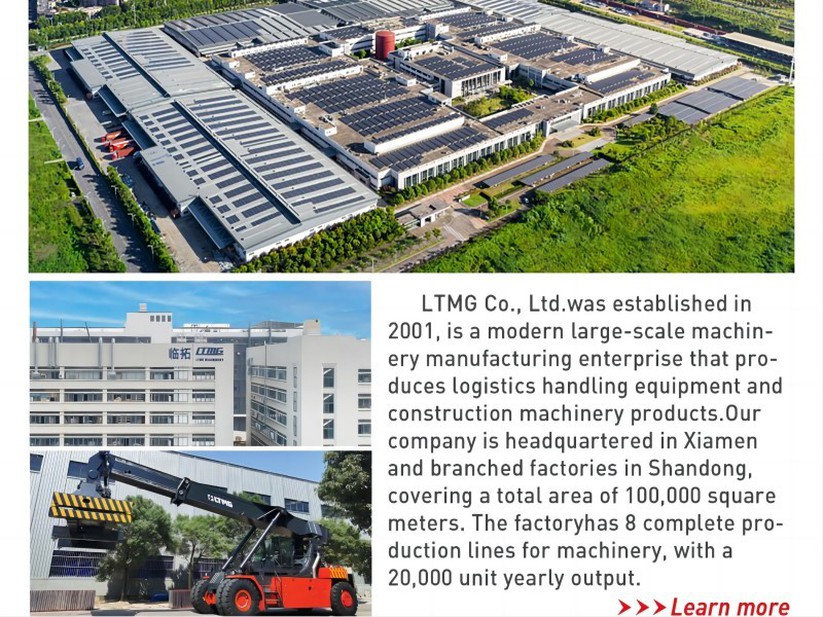

Company Profile of LTMG



45 ton reach stacker battery



FAQ

Q: Can you give me a brief overview of your company?

A: LTMG, is a Chinese manufacturer established in 2001. We specialize in producing reliable material handling and construction machinery equipment such as forklifts, storage equipment, loaders, excavators and airport ground equipment.

Q: Are you open to agents who wish to work with you?

A: We are open to working with agents around the world. If you are interested, please contact us via email or WhatsApp.

Q: What payment methods do you accept?

A: We accept T/T, L/C and D/P.

Q: Are your products certified in any way?

A: Our products meet the high standards set by the ISO9001 Quality System and carry a CE certificate. EPA approval can be arranged if required.

Q: What should I do if I have a problem with my machine during use?

A: Please feel free to contact our after-sales service team, they will give you the best help. We offer a one-year warranty for non-human-caused damage and free wearing parts during this period.
