Name: Four Wheels High Performance Diesel Forklift Trucks
Brand: LTMG
SKU: 234262337

Products Description

Four Wheels High Performance Diesel Forklift Trucks

Our high performance diesel forklift trucks are designed to handle heavy lifting and loading tasks with ease. Equipped with four wheels, these forklifts offer superior stability and control, making them ideal for industrial applications and heavy-duty work environments.

Application

Our diesel forklift trucks can be used in a variety of settings, from warehouses to manufacturing facilities to construction sites. With their high performance capabilities and rugged design, these forklifts are ideal for lifting and transporting heavy loads in any type of terrain or environment.

Features

- Powerful diesel engine: Our diesel forklift trucks are powered by a robust diesel engine that delivers high performance and efficiency.
- High load capacity: With a maximum load capacity of up to 10 tons, these forklifts can handle even the heaviest of loads with ease.
- Four-wheel drive: The four-wheel design provides superior stability and control, making these forklifts easy to maneuver and control in any type of environment or terrain.
- Easy maintenance: Our diesel forklift trucks are designed with easy-to-access maintenance points for quick and efficient servicing.
- Safety features: We have included numerous safety features in our diesel forklift trucks, including automatic braking systems, overload protection, and emergency stop switches.

Our four wheels high performance diesel forklift trucks are the perfect solution for any organization looking to improve their productivity and efficiency. Whether you're working in a warehouse or on a construction site, these forklifts are designed to handle your heavy lifting and loading tasks with ease. With their powerful diesel engines, high load capacities, and reliable safety features, you can trust that our diesel forklift trucks are built to handle your toughest jobs.

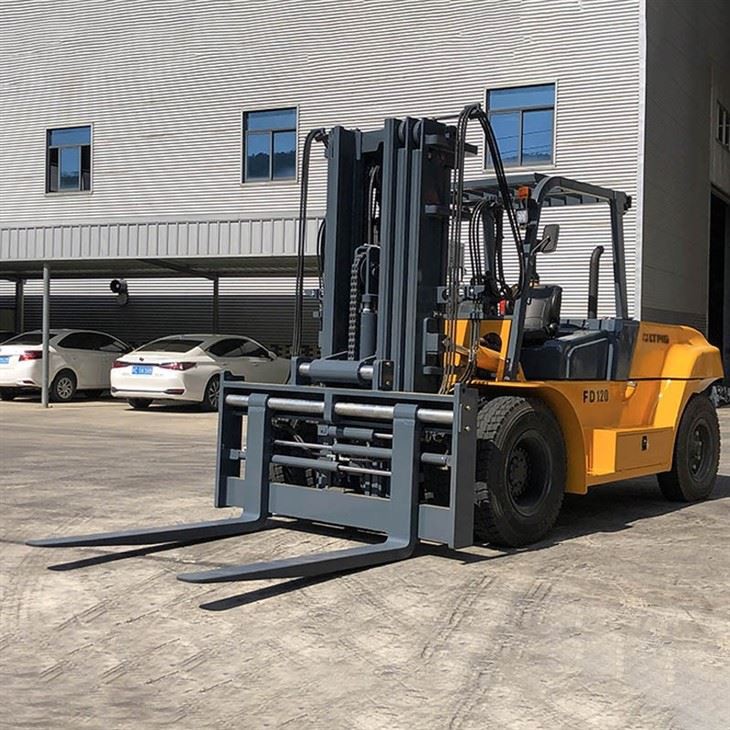

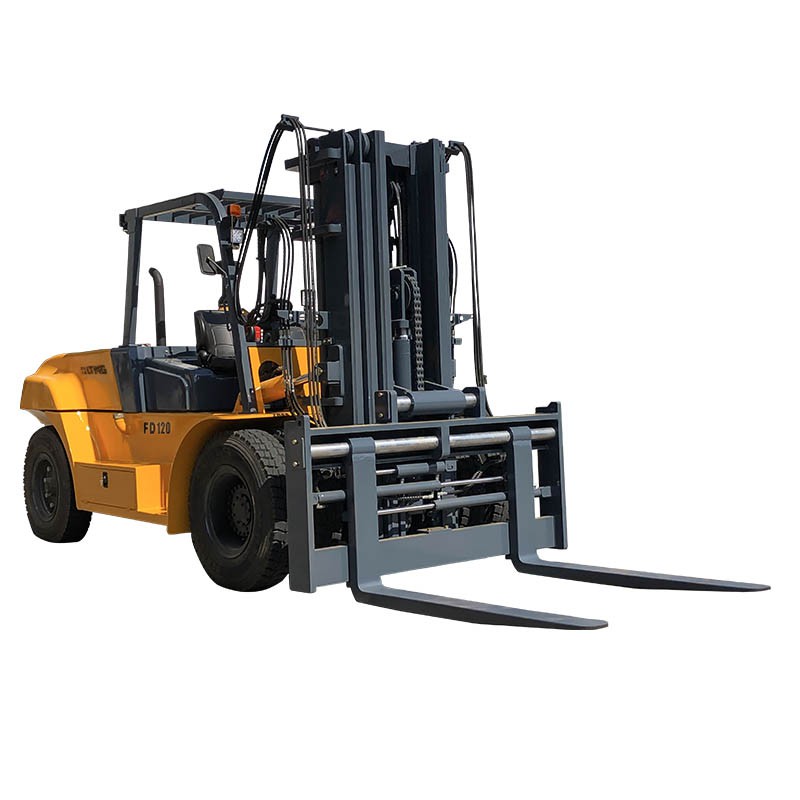

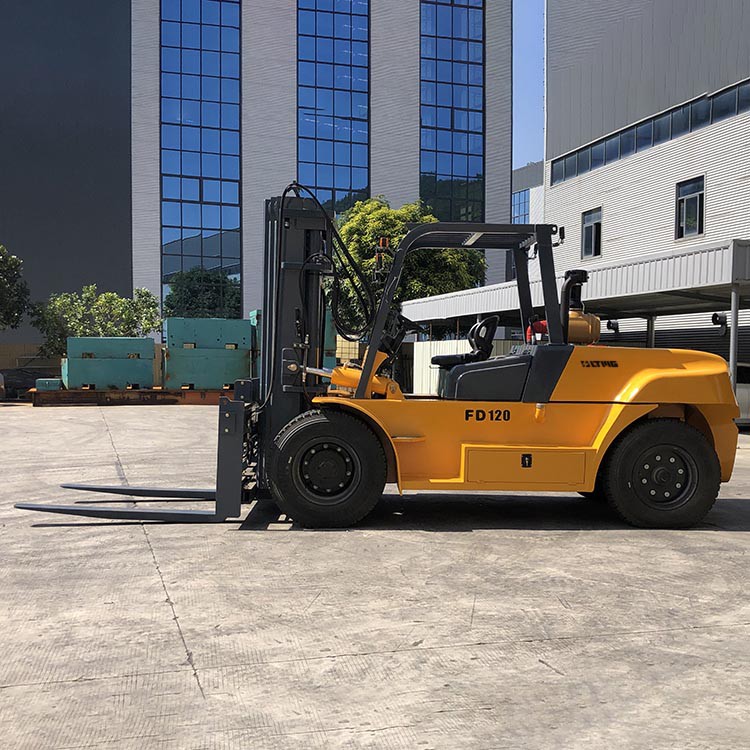

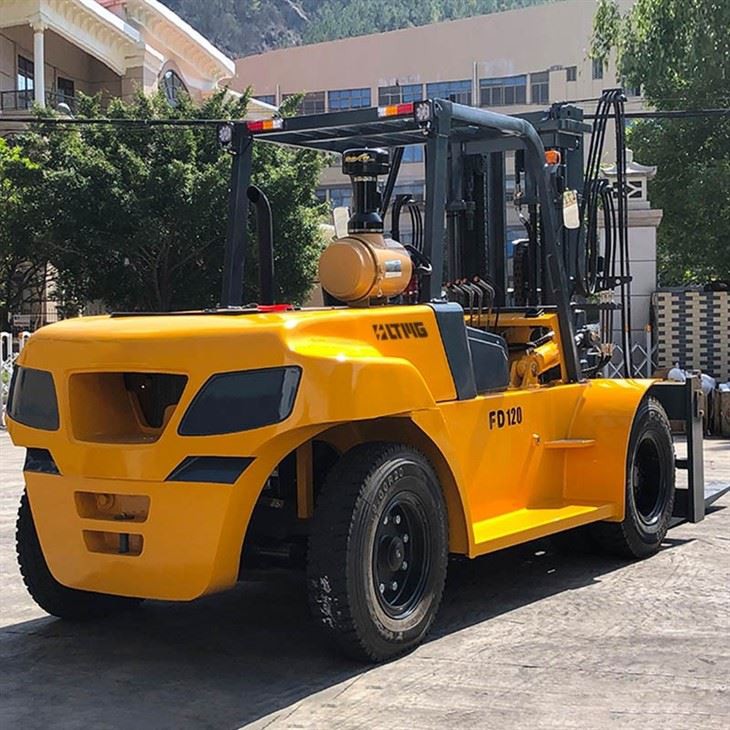

forklift 12 ton

Products Description

Item			FD120
Features	Rated Load	Q(Kg)	12000
	Load Center	c(mm)	600
	Wheelbase	y(mm)	2950
Weight	Weight	kg	15500
Chassis	Tire Specs:Front		11.00-20-18PR
	Tire Specs:Rear		10.00-20-18PR
	Tires Qty,front/rear(X-dreve wheels)		4/2
	Wheel tread:Front	b3(mm)	1630
	Wheel tread:Rear	b4(mm)	1780
Dimensions	Mast/carriage tilt angle(front/rear)	Degree(°)	6/12
	Mast height(fork lowering)	h1(mm)	2940
	Mast lifting height	h2(mm)	3000
	Max.height	h3(mm)	4410
	height to head guard(height to cab)	h4(mm)	2670
	Overall height(with forks)	L3(mm)	6070
	Fork front verticaal sueface to the rear end of the vehicle	L2(mm)	4470
	Overall width	b1(mm)	2230
	Fork dimension	(mm)	160018090
	Fork carriage width	b2(mm)	2080
	Mast min ground(with load)	m1(mm)	300
	Wheelbase center min ground(with load)	m2(mm)	350
	Min.turning Radius	Wa(mm)	4350
	Travel speed(with load/without load)	km/h	23/28
Performance	Max.lifting speed(with load/without load)	mm/s	220/280
	tractionn	KN	100
	gradeability(with load/without load)	%	20/22
	Driving brake		Hydraulic clamp disvc
Engine	Engine brand/model	Optional one	Yuchai Engine
			YC6B125-T21
		Optional two	Dongfeng cummins
		Rated Output	110(Kw)
		Cylinder No	6
Others	Transmission gears(Front/rear)		2/2

Products certificates

certificates of diesel forklift trucks

Products Description

customer feeback of ltmg forklift

Products service

service of diesel for forklift

FAQ

Q: What is the maximum load capacity of a 12 ton four wheels high performance diesel forklift truck?

A: The maximum load capacity of the forklift truck is 12 tons.

Q: How does the diesel engine perform in terms of efficiency and power?

A: The diesel engine of the forklift truck provides high performance in terms of both efficiency and power, ensuring seamless operation and productivity.

Q: How comfortable and safe is the operator's cabin of the forklift truck?

A: The operator's cabin of the forklift truck is designed keeping in mind utmost comfort and safety of the operator, with features such as AC, ergonomic seating, and intuitive controls.

Q: How reliable is the forklift truck in tough and demanding industrial environments?

A: The forklift truck is built to withstand tough and demanding industrial environments, with durable construction, advanced safety features, and easy maintenance. This ensures that it remains reliable and delivers optimal performance at all times.
