Name: Forklift With Side Shift And Fork Positioner
Brand: LTMG
SKU: 230736032

Security:
Our forklift boasts an intelligent starting system, empowering you with seamless control over its operations. With a hydraulic power brake system, you can confidently navigate through your workspace, while the standard equipped button parking brake provides additional security, preventing unwanted movement when parked.

Comfort:
Experience unparalleled comfort during long shifts with our forklift's standard hydraulic steering system, ensuring effortless maneuverability. Equipped with adjustable seats and steering wheel, you can customize your workspace to suit your preferences, reducing fatigue and maximizing productivity.

fork positioner forklift

forklift side shifter attachments

side shift forklift

Reliability:
Built to exceed industry standards, our forklift is equipped with a cooling system that meets the stringent requirements of the China III standard. The engine features a two-stage filter design, comprising a cyclone-type filter and an air dry filter, ensuring optimal performance and longevity even in challenging environments.

Advancement:
Stay ahead of the curve with our forklift's intelligent liquid crystal instrument panel. Utilizing CAN bus communication technology, it provides real-time monitoring of the forklift and engine's operational dynamics, empowering you with valuable insights for efficient management.

technical parameters of LTMG 7 ton forklift

General	1	Model				FD70
	2	Power Type				Diesel
	3	Rated Capacity			kg	7000
	4	Load Centre			mm	600
Characteristic&Dimension	5	Lift Height			mm	3000
	6	Fork Size		L×W×T	mm	1220×150×70
	7	Mast Tilt Angle		F/R	Deg	6°/12°
	8	Fork Overhang (Wheel center to fork face)			mm	595
	9	Ground Clearance(Bottom of mast)			mm	200
	10	Overall Dimension		Length to face of fork(Without fork)	mm	3565
	11			Overall Width	mm	2010
	12			Mast Lowered Height	mm	2500
	13			Mast Extended Height(With backrest)	mm	4415
	14			Overhead Guard Height	mm	2430
	15	Turning Radius (outside)			mm	3350
Performance	16	Speed		Travel (Full load)	km/h	30
	17	Speed		Lifting (Full load)	mm/s	460
	18	Max.Gradeability			%	20
Chassis	19	Tyre		Front	mm	8.25-15-14PR
	20	Tyre		Rear	mm	8.25-15-14PR
	21	Wheelbase			mm	2250
	22	Self weight			kg	9750
Power&Transmission	23	Battery	Voltage/Capacity		V/Ah	(12/80) x 2
	24	Engine	Model			6BG1-02
	25		Manufacture			ISUZU
	26		Rated output/r.p.m.		kw	82.4/2000
	27		Rated torque/r.p.m.		N·m	416/1600
	28		No.of Cylinder			6
	29		Bore×Stroke		mm	105×125
	30		Displacement		cc	6494
	31		Fuel Tank Capacity		L	125
	32	Transmission	Type			Hydraulic
	33	Transmission	Stage	FWD/RVS		2/2

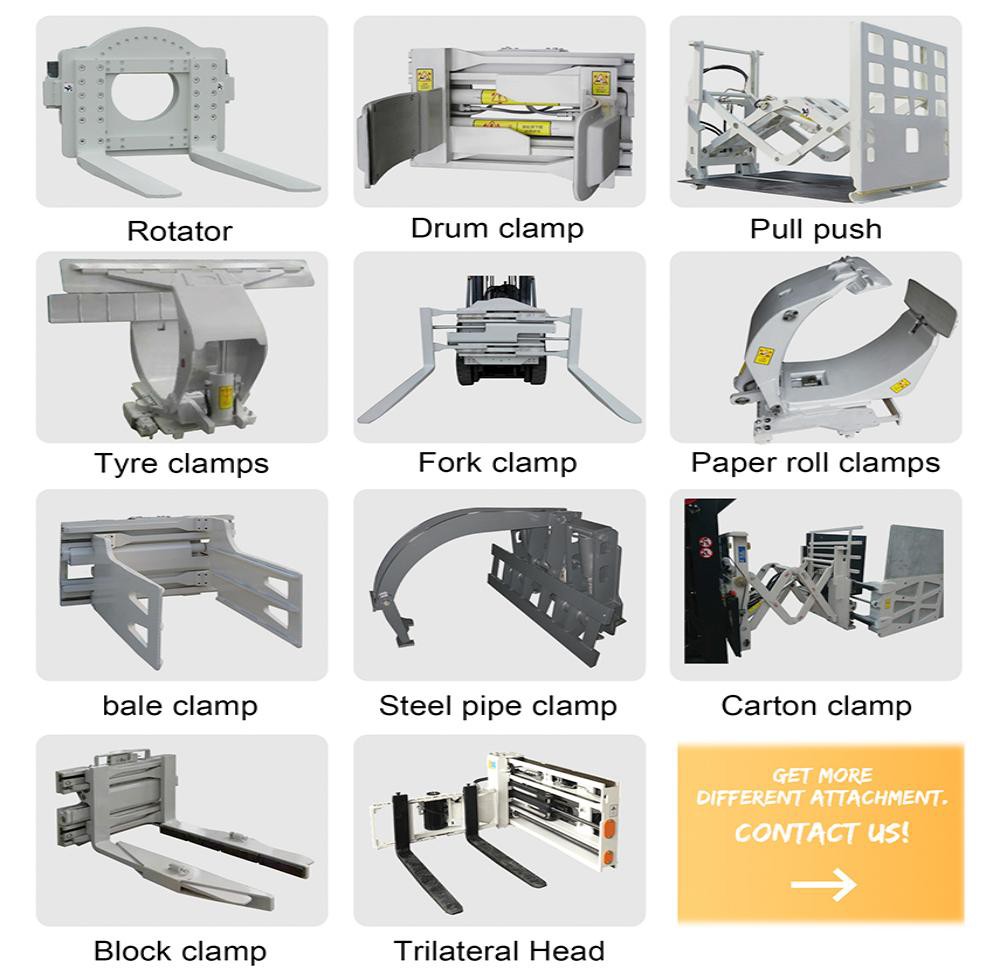

different types forklift attachments

LTMG Machinery offering a diverse range of forklift attachments tailored to meet various industrial needs. From rotators facilitating efficient rotation of loads to drum clamps ensuring secure handling of cylindrical objects, our lineup encompasses versatile solutions. Tyre clamps provide sturdy grip for tire transportation, while paper roll clamps delicately handle delicate paper rolls. With precision engineering and quality craftsmanship, LTMG Machinery continues to deliver reliable and effective material handling solutions to optimize workflow efficiency across industries.

forklift attachments supplier

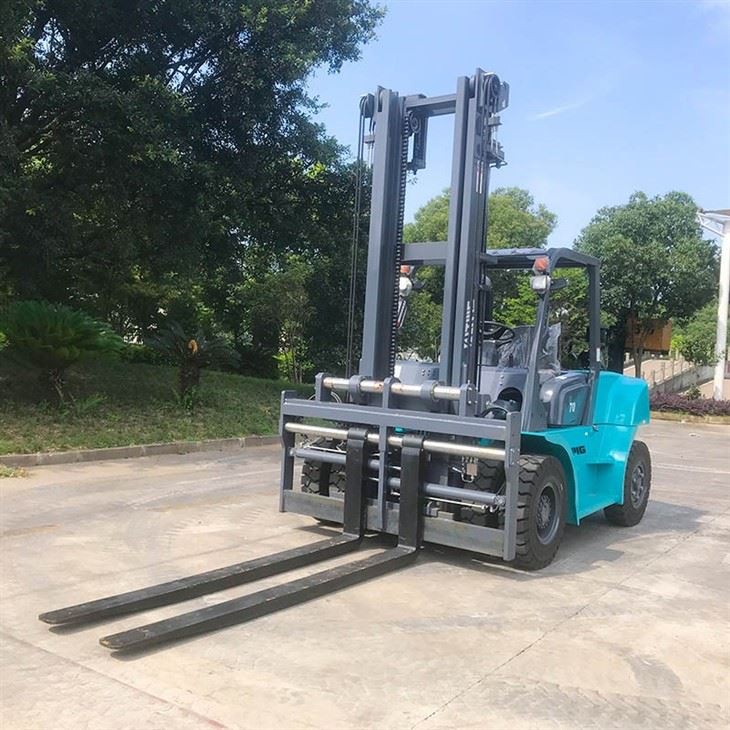

The video of LTMG forklift with side shift fork postioner

FAQ

Q: What is side shift, and how does it benefit forklift operation?

A: Side shift is a feature that allows the lateral adjustment of the forks without moving the entire forklift. It benefits forklift operation by enabling precise positioning of the forks relative to the load, reducing the need for manual repositioning and improving efficiency.

Q: What is a fork positioner, and why is it advantageous?

A: A fork positioner is a mechanism that allows for the automatic adjustment of the fork width to accommodate different load sizes. It is advantageous because it simplifies the process of adjusting the forks, enhancing versatility and productivity in handling various loads.

Q: Are forklifts with side shift and fork positioner suitable for all types of loads?

A: Yes, forklifts with side shift and fork positioner are versatile and can handle a wide range of loads, including palletized goods, irregularly shaped items, and different-sized containers. The adjustable features make them adaptable to various material handling requirements.

Q: How do side shift and fork positioner contribute to safety in forklift operation?

A: Side shift and fork positioner contribute to safety by allowing operators to precisely position the forks without the need for manual adjustments, reducing the risk of accidents and damage to goods. Properly aligned forks also ensure stable lifting and transportation of loads.
