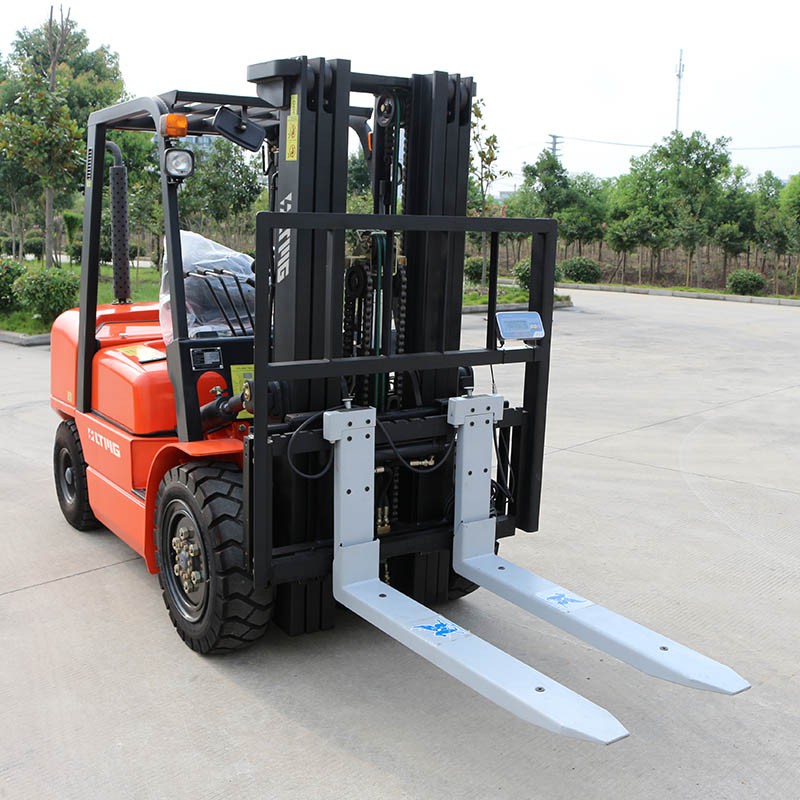

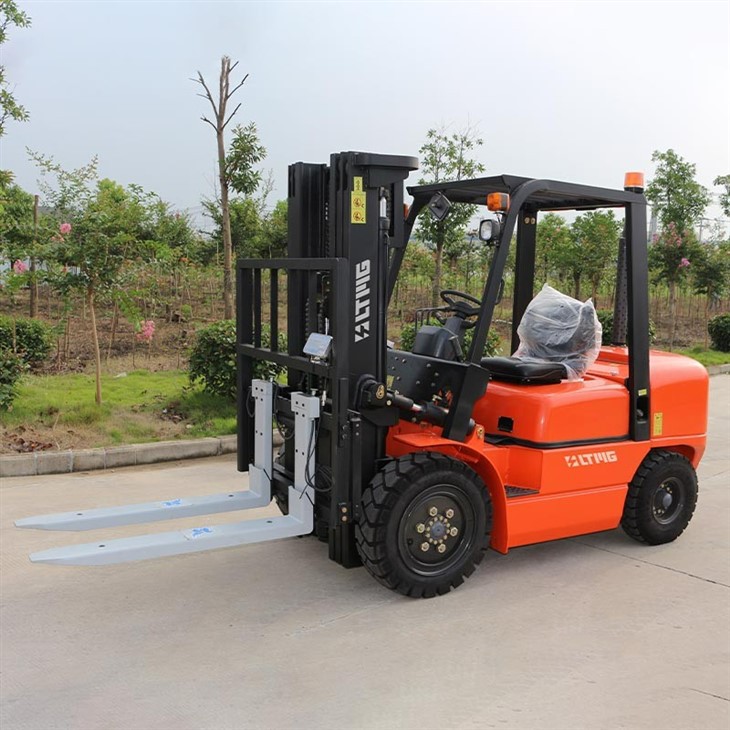

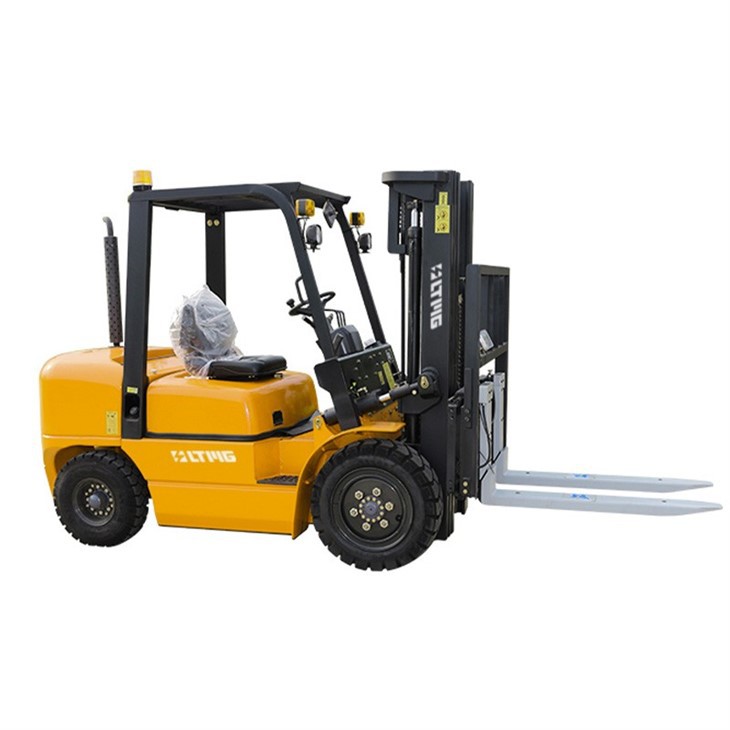

Name: Fork Truck Mounted Scales Weighing Fork
Brand: LTMG
SKU: 230877991

1. Integrated Weighing Fork and Scale: With both a weighing fork and scale integrated into its design, our Fork Truck Mounted Scale streamlines the weighing process, allowing for accurate measurements directly at the point of handling.

2. Dual Three-Meter Mast: Boasting a sturdy dual three-meter mast, this equipment ensures robustness and stability during operation, providing a reliable platform for precise weighing tasks.

3. Toyota Seat with Enhanced Safety Features: Experience unparalleled comfort and safety with the inclusion of a Toyota seat and enlarged anti-slip foot pedals. These features enhance operator comfort and ensure secure handling even in demanding environments.

4. Innovative Roof Guard Protection: Our Fork Truck Mounted Scale is equipped with a state-of-the-art roof guard protection system, designed to minimize vibrations and shocks during lifting operations. This novel feature ensures smoother handling and reduces the risk of damage to goods and equipment.

5. Advanced Hydraulic System: Engineered with an advanced hydraulic system, this scale delivers superior performance and efficiency. From swift lifting to precise control, the hydraulic system ensures seamless operation, enabling you to optimize productivity with ease.

Experience unparalleled efficiency and accuracy in your weighing operations with our Fork Truck Mounted Scale. Whether you're handling heavy loads in warehouses or logistics facilities, this multifunctional forklift will elevate your productivity and precision.

customize diesel forklift

fork lift truck scales

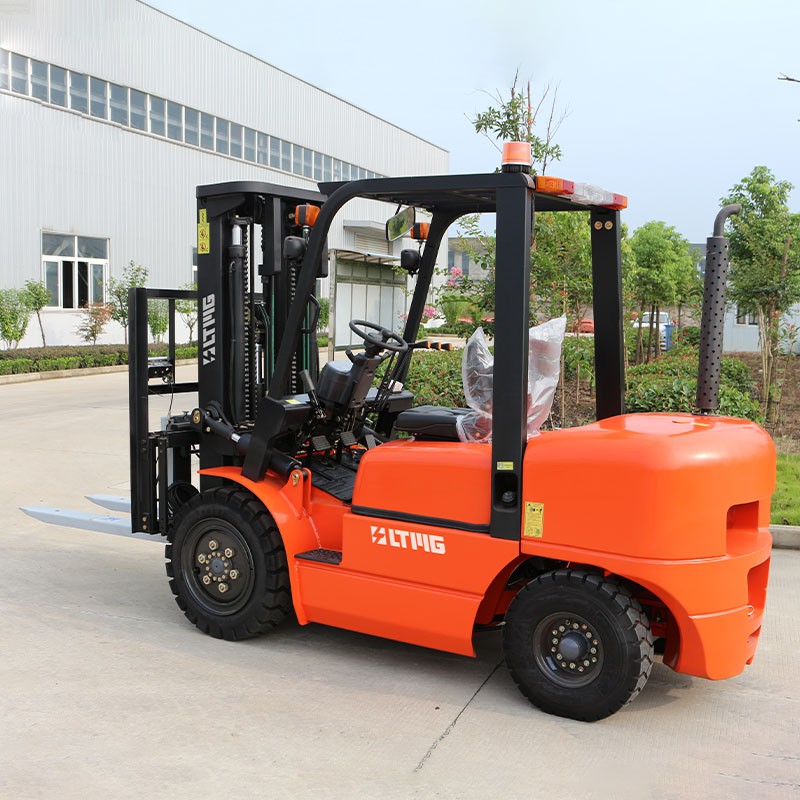

LTMG forklift

The specification of LTMG FD35 forklift

1	Model			Unit	FD35
2	Power type				Diesel
3	Rated capacity			kg	3500
4	Load center			mm	500
5	Operator type				Drive in seat
SIZE
6	Max. lift height of mast with load-backrest			mm	4262
7	Max.lift height of fork(standard)			mm	3000
8	Height of mast (standard)			mm	2180
9	Free lift height(standard)			mm	170
10	Height of load-backrest			mm	1235
11	Distance from seat to overhead guard			mm	1000
12	Overhead guard height			mm	2090
13	Overall length without fork			mm	2693
14	Front overhang			mm	498
15	Rear overhang			mm	495
16	Wheel base			mm	1700
17	The height of traction pin			mm	310
18	Min. ground clearance			mm	135
19	Overall width			mm	1225
20	The distance between forks			mm	1060/250
21	Tread(front /rear)			mm	1000/970
22	Min. turning radius(outside)			mm	2420
23	Min. turning radius(inside)			mm	200
24	Min. intersecting aisle			mm	2400
25	Mast tilt angle			deg	6°/12°
26	Fork size			mm	1070X125X50
PERFORMANCE
27	Speeds	Max.drive speeds(with/withoutfull load)		km/h	19/19
28		Lifting speeds (with /without full load)		mm/s	330/370
29		Lowering speeds(with /without full load)		mm/s	350/400
30	Max.tractive force(with/without full load)			kn	20/16.3	20/16.3
31	Max.grade ability (with/without full load)			%	15/20	16.5/20
WEIGHT
32	Total weight			kg	4700
33	Weight distribution full load (front/ rear)			kg	7380/820
34	Weight distribution zero load(front / rear)			kg	1880/2820
WHEELS AND TYRES
35	Quantity of wheels				2X/2
36	Type of tyres				Penumatic tyres
37	Tyres		Front		28X9-15-12PR
38			Rear		6.50-10-10PR
39	Driving brake		Hydraumatic Pedal
40	Parking brake		Mechanical manual
CONTROL DEVICE FOR DRIVING AND TRANSMITTING
41	Battery			v/ah	12/80
42	Engine (standard)		Model		XINCHANG A495BPG
43			Rated output	kw/rpm	42/2650
44			Rated torque	n.m/rpm	174/1800-1900
45			No.of cylinder		4-95X105
46			Displacement	L	2.98
47	Fuel tank capacity			L	60
48	Transmission			manual pallet transmission / Power pallet transmission

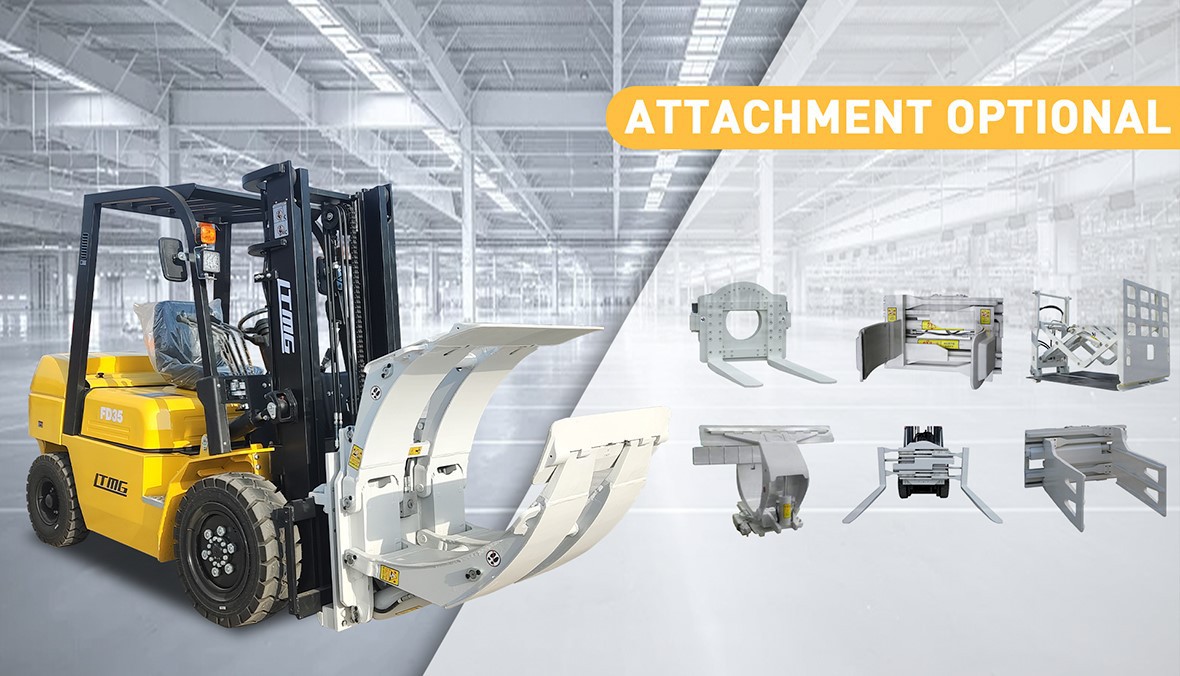

the attachments of LTMG forklift

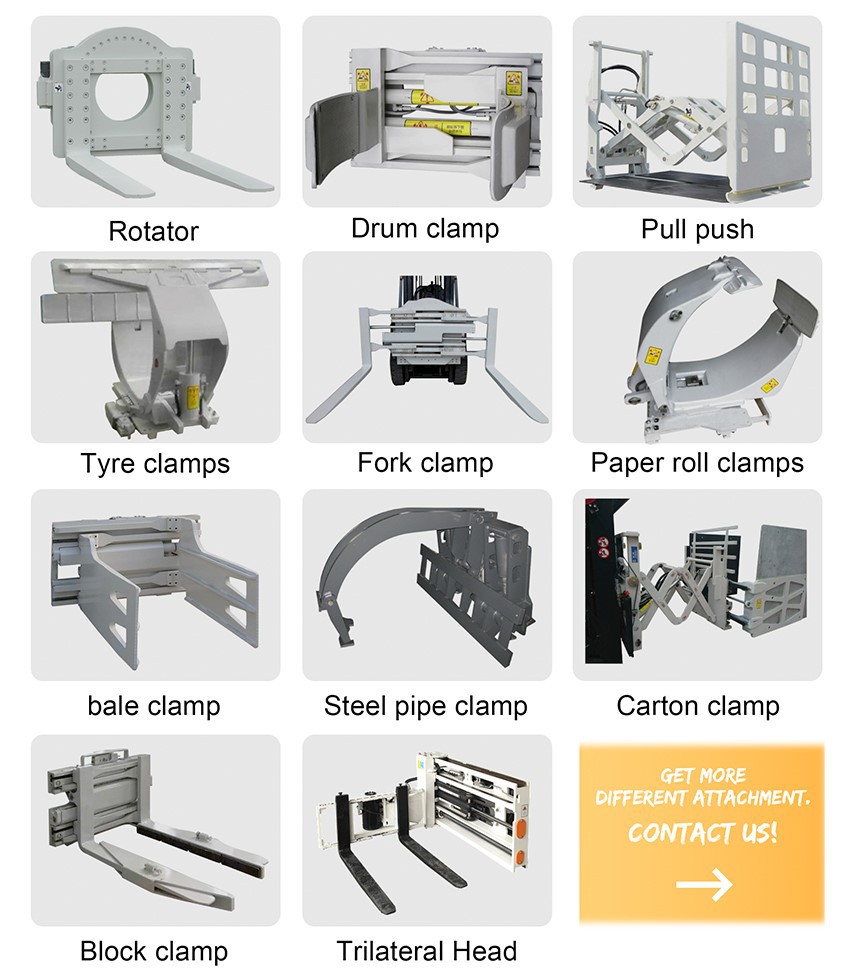

forklift with attachments

forklift extensions

FAQ

Q: What is a Fork Truck Mounted Scale, and how does it work?

A: The forklift with weighing system is a specialized weighing device that attaches to the forks of a forklift truck. It works by integrating weighing technology directly into the forks or attachments, allowing for the accurate measurement of loads during handling operations.

Q: What is a weighing fork, and how does it differ from traditional forks on a forklift truck?

A: A weighing fork is a specialized attachment that integrates weighing technology directly into the fork of a forklift truck. Unlike traditional forks, which are solely used for lifting and transporting loads, weighing forks allow for the real-time measurement of the weight of the load being handled.

Q: Can the weighing forks be used with different types of loads and materials?

A: Yes, weighing forks are versatile and can be used with a wide range of loads and materials, including pallets, containers, boxes, and other items commonly handled by forklift trucks. However, it's important to ensure that the capacity of the weighing forks matches the weight of the loads being handled to ensure accurate measurements.
