The explosion-proof diesel forklift truck is designed on the basis of normal serial forklift, combined with advanced domestic and foreign technology, strictly accordance with the national explosion-proof electric. low noise; excellent steering performance; stable and reliable, easy operating.

The 3 ton explosion proof diesel forklift is a highly efficient and reliable solution for transporting heavy loads in high-risk environments where flammable gas or liquid might be present. This diesel powered forklift boasts features that ensure safety and efficiency in every operation, making it ideal for use in chemical plants, oil refineries, and other hazardous locations.

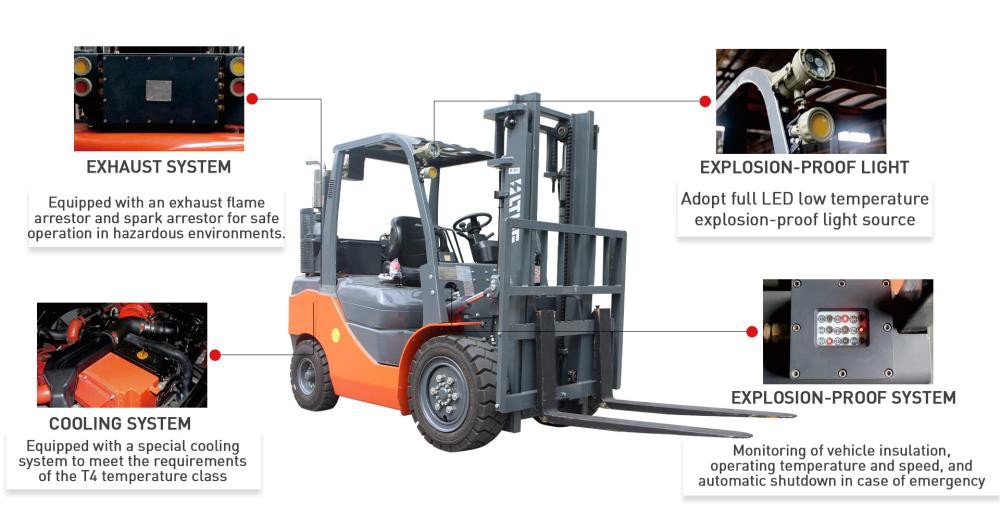

Exhaust flame arrestor and mars eliminator system: This system helps to prevent ignition sources from entering the exhaust, which could potentially trigger a fire or explosion. Additionally, the engine is equipped with a special cooling system that allows it to operate at peak efficiency while reducing the risk of overheating and ignition.

Anti-explosion light system: it eliminates the risk of sparking or igniting flammable substances. All lights on the forklift are designed to be flame-proof, ensuring safety in even the most dangerous environments.

Equipped with a carrying explosion-proof control system that helps operators to safely transport loads without the risk of explosion. This system is essential for interacting with hazardous substances while maintaining control and safety over the forklift's operation.

Boasts an emergency stop function that helps to prevent accidents and damage to the forklift while keeping employees safe in emergency situations. This feature ensures that the forklift can be stopped within seconds in case of an accident or emergency, making it an excellent choice for use in hazardous locations.

Overall, the explosion proof diesel forklift truck is a powerful, safe, and reliable solution for material handling in high-risk environments. Its advanced safety features and engineering make it an ideal choice for industries that prioritize safety and efficiency in every operation.

ex-proof forklift

flameproof diesel forklift

Explosion-proof forklift

Specification

Model		FD30EX
Power Type		Diesel
Rated Capacity	kg	3000
Load Centre	mm	500
Service weight	kg	4850
Wheel numberX=drive wheel (Front/Rear)		2X/2
Tyre Size(Front)		28×9-15-12PR
Tyre Size (Rear)		6.50-10-10PR
Front Tread	mm	1000
Rear Tread	mm	970
Wheelbase	mm	1700
L x W xT	mm	1070×125×45
Mast Tilt Angle(F/R)	deg	6/12
Lift Height	mm	3000
Mast Lowered Height	mm	2115
Free Lift Height	mm	125
Mast Extended Height	mm	4150
Length to Face of Fork	mm	2730
Overall Width	mm	1225
Overhead Guard Height	mm	2090
Front Overhang	mm	480
Rear Overhang	mm	550
Turning Radius (outside)	mm	2440
Ground Clearance (Bottom of mast)	mm	140
Min.intersecting aisle	mm	2490
Min.right angle stacking aisle width	mm	4115
Max.Travel Speed (Full load/No load)	km/h	19/20
Lifting Speed (Full load/No load)	mm/s	510/550
Lowering Speed (Full load/No load)	mm/s	≤600/≥300
Max.Gradeability (Full load)	%	20
Engine Model		XinChai 4D27G31
Rated output/r.p.m	kw/rpm	36.8/2650
Rated torque/r.p.m		156/1700~1900
No.of Cylinder		4
BorexStroke	mm	90×105
Displacement	L	2.67
Fuel Tank Capacity	L	60
Transmission Type		Mechanical/hydraulic
Operating Pressure	Mpa	18

Applications & Attachments

Explosion-proof forklift application

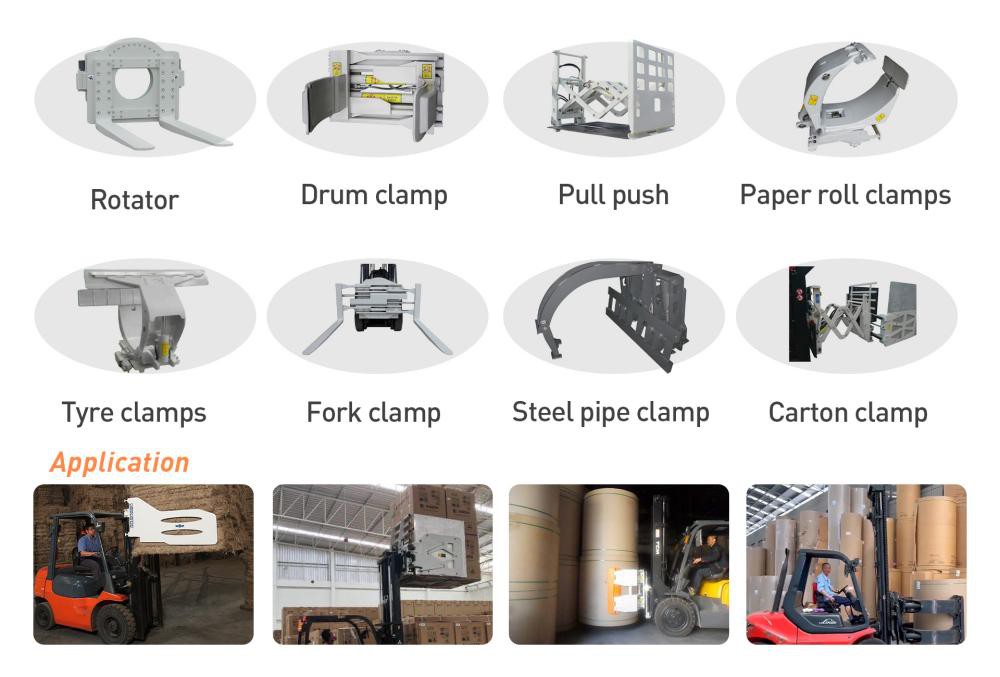

Explosion-proof forklift attachments

Advantages

diesel explosion proof forklift

ex-proof forklift configuration

FAQ

Q: How is an explosion proof diesel forklift different from a regular forklift?

A: There are several key differences between an explosion proof diesel forklift and a regular forklift. Firstly, explosion proof forklifts are designed to prevent sparks and other sources of ignition that could potentially cause an explosion in hazardous areas. Secondly, they are often more heavily built, with explosion-proof materials and components that make them more resistant to heat, fire, and explosion. Finally, they are often equipped with specialized safety features, including explosion-proof lighting and sirens to warn of potential dangers.

Q: What are some common features of explosion proof diesel forklifts?

A: Common features of explosion proof diesel forklifts include robust, fire-resistant housing, explosion-proof hydraulic systems, pressure relief valves, and various safety systems to prevent sparks and explosions. They may also be equipped with specialized mufflers and exhaust systems to reduce the risk of ignition from hot engine components.

Q: What types of industries typically use explosion proof diesel forklifts?

A: Explosion proof diesel forklifts are commonly used in industries such as chemical processing, oil and gas refining, and mining, where there is a risk of fire and explosion due to the presence of flammable or explosive substances. Other industries that may require the use of explosion proof forklifts include pharmaceuticals, food processing, and aerospace manufacturing, where precision and safety are critical.
