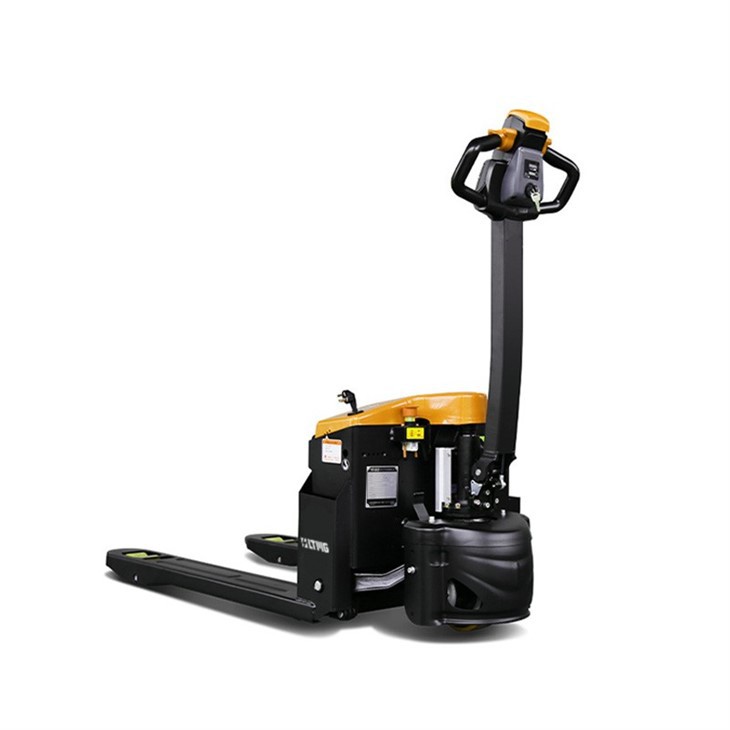

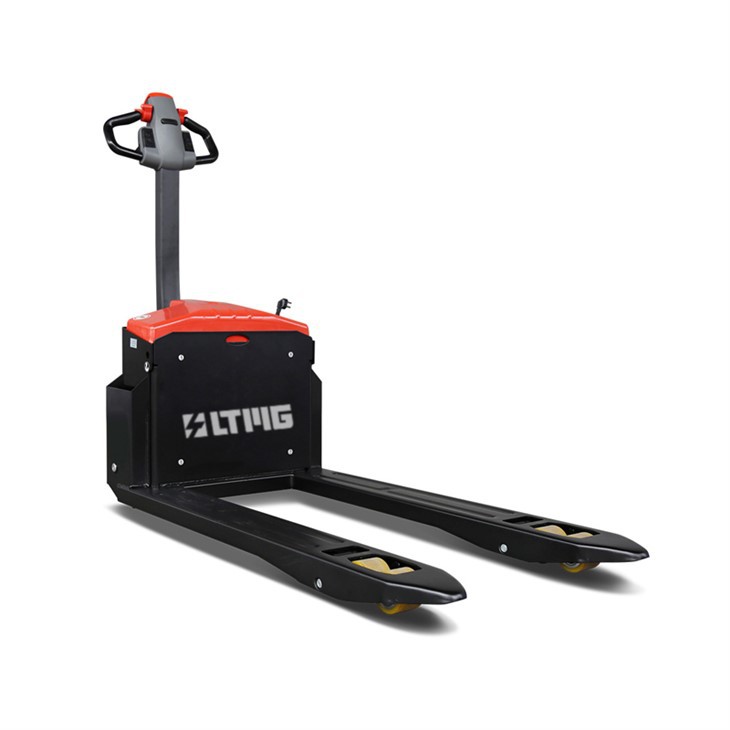

Electric Pallet Truck With Weighing Scale

Items:Electric Power Pallet Jack with Scales
Power type: electric
Rated capacity: 2000 kg
Color:customized
Send Inquiry
Chat Now

Product Introduction

The electric power pallet jack is a material handling product that offers superior performance, ease of use, and durability. This versatile machine is designed to meet the demands of the most challenging warehouse environments, providing unbeatable value for its users.



Electric pallet trucks are widely used in warehouses and manufacturing facilities to move heavy loads swiftly and efficiently. They are powered by a rechargeable battery and require minimal effort to operate. With the addition of a weighing scale, electric pallet trucks have become even more useful in various industrial applications.



The weighing scale on the electric pallet truck is a game-changer as it enables users to weigh goods while moving them around. This feature saves time and effort as there is no need to transfer goods to a separate weighing scale. The entire process of loading, moving, and unloading can be completed in one go, which increases efficiency and saves time.



Another advantage of electric pallet trucks with weighing scales is that they improve accuracy. The scale displays the exact weight of the load, eliminating guesswork and errors caused by manual weighing. This is beneficial in industries where weight accuracy is crucial, such as in pharmaceuticals or chemical manufacturing.



Electric pallet trucks with weighing scales are also known for their user-friendliness. They come equipped with a simple interface that makes them easy to operate. Additionally, electric pallet trucks have a faster turnaround time, enabling workers to complete more tasks throughout the day.



In conclusion, electric pallet trucks with weighing scales are an excellent investment for companies that want to increase efficiency and accuracy while reducing their carbon footprint. They are easy to use, versatile, and have a host of benefits that make them a valuable addition to any warehouse or manufacturing facility.



automatic pallet jack

electric power pallet jack

electric pallet


Technical parameters
Model   SHF20
Feature
Loading capacity kg 2000
Load center mm 600
Wheel base mm 1301
Operating type mm Walkie
Wheels
Wheels type   PU
Wheel quantity driving mm 1/0/4
Driving wheel size mm 252*67
Bearing wheel size mm 84*70
Balane wheel size mm
Dimension
Min.fork lifting height mm 85
Max.fork lifting height mm 205
Max.lifting height   120
Overall fork width mm 550/685
Inside width between forks mm 230/365
Fork length mm 1150/1200
Fork width mm 160
Fork thickness mm 75
Overall length mm 1707
Overall width mm 697
Overall height(with handle) mm 1181
Overall height(without handle) mm 714
Min.turning radius mm 1547
Min.Aisle with for pullets 800*1200 mm 1920
Min.Aisle with for pullets 1000*1200 mm 1953
Performance
Travel speed,laden/unlades km/h 3/3.5
Lift speed,laden/unlades mm/s 35/40
Lowering speed,laden/unlades mm/s 45/40
Gradeability,laden/unladed % 5/7
Electrical configuration
Drive motor kW DC 0.63
Lift motor kW DC 0.8
Battery voltage/capacity V/aH 24/85
Brake   Electromagnetic
Controller   CURTIS
Weight
Battery weight kg 52
Service weight with battery kg 245
Factory



electric drive pallet truck laser cutting

Shipping



electric pallet mover shipping

About LTMG

LTMG Machinery ensures the safe transportation of electronic pallet trucks to customers. We understand the importance of delivering cargo securely and efficiently, prioritizing the satisfaction and trust of our valued clients. Our commitment to safety, efficiency, and customer satisfaction sets us as a trusted partner.



Electric Power Pallet Jack with Scales company profile






FAQ

Q: What types of products does LTMG specialize in?

A:LTMG specializes in the production of a full range of material handling equipment, operating a wide range of product types including diesel forklifts, electric forklifts, LPG forklifts, rough terrain forklifts, side loader forklifts, telescopic forklifts, warehouse equipment, port machine (container handlers and reach stackers).

Q: What is LTMG's policy for responding to customer questions and concerns?

A: LTMG responds to any questions within 24 hours and provides free wearing parts during the warranty period. If you are not satisfied with any details of our company's sales and service, please feel free to contact us and we will do our best to solve your problems.

Q: Advantages of electric pallet trucks with weighing scales

A: electric pallet trucks are environmentally friendly as they produce no emissions, making them an eco-friendly alternative to traditional fuel-powered machines. This is especially important for companies that are looking to reduce their carbon footprint.
