Three-wheel electric forklifts, renowned for their agility and efficiency in confined spaces, boast a multitude of advantages over their four-wheel counterparts, with a standout feature being their incredibly tight turning radius. Let's delve into how this characteristic, among others, electric forklift truck wheel positions them as the go-to choice for many warehousing and material handling operations.
This enhanced maneuverability directly translates to increased productivity within warehouses. Narrow aisle widths, often a limiting factor for larger equipment, pose no obstacle for three-wheel forklifts. They can effortlessly weave through tightly packed shelves, facilitating efficient stock retrieval and placement without the need for expansive maneuvering space. Consequently, storage facilities can maximize their use of floor area by reducing aisle widths, thereby increasing storage capacity without compromising operational fluidity.
Products parameter
| Model | FB16S | |
| Power type | electric | |
| Rated capacity | kg | 1600 |
| Load center | mm | 500 |
| Tire type | pneumatic tyre | |
| Mast Tilt Angle | α/β(°) | 6°/6° |
| Fork Size | mm | 920×120×35 |
| Front Overhang(Wheel center to fork face) | mm | 390 |
| Tread | mm | 924/208 |
| Ground Clearance(Bottom of mast) | mm | 90 |
| Fork Spread | mm | 240/970 |
| Length to face of fork(Without fork) | mm | 2100 |
| Overall Width | mm | 1100 |
| Mast Lowered Height | mm | 2010 |
| Mast Extended Height(With backrest) | mm | 3940 |
| Turning Radius(outside) | mm | 1690 |
| Min. insecting aisle | km/h | 2300 |
| Travel (Empty load) | mm/s | 14 |
| Lifting (Full load) | 340 | |
| Max. Gradeability | % | 15 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

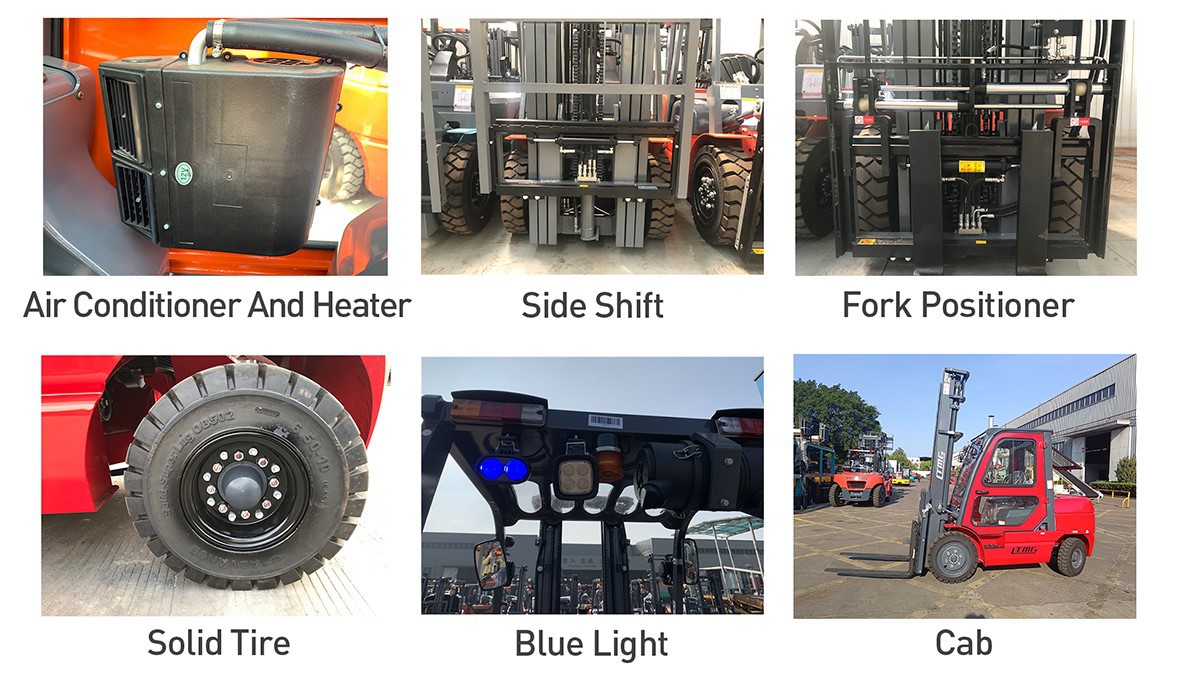

Forklift configurations
FAQ
Q: What are the key advantages of using a three-wheel electric forklift compared to traditional models?
Q: Can three-wheel electric forklifts handle heavy loads despite their smaller size?
