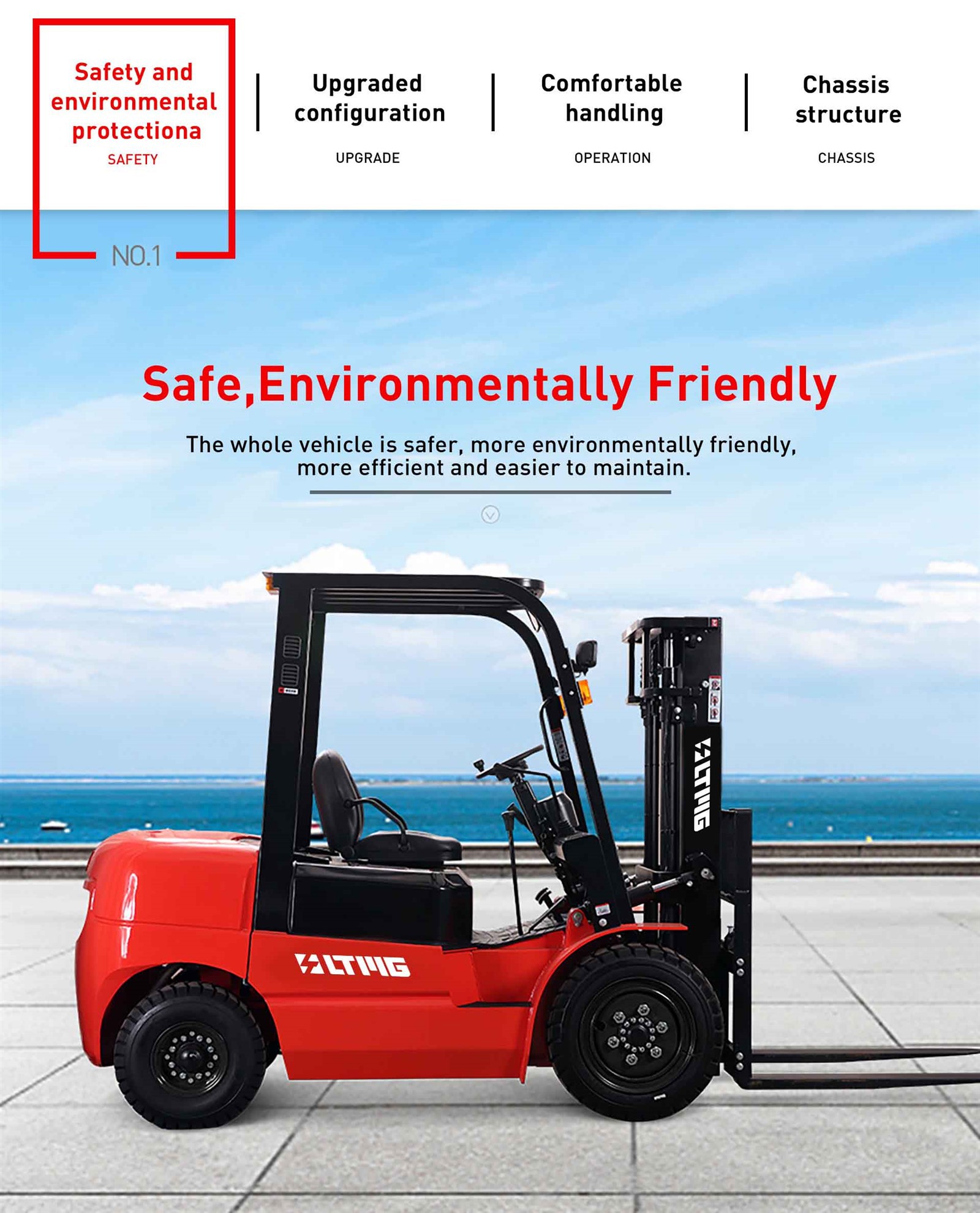

1. Safety Features:
- Integrated safety cage design ensures operator protection in case of tipping or collision.
- Anti-roll stability system prevents the forklift from tipping over on uneven terrain.
- Overhead guard and rearview mirror enhance visibility and reduce the risk of accidents.
- Automatic parking brake engages when the forklift is stationary, preventing unintended movement.
- LED safety lights provide high visibility in low-light conditions, enhancing overall workplace safety.
2. Environmental Protection:
- Advanced diesel engine technology reduces emissions, ensuring compliance with environmental regulations.
- Engine exhaust system includes a diesel particulate filter (DPF) to minimize harmful pollutants released into the atmosphere.
- Low-noise operation reduces environmental noise pollution in the workplace and surrounding areas.
3. Upgraded Configuration:
- Electronic fuel injection system optimizes fuel efficiency and engine performance, resulting in lower fuel consumption and reduced emissions.
- Hydraulic system with variable displacement pump enhances lifting and lowering speeds, improving productivity.
- Enhanced cooling system maintains optimal operating temperatures, increasing engine longevity and reliability.
4. Comfortable Handling:
- Ergonomically designed operator cabin with adjustable seat and controls ensures operator comfort during long shifts.
- Integrated vibration dampening system reduces operator fatigue and improves overall comfort.
- Multi-function display panel provides intuitive access to vital information, enhancing operational efficiency.
5. Chassis Structure:
- Robust chassis construction ensures durability and long-term reliability in demanding work environments.
- Heavy-duty front axle and suspension system provide stability and support for heavy loads.
- Reinforced mast design with dual cylinders ensures smooth and precise lifting and lowering of loads.

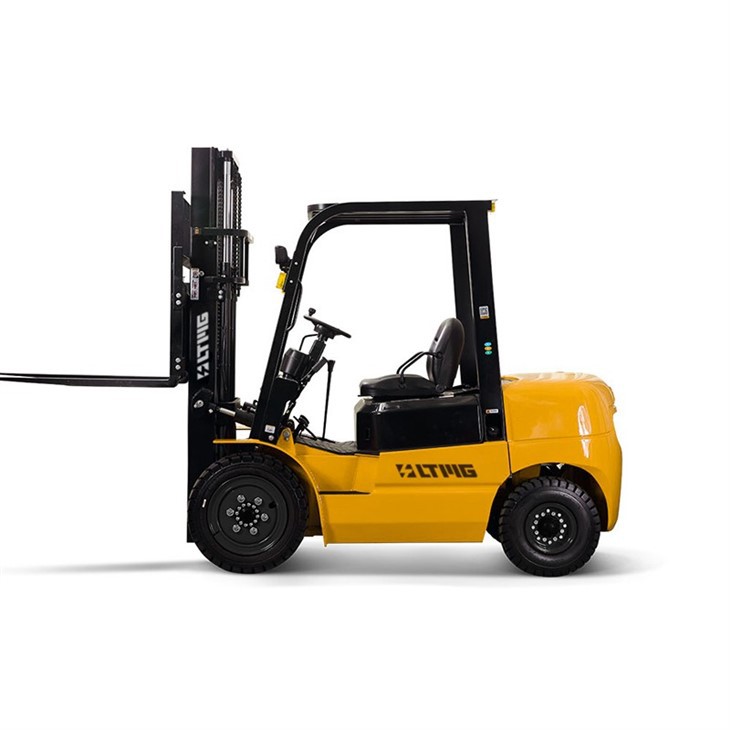

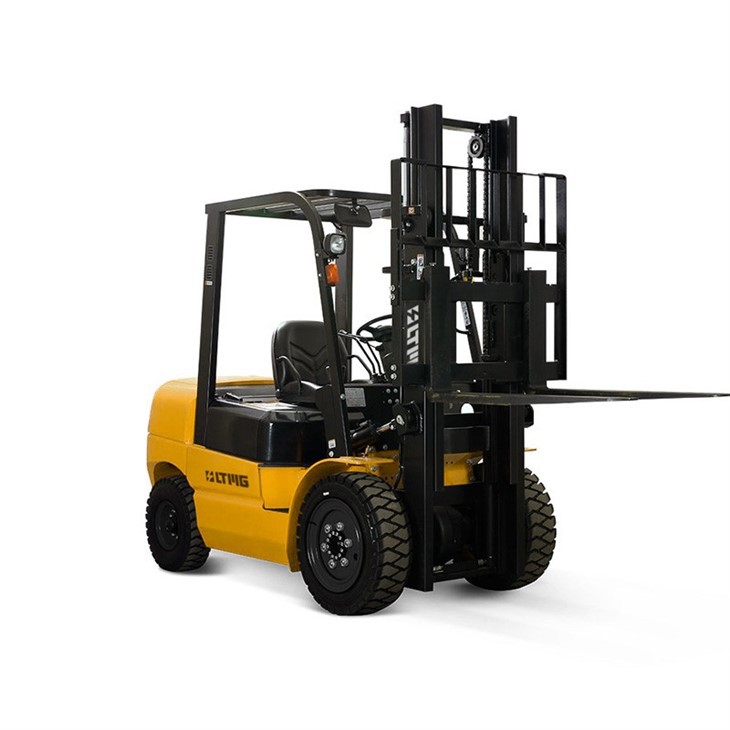

Overall, the LTMG 3 ton diesel forklift offers a comprehensive range of features designed to prioritize safety, environmental protection, operator comfort, and enhanced performance, making it an ideal choice for various material handling applications.
3 Ton diesel forklift specifications
Model-Specification | FD30 | ||||
Power Type | Diesel | ||||
Rated load | Kg | 3000 | |||
Load Centre | mm | 500 | |||
Lifting height | B | mm | 3000 | ||
Free lift height | E | mm | 120 | ||
Fork size | Length x Width x Thickness | J/W/T | mm | 1070×125×45 | |
Mast Inclination | Front/Rear | F/K() | deg | 6/10 | |
Front Overhang | K | mm | 481 | ||
Rear Overhang | M | mm | 500 | ||
Overall dimensions | Overall length (without forks) | Y | mm | 2710 | |
Overall width | Q | mm | 1230 | ||
Height without lifting | C | mm | 2070 | ||
Height when the gantry is raised | A | mm | 4210 | ||
Height of safety canopy | P | mm | 2190 | ||
Minimum turning radius | R | mm | 2400 | ||
Travelling speed (unladen/full load) (I/II) | Km/h | 8/20 | |||
Lifting speed (unloaded/full load) | mm/sec | 470 | |||
Lowering speed (full load) | mm/sec | 400 | |||
Maximum tractive effort (fully loaded) | N | 20000 | |||
gradient | % | 20 | |||
tyres | front wheel | mm | 28X9-15-14PR | ||
rear wheel | mm | 6.50-10-10PR | |||
tread | front wheel | u | mm | 1010 | |
rear wheel | V | mm | 980 | ||
wheelbases | L | mm | 1750 | ||
ground clearance | At portal frame (empty/full) | mm | 150/120 | ||
At the frame (empty/full) | mm | 170/150 | |||
self weight | Kg | 4120 | |||
axle load | fully loaded | front axle | Kg | 6420 | |
Rear Axle | Kg | 700 | |||
unladen | Front bridge | Kg | 1720 | ||
Rear axle | Kg | 2400 | |||
batteries | Voltage/Capacity | V/Ah | 12/80 | ||
Engnie | Model | 4D29V41 | |||
Brand | XinChai | ||||
Rated Power/RPM | kw | 36.8/2500 | |||
Rated torque / speed | Nm | 165/1600~1800 | |||
Cylinders | 4 | ||||
Bore x Stroke | mm | 93x105 | |||
Displacement | L | 2.85 | |||
discharge | 国V | ||||
Fuel tank volume | L | 70 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
