Products Description

Model		FB18
Power type		Electric
Rated capacity	mm	1800
Load center	mm	500
Driving brake		Hydraulic-pedal
Paking brake		Mechanical-manual
Free lift height	mm	140
Max.lift height of fork	mm	3000
Front-wheel Overhead	mm	2100
Length(without fork)	mm	2035
Front overhang	mm	400
Rear overhang	mm	335
Wheelbase	mm	1360
Min.ground clearance	mm	110
Tread(front/rear)	mm	912/920
Overall width	mm	1150
Fork size	mm	920x100x40
Minimum right Angle stacking channel width	mm	3797
Max driving speed	km/h	10~12
Max Lifting speed	mm/s	240~450
Max lowering speed	mm/s	480~420
Maxmum tractive force	N	8800
Max.grade ability	%	12~15

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail

Products Description

product-1180-676

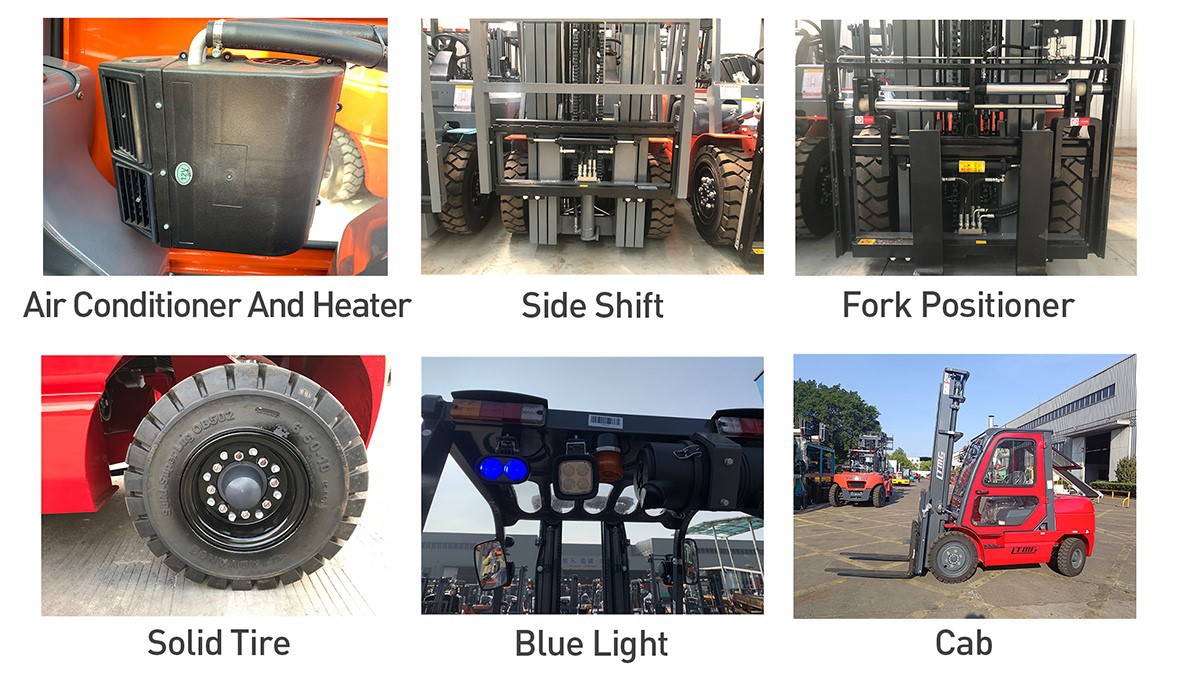

When purchasing a forklift, customers have the flexibility to choose from a variety of optional configurations and accessories to tailor the machine to their specific needs and applications.

In addition to the standard setup, options include:

•Solid Tyres: Ideal for rough or outdoor terrains, solid tyres provide enhanced puncture resistance and longevity compared to pneumatic tyres. They're low maintenance and perfect for environments where sharp debris could damage conventional tyres.

•Fork Positioner: This convenient attachment automatically adjusts the distance between the forks to match the pallet size, saving time and increasing productivity during loading and unloading processes.

•Cab Enclosure: Designed for operator comfort and safety, cabs can be fully enclosed with heating, air conditioning, and even sound insulation. They protect operators from adverse weather conditions and airborne particles while providing a secure and comfortable workspace.

•Additional Accessories: Other choices might include side-shifters for improved load handling accuracy, safety lights and cameras for enhanced visibility, load backrests for increased stability, and various hydraulic attachments for specialized lifting jobs.

Customers can customize their forklift with these and other add-ons to optimize performance, efficiency, and operator convenience. This level of customization ensures that the forklift can effectively and efficiently perform in diverse work environments and fulfill a multitude of tasks.

product-1180-647
