Name: Electric Forklift Quote
Brand: LTMG
SKU: 238459310

advantage of LTMG forklift

State-of-the-Art Monitoring: Electric forklifts are typically furnished with an expansive LCD panel that offers an immediate readout of the vehicle's operational status. This sophisticated interface delivers up-to-the-minute data and incorporates a fault indication system along with operational error alerts, which bolster both safety and situational awareness.

Customizable Performance Settings: The forklift is equipped with a selection of three different gear modes, enabling users to tailor the performance to match their precise operational needs. This customization leads to enhanced efficiency and superior task execution. Additionally, an optional feature for controlling the steering speed is included, designed to reduce the likelihood of the forklift tipping over, particularly in difficult working conditions.

Low Maintenance Operation: As part of the standard package, these forklifts are often fitted with premium lithium batteries from esteemed manufacturers such as Heding. Known for their extended lifespan and backed by a five-year warranty, these batteries provide dependable service. They are eco-friendly, emission-free, and require minimal upkeep, offering a considerable benefit for operations with tight schedules.

Efficient Power Recharge: Capable of reaching a full charge within a timeframe of 1.5 to 2 hours, the electric forklift is well-suited for round-the-clock shifts. This swift charging feature guarantees that the forklift spends less time idle and more time contributing to the workflow, thus maximizing daily output.

Loading assurance

Loading progress

Machine Protection in Containers: Prior to loading the forklift into the shipping container, it is essential to ensure the machine is well-protected. This involves wrapping the forklift with protective materials to shield it from potential damage during transit. Protective films, covers, and padding are commonly used to safeguard the machine's exterior and sensitive parts.

Use Wire Rope to Fix the Machine: To prevent any shaking or movement of the forklift within the container, it is crucial to secure the machine effectively. Wire ropes are used to fasten the forklift to the container's floor, ensuring it remains stable and minimizing the risk of damage from movement during sea travel.

Export Qualification: The forklift must meet all export qualifications and regulations. This ensures that the machine complies with international shipping standards and can be legally transported across borders.

Inspection Certificate: An inspection certificate is included with the shipment. This document verifies that the forklift has been thoroughly inspected and is in good condition before shipping, providing assurance to the buyer of its quality and functionality.

electric forklift common faults

Electric forklifts, while highly efficient, can encounter various malfunctions. Here's a look at some of the most prevalent issues and their respective solutions:

Ease of Maintenance: Standard equipment often includes a high-quality lithium battery from a reputable brand like Heding. These batteries boast a long service life and come with a five-year warranty, offering peace of mind and reliability. They are environmentally friendly, producing zero pollution, and are virtually maintenance-free, which is a significant advantage for busy operations.

Quick Charging Capability: The electric forklift can be fully charged in just 1.5 to 2 hours, making it more suitable for multi-shift work. This quick charging capability ensures minimal downtime and maximum productivity throughout the day.

Easy Battery Access and Maintenance: The design of the electric forklift facilitates easy maintenance with a nearly 90-degree large opening angle for the battery cover and flexibly mounted side covers. These features greatly simplify the process of battery installation and line maintenance, reducing the time and effort required for upkeep.

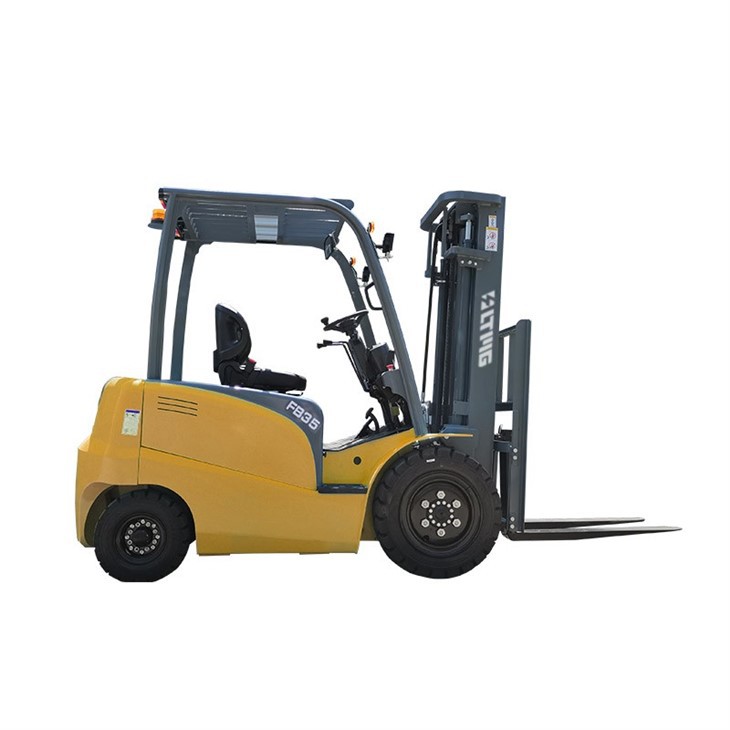

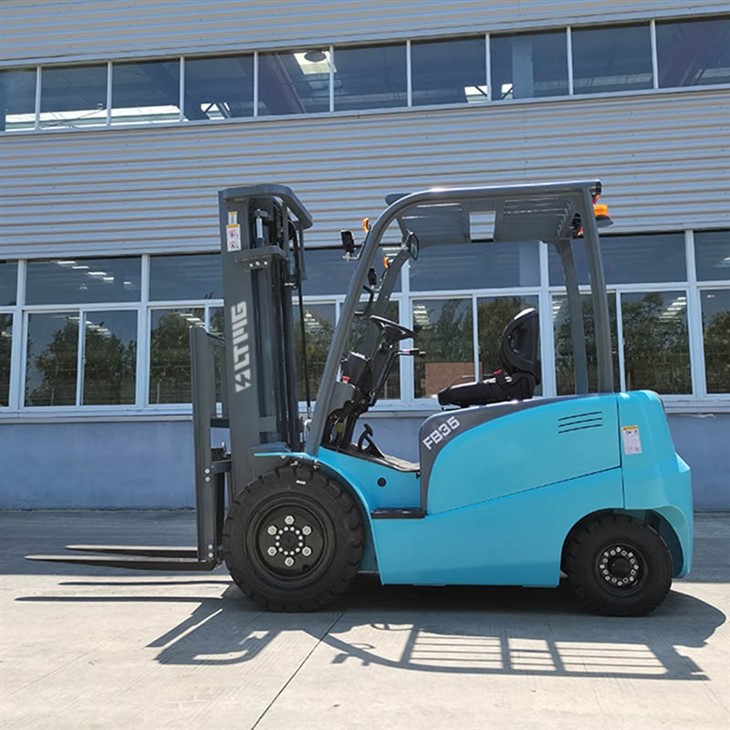

Model		FB35
Rated Capacity	kg	3500
载Load Center Distance	mm	500
Power Type		Lithium Battery
Wheel Base	mm	1600
Wheel Number(Front/Rear)		2×/2
Front Tread	mm	1000
Rear Tread	mm	970
Tyre(Front)		28X9-15-12PR
Tyre(Rear)		18X7-8-14PR
Front Overhang	mm	475
Mast Tilting Angle,Front/Rear		6/12
Height With Mast Retraction	mm	2025
Free Lifting Height	mm	150
Max.Lifting Height	mm	3000
Max.Height After Lifting	mm	4160
Overall Guard Height	mm	2092
Fork Size:Length X Width X Thickness	mm	1070×125×45
Overall Length(Fork Excluded)	mm	2507
Overall Width	mm	1220
Turning Radjus	mm	2360
Ground Clearance Of Mast	mm	120
Ground Clearance Of Wheel Base Center(Loaded)	mm	130
Right Angle Stacking Aisle Width (Pallet 1000×1000Mm),Clearance 200Mm	mm	4105
Right Angle Stacking Aisle Width (Pallet 1200×1200Mm),Clearance 200Mm	mm	4305
Lateral Fork Adjustment Max./Min	mm	1100/250
)Travelling Speed (Loaded/Unloaded)	km/h	14/15
Lifting Speed (Loaded/Unloaded)	mm/s	300/400
Lowering Speed	mm/s	<600
Gradeability (Loaded)	%	14
Self Weight	Kg	4950
Battery Voltage /Capacity	V/Ah	80/280
Battery Weight	Kg	1125
Driving Motor Power-60 Minutes	Kw	16.6
Lifting Motor Power(S315%)	Kw	13.5
Driving Motor Control Mode		Full AC
Lifting Motor Control Mode		Full AC
Service Brake/Parking Brake		Hydraulic /Mechanical
Hydraulic System Working Pressure	Mpa	17.5

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
