Products features

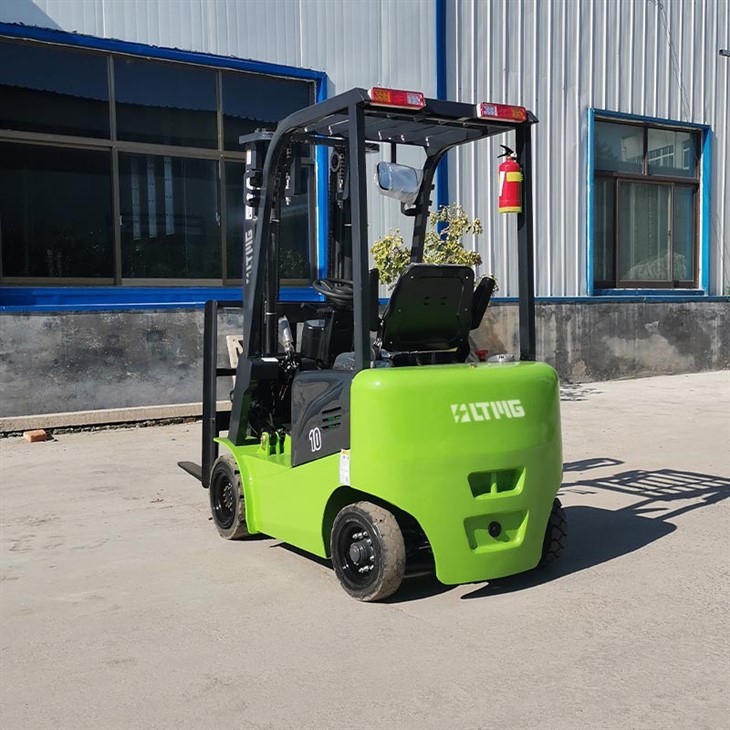

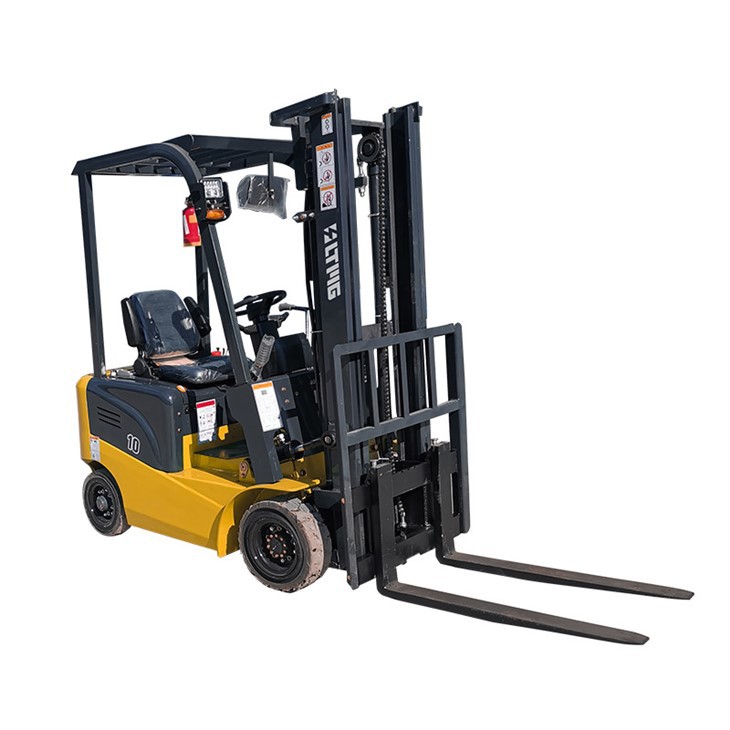

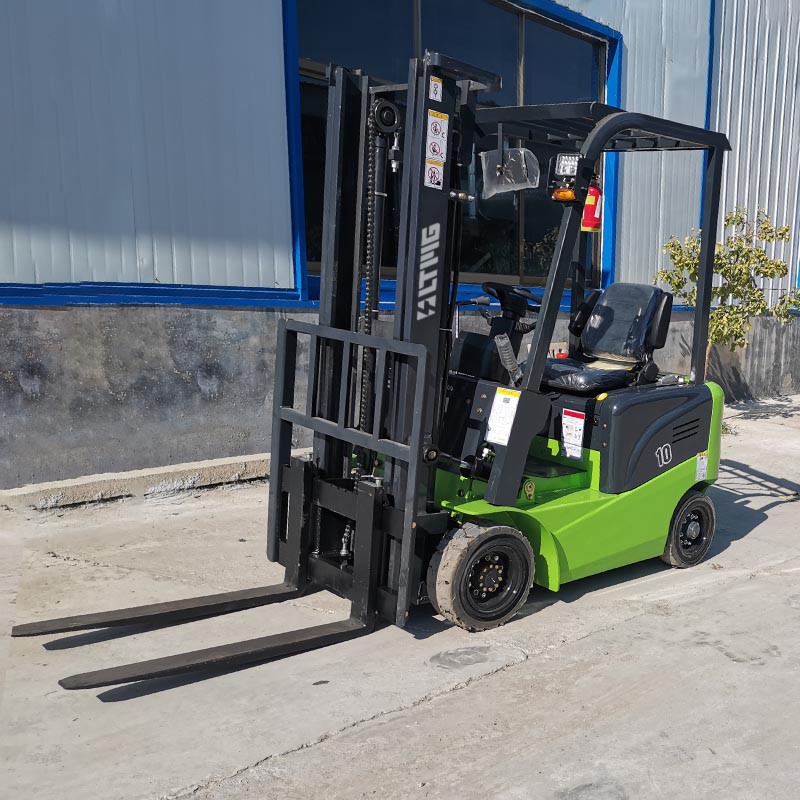

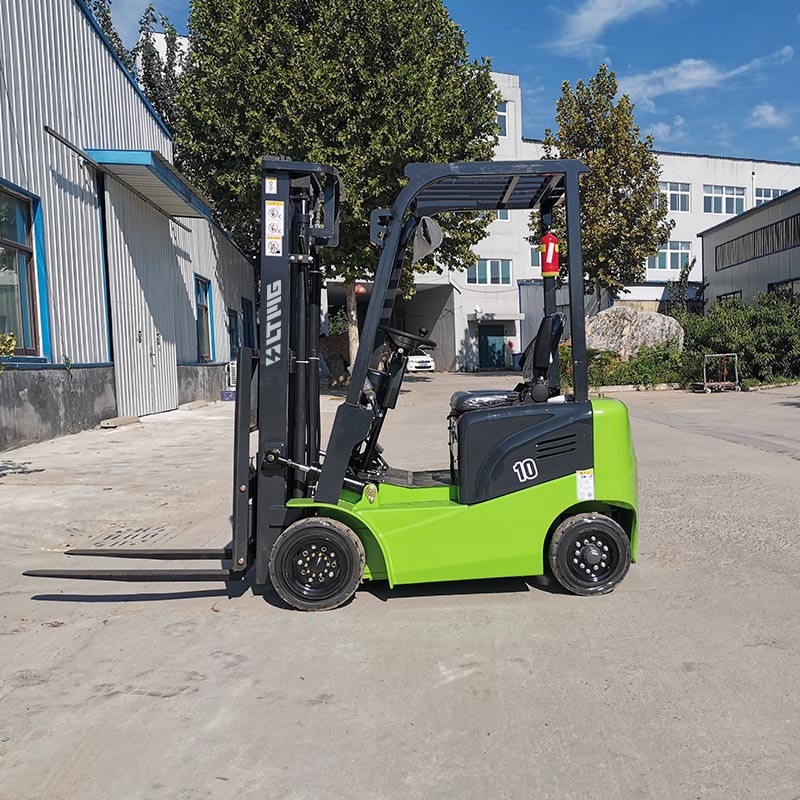

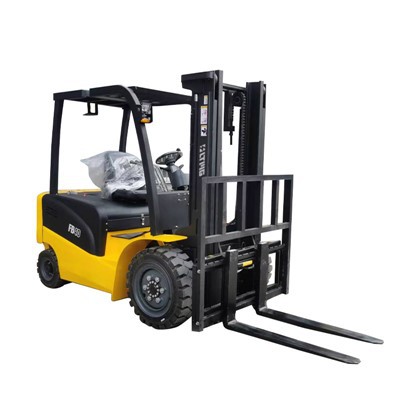

Introducing our Lithium Battery Powered Mini Electric Forklift, a game-changing 1-ton capacity vehicle designed for ultimate efficiency and operator comfort in confined spaces. This compact powerhouse blends advanced ergonomics with eco-friendly technology to redefine the material handling experience.
At the core of its design is a meticulously optimized full-scale operation space, ensuring the operator enjoys an excellent, comfortable, and convenient working environment. Every element has been arranged to minimize strain and maximize productivity, making the lithium battery powered mini electric forklift a joy to operate for extended periods.
The innovative adjustable tilt steering wheel, featuring a smaller diameter, adapts to individual preferences, reducing fatigue and improving control. This thoughtful inclusion allows for precise maneuverability even in the tightest turns, enhancing the overall driving experience and safety.
The strategically positioned hydraulic control lever at the front complements the ergonomic design, enabling smooth and efficient lifting and lowering operations. Paired with a right-mounted emergency cutoff switch, it underscores our commitment to safety, allowing operators to respond swiftly in any unexpected situation.
For added comfort, the fully adjustable bucket seat with a 150mm range accommodates various operator sizes, ensuring a customized fit. This adjustability promotes correct posture, further reducing fatigue during prolonged use and enhancing operator satisfaction.In summary, our Lithium Battery Powered Mini Electric Forklift is more than just a compact lifting solution; it's a workplace revolution. With its thoughtful ergonomic enhancements, responsive controls, and environmentally friendly power source, it delivers a superior performance that's gentle on the environment and tough on the job. Experience the future of indoor logistics today with a mini electric forklift that harmoniously integrates power, precision, and operator well-being.
attachment
OEM service
About LTMG
About LTMG
|
Model |
FB10 |
|
|
Rated Capacity |
kg |
1000 |
|
Load Centre |
mm |
500 |
|
Lift Height |
mm |
3000 |
|
Fork Size (L×W×T) |
mm |
920×120×35 |
|
Mast Tilt Angle F/R (α°/β°) |
Deg |
6/12 |
|
Length to fork face of fork (Without fork) |
mm |
2190 |
|
Overall Width |
mm |
1090 |
|
Mast Lowered Height |
mm |
1995 |
|
Mast Extended Height (With backrest) |
mm |
3940 |
|
Overhead Guard Height |
mm |
2195 |
|
Turning Radius (outside) |
mm |
2010 |
|
Front Overhang (Wheel center to fork face) |
mm |
420 |
|
Tread (Front/Rear) |
mm |
890/920 |
|
Ground Clearance (Bottom of mast) |
mm |
110 |
|
Wheelbase |
mm |
1420 |
|
Fork Spread (Min./Max) |
mm |
240/970 |
|
Travel Speed |
km/h |
14 |
|
Lifting Speed (Full load) |
mm/s |
320 |
|
Max. Gradeability |
% |
15 |
|
Service Weight |
kg |
3070 |
|
Front Tire×2 |
6.50-10-10PR |
|
|
Rear Tire×2 |
5.00-8-10PR |
|
|
Driven Motor |
kw |
8 |
|
Lift Motor |
kw |
8.6 |
|
Battery Standard |
V/Ah |
48/400 |
|
Controller Manufacturer |
CURTIS AC |
|
|
Operating Pressure for Attachment |
Mpa |
14.5 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
