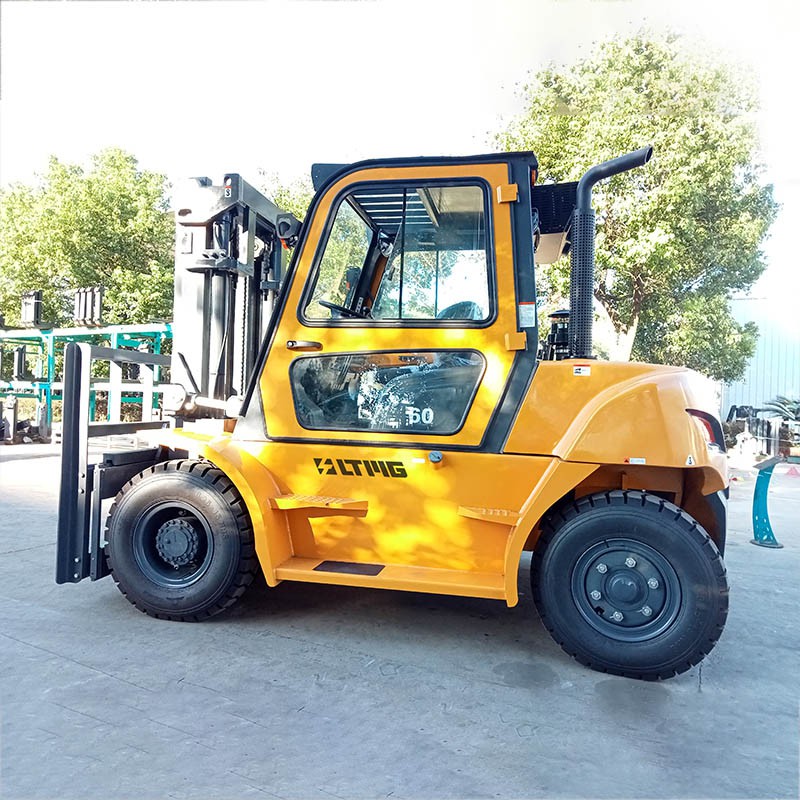

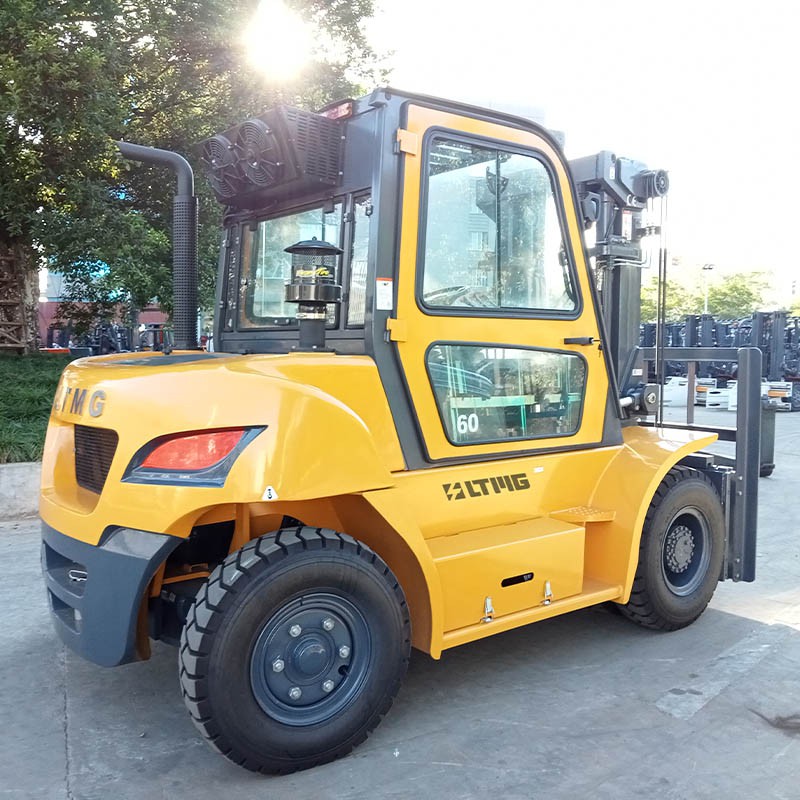

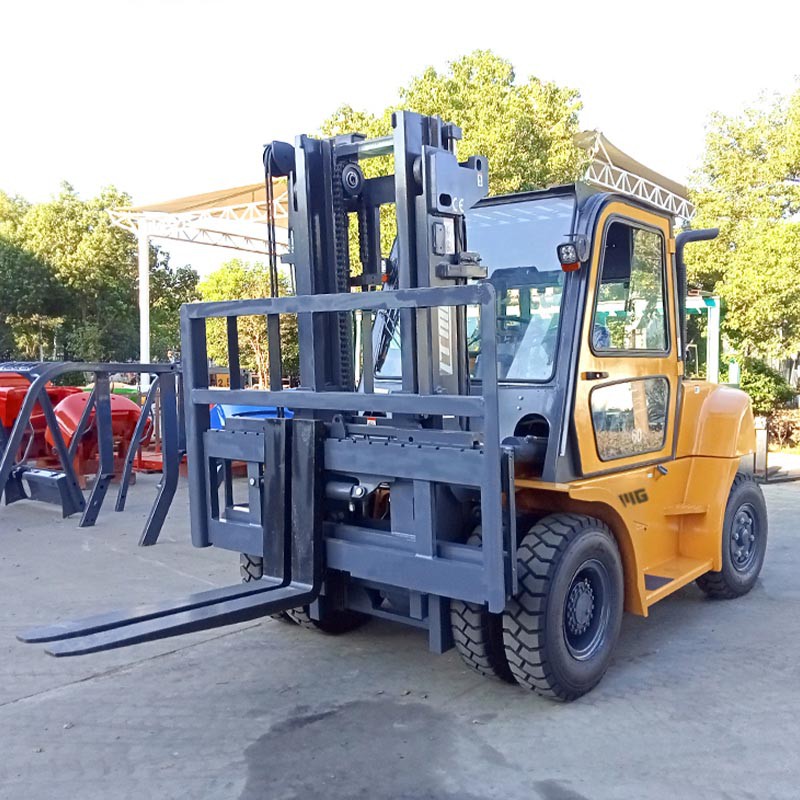

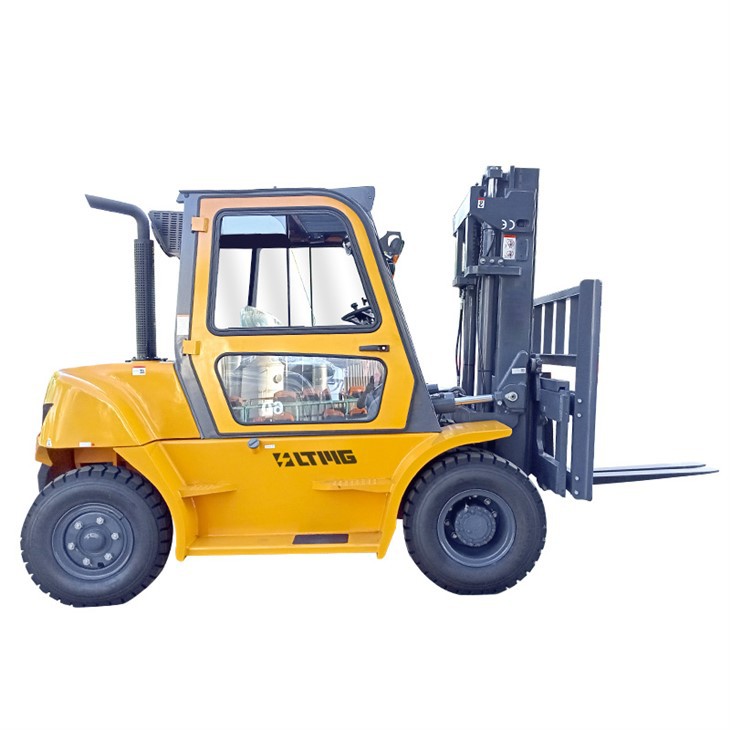

The 6 ton forklift with enclosed cabin is a powerful and reliable machine that is designed specifically to handle heavy loads with ease. Equipped with a spacious and comfortable cabin, this forklift provides operators with an excellent view of their surroundings, while also protecting them from environmental factors such as wind, rain, and dust.Built with advanced technology and sturdy materials, this forklift delivers exceptional performance and stable operation even in rough terrain. Its diesel engine provides the necessary power to lift heavy loads with ease, while its hydraulic system ensures smooth and precise handling.

With a lifting capacity of up to 6 tons, this forklift is ideal for a wide range of industrial applications such as warehouses, ports, and construction sites. Its enclosed cabin is designed to provide maximum safety and comfort for operators, with features such as air conditioning, heating, and adjustable seats.
Other features of this forklift include an advanced steering system, easy-to-use controls, and excellent maneuverability. Its compact design and narrow turning radius make it easy to operate in tight spaces and narrow aisles, making it an ideal choice for busy warehouses and storage facilities.

Overall, the 6 ton forklift with enclosed cabin is an excellent choice for businesses that require a reliable and powerful machine for heavy lifting operations. With its advanced features and durable construction, this forklift is built to deliver outstanding performance and productivity, while also providing a safe and comfortable working environment for operators.

Technical Specification

General	Model				FD60
	Power Type				Diesel
	Rated Capacity			kg	6000
	Load Centre			mm	600
Characteristic&Dimension	Lift Height			mm	3000
	Fork Size	L×W×T		mm	1220×150×60
	Mast Tilt Angle	F/R		Deg	6°/12°
	Fork Overhang (Wheel center to fork face)			mm	590
	Ground Clearance(Bottom of mast)			mm	200
	Overall Dimension	Length to face of fork(Without fork)		mm	3440
		Overall Width		mm	2010
		Mast Lowered Height		mm	2500
		Mast Extended Height(With backrest)		mm	4415
		Overhead Guard Height		mm	2430
	Turning Radius (outside)			mm	3250
Performance	Speed	Travel (Full load)		km/h	30
		Lifting (Full load)		mm/s	500
	Max.Gradeability			%	20
Chassis	Tyre	Front		mm	8.25-15-14PR
		Rear		mm	8.25-15-14PR
	Wheelbase			mm	2250
	Self weight			kg	8750
Power&Transmission	Battery	Voltage/Capacity		V/Ah	(12/80) x 2
	Engine	Model			6BG1-02
		Manufacture			ISUZU
		Rated output/r.p.m.		kw	82.4/2000
		Rated torque/r.p.m.		N·m	416/1600
		No.of Cylinder			6
		Bore×Stroke		mm	105×125
		Displacement		cc	6494
		Fuel Tank Capacity		L	125
	Transmission	Type			Hydraulic
		Stage	FWD/RVS		2/2

With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

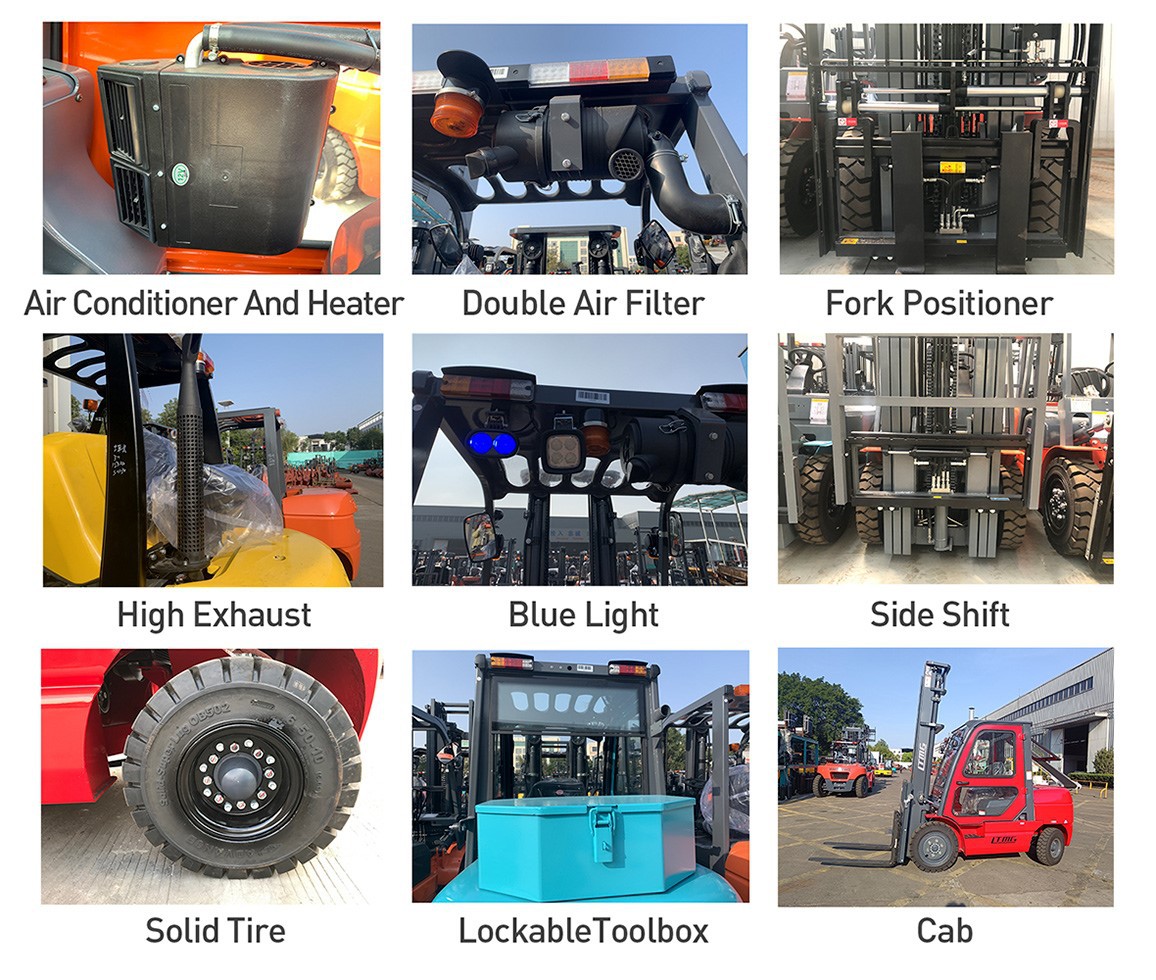

optional

Forklift engines are the heart of any material handling operation. Whether you need to lift, move, and stack heavy loads in a warehouse, construction site or distribution center, the engine of your forklift will dictate the performance and efficiency of your work.A well-designed forklift engine is essential to ensure optimal power output, fuel efficiency, and reliability. In general, forklift engines run similar to other internal combustion engines, but they have some unique features to improve performance and safety.

There are different types of forklift engines varying based on fuel type, size, and power output. Electric engines run on batteries, making them quieter and eco-friendly. These engines can take time to recharge, but they usually require less maintenance, as they don't have oil filters, spark plugs, and other consumable parts.Gasoline and propane engines are also popular, although they are more expensive than electric ones. Gasoline engines are faster, have more horsepower, and are easy to maintain. Propane engines are preferable in indoor environments since they have fewer emissions than gasoline engines.

isuzu engine

FAQ

Q: What are the advantages of a three-stage mast?

A three-stage mast allows for higher lift heights, making it ideal for warehouses and distribution centers with tall ceilings. The mast is also more stable than a two-stage mast, providing better stability and safety for the operator. Additionally, a three-stage mast can improve maneuverability in tight spaces, as it allows for a lower collapsed height.

Q: What are the disadvantages of a three-stage mast?

The main disadvantage of a three-stage mast is that it typically comes at a higher cost than a two-stage mast. Additionally, the increased height and complexity of the mast can make it more difficult to operate for inexperienced operators.

Q: What are the advantages of a two-stage mast?

A two-stage mast is generally more cost-effective than a three-stage mast, making it a popular choice for businesses on a budget. It also has a simpler design, making it easier to operate and maintain. The lower height of the mast can also make it ideal for use in low-ceilinged spaces.

What are the disadvantages of a two-stage mast?

The primary disadvantage of a two-stage mast is its limited lift height. This can make it difficult to access items on top shelves or in high spaces. Additionally, it may not be as stable as a three-stage mast, particularly when carrying heavy loads.
