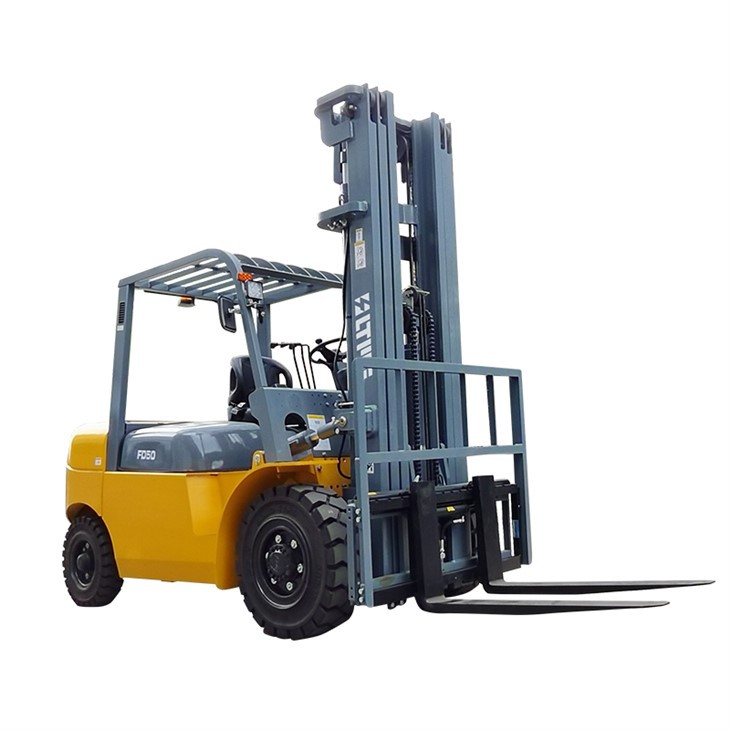

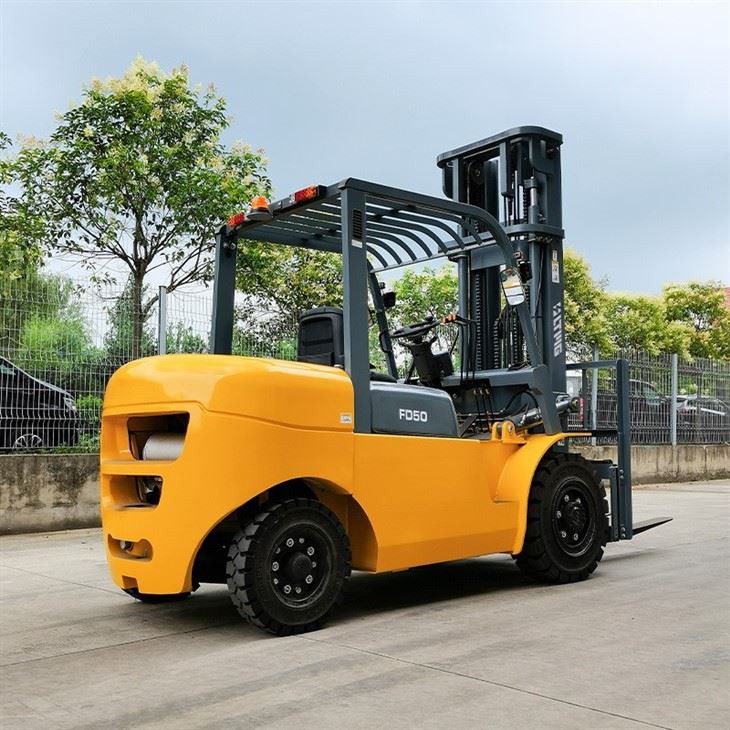

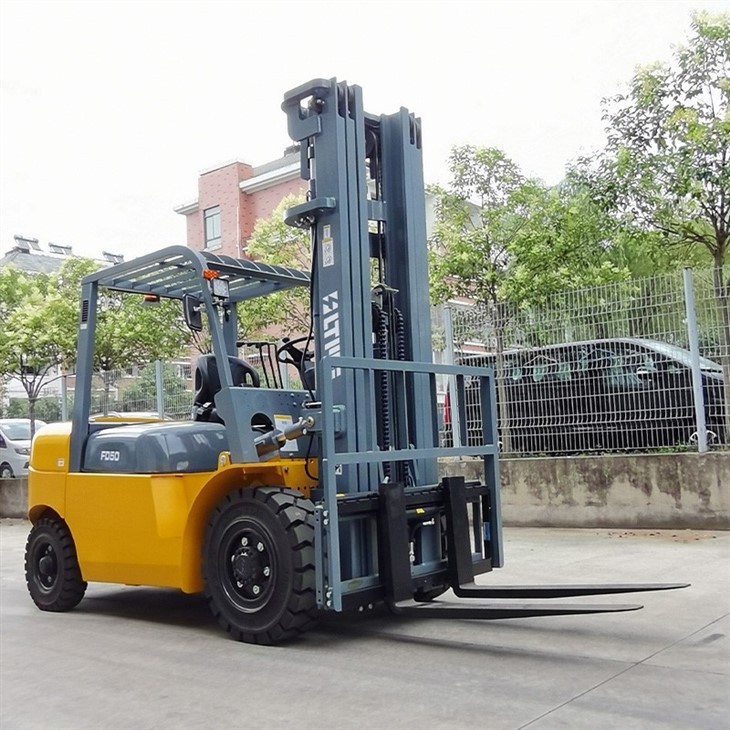

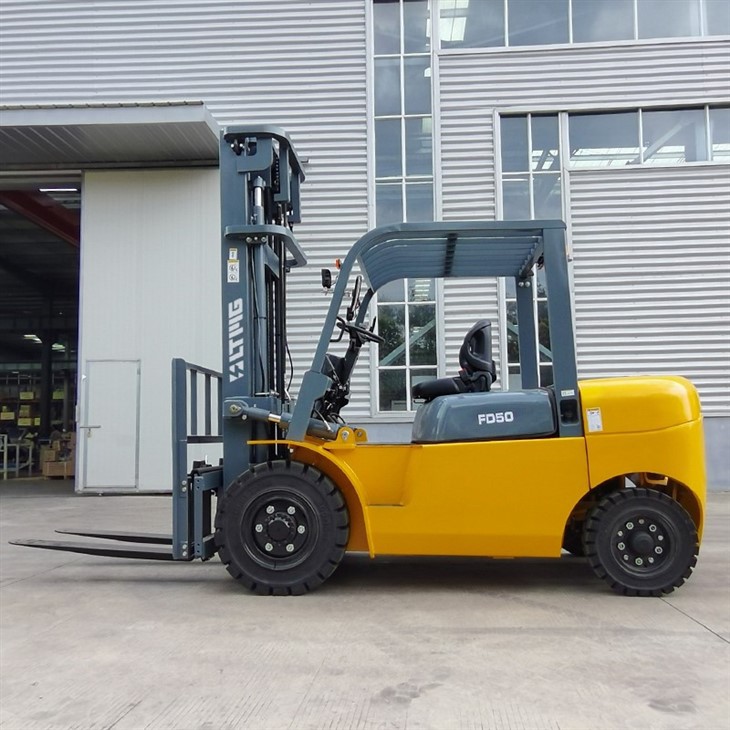

The 5 ton diesel forklift is specifically designed for use in a variety of tough environments and work settings. With its powerful engine and sturdy construction, this forklift is able to handle heavy loads and demanding tasks with ease.
Some of the common environments where the 5 ton diesel forklift can be used include warehouses, manufacturing facilities, construction sites, and loading docks. It is particularly well-suited for use in applications that require heavy lifting and transporting of materials, including pallets, crates, and other large objects.
One of the key advantages of the 5 ton diesel forklift is its ability to operate in outdoor environments, including construction sites and other rough terrain. The forklift's durable tires and robust suspension system enable it to navigate over uneven surfaces and handle rough terrain with ease.
In addition, the 5 ton diesel forklift is designed to be highly reliable and low maintenance, making it an ideal choice for businesses and organizations that need a high-performing forklift that can operate consistently with minimal downtime.
Overall, the 5 ton diesel forklift is a versatile and efficient piece of equipment that is capable of operating in a variety of environments and applications. Whether you need to move heavy loads in a warehouse, transport materials on a construction site, or load and unload shipping containers, this forklift is up to the task.
Technical Specification
| Model | FD50 | |
| Rated lifting load | kg | 5000 |
| Load center distance | mm | 500 |
| Free lifting height | mm | 160 |
| overall length (With fork/Without fork) | mm | 4120/3050 |
| Width | mm | 1400 |
| Overhead guard height | mm | 2230 |
| Wheelbase | mm | 1900 |
| Minimum ground clearance | mm | 150 |
| Mast tilt angle (front/rear) | % | 6° /12° |
| Tire no. (before) | 300-15-20PR | |
| Tire no. (after) | 7.00-12-12PR | |
| Minimum turning radius (outer side) | mm | 2820 |
| Minimum right angle aisle width | mm | 4830 |
| Fork size | mm | 1070*150*50 |
| maximum working speed(Full-load/No-load) | km/h | 18/19 |
| maximum lifting speed(Full-load/No-load) | mm/s | 420/460 |
| maximum gradeability(Full-load/No-load) | % | 15/20 |
| Forklift weight | kg | 5860 |
| Engine model | Quanchai4C4-50V31 |
advantage and disadvantage of 3 stage mast,2 stage mast
Forklifts are widely used in the industries of construction, warehouses, and logistics. One of the important components of a forklift is the mast. A mast is responsible for carrying the loads and raising them to the desired height. Forklifts can have either a two-stage mast or a three-stage mast. In this article, we will discuss the advantages and disadvantages of both the masts.
Three stage Mast:
Advantages:
1. Greater lift height: The three-stage mast can extend up to 20 feet tall, allowing the forklift to reach higher shelves and load heavier materials on a higher level.
2. Better maneuverability: The three-stage mast provides better maneuverability in tight spaces and narrow aisles.
3. Increased productivity: The three-stage mast allows operators to lift multiple pallets or materials at once, reducing the need for multiple trips, and ultimately increasing productivity.
Disadvantages:
1. Reduced load capacity: Compared to a two-stage mast, a three-stage mast has a lower load capacity due to the added weight of the extra stage.
2. Higher maintenance cost: The three-stage mast has more moving parts, increasing its maintenance cost.
Second stage Mast:
Advantages:
1. Higher load capacity: A two-stage mast has a higher load capacity due to its simpler design, making it more suitable for heavy-duty lifting operations.
2. Easy maintenance: The two-stage mast has fewer moving parts, resulting in lower maintenance costs over time.
Disadvantages:
1. Limited lift height: The second stage mast can only extend up to about 10-12 feet, making it less suitable for reaching higher shelves or loading on a higher level.
2. Reduced maneuverability: The two-stage mast makes navigating tight spaces and narrow aisles more difficult.
In conclusion, selecting the mast type will depend on the specific needs of your business and the type of operations you perform. If you need to lift materials to higher levels and operate in narrow spaces, a three-stage mast may be more suitable. But if you need to lift heavier materials and require simpler maintenance, a two-stage mast may be the better choice.
