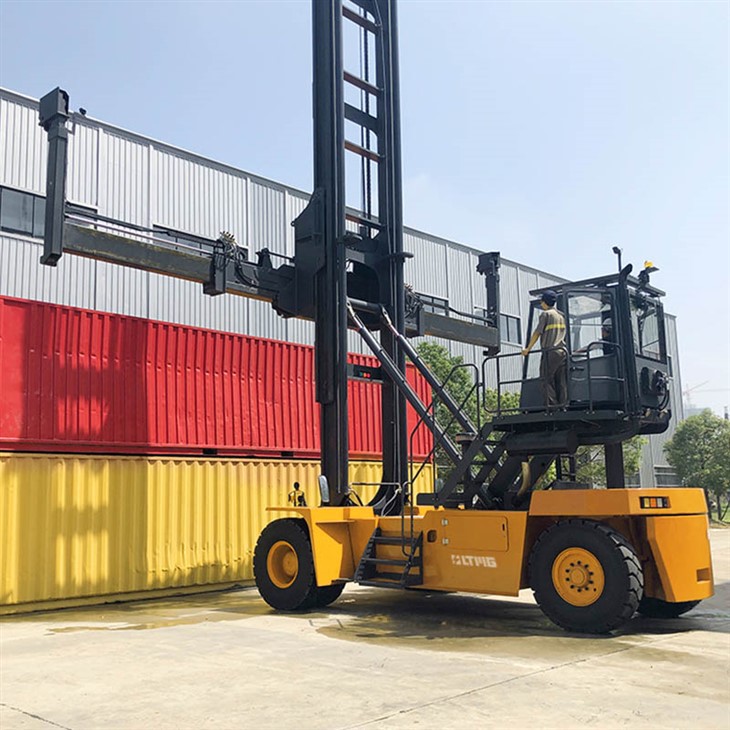

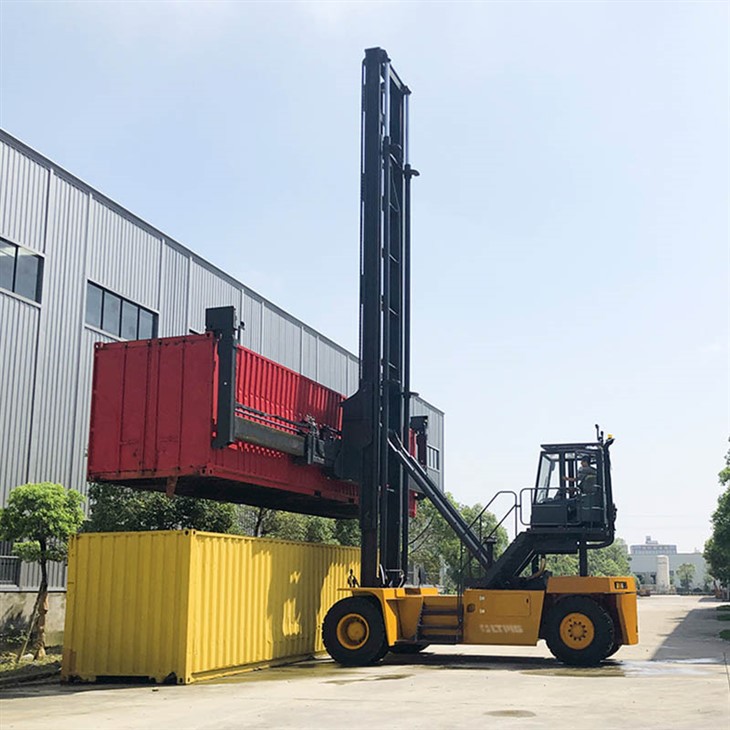

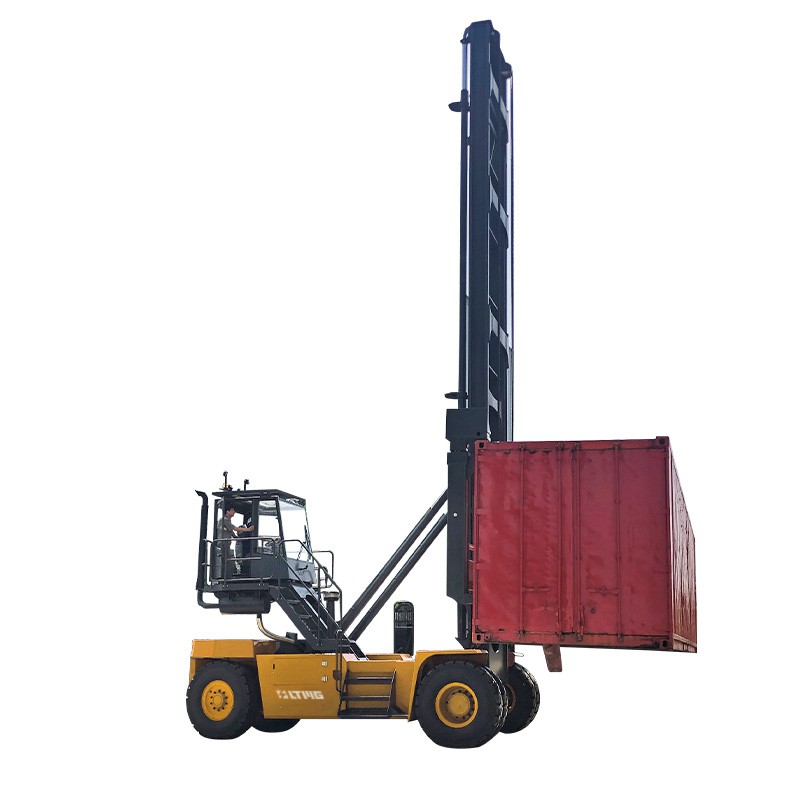

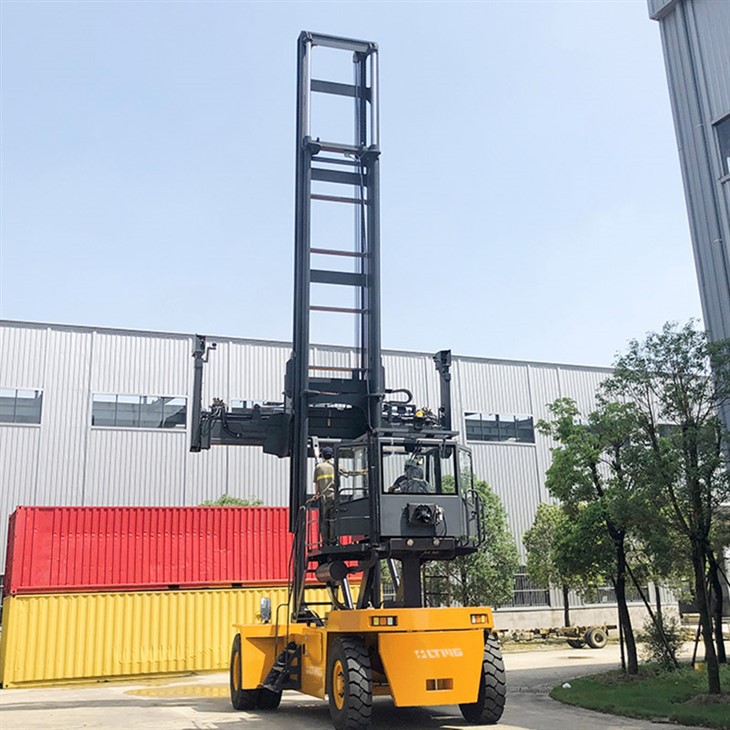

The container handler forklift combines multiple advantages to ensure safety, reliability, efficiency, precision, and smooth operation. With the combination of human-machine and hydraulic power steering system, the stacker can turn flexibly and accurately between two limit blocks even when stationary. The design of the ultra wide view gantry has revolutionary significance. The inner gantry of this series of stackers is fixed to the frame, while the outer gantry is lifted. The front view of the gantry is excellent, and it also has strong torsion resistance, ensuring stacking capacity at maximum height.
The container handler forklift is controlled by the Can-bus system, with a reasonable structure of the gantry and frame system, excellent performance, and excellent overall reliability and stability.
Specification
|
PERFORMANCES |
|||||
|
Model |
CH90/8 |
CH90/7 |
CH80/7 |
CH80/6 |
|
|
Load capacity |
Kg |
9000 |
9000 |
8000 |
8000 |
|
Maximum stacking layer |
|
8 |
7 |
7 |
6 |
|
Lift speed, laden/unladen |
m/s |
0.55 / 0.60 |
0.55 / 0.60 |
0.55 / 0.60 |
0.55 / 0.60 |
|
Lowering speed, laden/unladen |
m/s |
0.60 / 0.60 |
0.60 / 0.60 |
0.60 / 0.60 |
0.60 / 0.60 |
|
Travel speed, laden/unladen |
km/h |
26 / 28 |
26 / 28 |
25 / 27 |
25 / 27 |
|
Climbing ability, laden/unladen |
% |
38 / — |
38 / — |
30 / — |
30 / — |
|
Tractive force |
kN |
157.5 |
157.5 |
107.5 |
107.5 |
|
DIMENSIONS |
|||||
|
Wheelbase |
y(mm) |
4520 |
4520 |
4020 |
4020 |
|
Height of mast, lowered |
h1(mm) |
12399 |
11111 |
11091 |
9600 |
|
Lift height |
h3(mm) |
21400 |
16352 |
16352 |
14000 |
|
Tilt angle (forward / backward) |
α/β( / °) |
3 / 4 |
3 / 4 |
3 / 4 |
3 / 4 |
|
Height of mast, extended |
h4(mm) |
21818 |
19244 |
19204 |
16660 |
|
Height of cabin |
h6(mm) |
4326 |
4326 |
4326 |
4326 |
|
Height, operator's seat |
h7(mm) |
3226 |
3226 |
3206 |
3206 |
|
Twistlock height, lowered |
h13(mm) |
2290 |
2290 |
2290 |
2290 |
|
Maximum twistlock height |
h3+h13(mm) |
21216 |
18642 |
18600 |
16290 |
|
Overall length |
l1(mm) |
6850 |
6850 |
6450 |
6450 |
|
Length to spreader face |
l2(mm) |
6682 |
6682 |
6277 |
6277 |
|
Overall width |
b1/b2(mm) |
4120 / 2570 |
4120 / 2570 |
3627 / 2398 |
3627 / 2398 |
|
Width of spreader 20'/40' |
b3(mm) |
6050 / 12150 |
6050 / 12150 |
6050 / 12150 |
6050 / 12150 |
|
Turning radius |
Wa(mm) |
6300 |
6300 |
5700 |
5700 |
|
Wheelspan, Front wheels |
b10(mm) |
3280 |
3280 |
2880 |
2880 |
|
Wheelspan, Rear wheels |
b11(mm) |
2171 |
2171 |
2068 |
2068 |
|
ENGINE |
|||||
|
Model |
CH90 |
CH80 |
|||
|
Engine manufacturer / type |
Cummins / QSB6.7 |
Cummins / QSB6.7 |
|||
|
Cylinder number / displacement |
6 / 6700 cm3 |
6 / 6700 cm3 |
|||
|
Rated power |
164Kw @ 2200 rpm |
129Kw @ 2200 rpm |
|||
|
Maximum torque |
949NM @ 1500 rpm |
800NM @ 1500 rpm |
|||
|
Rated current of alternator |
100 A |
70 A |
|||
|
Battery |
24 V (2 x 12 /110) |
24 V (2 x 12 /110) |
|||
|
TRANSMISSION |
|||||
|
Model |
CH90 |
CH80 |
|||
|
Manufacturer / type |
ZF/3WG211 AUTO |
ZF/3WG211 AUTO |
|||
|
Clutch - type |
Torque Converter |
Torque Converter |
|||
|
Transmission |
Auto-shift/ Interlock |
Auto-shift / Interlock |
|||
|
Gear number |
3 F / 3 R |
3 F / 3 R |
|||
|
BRAKE SYSTEM |
|||||
|
Service brake: Wet-disc |
|||||
|
Parking brake: Brake enabled when power of |
|||||
|
DRIVE AXLE |
|||||
|
Model |
CH90 |
CH80 |
|||
|
Driver axle manufacturer |
KESSLER / Germany |
KESSLER / Germany |
|||
|
Type |
D81PL488 - NLB |
D81PL478 - NLB |
|||
|
STEER AXLE |
|||||
|
Model |
CH90 |
CH80 |
|||
|
Steering axle Manufacturer |
OMCI / Italy |
LTMG |
|||
|
Type |
ASF |
Z16A1 |
|||
|
Steering type-Single cylinder |
Double action cylinder |
Double action cylinder |
|||
|
TYRES |
|||||
|
Drive wheels |
14.00－24 28PR |
12.00－24 24PR |
|||
|
Steering wheels |
14.00－24 28PR |
12.00－24 24PR |
|||
|
Type |
Pneumatic tyre |
Pneumatic tyre |
|||
|
Pressure |
10 bar |
10 bar |
|||
|
Quantity, Front / Rear |
4 / 2 |
4 / 2 |
|||

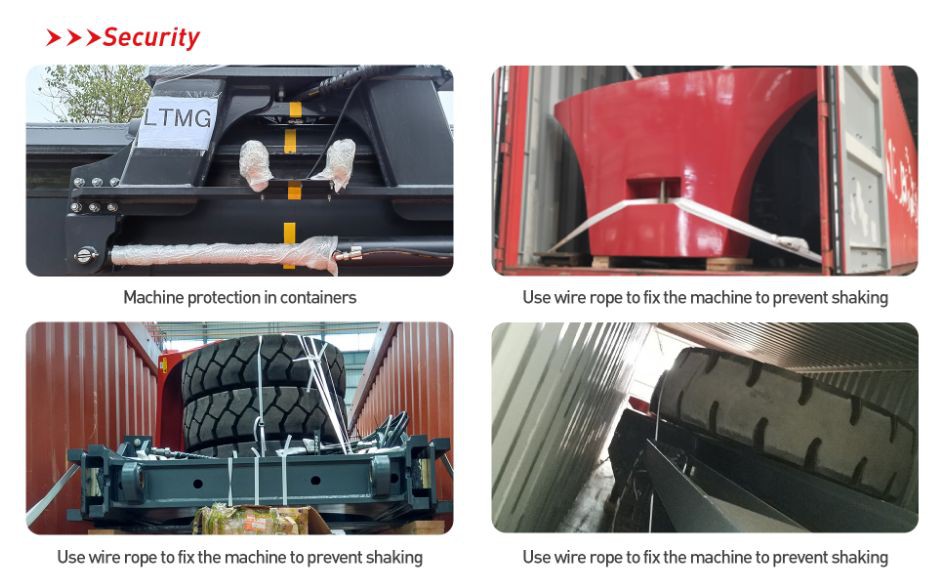

Shipping plan
