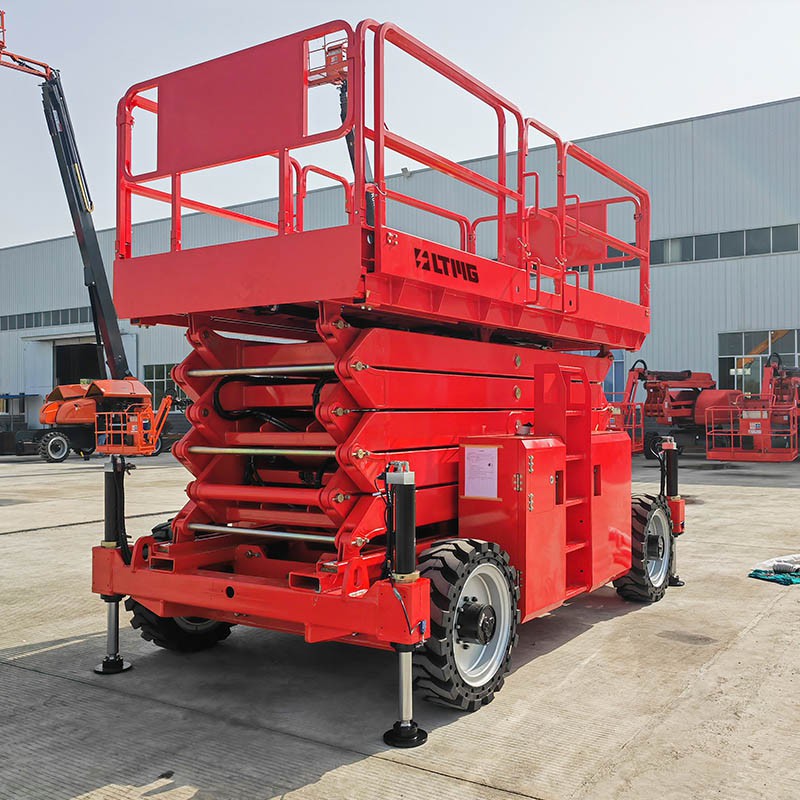

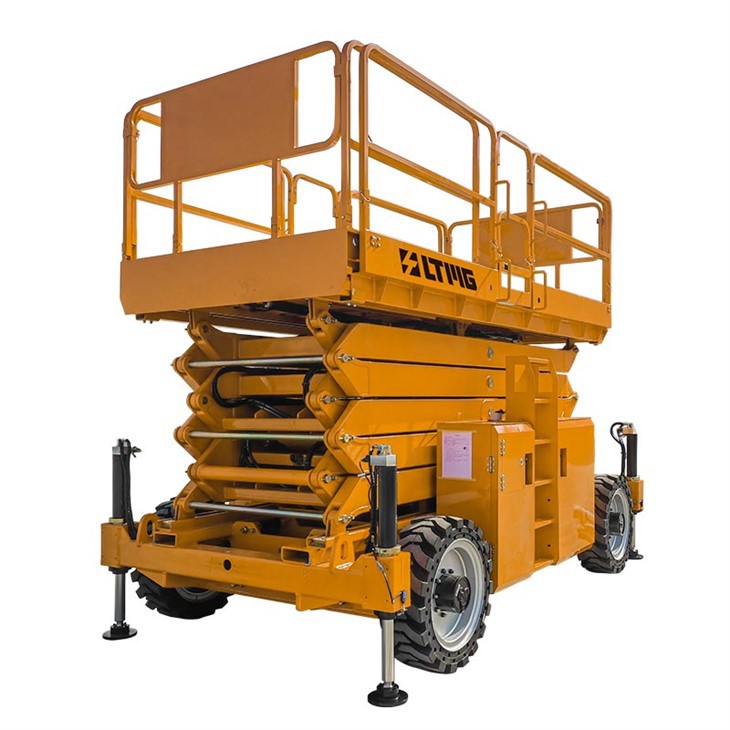

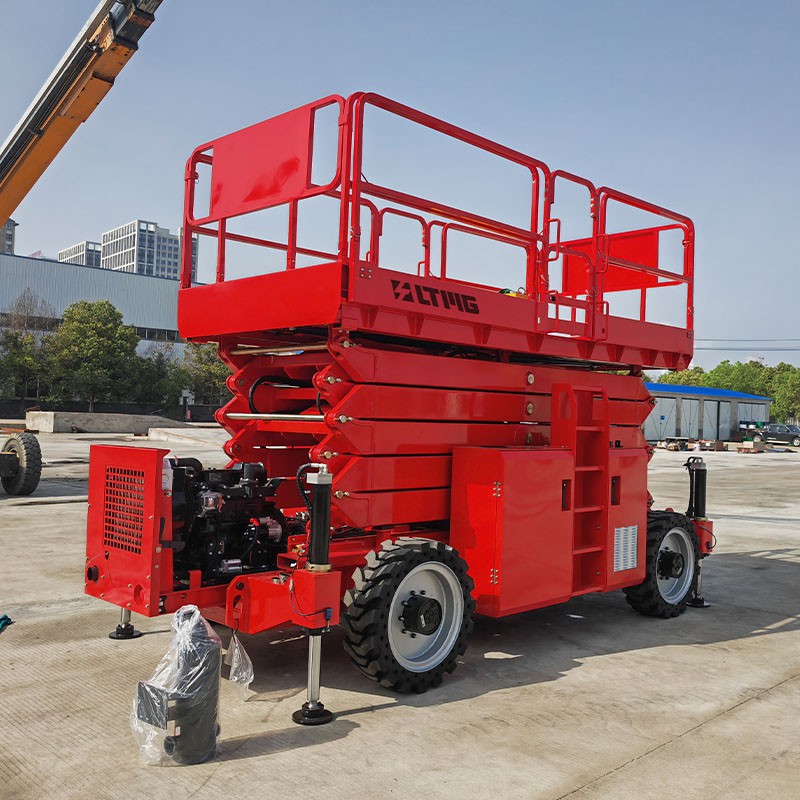

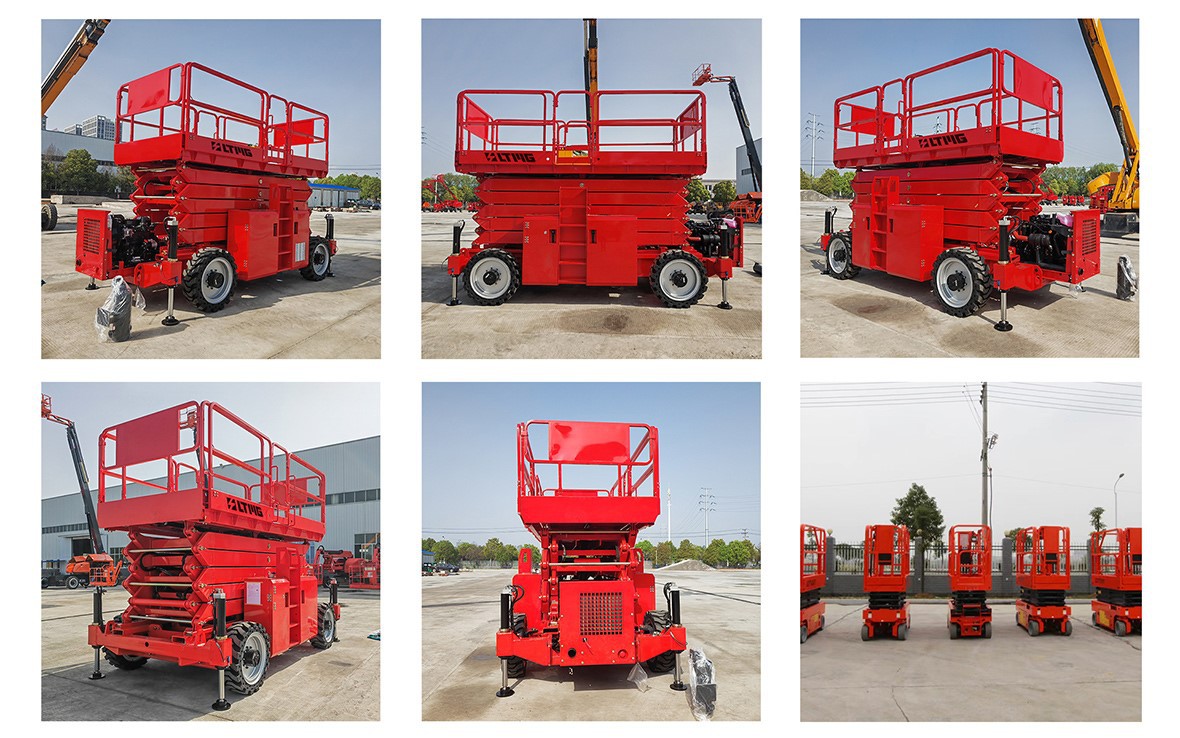

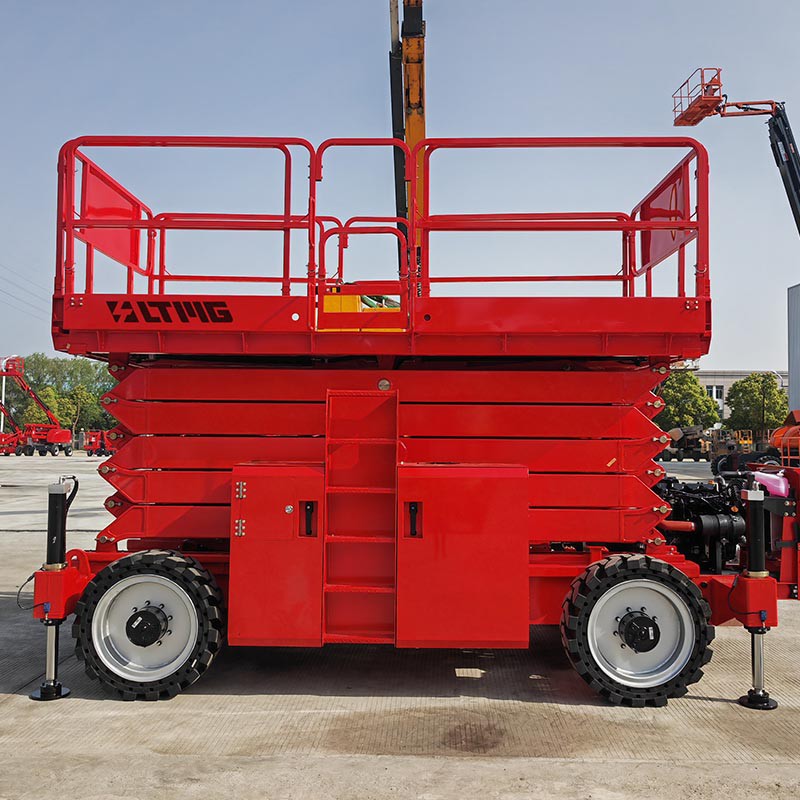

The all-terrain scissor lift with a 10-meter reach is a powerful tool for a wide range of construction and maintenance tasks. With its sturdy design and all-terrain capabilities, this scissor lift is ideal for use in tough and challenging conditions.
The scissor lift offers enhanced safety features to ensure that operators are protected during use. With its compact structure, it can operate efficiently in tight and restricted areas, making it an ideal solution for working in confined spaces. It is also built with a durable framework that can withstand harsh off-road environments, ensuring a long-lasting service life.
Overall, the all-terrain scissor lift with a 10-meter reach is an essential tool for any construction or maintenance project. Its all-terrain capabilities, rugged design, and ease-of-use make it the perfect choice for all your industrial and commercial needs. So why wait? Invest in an all-terrain scissor lift today, and take your work to new heights!
Technical parameters
| Model | LTWP1012RTS | |
| Measurements | ||
| Working height maximum | m | 12 |
| Platform height maximum | m | 10 |
| (LxW) Platform dimensions | m | 2.9x1.5 |
| Extension deck measurement | m | 1.1 |
| Length(stowed) | m | 2.9/3.57 |
| Width(stowed) | m | 1.75 |
| Height(stowed) | m | 2.63 |
| Height stowed folding guardrails | m | 2.17 |
| Platform height minimum | m | 1.47 |
| Wheelbase | m | 2.2 |
| Ground clearance (center) | m | 0.2 |
| Productivity | ||
| Lift capacity maximum | kg | 450/120 |
| Platform occupancy maximum | 2 | |
| Drive speed (stowed) | km/h | 4 |
| Drive speed (raised) | km/h | 0.8 |
| Gradeability | 35% | |
| Working angle maximum | 3°/3° | |
| Turning radius inside | m | 1.83 |
| Turning radius outside | m | 4.25 |
| Drive & steer mode | 4x4x2 | |
| Tire type | 26x12-16.5 | |
| Power | ||
| Engine | Yanmar4TNV88 | |
| Power | kW | 25.2kW@2200rpm |
| Fuel tank volume | L | 82 |
| Hydraulic tank volume | L | 62 |
| Control voltage | 12 VDC | |
| Weight | kg | 4500 |
| Standards Compliance | EN280:2013+Al:2015 GB25849-2010 | |
advantages
Application
The all-terrain tires offer excellent grip and traction in muddy, rocky, and other challenging terrains, ensuring that it can operate in harsh environments. With the ability to traverse over different obstacles, it can undertake a range of activities that otherwise would not be possible.
When it comes to the applications of this equipment, the possibilities are endless. Its robust design makes it an ideal choice for construction work at heights, while its off-road capabilities mean it can efficiently work in remote and challenging locations, such as mining sites. It can also be utilized in the maintenance and inspection of industrial facilities, including factories, warehouses, and power plant facilities.
The 10 m Off Road Scissor Lift offers an ideal solution for those looking for a durable and versatile piece of equipment. With its safety features, compact structure, and all-terrain capabilities, it is a reliable and efficient solution for a range of applications.
FAQ
Q: What is an Off Road Scissor Lift?
Q: What are the advantages of off-road scissor elevators?
Q: What kind of jobs is an Off Road Scissor Lift suitable for?
