Products Description

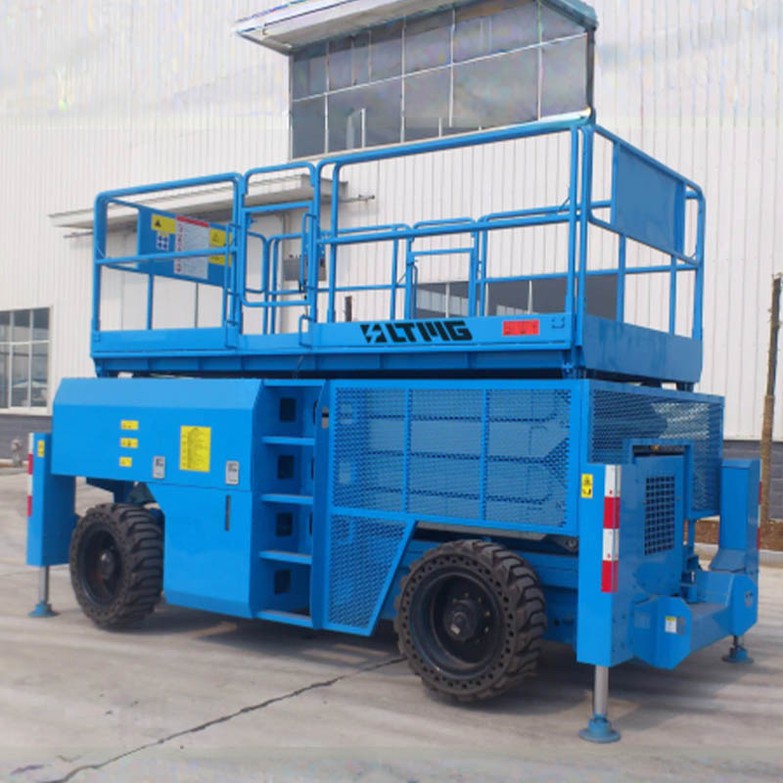

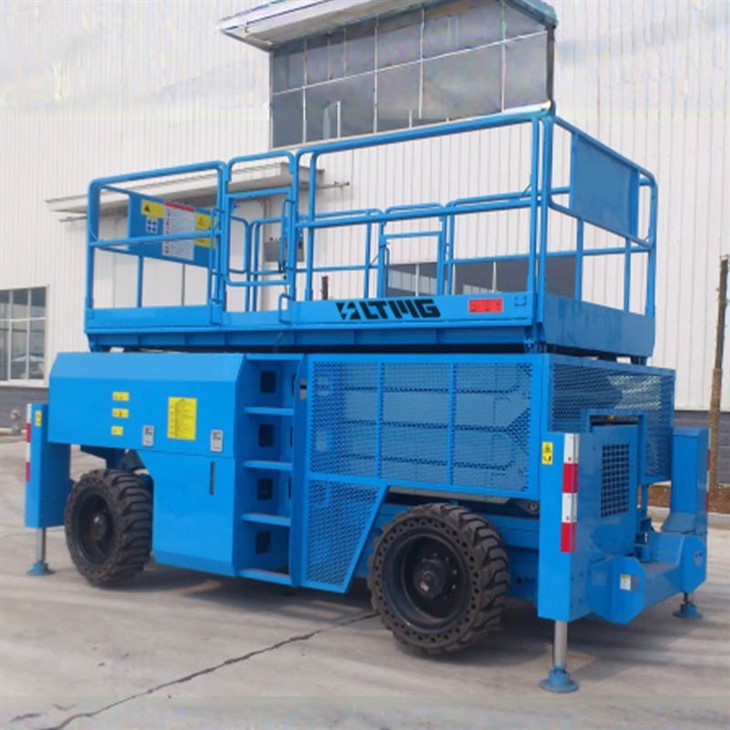

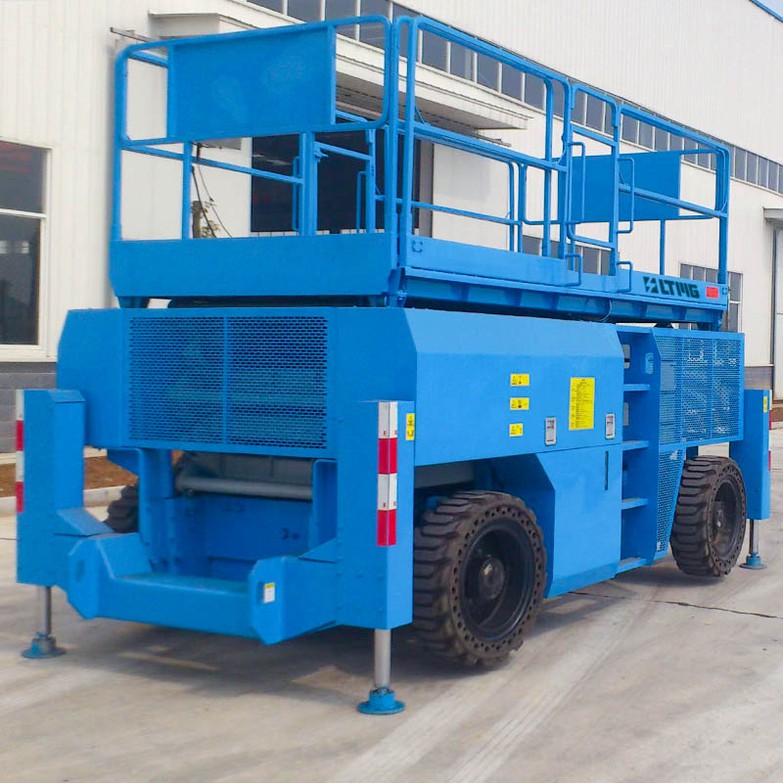

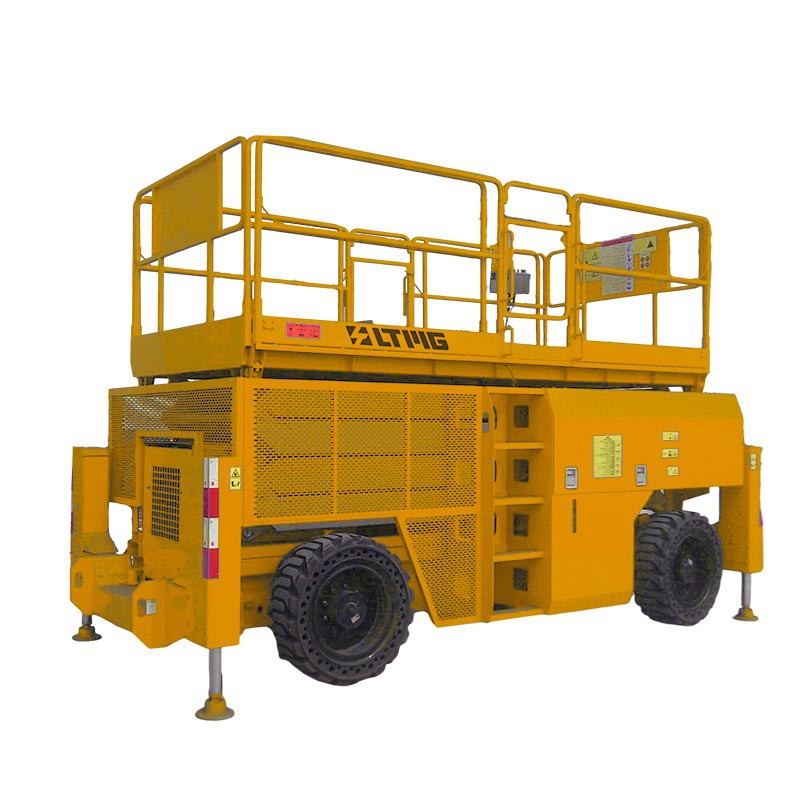

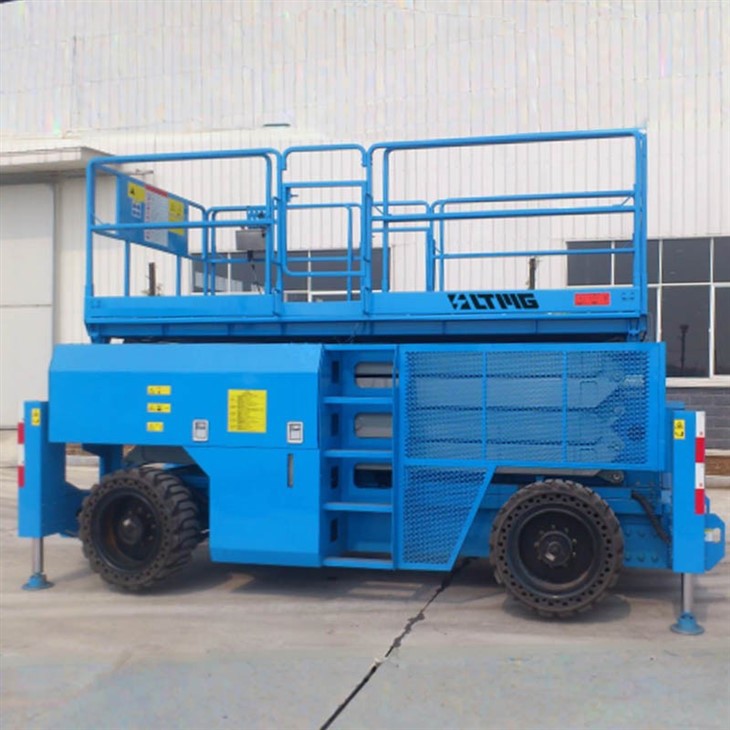

Safety is paramount in our design, and the LTMG 16 m rough terrain scissor lift platform is equipped with a full range of safety features. The compact and robust structure ensures the platform's stability, making it a reliable choice for a variety of tasks. The durable construction guarantees a long lifespan, providing exceptional endurance in demanding work environments.
One of the standout features of the mobile scissor lift is its larger upward clearance and horizontal reach. This allows for easy access to elevated and hard-to-reach areas, making it an ideal solution for various applications where versatility is crucial.
The innovative design allows the scissor lift platform to be driven while elevated, providing increased efficiency in accessing different locations within a workspace. This feature enhances productivity and saves time by eliminating the need to lower the platform for repositioning.
For added stability during operation, the lift is equipped with automatic self-leveling stabilizers. This ensures a secure and level working surface, even on uneven terrain. The stabilizers adjust automatically, providing a safe and controlled environment for elevated tasks.
With a four-wheel-drive system, the 16 m rough terrain scissor lift platform offers enhanced maneuverability across various terrains. This feature is particularly beneficial in outdoor settings or construction sites where the ground may be uneven. The four-wheel drive ensures reliable traction, allowing the platform to navigate through challenging environments with ease.
Products parameter
|
Model |
LTWP1012RTS |
LTWP1214RT |
LTWP1012RT |
LTWP1315RT |
LTWP1618RT |
|
|
Measurements |
||||||
|
Working height maximum |
m |
12 |
14 |
12 |
15 |
18 |
|
Platform height maximum |
m |
10 |
12 |
10 |
13 |
16 |
|
(LxW) Platform dimensions |
m |
2.9x1.5 |
2.9x1.5 |
3.95x1.83 |
||
|
Extension deck measurement |
m |
1.1 |
1.1 |
1.22 + 1.52 |
||
|
Length(stowed) |
m |
2.9/3.57 |
2.9/3.57 |
4.2/4.81 |
4.2/4.81 |
4.2/4.81 |
|
Width(stowed) |
m |
1.75 |
1.75 |
2.28 |
2.28 |
2.28 |
|
Height(stowed) |
m |
2.63 |
2.77 |
2.81 |
3.03 |
3.25 |
|
Height stowed folding guardrails |
m |
2.17 |
2.31 |
1.99 |
2.21 |
2.43 |
|
Platform height minimum |
m |
1.47 |
1.61 |
1.52 |
1.74 |
1.96 |
|
Wheelbase |
m |
2.2 |
2.2 |
2.84 |
2.84 |
2.84 |
|
Ground clearance (center) |
m |
0.2 |
0.2 |
0.23 |
0.23 |
0.23 |
|
Productivity |
||||||
|
Lift capacity maximum |
kg |
450/120 |
380/120 |
1150/230 |
680/230 |
680/230 |
|
Platform occupancy maximum |
2 |
7 |
||||
|
Drive speed (stowed) |
km/h |
4 |
4 |
6.3 |
6.3 |
6.3 |
|
Drive speed (raised) |
km/h |
0.8 |
0.8 |
1.1 |
1.1 |
1.1 |
|
Gradeability |
35% |
35% |
50% |
45% |
45% |
|
|
Working angle maximum |
3°/3° |
|||||
|
Turning radius inside |
m |
1.83 |
1.83 |
2.78 |
2.78 |
2.78 |
|
Turning radius outside |
m |
4.25 |
4.25 |
4.95 |
4.95 |
4.95 |
|
Drive & steer mode |
4x4x2 |
|||||
|
Tire type |
26x12-16.5 |
33x12-20 |
||||
|
Power |
||||||
|
Engine |
Yanmar4TNV88 |
Yanmar 4TNV94L |
||||
|
Power |
kW |
25.2kW@2200rpm |
35.5kW@2400rpm |
|||
|
Fuel tank volume |
L |
82 |
115 |
|||
|
Hydraulic tank volume |
L |
62 |
170 |
|||
|
Control voltage |
12 VDC |
|||||
|
Weight |
kg |
4500 |
4750 |
6850 |
7350 |
8850 |
|
Standards Compliance |
EN280:2013+Al:2015 GB25849-2010 |
|||||

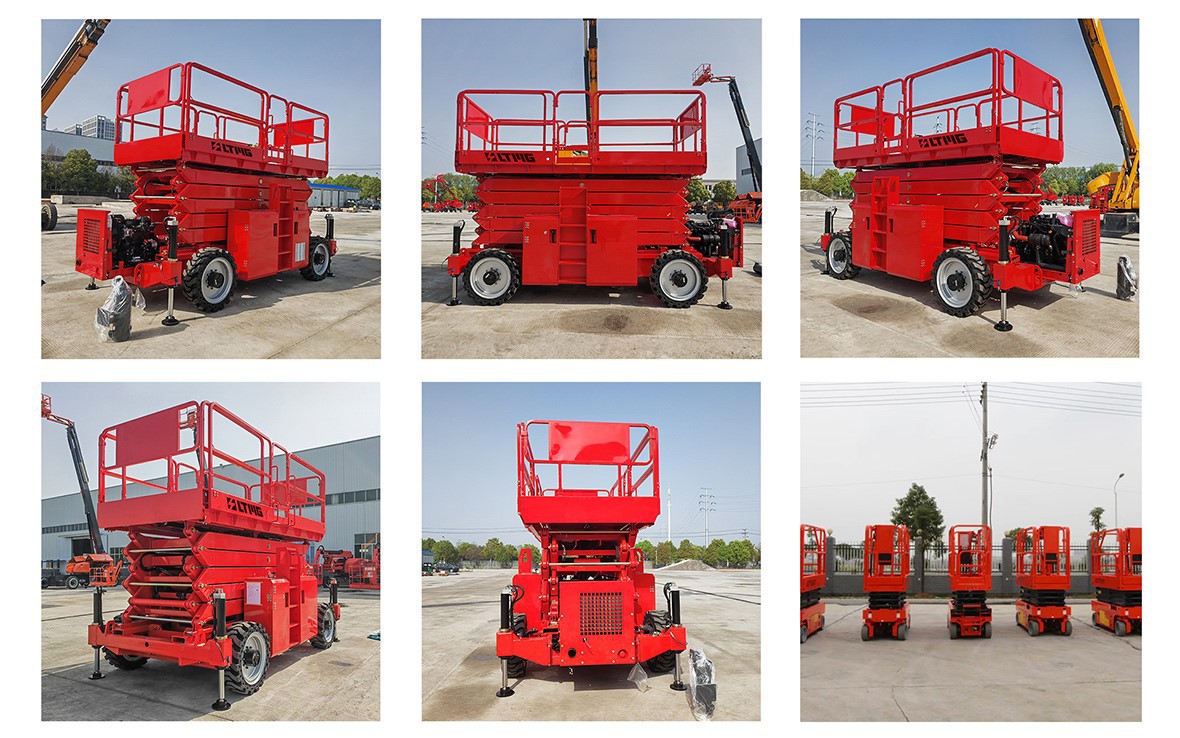

Products images
