Products Description

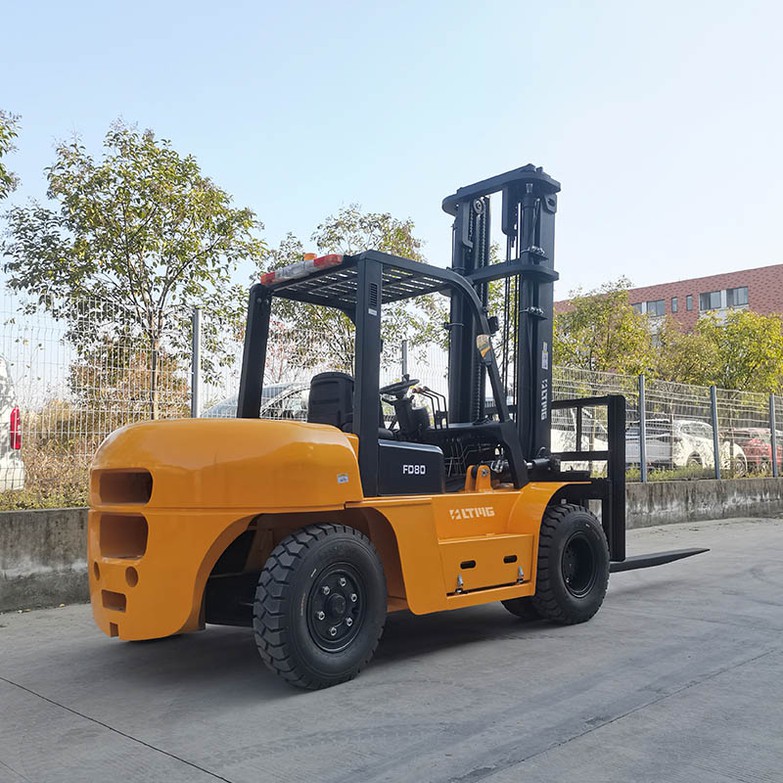

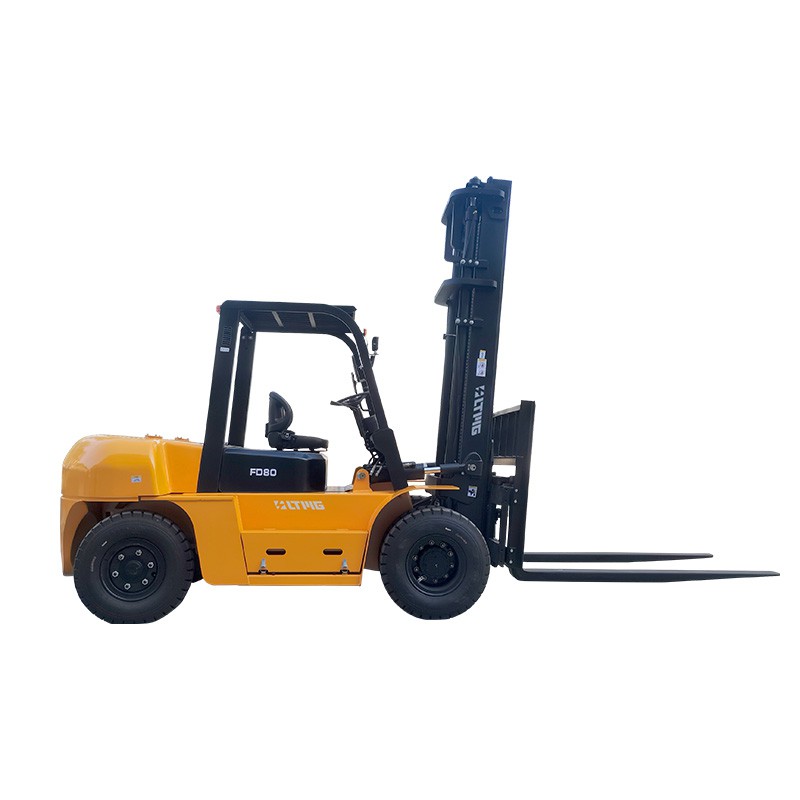

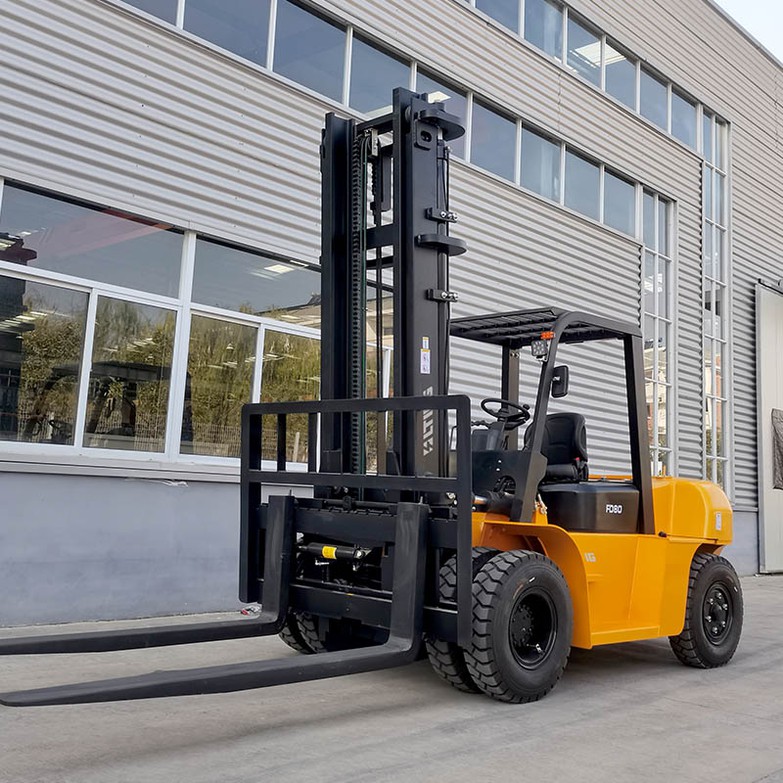

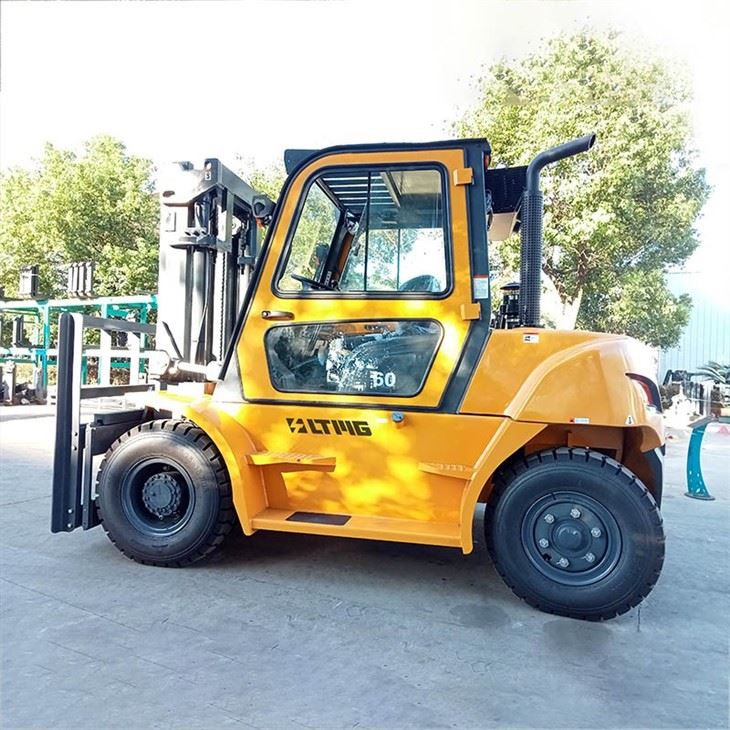

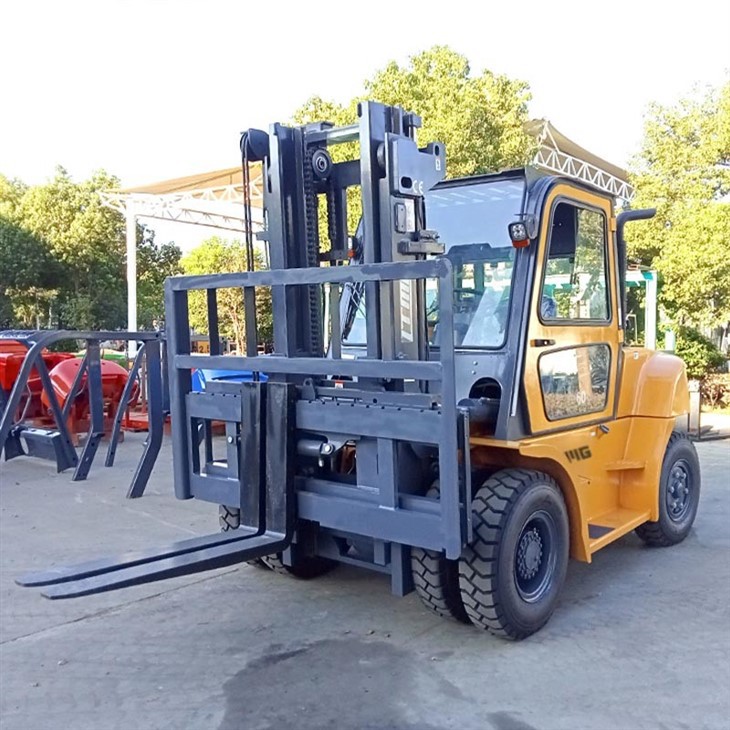

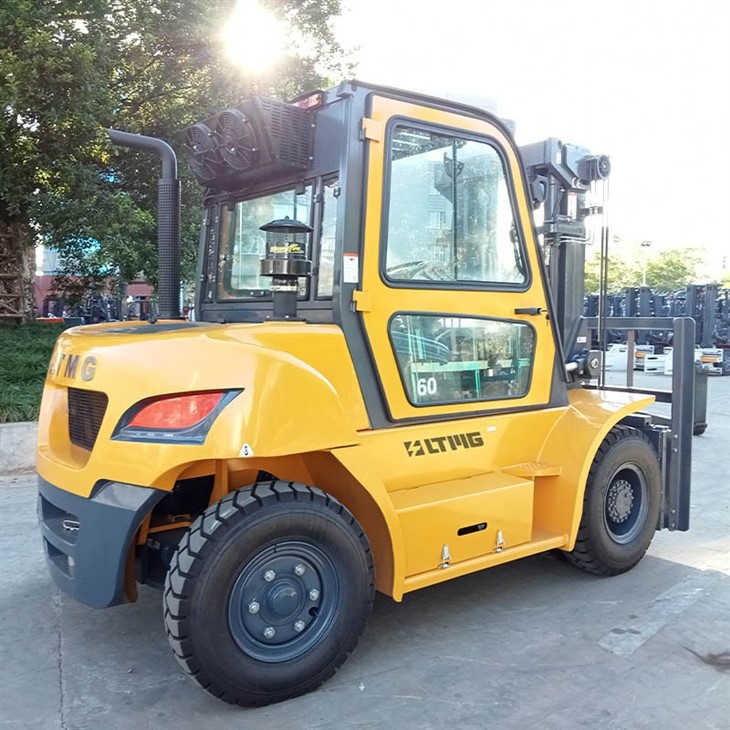

The 8 ton diesel lift truck designs for high performance, the Japanese engine ensures smooth and efficient operation.
The engine in the 8 ton diesel forklift is designed to be both durable and efficient. It is a four-stroke diesel engine that uses direct injection technology to maximize fuel efficiency and reduce emissions. This means that the 8 ton diesel forklift is not only reliable and powerful, but also environmentally friendly.
The hydraulic system of the 8 ton diesel forklift is designed to deliver optimal performance under a range of operating conditions. The system includes a hydraulic pump that delivers oil to multiple cylinders and valves, which control the flow and direction of the oil. One of the biggest advantages of the hydraulic system on the 8 ton diesel forklift is its ability to lift heavy loads quickly and safely.
In addition to its reliable engine, the 8 ton diesel forklift also features a range of advanced safety features, including a wide range of visibility options, a comprehensive warning system, and advanced braking systems to keep operators safe and secure while on the job.
In summary, the 8 ton diesel forklift with Japanese engine is a highly capable machine that offers exceptional features for heavy lifting applications.
Products parameter
| General | Model | FD50 | FD60 | FD70 | FD80 | |||
| Power Type | Diesel | Diesel | Diesel | Diesel | ||||
| Rated Capacity | kg | 5000 | 6000 | 7000 | 8000 | |||
| Load Centre | mm | 600 | 600 | 600 | 600 | |||
| Characteristic&Dimension | Lift Height | mm | 3000 | 3000 | 3000 | 3000 | ||
| Fork Size | L×W×T | mm | 1220×150×60 | 1220×150×60 | 1220×150×70 | 1220×150×70 | ||
| Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | ||
| Fork Overhang (Wheel center to fork face) | mm | 590 | 590 | 595 | 595 | |||
| Ground Clearance(Bottom of mast) | mm | 200 | 200 | 200 | 200 | |||
| Overall Dimension | Length to face of fork(Without fork) | mm | 3440 | 3440 | 3565 | 3565 | ||
| Overall Width | mm | 2010 | 2010 | 2010 | 2010 | |||
| Mast Lowered Height | mm | 2500 | 2500 | 2500 | 2500 | |||
| Mast Extended Height(With backrest) | mm | 4415 | 4415 | 4415 | 4415 | |||
| Overhead Guard Height | mm | 2430 | 2430 | 2430 | 2430 | |||
| Turning Radius (outside) | mm | 3250 | 3250 | 3350 | 3350 | |||
| Performance | Speed | Travel (Full load) | km/h | 30 | 30 | 30 | 28 | |
| Lifting (Full load) | mm/s | 500 | 500 | 460 | 430 | |||
| Max.Gradeability | % | 20 | 20 | 20 | 20 | |||
| Chassis | Tyre | Front | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-18PR | |
| Rear | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-18PR | |||
| Wheelbase | mm | 2250 | 2250 | 2250 | 2250 | |||
| Self weight | kg | 8150 | 8750 | 9750 | 10350 | |||
Products certificates

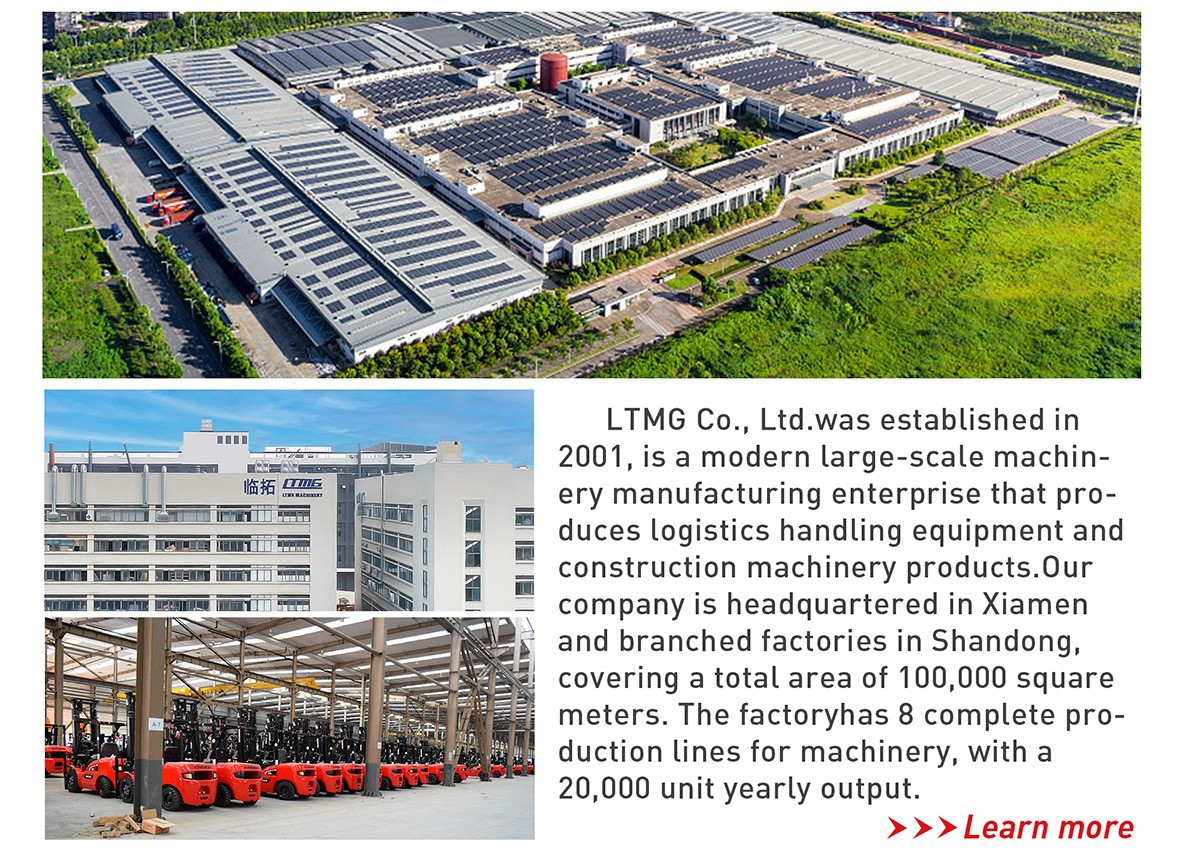

company introduction
Products service
FAQ
Q: How can a forklift operator maximize the efficiency of an 8-ton diesel forklift?
Q: What are the safety precautions that should be taken when operating an 8-ton diesel forklift?
Q: What are the advantages of using an 8-ton diesel forklift in a warehouse setting?
