Product Introduction
Protection in transportation
As an important loading and unloading equipment in marine engineering, forklift trucks need to take a series of protective measures before shipment and during transportation to ensure that they arrive at their destinations safely and without damage. The following are some commonly used protective measures for forklift truck shipment:
1. Cleaning and descaling: Before shipment, forklift trucks should be thoroughly cleaned to remove surface stains and grease to prevent corrosion or contamination of other cargoes during ocean transportation.
2. Anti-corrosion treatments: For metal parts, especially exposed parts, anti-corrosion treatments can be done, such as spraying rust inhibitors or coating anti-corrosion coatings.
3. Securing and strapping: -Fasten the forklift trucks in the transportation carrier (e.g. cabin or container), usually with special fastening devices and straps to ensure that the forklift trucks will not move during the bumpy sea. -Pay special attention to protect the key parts of the forklift such as hydraulic system, steering system, oil cylinder, etc., to avoid leakage or damage caused by violent vibration.

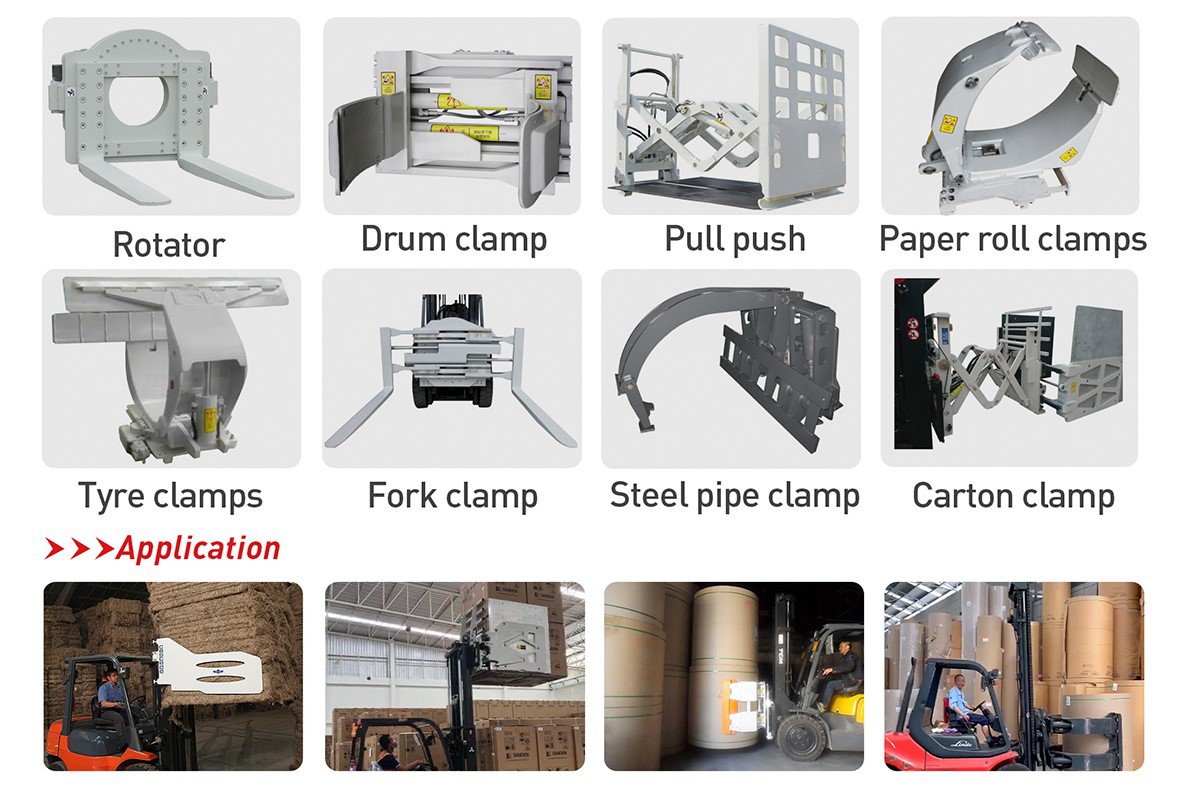

Normal attachments
1. Paper Roll Clamp: Mainly used for handling and stacking paper roll goods, it can clamp the paper rolls to avoid rolling down or damage in the process of handling.
2. Carton Clamp (Carton Clamp): suitable for handling the whole layer of cartons or similar products of soft packaging goods, can clamp and lift multiple boxes to improve handling efficiency.
3. soft package clamp (Bag Clamp): used for clamping and handling bags, woven bags and other soft packaging goods, such as grain, fertilizer, chemical raw materials.
4. Push-Pull (Push-Pull): Used to pull the pallet or trailer before and after, especially in the absence of pallet exchange stations, to facilitate the realization of pallet-free transport.
5. Launcher (Pallet Truck Attachment): Used to launch the goods from the pallet to facilitate unloading or finishing.
Translated with DeepL.com (free version)

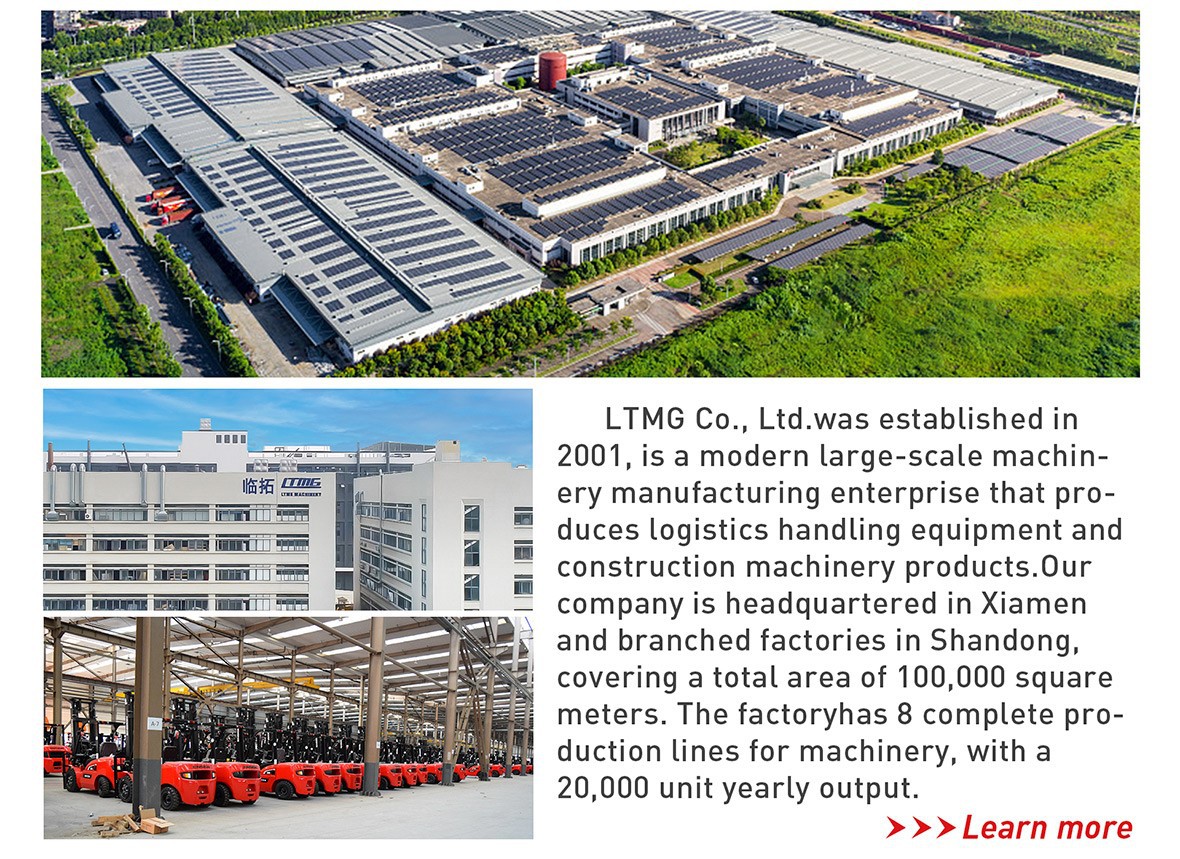

About LTMG
fAQ Of lTMG
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

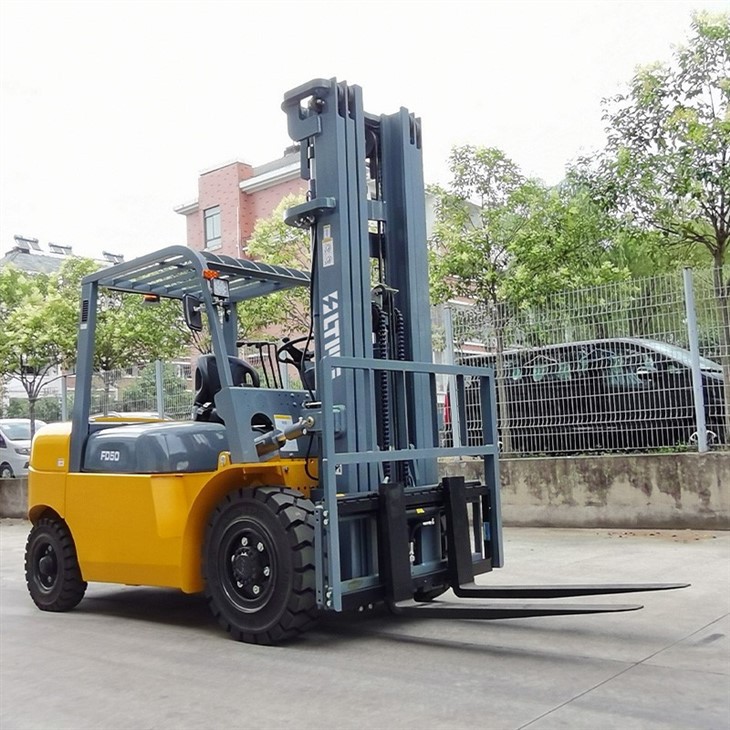

Forklift Parameters
|
Model 型 |
FD30 |
FD35 |
FD38 |
|
|
Rated lifting load |
kg |
3000 |
3500 |
3800 |
|
Load center distance |
mm |
500 |
||
|
Free lifting height |
mm |
160 |
||
|
overall length (Withfork/Withoutfork) |
mm |
3752/2682 |
3763/2693 |
3963/2893 |
|
Width |
mm |
1225 |
||
|
Overhead guard height |
mm |
2090 |
||
|
Wheelbase |
mm |
1700 |
||
|
Minimum ground clearance |
mm |
135 |
||
|
Mast tilt angle (front/rear) |
% |
6° /12° |
||
|
Tire no. (before) |
28*9-15-14PR |
|||
|
Tire no. (after) |
6.5-10-1OPR |
|||
|
Minimum turning radius (outer side) |
mm |
2400 |
2420 |
2710 |
|
Minimum right angle aisle width |
mm |
4260 |
4260 |
4720 |
|
Fork size |
mm |
1070*125*45 |
1070*125*50 |
1070*150*50 |
|
maximum working speed(Full-load/No-load) |
km/h |
18/19 |
19/19 |
|
|
maximum lifting speed(Full-load/No-load) |
mm/s |
440/480 |
330/370 |
340/380 |
|
maximum gradeability(Full-load/No-load) |
% |
15/20 |
||
|
Forklift weight |
kg |
4250 |
4500 |
4800 |
|
Engine model |
Xinchai C490 |
|||
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;
