Products Description

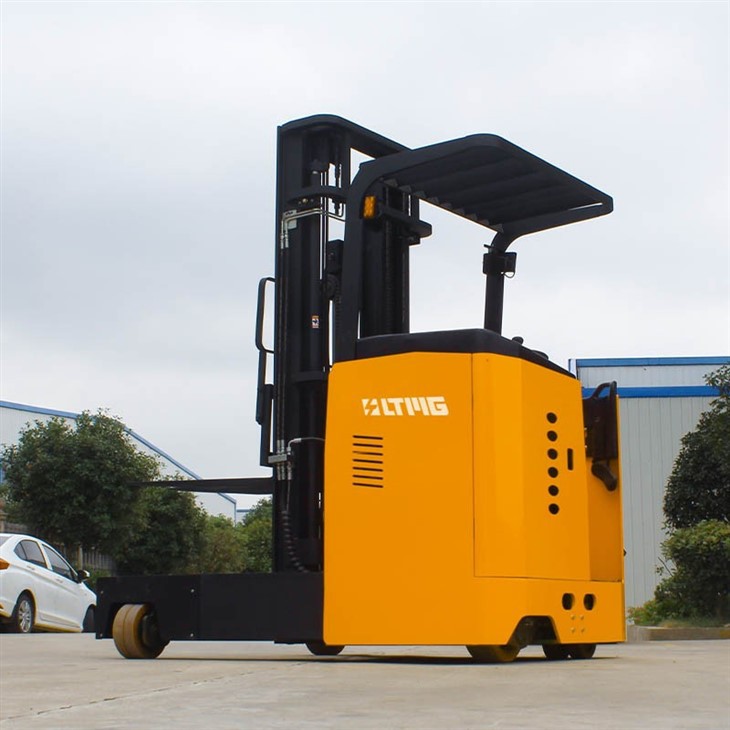

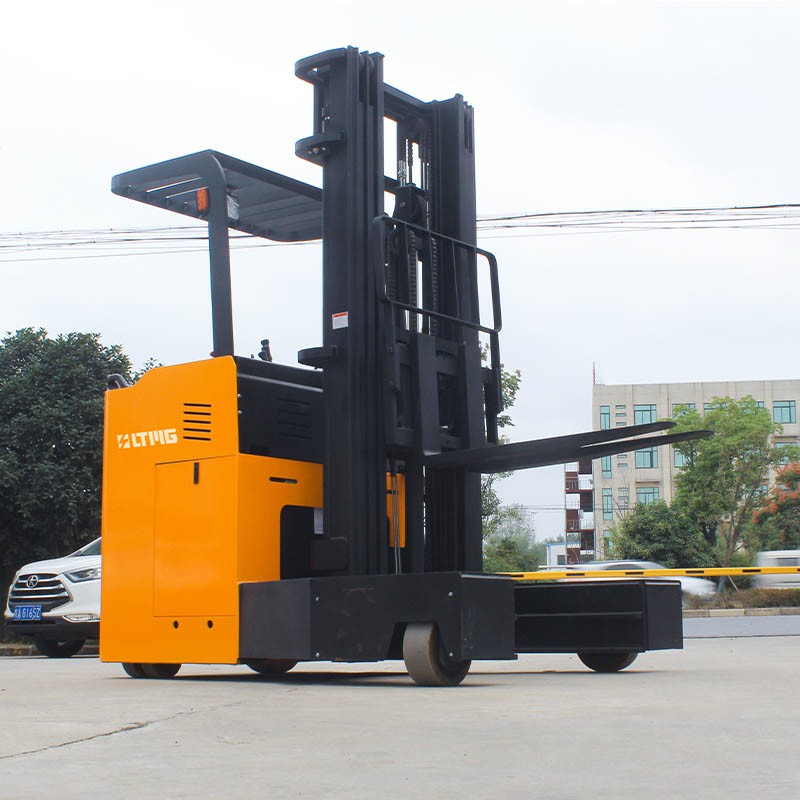

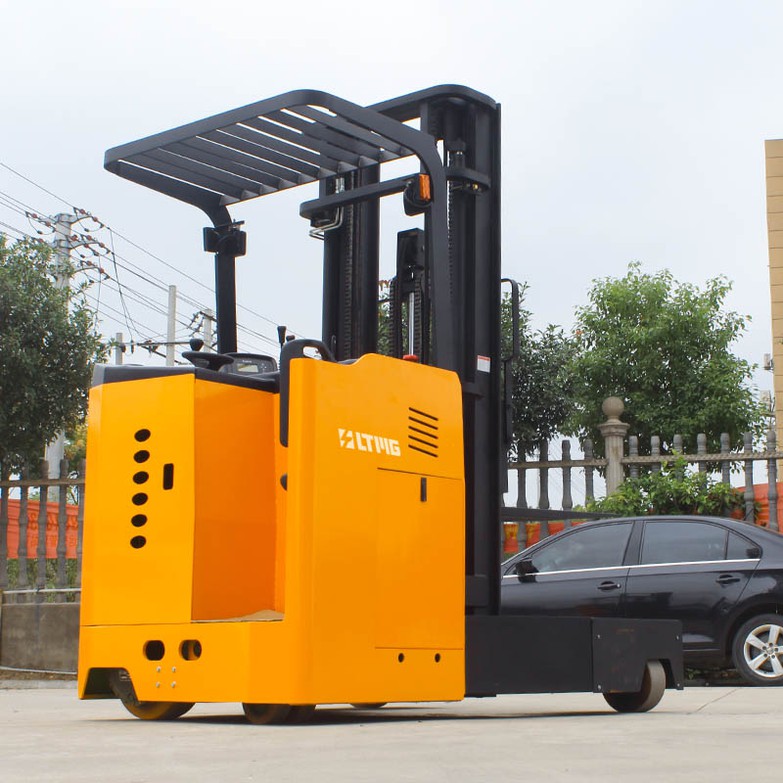

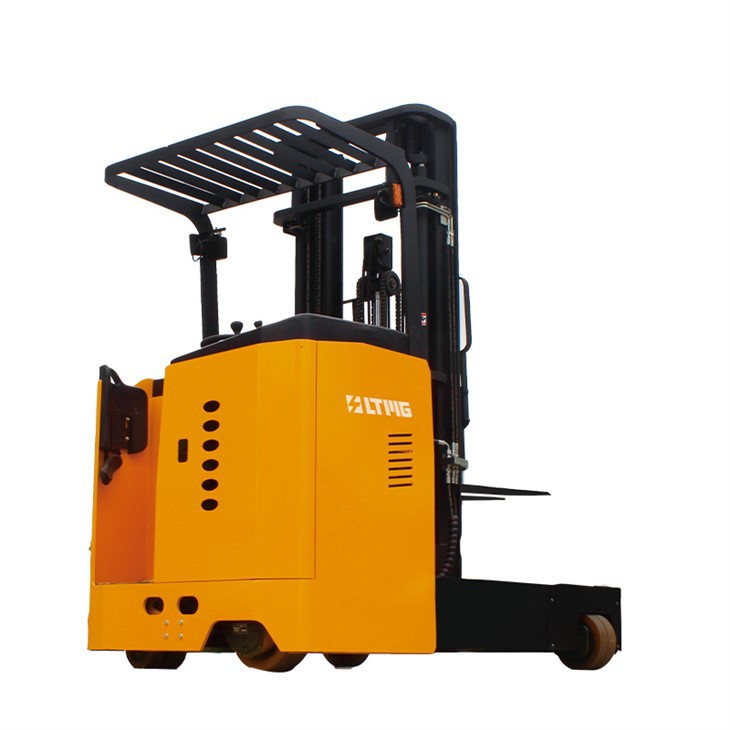

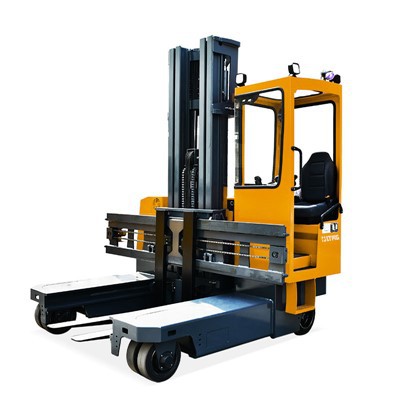

The 1.5 Ton Four-Way Reach Truck is a heavy-duty and reliable forklift that is designed to offer maximum efficiency in materials handling activities. This truck is ideal for use in warehouses, logistics operations, and manufacturing facilities where space is limited, and storage capacity needs to be optimized.
One of the most notable features of this reach truck is its four-way steering system that allows it to move in any direction. This feature makes it easy to maneuver in tight spaces, enabling operators to pick and place loads with minimum time and effort. The reach truck's hydraulics system provides smooth and efficient lifting of loads as high as 7 meters, thereby improving productivity and reducing turnaround time.
The 1.5 Ton Four-Way Reach Truck also comes with a robust chassis and a sturdy mast that provides stability and durability during heavy-duty operations. The truck's ergonomic design makes it comfortable to use, reducing the likelihood of operator fatigue and ensuring maximum efficiency.
Additionally, the reach truck is equipped with advanced safety features including an anti-roll-over system, an automatic speed reduction system, and an anti-slip floor mat, which enhances safety in the workplace. The truck's low emission engine ensures optimal performance, reducing the environmental impact and helping businesses meet their sustainability targets.
Overall, the 1.5 Ton Four-Way Reach Truck is a reliable and efficient material handling solution that is designed to optimize warehouse space, reduce operating costs, and improve productivity. With its advanced features and ergonomic design, this reach truck is ideal for businesses looking to enhance their materials handling capabilities while ensuring worker safety and comfort.
Products parameter
| 特性(features) | 型号(Model) | FRB15-S | FRB20-S | |
| 操作方式(Operation type) | stand | stand | ||
| 额定载荷能力(Capacity) | Q(kg) | 1500 | 2000 | |
| 载荷中心距(Load center) | C(mm) | 500 | 500 | |
| 轴距(wheelbase) | Y(mm) | 1622 | 1722 | |
| 重量(weight) | 含蓄电池时自重(Total weight including the battery) | kg | 3400 | 3500 |
| 尺寸(size) | 轮距,后轮Wheel tread:Rear | 703 | 703 | |
| 门架缩回时高度Mast height(fork lowering) | h1(mm) | 2110 | 2110 | |
| 自由提升高度(free lift height) | h2(mm) | 1500 | 1500 | |
| 提升高度(Max Lifting Height) | h3(mm) | 4500 | 4500 | |
| 作业时门架最大高度 Max.height | h4(mm) | 5480 | 5480 | |
| 护顶架高度Overhead guard height | h14(mm) | 2280 | 2280 | |
| 门架缩回时货叉高度(Fork height when gantry retracted) | h 13( mm) | 35 | 40 | |
| 门架/货叉倾角前/后 Mast/carriage tilt angle(front/rear) | 0 | 3/5 | 3/5 | |
| 整车长度(Vehicle length) | 11mm) | 2505 | 2585 | |
| 车体长度(Overall length) | I2(mm) | 2046 | 2146 | |
| 车体宽度(Overall width) | b1(mm) | 1680 | 1680 | |
| 货叉尺寸Fork dimension | s/e/l(mm) | 35/100/1070 | 40/122/1070 | |
| 货叉调节尺寸(Fork spread) | b5(mm) | 210-705 | 260-705 | |
| 前移距离(Front overhang) | L(mm) | 655 | 700 | |
| 最小离地间隙(轴距中心)(Min ground clearance) | m2(mm) | 80 | 80 | |
| 堆垛通道宽度,托盘1000x1200( 1200跨货叉放置)(Min.stacking.aisle.1000*1200pall) | Ast(mm) | 2705 | 2785 | |
| 性能(performance) | 最小转弯半径(Turning radius) | Wa(mm) | 1905 | 2000 |
| 行驶速度,空载/满载(Max travel speed)(No load /Full) | km/h | 8/7 | 8/7 | |
| 起升速度,空载/满载Lifting speed (No load /Full) | m/s | 0.250/0.240 | 0.240/0.220 | |
| 下降速度,空载/满载Lowered speed (No load /Full) | m/s | 0.240/0.250 | 0.240/0.260 | |
| 最大爬坡能力,空载/满载(Max.Grade ability No load /Full) | % | <10 | <10 | |
| 行车制动( Brake form) | Electromagnetic braking | |||
Products feedback
company introduction
shipping plan
FAQ
Q: What is the weight capacity of the 1.5 Ton Four-Way Reach Truck?
Q: Can the 1.5 Ton Four-Way Reach Truck be used in narrow aisle applications?
Q: How does the four-way reach feature of the 1.5 Ton Four-Way Reach Truck work?
