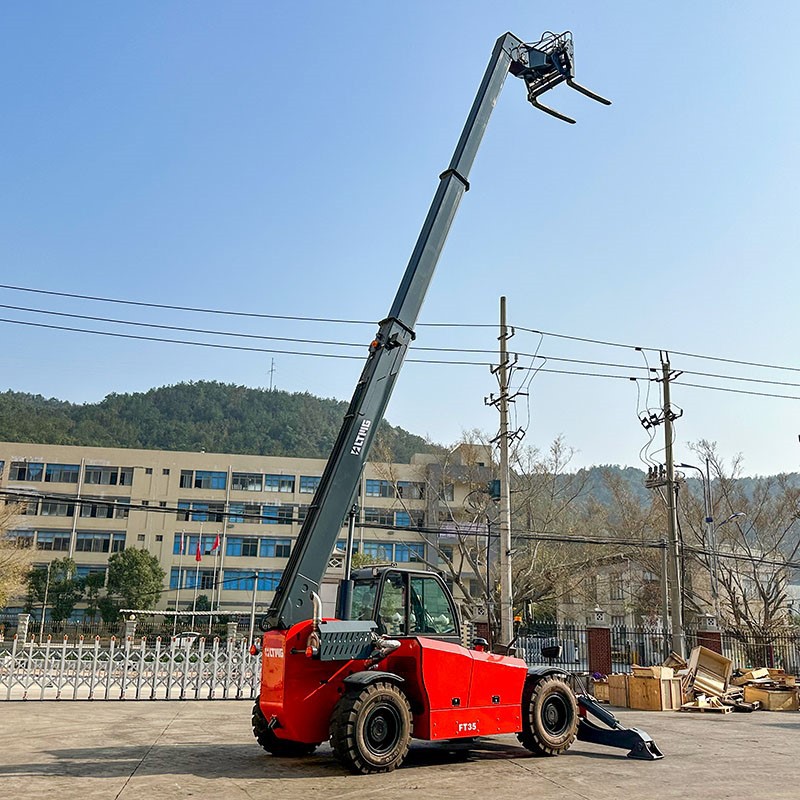

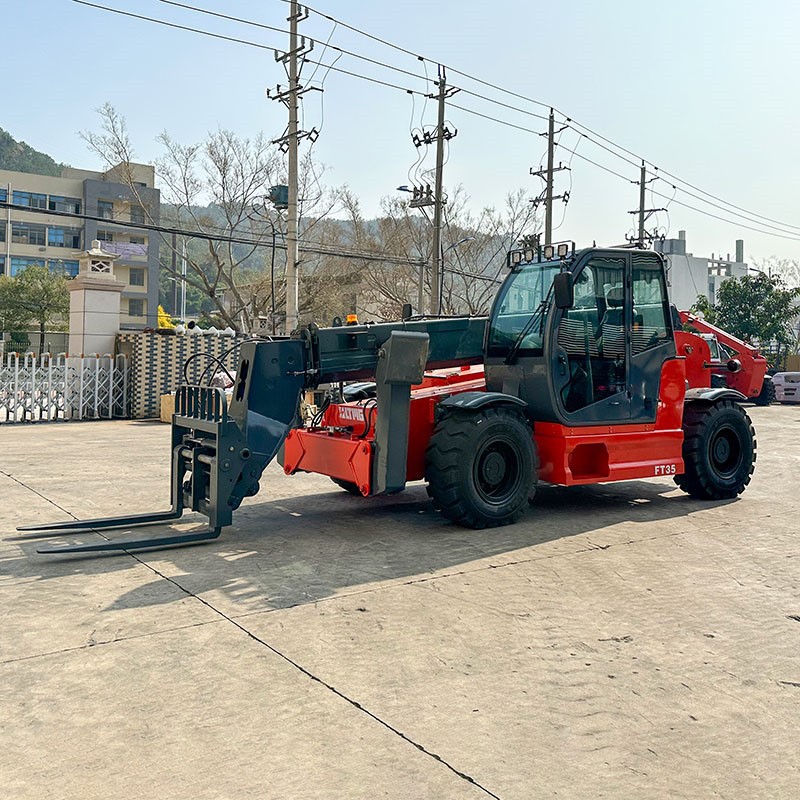

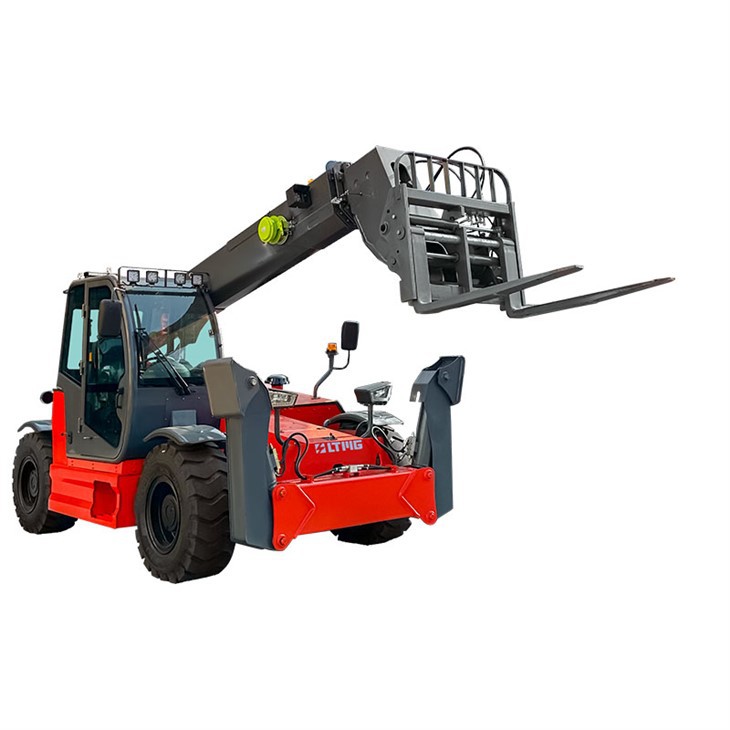

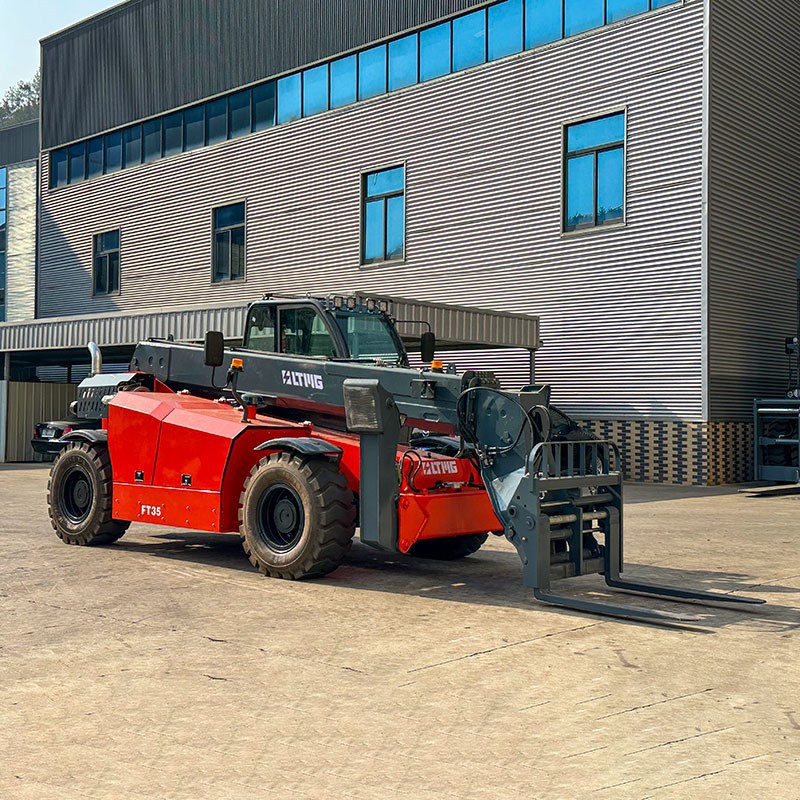

Introducing LTMG 3.5 Ton Boom Forklift, an efficient and versatile machine designed to make your work easier and more productive. With its high efficiency, this forklift helps save costs and work space, while also providing unparalleled flexibility and compatibility with various specific accessories.
Featuring a visible sunroof, the forklift provides a wider operating field of view, allowing operators to work more effectively and with greater precision. The sunroof is also designed to enhance safety, as operators have a clear view of their surroundings and can avoid accidents.
The telescopic arm forklift has compatibility with various specific accessories, which makes it a highly flexible machine that can meet a wide range of needs and requirements. Whether you need to handle large boxes, containers, or other materials, our forklift can be fitted with the right accessory to make your work easier and more efficient.
Flexibility and efficiency: it is also designed to be low noise, making it an ideal choice for work environments where noise is a concern. This feature not only helps protect the hearing of operators, but it also allows for work to be done in areas where noise restrictions are in place.
Products Parameter
| Model | unit | Deviation allowed | FT35 |
| Rated load | kg | - | 3500 |
| Load center | mm | - | 500 |
| Load capacity | kg | - | 1550 |
| Basic boom max. Lifting height | mm | ±1.5% | 4850 |
| Max. Lifting height | mm | ±1.5% | 7000 |
| Max. Horizontal reach | mm | ±1.5% | 3350 |
| Min. Horizontal reach | mm | ±1.5% | 930 |
| Min. Ground clearance | mm | ±1.5% | 400 |
| Min. Turning radius ( outer tyre center) | mm | ≤105% | 6200 |
| Boom frame upward angle | ° | ±1.0 | 60 |
| Boom frame downward angle | ° | ±1.0 | 11 |
| Operating weight | kg | ±5% | 9000 |
| Length (with fork) | mm | ±2% | 5730 |
| Width | mm | ±2% | 2390 |
| Height | mm | ±2% | 2485 |
| Wheel tread | mm | ±1% | 1870 |
| Wheel base | mm | ±1% | 2700 |
| Rated power / Rated turning speed | KW/rpm | - | 60/2000 |
| Max. Travelling speed (unloaded) | km/h | ±10% | 30 |
| Gradeability | % | - | ≥30% |
| Front (2 pcs) | - | - | 16/70-24 |
| Rear (2 pcs) | - | - | 10.00-20-16 |
video
The 3.5 Ton Boom Forklift is a versatile industrial machine that can lift and move heavy materials on construction sites, mines, ports, and other industrial settings. Additionally, it proves useful for tasks such as installing and maintaining road lighting equipment and installing various underground pipes (such as water pipes, gas pipes, etc.). With its adaptability and efficiency, it serves as an excellent loading and unloading machine that can meet the demands of diverse working conditions.
Operating conditions
This efficient machine finds extensive applications in factories, stations, docks, freight yards, post and telecommunications facilities, forests, building materials sectors, warehouses, and other similar locations.
FAQ
Q: How Can I Trust Your Company?
A: With 20 years of experience, we can offer you the right advice and the most economical price. All equipment is CE, ISO certified through third party evaluation.
Q: Why choose us?
Q: Does LTMG offer technical advice?
Hot Tags: 3.5 ton boom forklift, China 3.5 ton boom forklift manufacturers, Telescopic Fork Truck, Telescopic Forks Forklift, Telescopic Forklift, Mini Telescopic Forklift
