Products Description

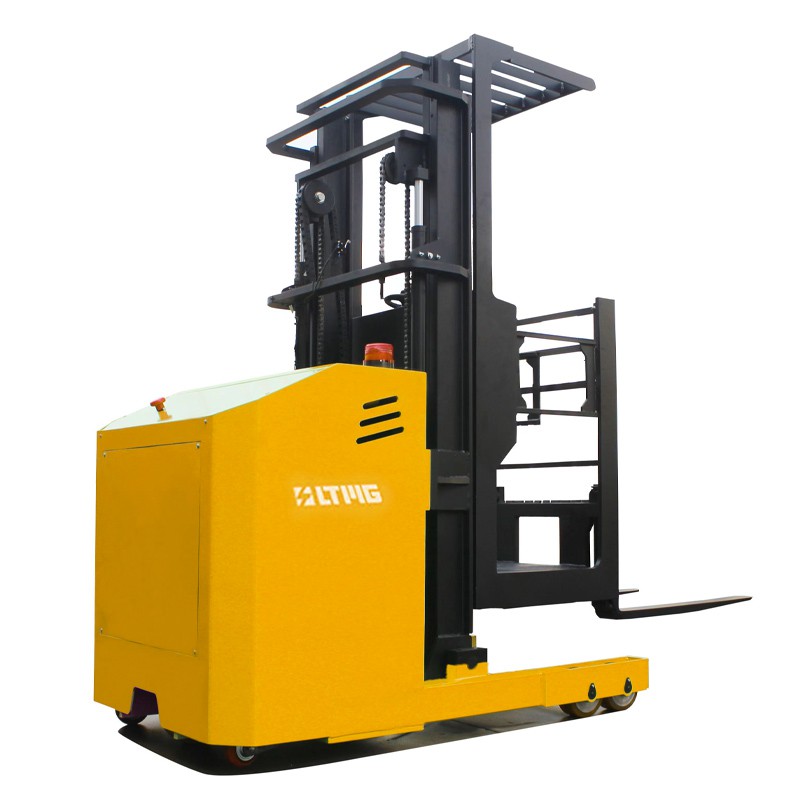

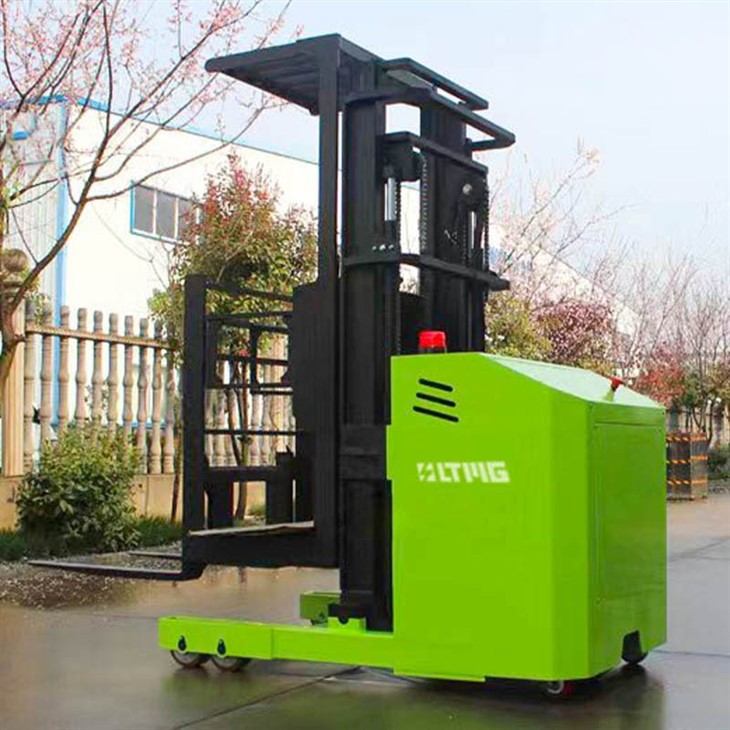

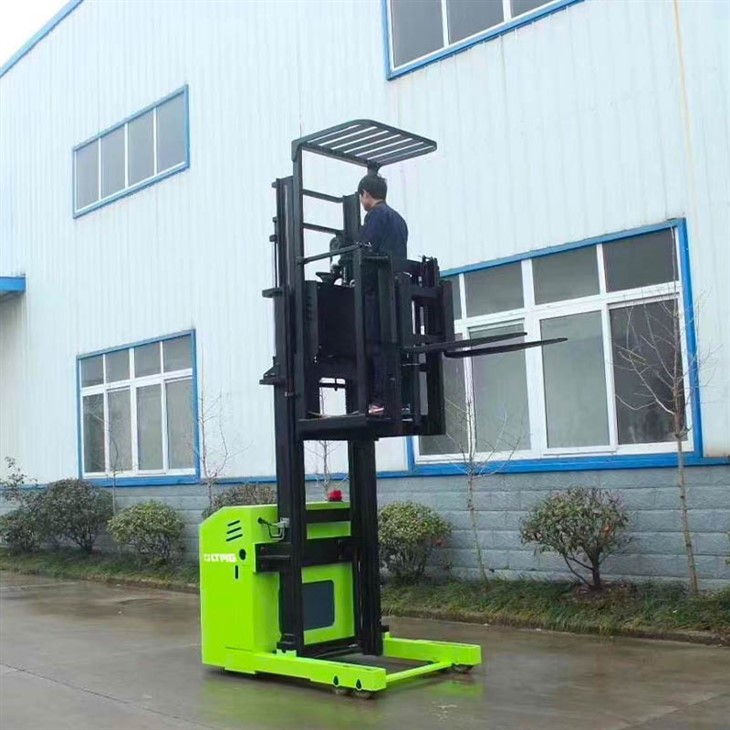

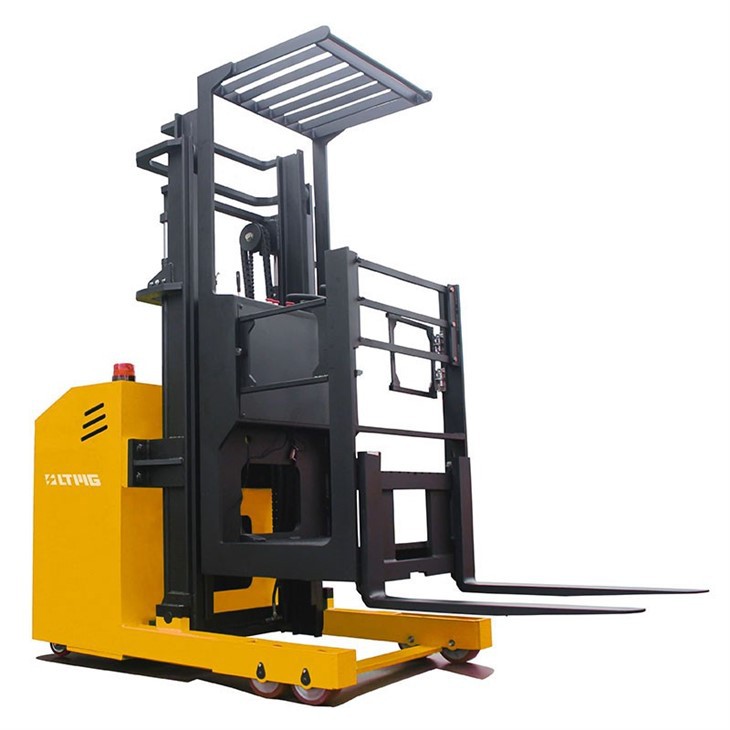

The 1 ton warehouse order picker forklift is a professional equipment designed to streamline the operations of picking and organizing products in a warehouse setting. This versatile forklift can handle single and double-sided pallets with ease, making it an ideal choice for various warehouse applications.
One of its standout features is its collapsible footboard and safety guard. The footboard ensures the operator's safety when lifting materials while the safety guard offers additional protection. This feature makes it an excellent choice for warehouse spaces concerned about safety and security.
With its advanced features, Chinese brand battery, AC drive, American Curtis control system, and EPS electronic assisted steering system, this forklift streamlines their operations, minimizes downtime, and maximizes efficiency.
High-powered Chinese brand battery: the battery powers the vertical AC drive, which is renowned for its zero-maintenance design. This makes it an ideal choice for warehouse operators who want reliable equipment that will limit their maintenance costs.
The Warehouse Order Picker Forklift also features an advanced American Curtis control system. The system is intuitive and straightforward, allowing operators to customize the forklift's performance to their specific needs. This system is particularly useful when handling more complex orders, ensuring that the operation remains smooth and efficient.
The order picker lift also comes with an advanced EPS electronic assisted steering system. This system makes it easy for operators to maneuver the forklift around tight spaces, making it highly efficient in narrow warehouse aisles.
The warehouse order picker forklift is an excellent choice for warehouse operators who want a reliable and versatile solution for their picking and organizing needs.
Products Description
| features | Model | ERP10 | |
| Capacity | Q(kg) | 1000 | |
| Load center | C(mm) | 500 | |
| wheelbase | Y(mm) | 1425 | |
| weight | Total weight including the battery | kg | 2600 |
| Wheel, chassis | Wheel type | Solid tires | |
| Wheel front | 0 x w(mm) | 180*76 | |
| Driving Wheel | 0 x w(mm) | 254*102 | |
| Balance wheel | 0 x w(mm) | 125*50 | |
| Wheel tread:Front | b10(mm) | 1010 | |
| Wheel tread:Rear | 784 | ||
| size | Max Lifting Height | h3(mm) | 4500 |
| Max.height | h4(mm) | 6670 | |
| Overhead guard height | h14(mm) | 2210 | |
| Overall length | I2(mm) | 1865 | |
| Overall width | b1(mm) | 1130 | |
| Fork dimension | s/e/l(mm) | 35/100/920 | |
| Fork spread | b5(mm) | 210-770 | |
| Min ground clearance | m2(mm) | 50 | |
| Turning radius | Wa(mm) | 1657 | |
| performance | Max travel speed(No load /Full) | km/h | 5/3 |
| Max.Grade ability(No load /Full) | % | 10/6 | |
| Brake form | Electromagnetic braking | ||
| motor | Driving motor | kw | 2.5 |
| Lifting speed (No load /Full) | m/s | 0.275/0.215 | |
| Lowered speed (No load /Full) | m/s | 0.150/0.195 | |
| Lifting motor | kw | 3 | |
| Battery type | Lead acid battery | ||
| Battery capacity | V/Ah | 24/300 | |
| Charger-Intelligent | V/A | 24/40 | |
| other | Drive control mode | AC |
Products certificates
Company introduction
FAQ
Q: What is an Order Picker Forklift?
Q: What is the maximum height a Order Picker Forklift can reach?
Q: What types of products is a Order Picker Forklift suited for?
Q: How can I maintain my Order Picker Forklift?
