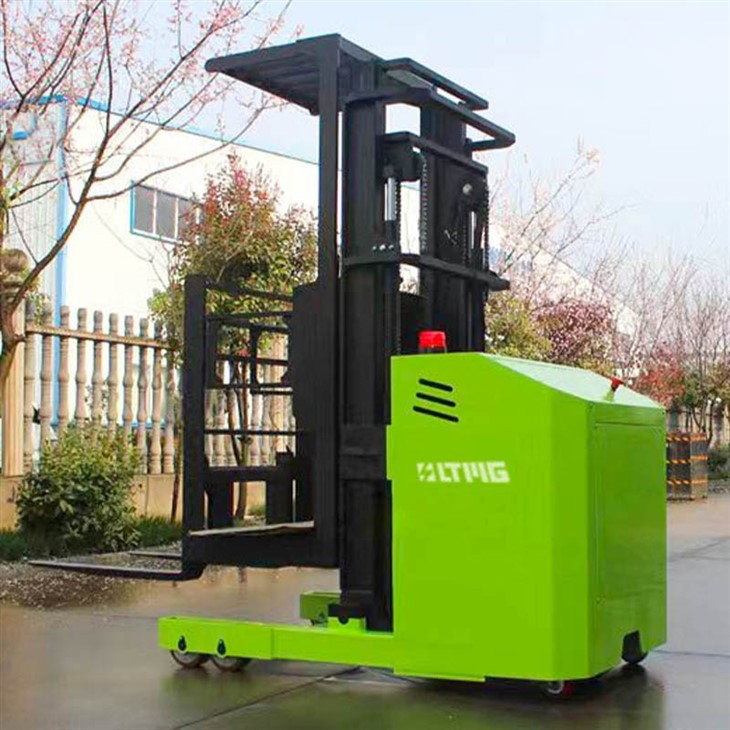

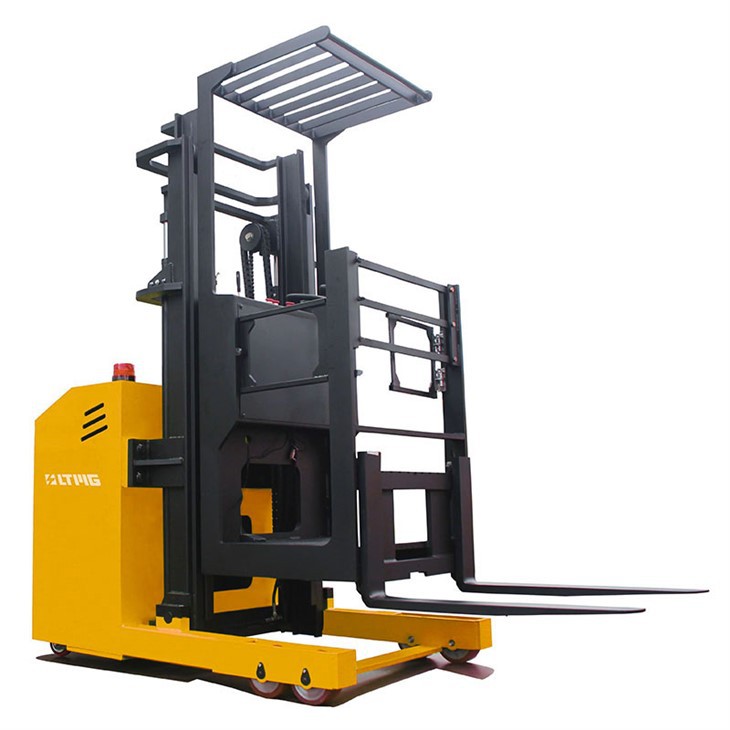

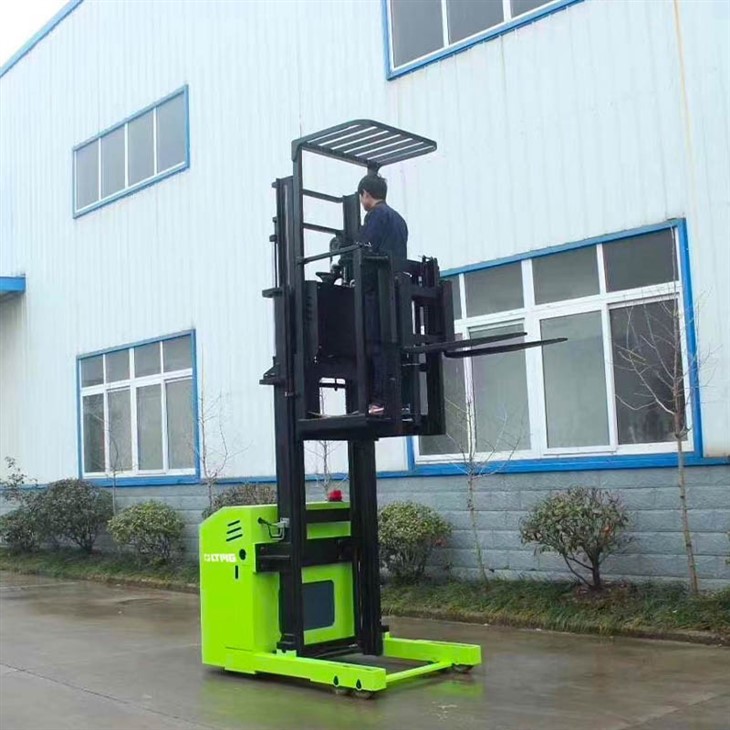

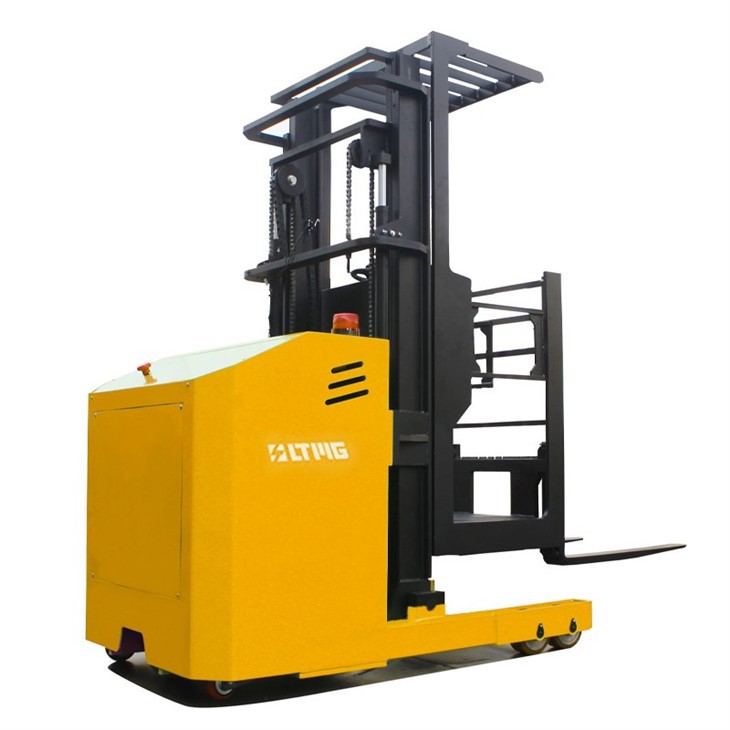

Electric Order Picker Lift For Warehouse

Items:Electric Order Picker Lift For Warehouse
Power type: Electric
Rated capacity: 15000 kg
Color:customized
Send Inquiry
Chat Now

Product Introduction

With a focus on high-level picking, lightweight design, and exceptional maneuverability, this electric order picker lift for warehouse stands out in the market for its innovative features.

This picker forklift is tailored for high-level picking, allowing operators to reach and retrieve items efficiently from elevated storage locations. The design facilitates seamless navigation through warehouse aisles, optimizing the picking process and contributing to overall operational efficiency.

Weighing in at a remarkably light level, this picker lift enhances maneuverability, enabling operators to navigate through tight spaces with ease. The lightweight construction does not compromise on strength or durability, ensuring a perfect balance between portability and robustness.

Equipped with a spacious operator compartment, the order picker provides a broad field of vision, significantly improving the driver's safety during operation. Enhanced visibility contributes to better decision-making, reducing the risk of accidents and creating a safer working environment.

The order picker features a cushioned descent mechanism, enhancing overall safety during operation. This ensures a controlled and smooth descent, minimizing the impact on the operator and the picked items. The focus on safety extends to every aspect of the order picking process.

Designed with a dual base leg structure, this narrow aisle order picker ensures a secure foundation during operation, facilitating convenient ground-level tasks. The stability provided by the dual base legs enhances safety during loading and unloading, making it an ideal solution for a variety of warehouse applications.

Boasting a low center of gravity, our electric order picker lift for warehouse achieves exceptional stability during operation. This feature minimizes the risk of tip-over accidents, especially when working at elevated heights, ensuring a secure and reliable performance in diverse warehouse environments.

narrow aisle order picker

order picker lift

picker forklift


Technical parameters



Model ERP15
Capacity Q(kg) 1500
Load center C(mm) 500
Wheelbase Y(mm) 1845
Total weight including the battery kg 3000
Wheel front 0 x w(mm) 180*70
Driving Wheel 0 x w(mm) 382*142
Balance wheel 0 x w(mm) /
Wheel tread:Front b10(mm) 1160
Wheel tread:Rear /
Max Lifting Height h3(mm) 4500
Max.height h4(mm) 6670
Overhead guard height h14(mm) 2120
Overall length I2(mm) 2500
Overall width b1(mm) 1300
Fork dimension s/e/l(mm) 40/122/920
Fork spread b5(mm) 210-770
Min ground clearance m2(mm) 60
Turning radius Wa(mm) 2140
Max travel speed(No load /Full) km/h 5/3
Max.Grade ability(No load /Full) % 10/6
Brake form
Driving motor kw 6.5
Lifting speed (No load /Full) m/s 0.275/0.215
Lowered speed (No load /Full) m/s 0.150/0.195
Lifting motor kw 6.3
Battery type
Battery capacity V/Ah 48/300
Charger-Intelligent V/A 48/40
About LTMG



about order picker lift factory

Client comment



narrow aisle order picker comment

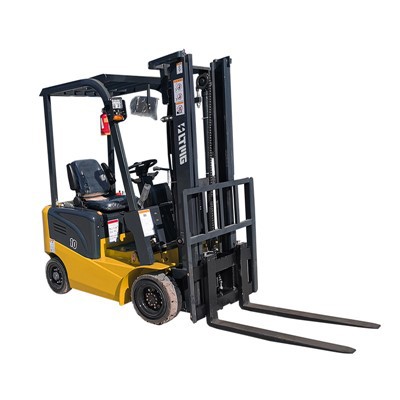

recommend product



picker forklift stacker





FAQ

Q: Can you provide a brief introduction to LTMG as a company?

A:LTMG is a renowned company specializing in the manufacturing of material handling equipment, including high-quality order pickers. Established in the 2001 and headquartered in China, LTMG has gained a solid reputation globally for its commitment to excellence in design, manufacturing, and customer satisfaction.

Q: What kind of after-sales support can I expect from LTMG?

A: LTMG is committed to ensuring customer satisfaction beyond the purchase. We offer comprehensive after-sales support, including technical assistance, spare parts availability, and training programs. Our goal is to provide you with a seamless experience, and our dedicated support team is always ready to address any concerns or inquiries you may have.

Q: Do you looking for Agent?

A:Yes, we're looking for the agent all over the world, please contact us for further discussion.
