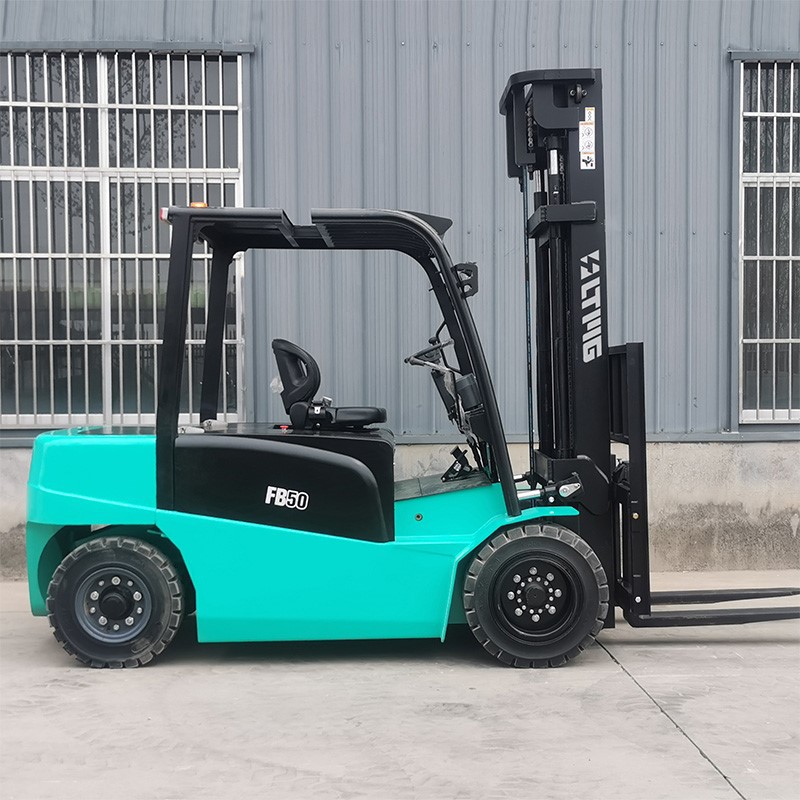

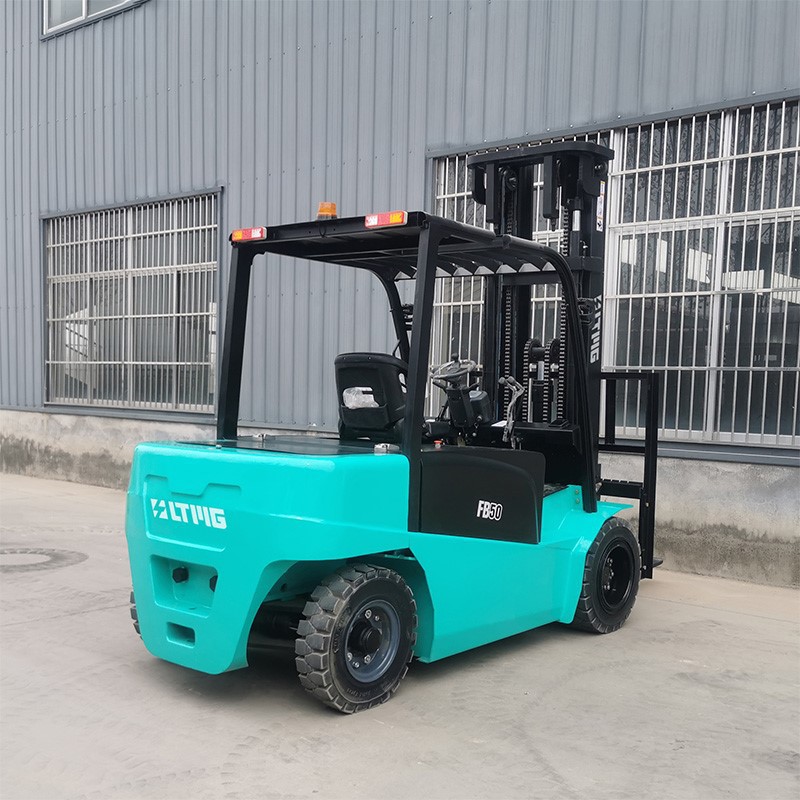

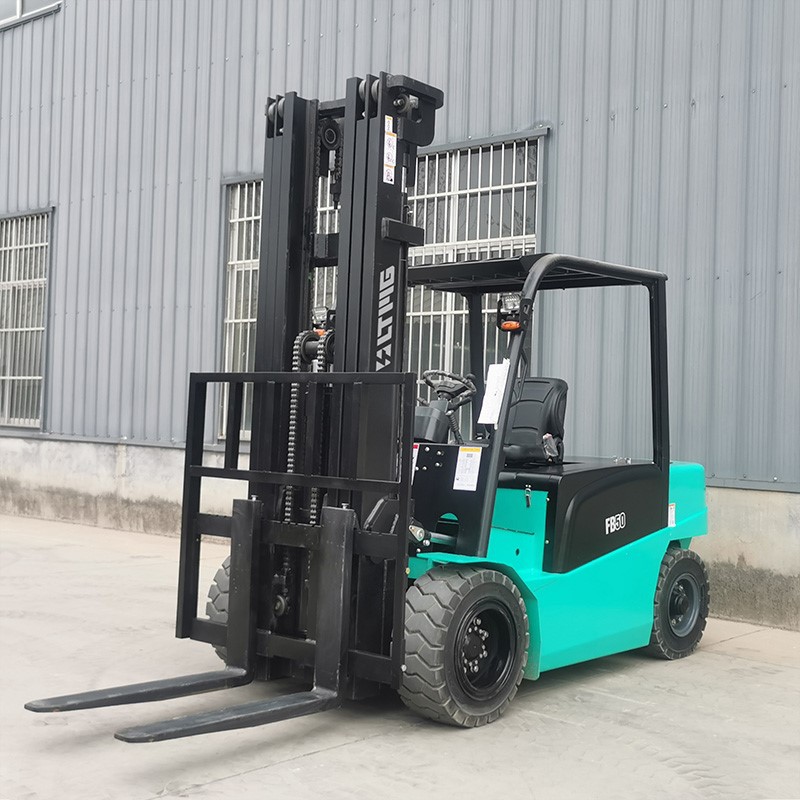

The 5-ton electric forklift represents a powerful and environmentally-conscious solution for material handling operations in various industries. Combining robust performance with energy efficiency, this model offers an eco-friendly alternative to traditional diesel or LPG-powered forklifts without compromising on productivity or reliability.

Products parameter

Model		FB50
Power type		electric
Rated capacity	kg	5000
Load center	mm	500
Tire type		pneumatic tyre
Tilting Angles	α/β(°)	6/10
Front overhang	mm	2985
Rear overhang	mm	565
Wheelbase	mm	2000
Min.ground clearance	mm	110
Tread(front/rear)	mm	1150/1175
Overall width	mm	1480
Min mum urn radius	mm	2676
Max driving speed	km/h	13/12.5
Max Lifting speed	mm/s	260/420
Max lowering speed	mm/s	480/430
Maxmum tractive force	mm	16800
Max.grade ability	mm	13/14
Hoisting motor power	mm	18
Level voltage/Capacitance	V/AH	80/700
Drive System		AC
Total weight	kg	7150

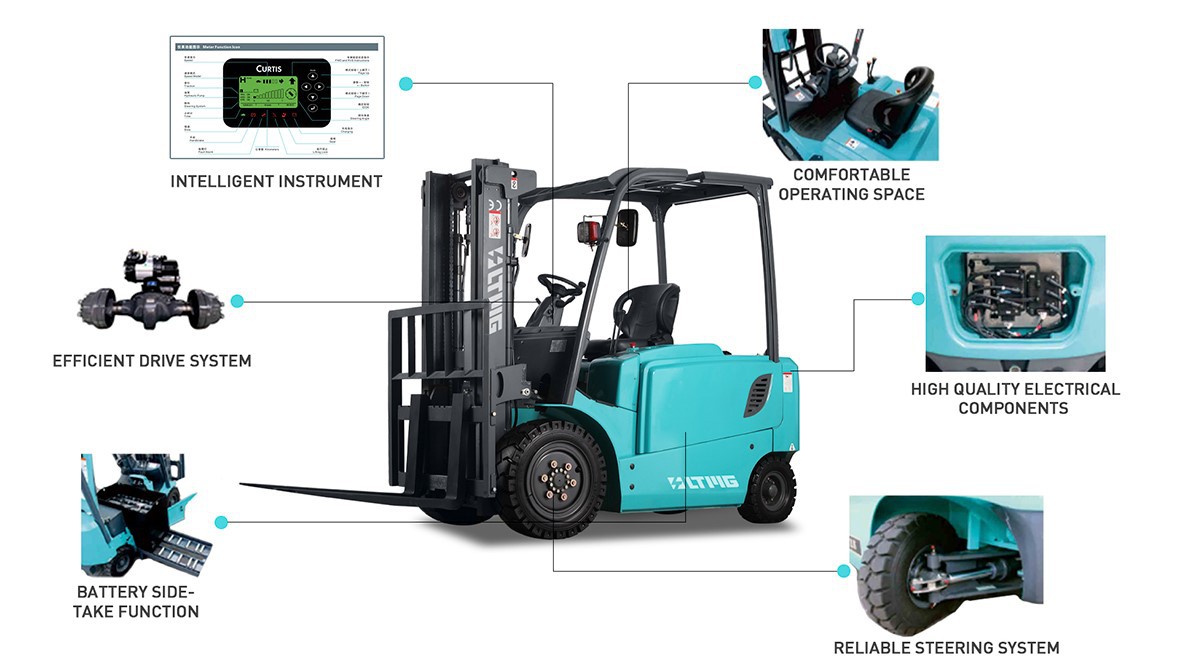

Forklift component

Our forklifts are meticulously engineered with high-quality components sourced from renowned Chinese manufacturers, ensuring exceptional performance, durability, and reliability across diverse operational environments. These integral parts embody the precision engineering and advanced manufacturing prowess that has placed China at the forefront of global industrial supply chains.

Forklift components
