Telescopic Telehandler Boom Lift Forklift

Items: Telescopic forklift
Power type: Diesel
Lifting height: 7000mm
Function: Automatic levelling
A telescopic forklift, also known as a telehandler or telescopic handler, is a versatile piece of equipment commonly used in construction, agriculture, and industrial settings. It is designed to perform the functions of both a forklift and a crane, offering the ability to lift and move heavy loads over various distances and heights.
Send Inquiry
Chat Now

Product Introduction

Features Of Telescopic Telehandler Boom Lift Forklift:

Reach: Telescopic boom lifts are equipped with a telescopic boom that can extend both vertically and horizontally. This allows them to reach higher and farther than standard forklifts, making them suitable for tasks that require increased reach.

Lifting Capacity: Telehandlers have a higher lifting capacity compared to traditional forklifts. They can handle heavier loads, making them suitable for tasks involving large and bulky materials.

Versatility: Comes with a wide range of attachments, including forks, buckets, jibs, and platforms. This versatility enables them to perform various tasks such as lifting, loading, unloading, material placement, and even light excavation work.

Stability: Telehandlers are designed to be stable and maneuverable, with features like four-wheel drive and steering. This allows them to operate on rough terrain and in confined spaces, providing flexibility in different work environments.

Operator Visibility: Tele handlers have a raised cab that provides excellent visibility for the operator, enhancing safety and allowing for efficient maneuvering and load placement.

Time Efficiency: With their versatility and reach capabilities, telehandlers can perform multiple tasks, reducing the need for additional equipment and saving time on the job site.

Cost Savings: By combining the functions of a forklift and a crane, telescopic forklifts can eliminate the need for hiring separate equipment, leading to potential cost savings for businesses.

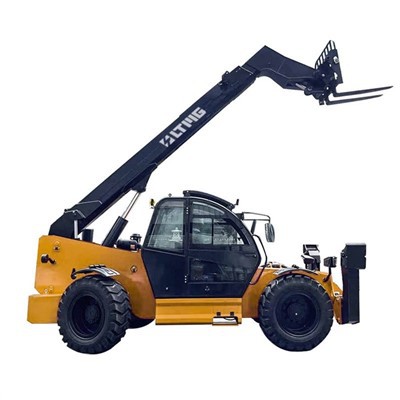

LTMG forklift





Specification



Model

FT50

Rated load

5000Kg

Maximum lifting height

7m

Maximum reach

6.80m

Overall length (to forklift)

6.08m

Overall width

2.26m

Overall height

2.54m

Wheelbase

3.3m

Ground Clearance

0.4m

Turning Diameter

4m

Unladen weight

11000Kg

Cab Width

0.9m

Standard Tires

16/70-24

Standard Forks

1200×125×45

Lift

7.20S

Lowering

5.50S

Extend

6.50S

Retract

5.40S

Upper tipping (filling)

2.90S

Downward tipping (unloading)

2.80S

Engine

Brand name

Yuchai

Emission standard

National III

Model

YC4DK90-T304

Cylinder-displacement

4-3.621L

Power

66Kw

Maximum torque

350N.m

Transmission mode

Torque converter

Number of gears

Front 4 Rear 3

Maximum speed

34km/h

Brake form

Dual-axle oil-absorbed multi-disc brakes

Hydraulic oil

450L

Diesel oil

260L



Application

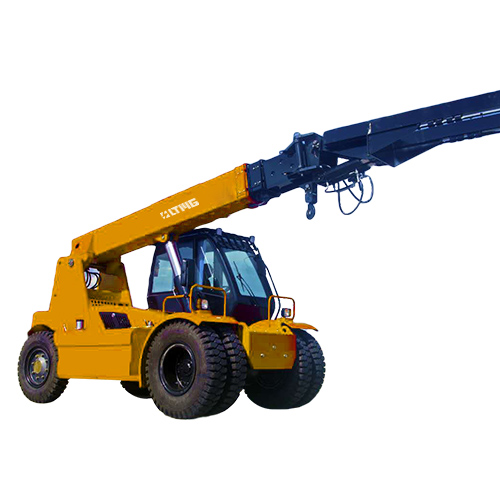

application of telescopic fork truck



Telescopic forklifts are often used in construction sites for tasks such as moving materials, loading and unloading trucks, and working at heights. They are also utilized in agriculture for tasks like stacking bales of hay, moving feed or livestock, and reaching elevated areas in barns or warehouses.



Shipping plan



Secure the Load: Before transportation, make sure the telescopic boom is fully retracted and the load is properly secured to the fork attachment or other suitable lifting equipment. This will prevent any movement or damage during transit.

Use a Trailer or Flatbed: To transport the forklift, you will need a suitable trailer or flatbed truck that can accommodate its size and weight. Ensure the transportation vehicle is properly rated and equipped with straps, chains, or other securing mechanisms to keep the forklift in place.

Follow Local Regulations: Check and comply with local transportation regulations and obtain any necessary permits for oversize or overweight loads. Adhere to speed limits and road safety guidelines to ensure a safe journey.

shipping plan of telescopic fork truck



FAQ



Q: Can we provide OEM service?

A: LTMG can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

Q: What is the maximum lifting capacity of a telescopic forklift?

A: The lifting capacity of telescopic forklifts varies depending on the model and configuration. They can generally lift loads ranging from 5,000 to 20,000 pounds (2,268 to 9,072 kilograms). It's important to check the specific model's load charts to ensure safe and proper operation.

Q: Can a telescopic forklift be used indoors?

A: Telescopic forklifts are primarily designed for outdoor applications. However, there are compact models available that can be used in indoor settings with sufficient overhead clearance and appropriate flooring conditions.

Q: Could we request our own color for the telescopic boom lift?

A: Yes, of course, you just need to offer us the RAL code.
