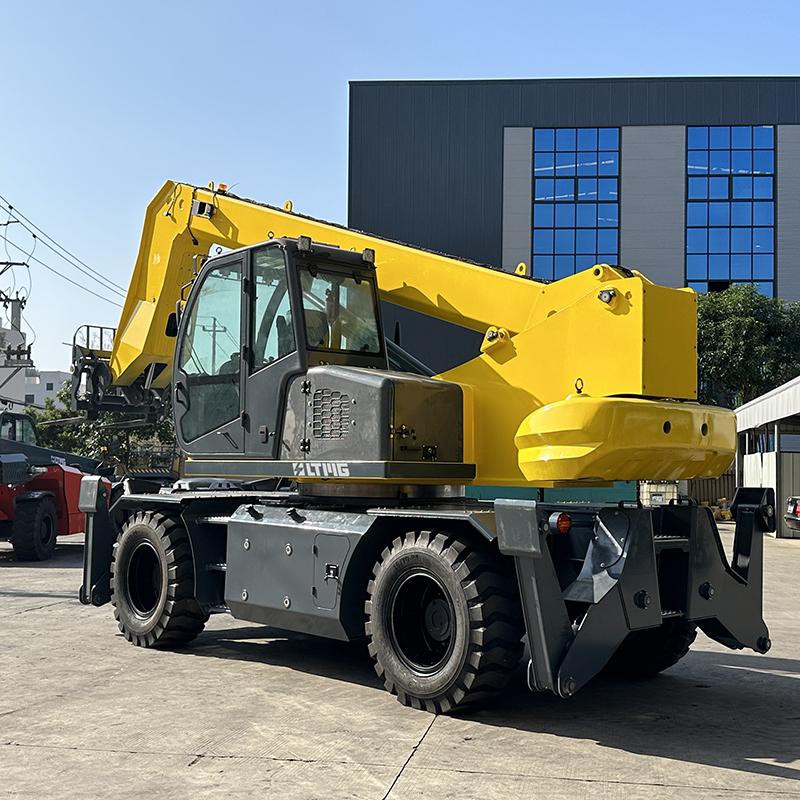

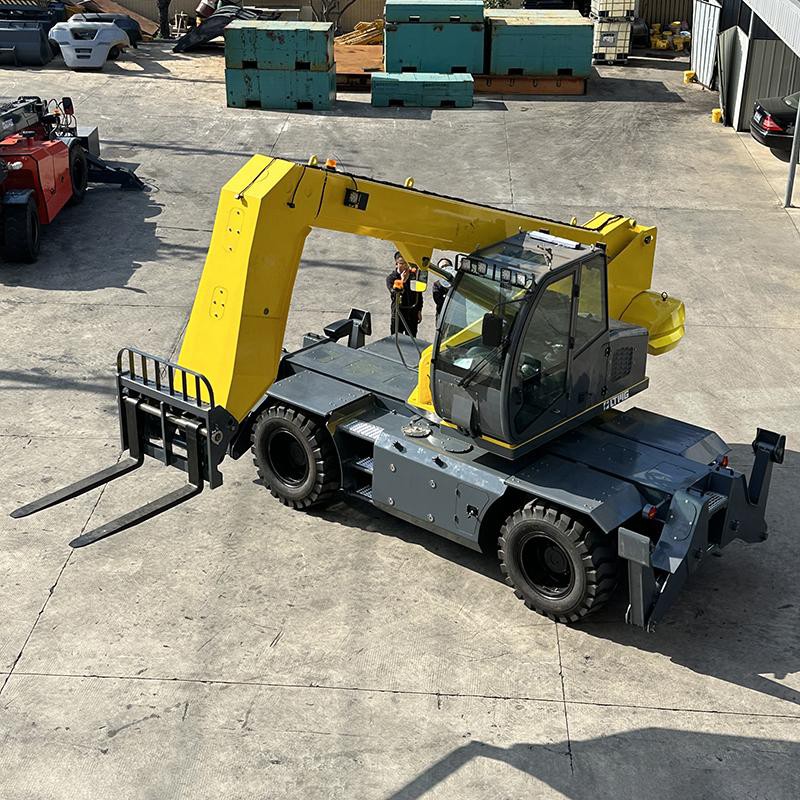

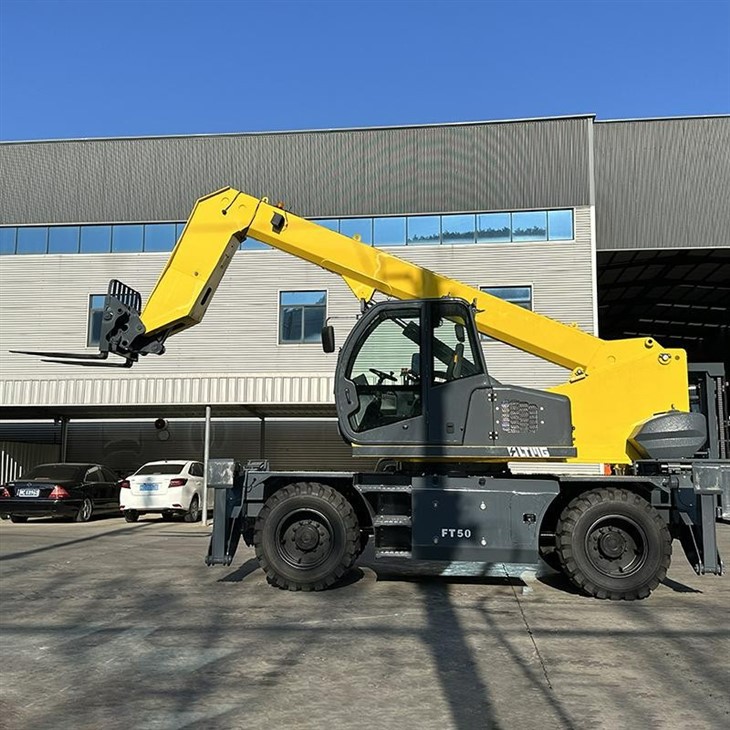

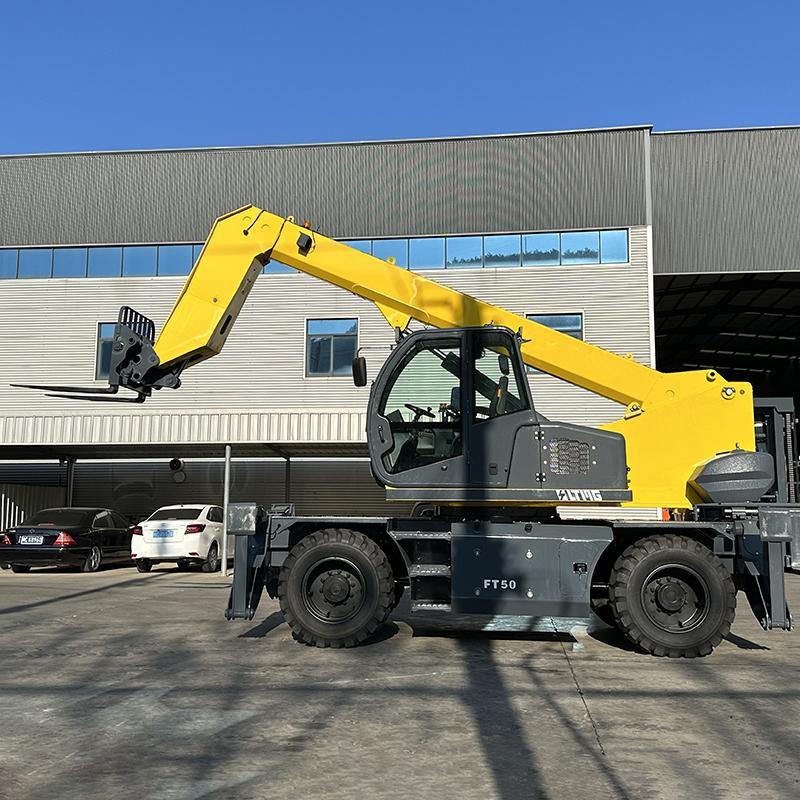

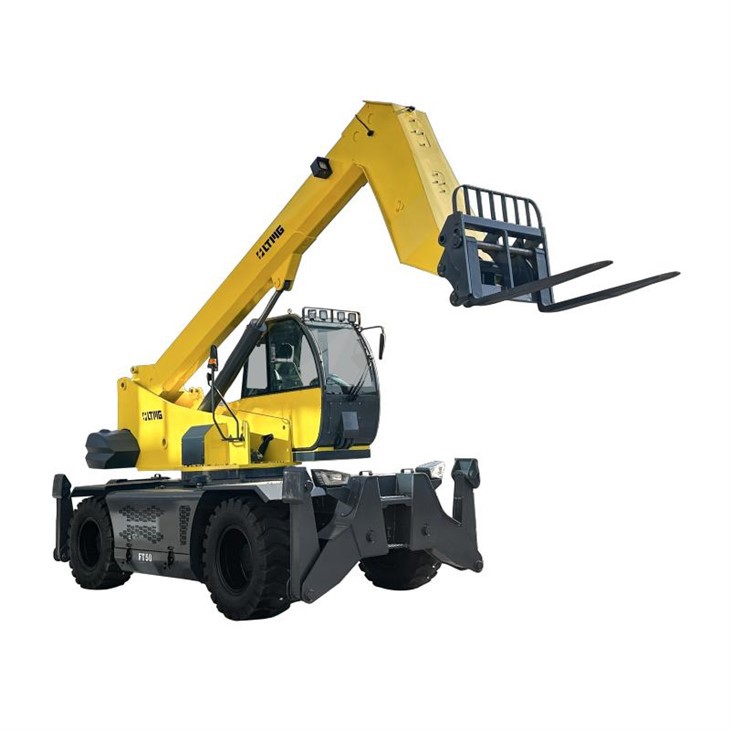

Name: LTMG Extended Boom Forklift
Brand: LTMG
SKU: 229968709

The LTMG extended boom forklift, equipped with a range of advanced features that enhance productivity and efficiency in material handling operations. Here are the key features:

1. Panoramic View Cabin & 360-Degree Rotation: The forklift is equipped with a spacious, full-view cabin that provides optimal visibility from all angles. The cabin can rotate a full 360 degrees, allowing operators to have a clear view of their surroundings and enhancing safety and maneuverability.

2. Drive Type: The extension boom forklift features a static hydraulic four-wheel drive system, providing superior traction and stability. Additionally, there is an option to incorporate a hydraulic torque converter, further enhancing its drive capabilities and adaptability to various terrains.

3. Electrical System: The forklift utilizes a CAN bus controller, enabling efficient and reliable communication between different components of the vehicle. This advanced electrical system enhances overall performance and facilitates seamless integration with other technologies.

4. Hydraulic Self-Leveling System: The telescoping boom forklift is equipped with an automatic hydraulic leveling system. This feature ensures that the load remains stable and level even when operating on uneven surfaces, minimizing the risk of accidents and maintaining optimal load handling.

5. Three Steering Modes: The forklift offers three steering modes to suit different working conditions. Operators can choose between front-wheel steering, four-wheel steering, or crab steering. This flexibility allows for precise maneuverability in tight spaces, uneven terrain, or when navigating around obstacles.

6. Quick-Change Attachment Functionality: LTMG extended boom forklift comes with a convenient quick-change attachment system. This feature enables operators to swiftly and easily switch between various work tools or attachments, expanding the versatility and adaptability of the forklift to handle different tasks efficiently.

telehandlers

cheap telehandler

telescopic forklift

Specification

Model	FT50
Rated load	5000Kg
Maximum lifting height	7m
Maximum reach	6.80m
Overall length (to forklift)	6.08m
Overall width	2.26m
Overall height	2.54m
Wheelbase	3.3m
Ground Clearance	0.4m
Turning Diameter	4m
Unladen weight	11000Kg
Cab Width	0.9m
Standard Tires	16/70-24
Standard Forks	1200×125×45
Lift	7.20S
Lowering	5.50S
Extend	6.50S
Retract	5.40S
Upper tipping (filling)	2.90S
Downward tipping (unloading)	2.80S
Engine
Brand name	Yuchai
Emission standard	National III
Model	YC4DK90-T304
Cylinder-displacement	4-3.621L
Power	66Kw
Maximum torque	350N.m
Transmission mode	Torque converter
Number of gears	Front 4 Rear 3
Maximum speed	34km/h
Brake form	Dual-axle oil-absorbed multi-disc brakes
Hydraulic oil	450L
Diesel oil	260L

Application

The LTMG telescopic forklift proves indispensable across diverse industries, excelling in construction for lifting heavy materials on sites, optimizing warehousing efficiency with its 360-degree rotating cabin, and facilitating precise cargo handling in ports. Its versatility extends to forestry, manufacturing, mining, and utility maintenance, where the quick-change attachment system and advanced steering modes ensure adaptability to various tasks. This forklift's robust design and hydraulic features make it a reliable choice for agricultural settings, showcasing its ability to navigate tight spaces and handle a multitude of material handling challenges with ease.

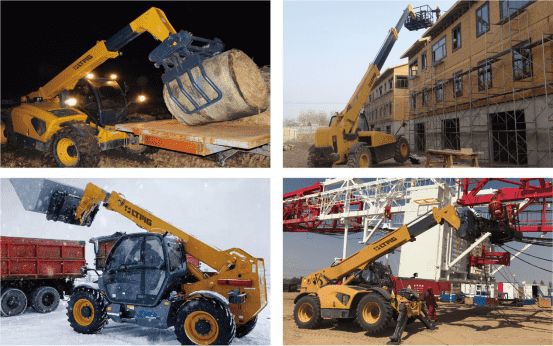

application of telescopic fork truck

transportation

shipping plan of telescopic fork truck

FAQ

Q: How does the Quick-Change Attachment System Work?

A: The quick-change attachment system allows operators to rapidly switch between various work tools, enhancing efficiency by adapting the forklift to different tasks.

Q: What Advantages Does the 360-Degree Rotating Cabin Offer?

A: The rotating cabin provides operators with an unobstructed view of their surroundings, improving safety and maneuverability, especially in confined spaces.

Q: Can the Extended Boom Forklift Handle Uneven Terrain?

A: Yes, the forklift is designed to navigate through challenging terrains with its hydraulic auto-leveling system, ensuring stability during operation.

Q: Can the Extended Boom Forklift be Customized for Specific Requirements?

A: Yes, depending on user needs, the forklift can be customized with optional features, such as specific drive systems or additional safety enhancements.
