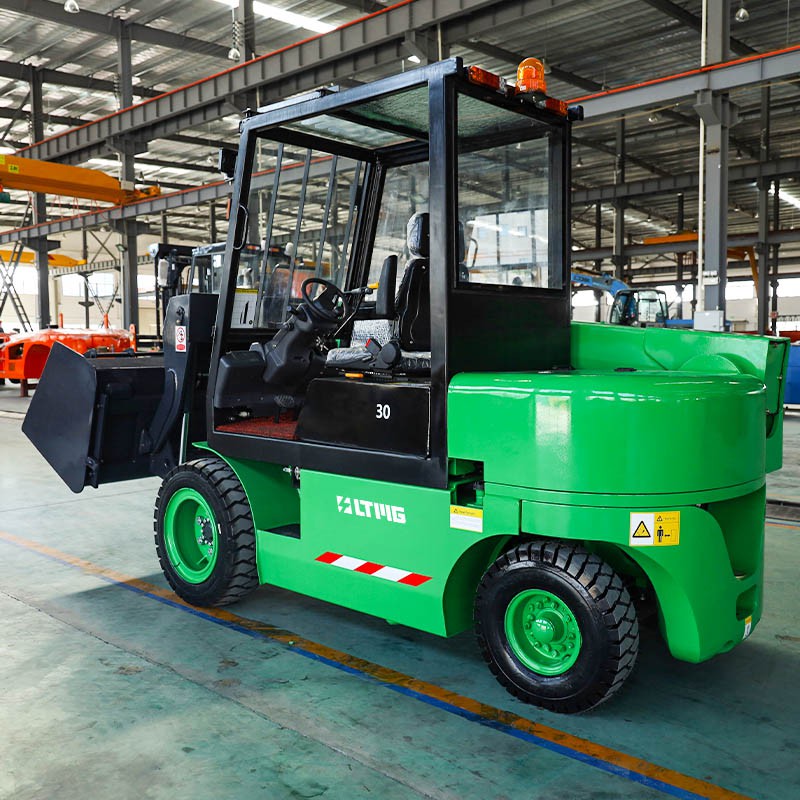

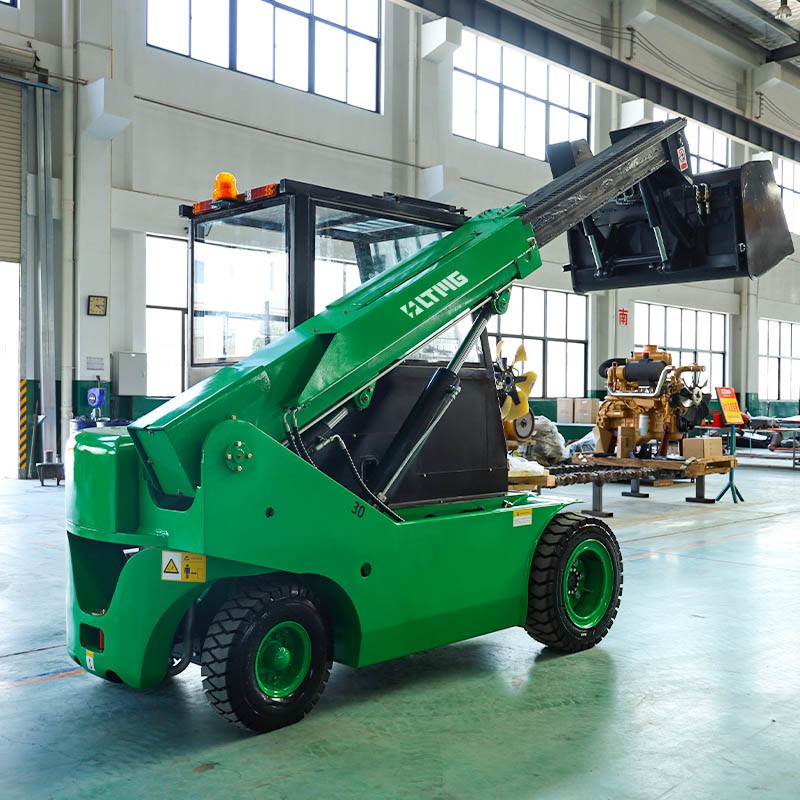

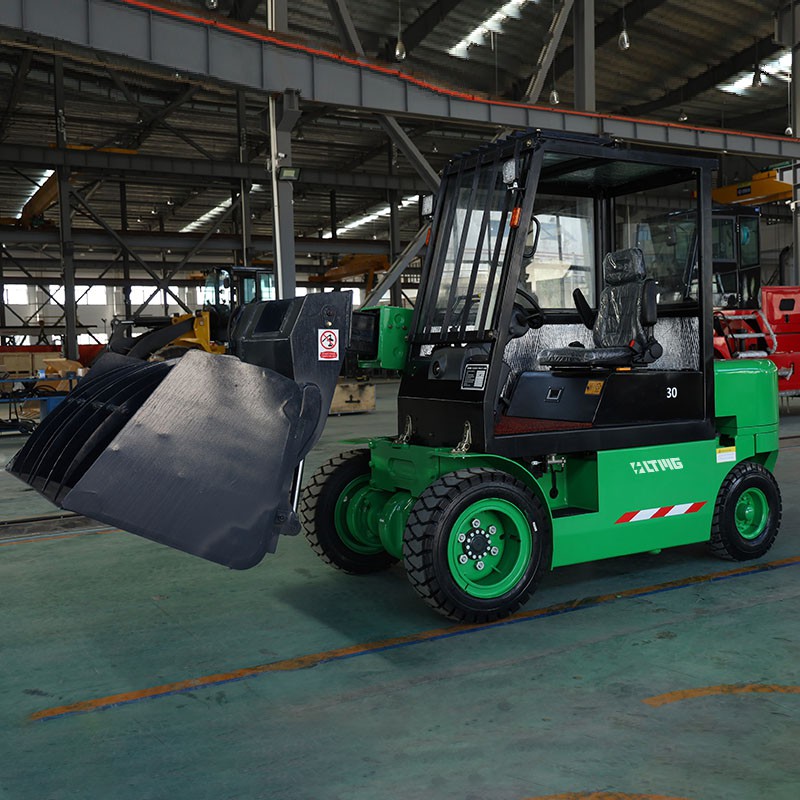

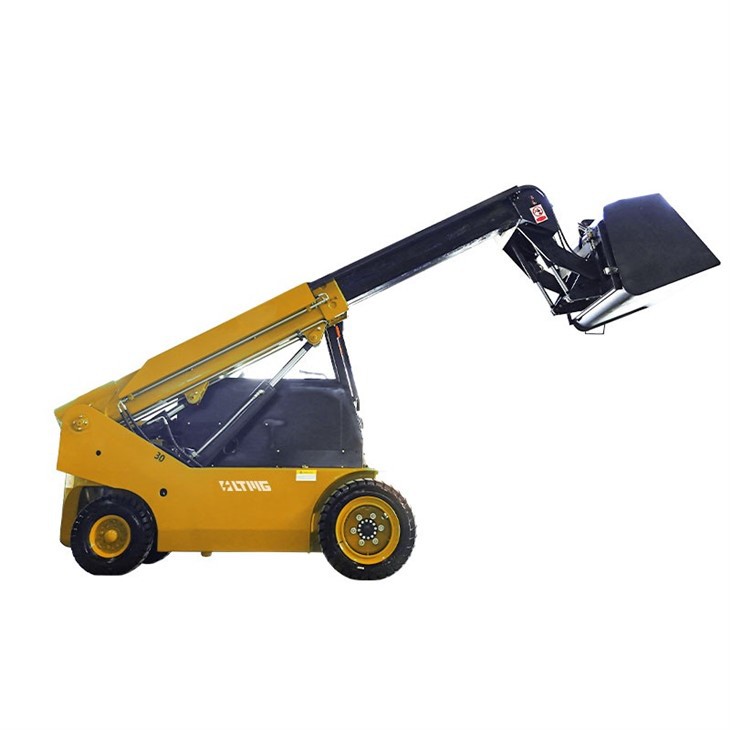

Packed with advanced features, the compact telehandler 7M telescopic arm forklift is engineered to enhance productivity, safety, and operator comfort.
The standard configuration of the driver's cabin boasts three-sided glass enclosure, ensuring a safe and comfortable operating environment. For those seeking additional protection, an optional fully enclosed cabin is available. The inclusion of a skylight provides an extended operational field of vision, and the cabin is designed to be flip-able for quick and easy maintenance of all major components.
The small telescopic forklift is equipped with a state-of-the-art pilot control system, offering stable and lightweight handling. This system not only ensures precise control but also significantly reduces operator fatigue, promoting a more comfortable and sustainable working experience.
The lifting mechanism is designed for efficiency and ease of use. The cargo shelf can be tilted at a large angle, facilitating rapid loading and unloading of goods with ease and safety. Moreover, the boom telescopic forklift is compatible with a variety of specialized attachments, providing unparalleled flexibility to meet diverse operational needs.
This tele forklift is engineered to thrive in diverse work settings. Its adaptability makes it suitable for a wide range of applications, ensuring optimal performance across various industries.
The compact telehandler 7M telescopic arm forklift features an advanced electro-hydraulic control transmission system, enabling rapid and smooth shifting. The soft engagement control allows for quick and convenient gear changes, ensuring a smooth start and reducing the overall operational intensity. This not only simplifies the operation but also enhances the efficiency of the entire vehicle, contributing to a more productive workflow.
Products Parameter
| Model | unit | Deviation allowed | FT30 |
| Rated load | kg | - | 2500 |
| Load center | mm | - | 500 |
| Load capacity | kg | - | 1000 |
| Basic boom max. Lifting height | mm | ±1.5% | 4850 |
| Max. Lifting height | mm | ±1.5% | 7000 |
| Max. Horizontal reach | mm | ±1.5% | 3350 |
| Min. Horizontal reach | mm | ±1.5% | 930 |
| Min. Ground clearance | mm | ±1.5% | 400 |
| Min. Turning radius ( outer tyre center) | mm | ≤105% | 6200 |
| Boom frame upward angle | ° | ±1.0 | 60 |
| Boom frame downward angle | ° | ±1.0 | -11 |
| Operating weight | kg | ±5% | 8600 |
| Length (with fork) | mm | ±2% | 5730 |
| Width | mm | ±2% | 2390 |
| Height | mm | ±2% | 2485 |
| Wheel tread | mm | ±1% | 1870 |
| Wheel base | mm | ±1% | 2700 |
| Rated power / Rated turning speed | KW/rpm | - | 60/2000 |
| Max. Travelling speed (unloaded) | km/h | ±10% | 30 |
| Gradeability | % | - | ≥30% |
| Front (2 pcs) | - | - | 16/70-24 |
| Rear (2 pcs) | - | - | 10.00-20-16 |
Operating conditions

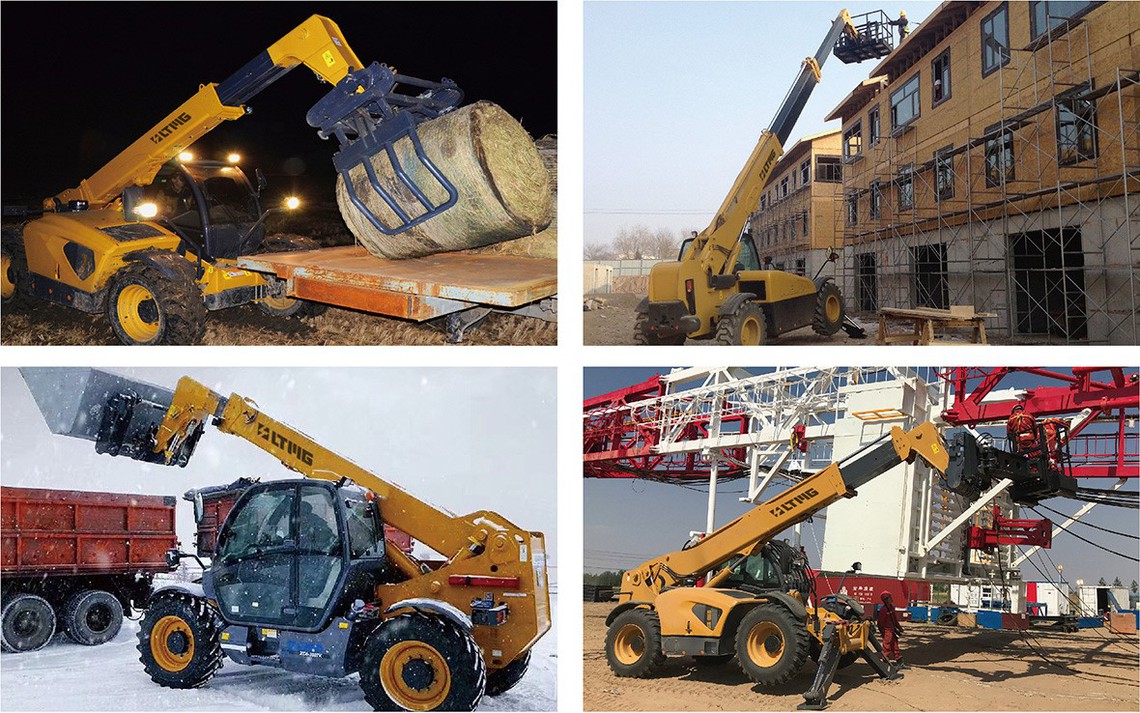

Telehandlers are versatile machines with a broad spectrum of applications across various industries. Renowned for their capability to lift and transport heavy loads at different heights and distances, they find widespread use in construction, agriculture, mining, and manufacturing. Whether confronted with the challenge of maneuvering heavy materials in confined spaces or on uneven terrain, these machines excel at performing tasks efficiently and safely.
FAQ
Q: Could you print our company LOGO on the nameplate and package?
A:Yes, we can do that.
Q: Can we become your authorized agent?
Q: How can I be assured of the quality of LTMG's telescopic forklifts?
A: Ensuring the quality of LTMG's telescopic forklifts is a top priority for us. We adhere to stringent quality control procedures and conduct thorough testing at various stages of the manufacturing process. Our commitment to excellence is further demonstrated by the incorporation of advanced technology and the use of premium components. This meticulous approach guarantees that our forklifts not only meet but often surpass industry standards, providing you with a reliable and high-performance solution.
Q: Can I visit your factory?
A: Absolutely, we warmly welcome your visit. Prior to your departure from your country, please inform us of your plans. We will provide directions and, if possible, arrange for a pick-up at a convenient time.
