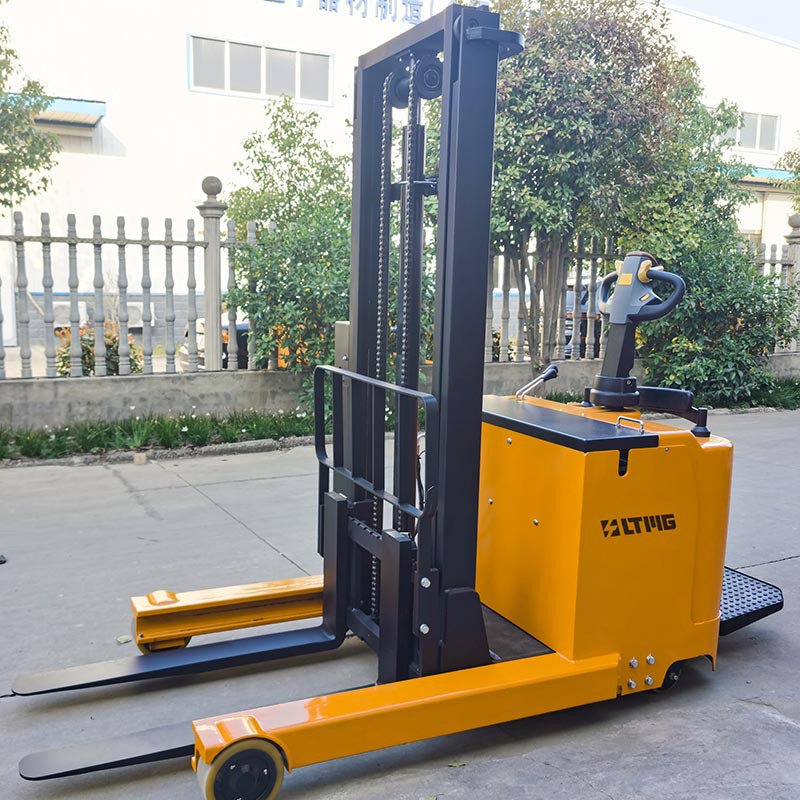

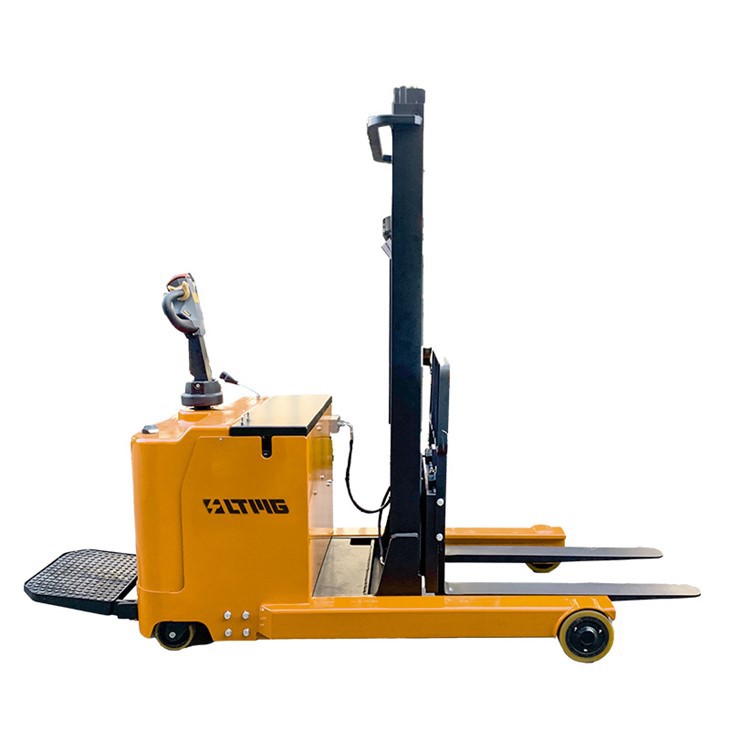

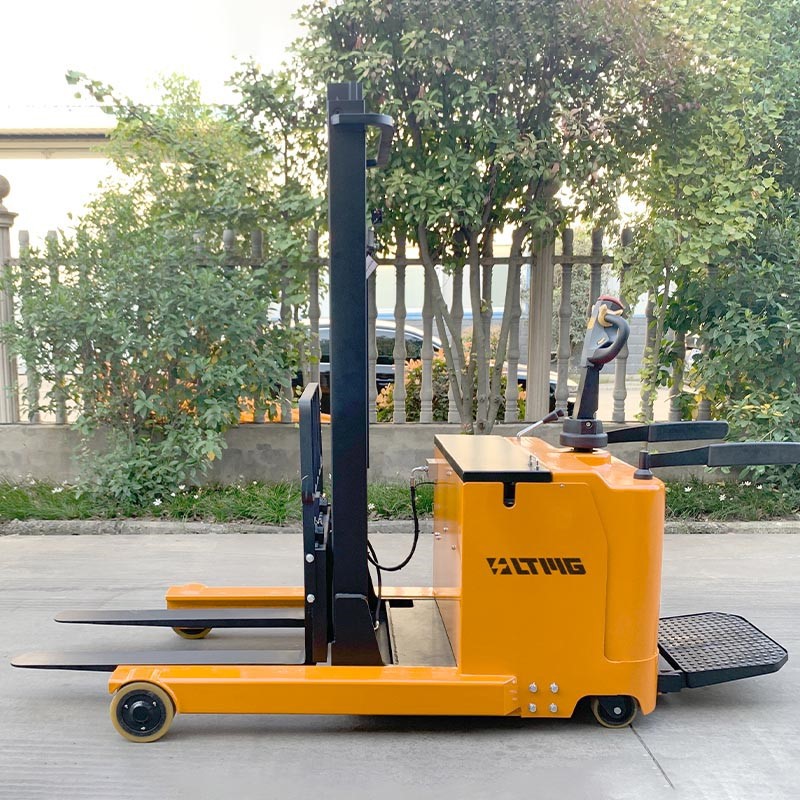

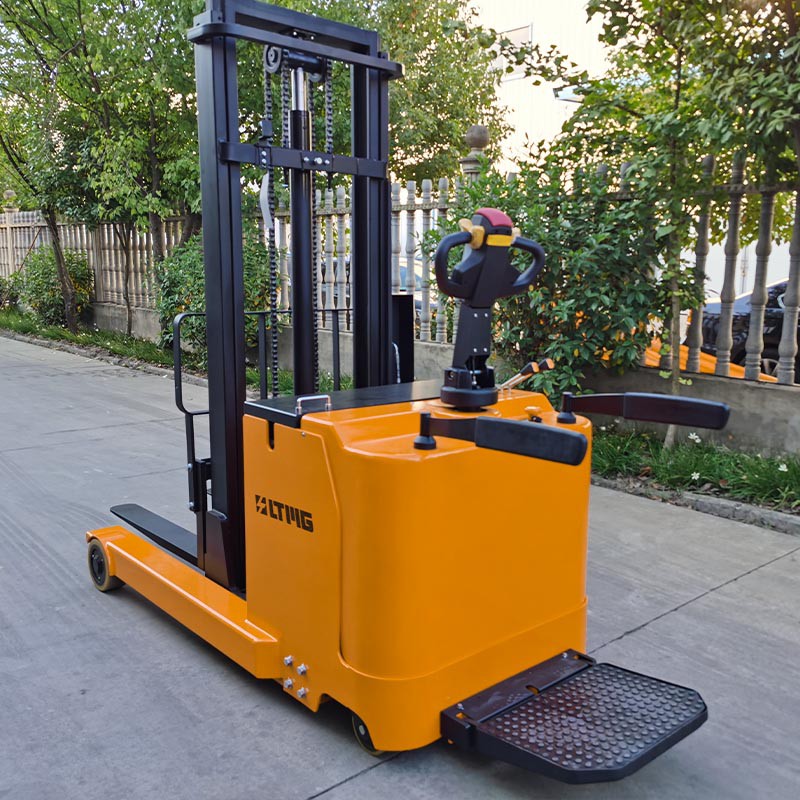

Introducing the Electric Reach Stacker, a versatile and efficient solution for your material handling needs. This innovative machine can help you quickly and safely move heavy loads in a variety of settings, from warehouses and factories to shipping yards and construction sites.
One of the key features of the Electric Reach Stacker is its advanced import controller, which allows for precise and easy operation. With this controller, you can control the machine's movement and lifting functions with ease, making it easier to handle even complex tasks.
Another standout feature of the Electric Reach Stacker is its powerful drive system, which allows it to move quickly and maneuver easily in tight spaces. Whether you're navigating narrow aisles or moving heavy loads across uneven terrain, this machine can help you get the job done efficiently and accurately.
In addition to its impressive performance capabilities, the Electric Reach Stacker also comes with a comprehensive shipping plan to ensure that it arrives at your location quickly and without any issues. This includes careful packaging, reliable transportation, and timely delivery to your doorstep.
Perhaps best of all, the Electric Reach Stacker is available at an incredibly competitive price point, making it an affordable solution for businesses of all sizes. Whether you're looking for a reliable and durable machine to help you move heavy loads or a cost-effective solution for your material handling needs, the Electric Reach Stacker is an excellent choice. So why wait? Order yours today and experience the power and versatility of this innovative machine for yourself!
Technical parameters
| Characteristics | .I | Model | TRS15 | ||
| 1.2 | Power type | Electric | |||
| 1.3 | Operation type | Stand Type | |||
| 1.4 | Load capacity | Q(kg) | 1500 | ||
| 1.5 | Load center | C(mm) | 500 | ||
| 1.6 | Load distance,centre of drive axle to fork | X(mm) | 155 | ||
| 1.7 | Wheelbase | Y(mm) | 1435 | ||
| 1.8 | Reach distance | L(mm) | 600 | ||
| Weight | 2.1 | Service Weight (with Battery) | kg | 1900 | |
| Wheels, Chassis |
3.1 | Wheel type | PU | ||
| 3.2 | Drive wheel | の×w(mm) | φ230*75 | ||
| 3.3 | Front wheel | の×w(mm) | φ210*85 | ||
| 3.4 | Rear wheel | の×w(mm) | φ150*50 | ||
| 35 | Wheel tread,Front wheel | b10(mm) | 735 | ||
| 3.6 | Wheel tread,rear wheel | b11(mm) | 945 | ||
| Dimensions | 4.1 | Mast Height,Lowered | h1(mm) | 1845 | |
| 4.2 | Lifting height | h3(mm) | 2500 | ||
| 4.3 | Max.height when lifting | h4(mm) | 3470 | ||
| 4.4 | Fork face min.ground clearance | h13(mm | 35 | ||
| 4.5 | Fork tilting angle Front/rear | 3/5 | |||
| 4.6 | Bodylength | 12(mm) | 1715 | ||
| 4.7 | Overall Length | L1(mm) | 1834/2276 | ||
| 4.8 | Overall width | b1(mm) | 1034 | ||
| 4.9 | Fork size | s/e/l(mm) | 35/100/1070 | ||
| 4.10 | Fork Spread | b5(mm) | 210-680 | ||
| 4.11 | Min.ground clearance | m2(mm) | 70 | ||
| 4.12 | Aisle Width for Pallet 1000*1200 crossways | Ast(mm) | 2715 | ||
| 4.13 | Aisle Width for Pallet 1200*1000 crossways | Ast(mm) | 3116 | ||
| 4.14 | Min.turning radius(without/with platform) | Wa(mm) | 1752/2153 | ||
pallet choose
client feedback
At LTMG, we understand that every customer has unique requirements, and we strive to tailor our products and services to meet those specific needs. We offer customized solutions that are designed to improve our customers' workflows, reduce costs, and optimize efficiency.
Our commitment to customer satisfaction is reflected in the positive feedback we receive from our clients. They appreciate the quality of our products, the responsiveness of our sales team, and the professionalism of our after-sales support. Our customers trust us to provide them with the right solutions for their material handling needs, and we are continuously striving to exceed their expectations.
In conclusion, LTMG is a trusted manufacturer and supplier of material handling equipment in China, with a strong focus on quality, innovation, and customer satisfaction. Our products are widely used in various industries, and our commitment to customization ensures that we provide our customers with the best solutions for their specific needs. We look forward to continuing to provide excellent products and services to our clients all over the world.
OEM
FAQ
Q: What are the shipping options for warehouse equipment?
Q: How long does it typically take to receive warehouse equipment after it's been ordered?
Q: Can I track my warehouse equipment shipment?
Hot Tags: small stand-on electric reach truck, China small stand-on electric reach truck manufacturers, pallet truck, vertical mast lift, warehouse picker machine, articulating man lift, walkie electric reach truck, Mobile Elevating Work Platform
