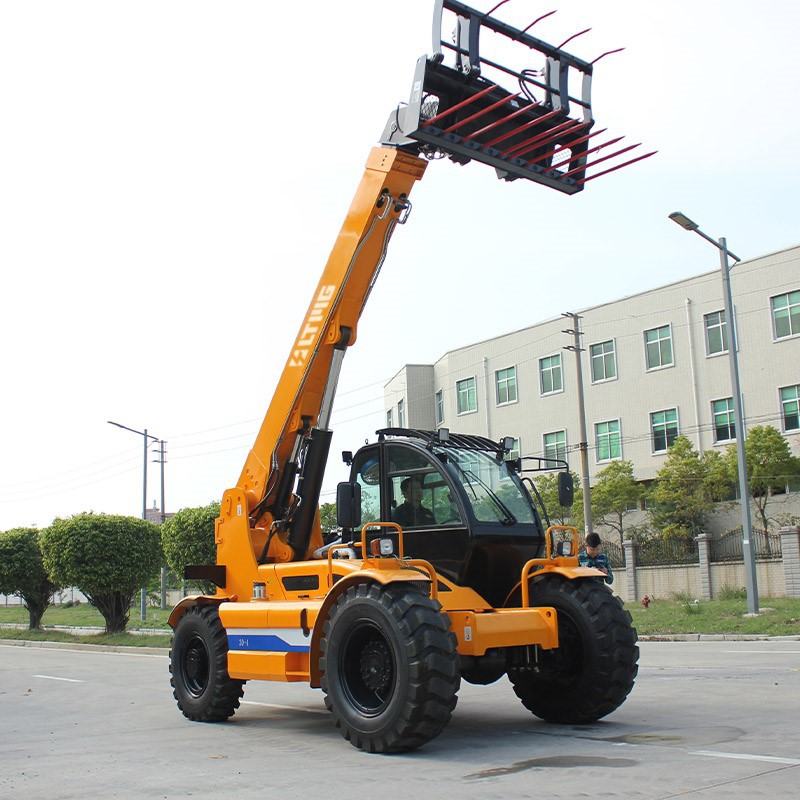

The rough terrain telescopic forklift could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining, Enterprise, Construction, Materials, Harbor, Municipal Engineering.

1. Four-Wheel Drive and Rigid Suspension:
Navigate through rugged landscapes effortlessly with the advanced four-wheel-drive system that ensures optimal traction on any surface. The rigid suspension system enhances stability, providing a smooth and controlled ride even in the toughest conditions.

2. Two Quadrangle Telescopic Handle Operation:
Unleash precision and control at your fingertips with the two quadrangle telescopic handles. This intuitive operation installment allows operators to handle the telescoping forklift with ease, ensuring maximum efficiency and safety in maneuvering tasks.

3. Dongfeng Cummins Turbo-Charged Engine:
Powering our telescopic forklift is the robust Dongfeng Cummins turbo-charged engine, renowned for its reliability and performance. This engine not only delivers impressive power but also ensures fuel efficiency, reducing operational costs.

4. Hydrostatic Transmission and Pilot Control:
Experience seamless and responsive operation with the hydrostatic transmission and pilot control. These features provide precise control over the extended forklift's movements, allowing operators to handle loads with accuracy and efficiency.

5. 4WD Full Wheels Driving and Rear Wheel Steering with Out Trigger:

Conquer any terrain with confidence using the 4WD full wheels driving system, enabling maximum traction for enhanced maneuverability. The rear-wheel steering with out trigger adds versatility to your operations, making tight turns and navigating confined spaces a breeze.

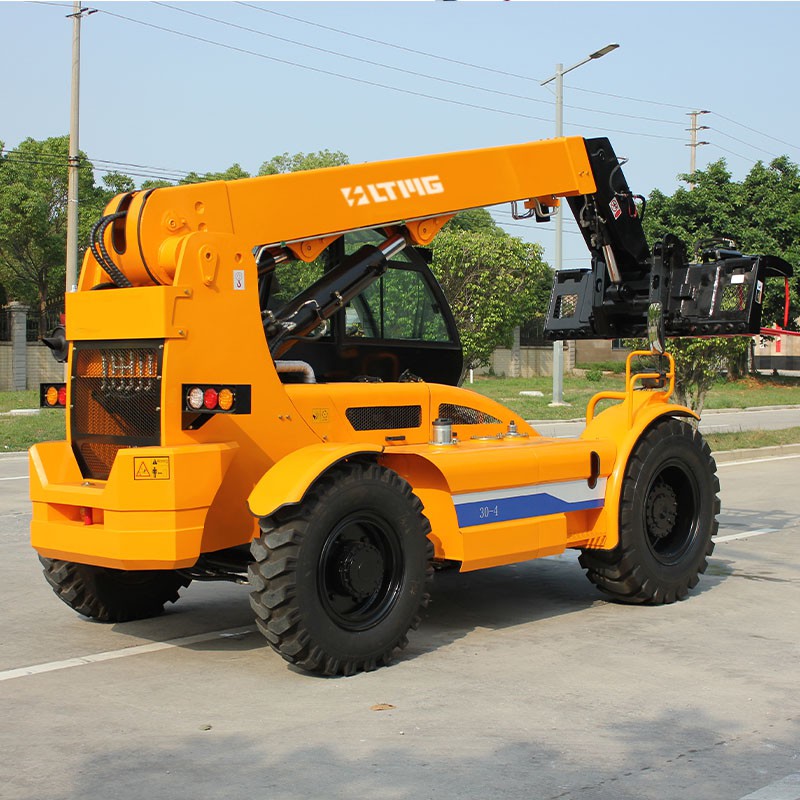

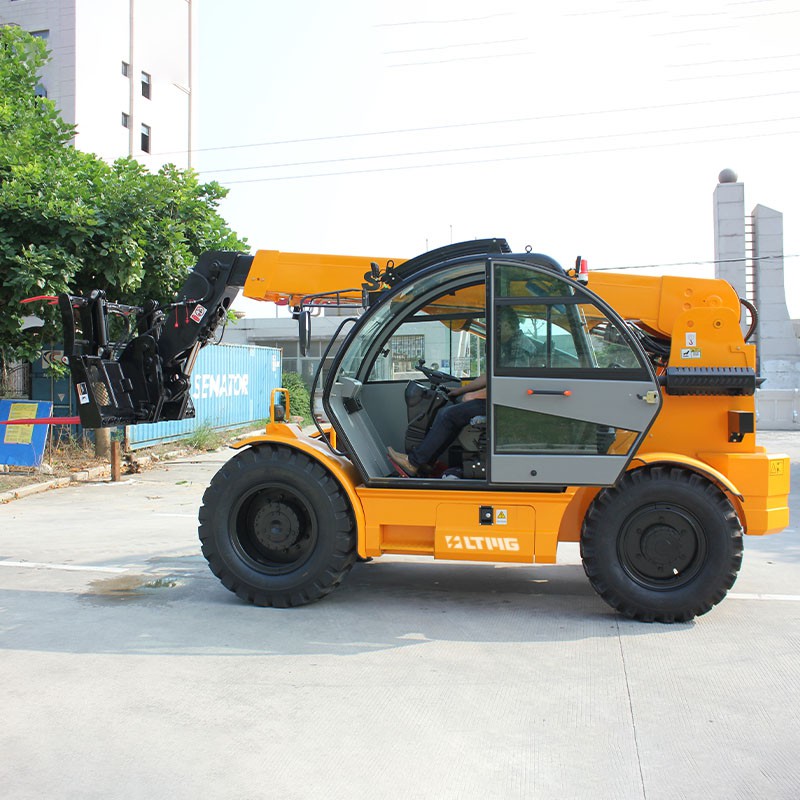

boom reach forklift

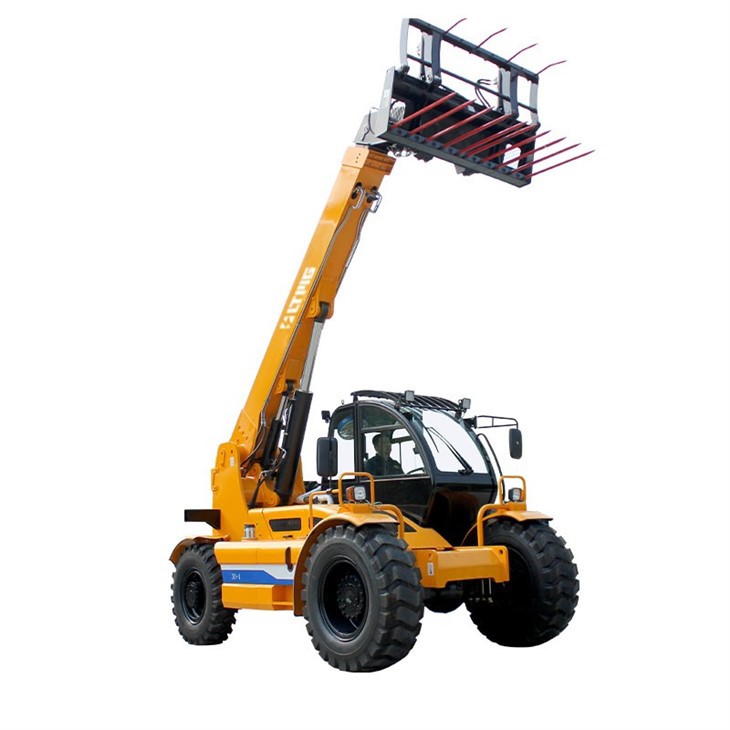

tele handler

Specification

Unit	Deviation allowed	FT40
Unit	Deviation allowed	FT40
Basic parameter	Rated load		kg	-	4000
	Load center		mm	-	500
	Load capacity @ max. Forward reach		kg	-	1800
	Basic boom max. Lifting height		mm	±1.5%	4850
	Max. Lifting height		mm	±1.5%	8000
	Max. Horizontal reach		mm	±1.5%	3350
	Min. Horizontal reach		mm	±1.5%	930
	Min. Ground clearance		mm	±1.5%	400
	Min. Turning radius ( outer tyre center)		mm	≤105%	6200
	Angle	Boom frame upward angle	°	±1.0	60
	Angle	Boom frame downward angle	°	±1.0	11
	Operating weight		kg	±5%	9440
Overall dimension	Length (with fork)		mm	±2%	5730
	Width		mm	±2%	2390
	Height		mm	±2%	2485
	Wheel tread		mm	±1%	1870
	Wheel base		mm	±1%	2700
Rated power / Rated turning speed			kW/rpm	-	60/2000
Driving system	Max. Travelling speed (unloaded)		km/h	±10%	30
Driving system	Gradeability		%	-	≥30%
Tyre	Front (2 pcs)		-	-	16/70-24
Tyre	Rear (2 pcs)		-	-	10.00 -20-16
Engine	Dongfeng Cummins		-	National 2	4BTA3.9-C80II
Engine	Dongfeng Cummins		-	National 3	QSB3.9-C80

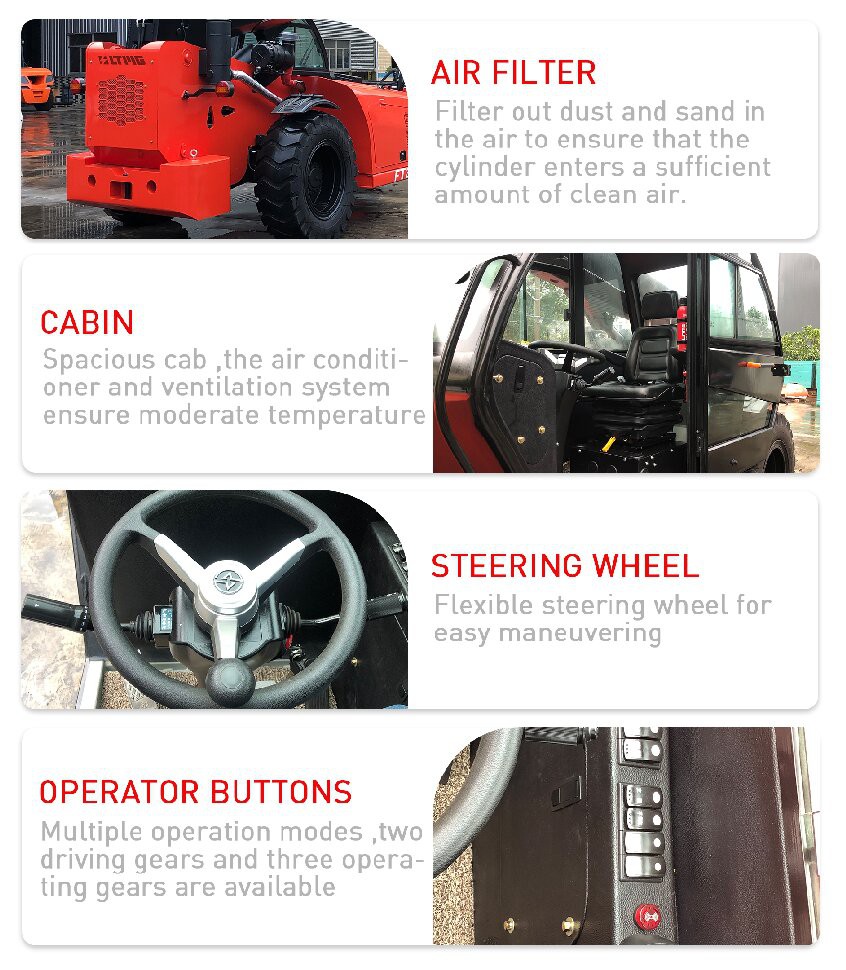

configuration

configuration of telescopic forks forklift

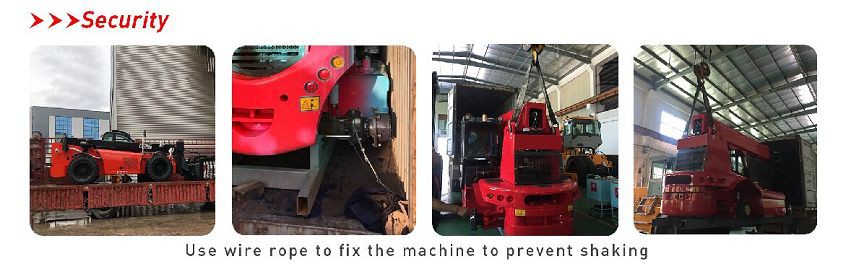

shipping picture

shipping picture of telescopic forks forklift001

FAQ

Q: How does the 4WD system enhance performance on rough terrains?

A: The4WD system provides superior traction on challenging surfaces, ensuring the forklift maintains stability and control. This feature allows the forklift to navigate through mud, gravel, and uneven terrain with ease.

Q: What benefits does the two quadrangle telescopic handle operation provide?

A: The two quadrangle telescopic handles offer operators precise control over the forklift's movements. This intuitive operation installment enhances maneuverability and contributes to efficient and safe handling of loads in diverse working conditions.

Q: Tell me more about the Dongfeng Cummins turbo-charged engine. Why is it a notable feature?

A: The Dongfeng Cummins turbo-charged engine is known for its reliability, power, and fuel efficiency. It ensures consistent performance even in demanding conditions, making the rough terrain telescopic forklift a durable and cost-effective choice.

Q: How does the hydrostatic transmission and pilot control contribute to the forklift's performance?

A: The hydrostatic transmission provides seamless and responsive control, while the pilot control enhances precision in maneuvering. Together, these features allow operators to handle the forklift with accuracy and efficiency, especially when lifting and placing loads.
