Products Description

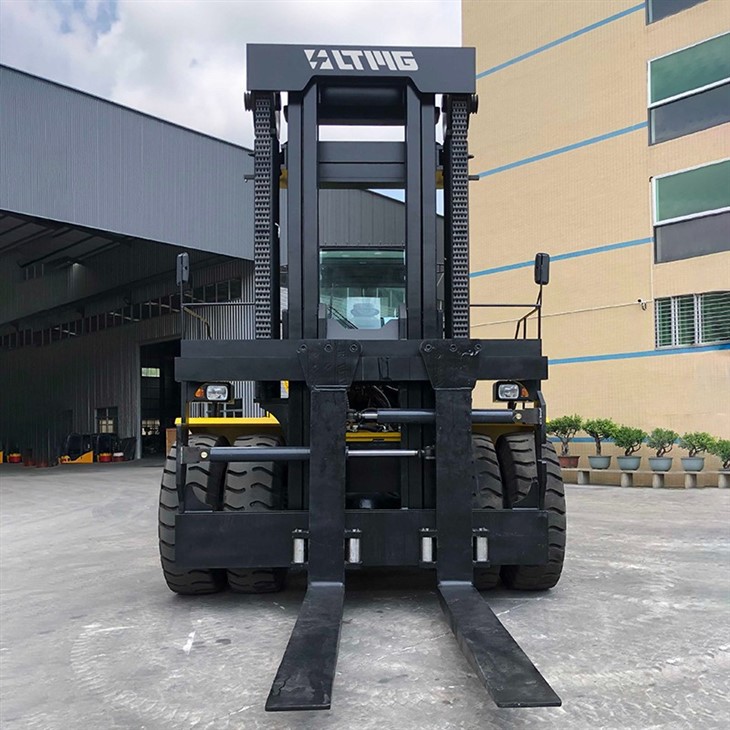

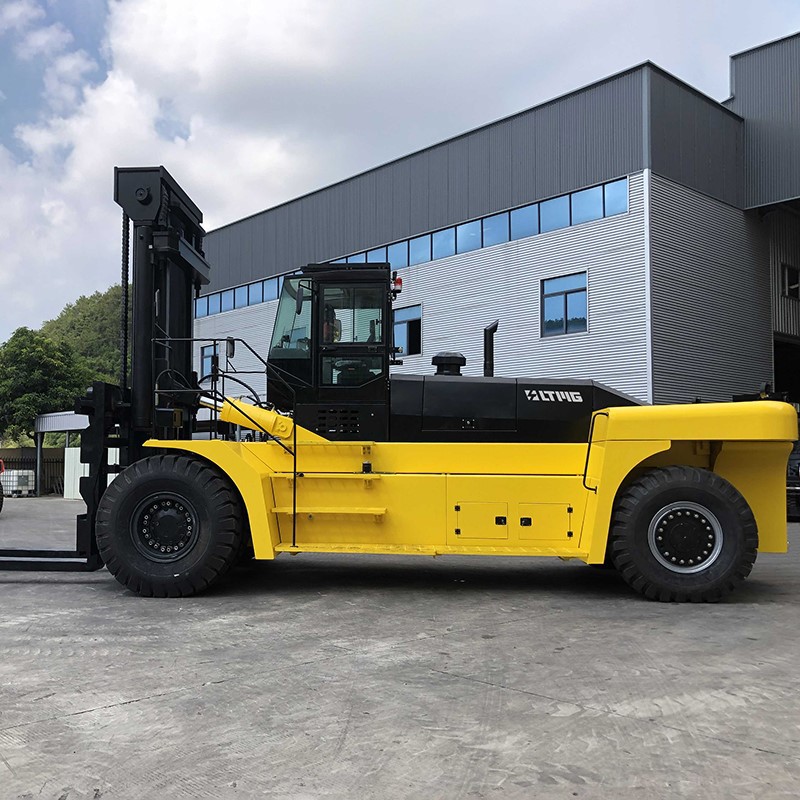

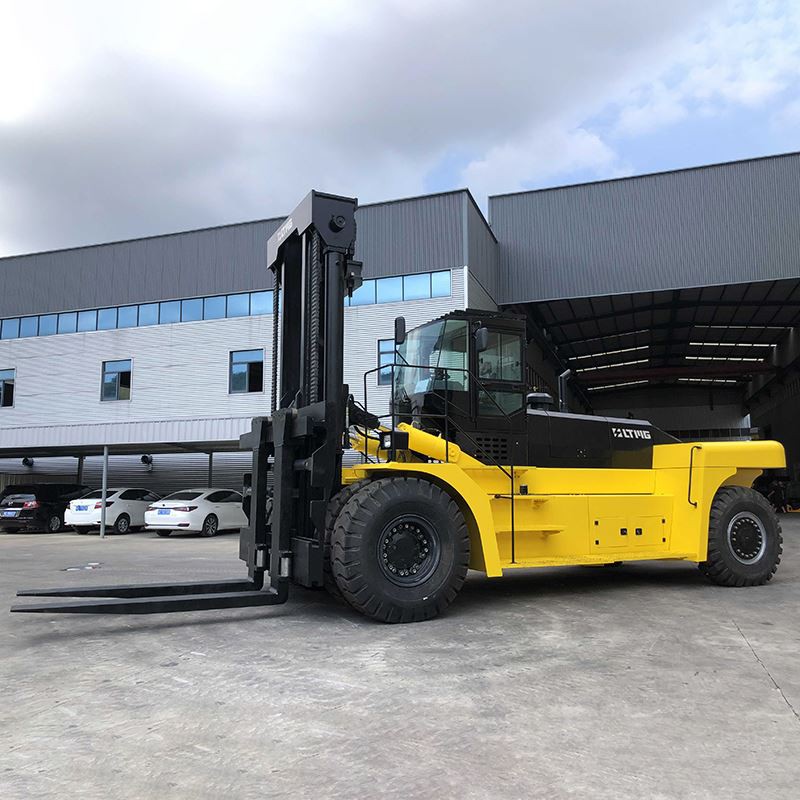

Maximal diesel forklifts are a range of robust and reliable lifting machines designed to handle heavy loads in a variety of industrial settings. With their powerful diesel engines and advanced technological features, these forklifts are the perfect solution for tough material handling tasks.
One of the main applications of Maximal diesel forklifts is in the logistics industry. With their exceptional lifting capacity and smooth maneuverability, these forklifts are ideal for loading and unloading large containers, palletized goods, and other heavy items in warehouses and distribution centers.
Another key application of Maximal diesel forklifts is in construction, mining, and other heavy-duty industries. These forklifts can easily lift and transport large objects, such as steel beams, pipes, and machinery, making them an essential tool for any job site.
Maximal diesel forklifts come with a range of advanced features that ensure maximum efficiency and safety. These features include a powerful diesel engine, a responsive hydraulic system, and a comfortable operator cabin with excellent visibility and ergonomic controls.
Other key features of Maximal diesel forklifts include high-quality heavy-duty tires, smooth and precise steering, and easy-to-use features that make them simple to operate even in the toughest of conditions.
In summary, Maximal diesel forklifts are a reliable and efficient material handling solution that can handle even the toughest loads with ease. Whether you're working in logistics, construction, or mining, these forklifts are the perfect tool for the job, ensuring maximum efficiency and safety while minimizing downtime and maintenance costs.
Products parameter
| Item | Specification | Unit | |||
| General | 1 | Model | FD500 | ||
| 3 | Power Type/model | Diesel | |||
| 4 | Rated Capacity | Kg | 50000 | ||
| 5 | Load Center | mm | 1250 | ||
| Dimensions | 6 | Lift Height | mm | 4000 | |
| 7 | Fork Size(LxWxT) | mm | 2600×300×130 | ||
| 8 | Fork Spread(outside)(Min./Max) | mm | 910/2830 | ||
| 9 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
| 10 | Fork Overhang | mm | 1180 | ||
| 11 | Length without forks | mm | 8170 | ||
| 12 | Overall Width | mm | 3600 | ||
| 13 | Mast Lowered Height | mm | 5040 | ||
| 14 | Overhead Guard Height | mm | 3820 | ||
| 15 | Outer turning Radius | mm | 7730 | ||
| Wheels&Tires | 21 | Tire | Front | 4X18.00-25-28PR | |
| 22 | Rear | 2X16.00-25-28PR | |||
| 23 | Tread | Front | mm | 2495 | |
| 24 | Rear | mm | 2880 | ||
| 25 | Wheelbase | mm | 5500 | ||
| 26 | Ground Clearance(Under mast) | mm | 400 | ||
| Power & Transmission | 27 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/150 |
| 28 | Engine | Model | WP12G375E350 | ||
| 29 | Manufacture | WeiChai | |||
| 30 | Rated Output | Kw | 276 | ||
| 31 | Rated Torque | N.m | 1550 | ||
| 32 | No.Of Cyinder | 6 | |||
| 33 | Bore*stroke | mm | 126x155 | ||
| 34 | Displacement | L | 11.6 | ||
| 35 | Transmissions | Manufacture | ZL80 | ||
| 37 | StageFWD/RVS | 4/4 | |||
shipping plan

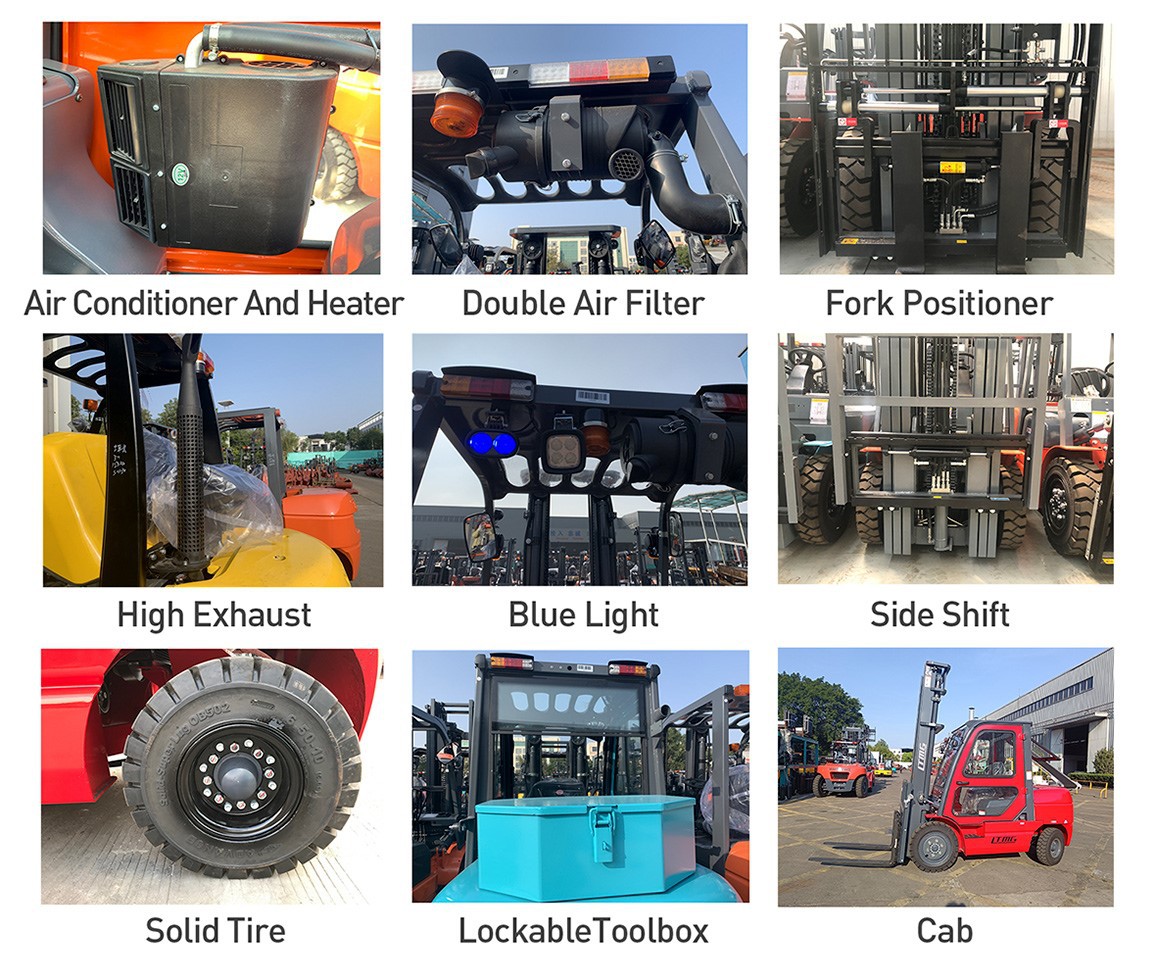

optional configuration
Products Description
FAQ
Q: What is the maximum weight capacity of a diesel forklift?
Q: How often should the diesel engine be serviced?
Q: What are the fuel efficiency and emissions standards for diesel forklifts?
Q: Can diesel forklifts be used indoors?
