3 Ton Telehandler

Items: 3 Ton Telehandler
Power Type: diesel
Rated Capacity: 3000 kg
Engine:Xinchai
Lift Height: 3000mm
Send Inquiry
Chat Now

Product Introduction

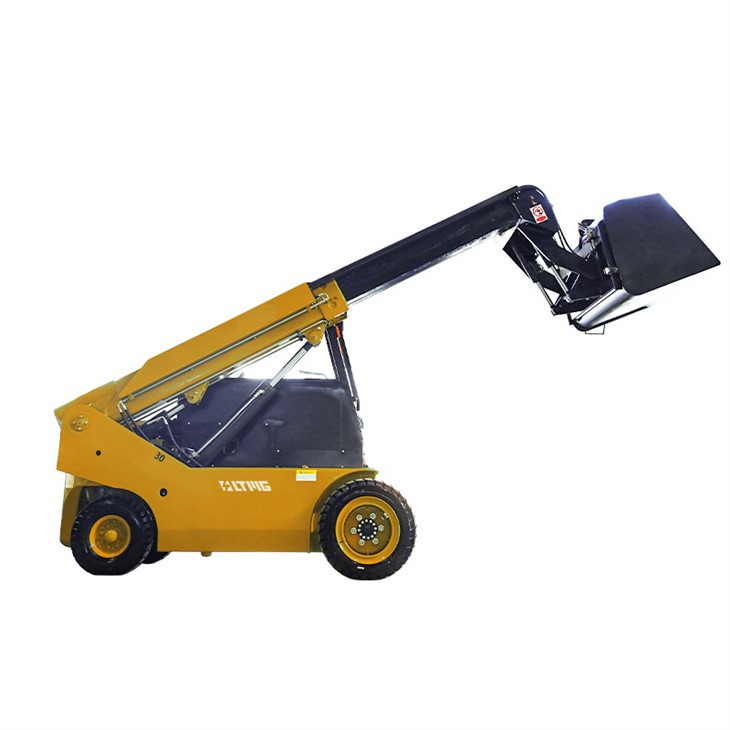

The 3 ton telehandler is a versatile and powerful machine designed to take on heavy-duty lifting and hauling tasks with ease. With a wide range of features and applications, it is perfect for a variety of industries, including construction, agriculture, and mining.

The small telescopic forklift equipped with the whole truck LED lights, which include warning lights for added safety on the job site. Heat dissipation channels prevent overheating and ensure optimal performance, while the electronic-hydraulic control gear control system allows for precise operation. The forklift's boom is also strengthened for added durability and reliability.

The telehandler comes standard with pneumatic tires, but solid tires and honeycomb tires are also available as options. This allows for greater flexibility in terms of terrain and surface options, making it suitable for a wider range of applications. The carriage can also be tilted at a large angle, making it easier to load and unload goods.

One of the biggest advantages of the compact telescopic forklift is its versatility. Whether you need to lift heavy machinery, transport large amounts of materials, or perform maintenance work, this telehandler is up to the task. It can easily navigate tight spaces and uneven terrain, making it ideal for use in construction sites or agricultural fields.

In construction, the telehandler can be used for tasks such as loading and unloading construction materials, transporting pallets, and placing steel beams. It can also be used for demolition work, such as removing walls or other structures. In agriculture, it can be used for tasks such as transporting hay bales or fertilizers, as well as lifting and moving heavy machinery. In mining, it can be used for tasks such as transporting heavy equipment and hauling materials from one place to another.

Overall, the 3 ton telehandler is a reliable, rugged, and versatile machine that is ideal for a wide range of applications. Whether you're working in construction, agriculture, or mining, it is sure to provide you with the power you need to get the job done.







boom forklift
tele handler

telescopic reach forklift



Products Parameter
Model unit Deviation allowed FT30
Rated load kg - 2500
Load center mm - 500
Load capacity kg - 1000
Basic boom max. Lifting height mm ±1.5% 4850
Max. Lifting height mm ±1.5% 7000
Max. Horizontal reach mm ±1.5% 3350
Min. Horizontal reach mm ±1.5% 930
Min. Ground clearance mm ±1.5% 400
Min. Turning radius ( outer tyre center) mm ≤105% 6200
Boom frame upward angle ° ±1.0 60
Boom frame downward angle ° ±1.0 -11
Operating weight kg ±5% 8600
Length (with fork) mm ±2% 5730
Width mm ±2% 2390
Height mm ±2% 2485
Wheel tread mm ±1% 1870
Wheel base mm ±1% 2700
Rated power / Rated turning speed KW/rpm - 60/2000
Max. Travelling speed (unloaded) km/h ±10% 30
Gradeability % - ≥30%
Front (2 pcs) - - 16/70-24
Rear (2 pcs) - - 10.00-20-16



Operating conditions

Telehandlers are versatile machines that have a wide range of applications in various industries. With their ability to lift and move heavy loads at varying heights and distances, they are commonly used in construction, agriculture, mining, and manufacturing. Whether you need to lift, load, or move heavy materials in tight spaces or on uneven terrain, it can get the job done efficiently and safely.



Operating conditions

FAQ

Q: What is the product range of our factory?

A: LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying forklifts and related attachments. We can also customize non-standard products according to customer's requirements.

Q: What makes us the best choice?

A: LTMG industrial is dedicated to providing more than just superior quality and high-performance products at a competitive price, including our telescopic forklift.

Q:Do you have after-sale service?

A: LTMG ensures timely delivery and offer comprehensive 24/7 after-sales services as a manufacturer.

Q: Could we request our own color?

A: Yes, of course, LTMG is committed to providing customers with high-quality products that meet their specific needs.
