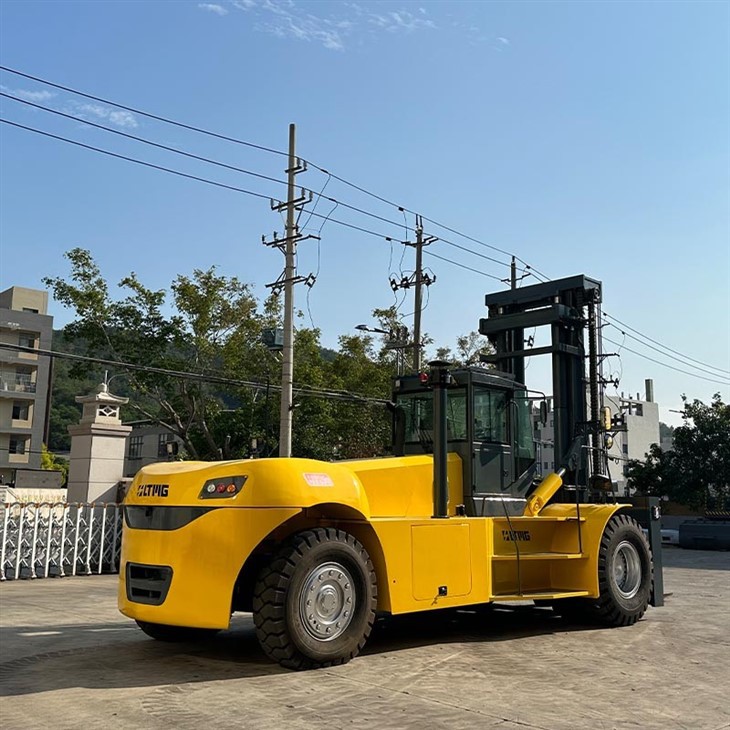

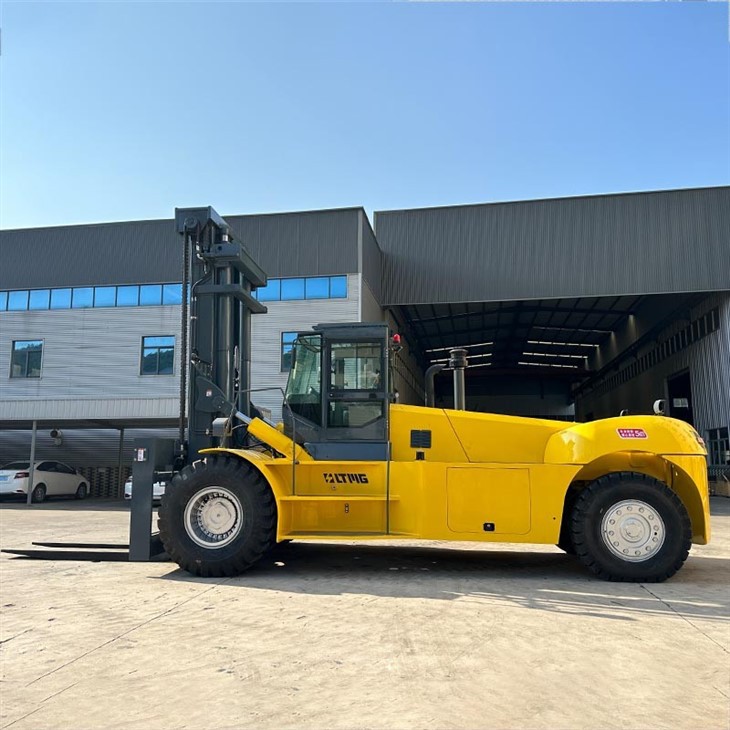

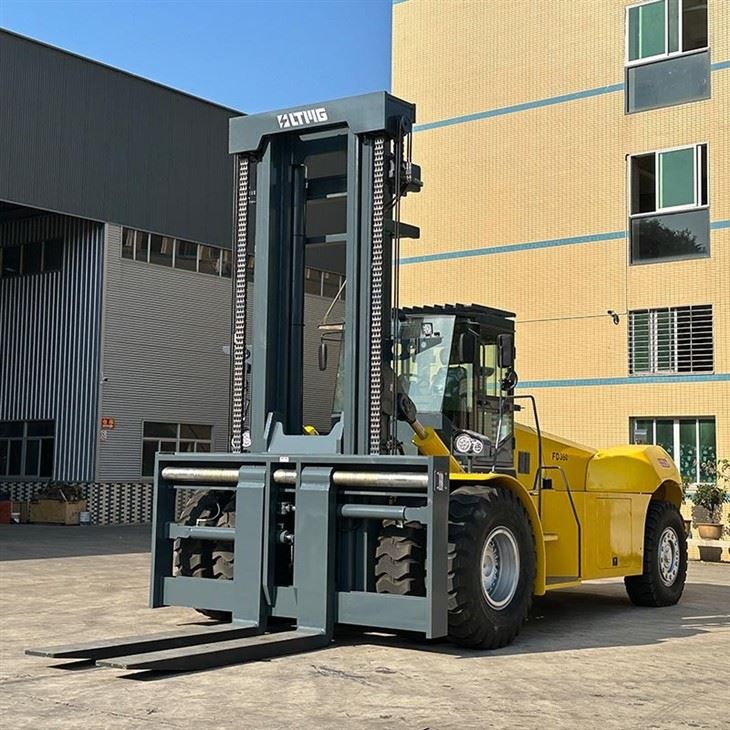

The large capacity forklift is designed for maximum safety and features advanced safety systems that provide added protection for both the operator and nearby workers. With its rugged construction and durable components, this forklift is built to withstand even the toughest outdoor environments.
In addition to its impressive lifting capabilities, the forklift also comes equipped with a range of advanced features such as a comfortable operator's seat, ergonomic controls, and a state-of-the-art digital display. These features ensure that operators can work comfortably and efficiently, improving productivity while minimizing operator fatigue and downtime.
Whether you're working on a large-scale outdoor construction project, handling cargo at a shipping port, or handling heavy materials in a warehouse, the large capacity diesel forklift is a applicable choice for your heavy lifting needs.
Technical parameters
| Item | Unit | ||||
| General | 1 | Model | FD400 | ||
| 3 | Power Type/model | Diesel | |||
| 4 | Rated Capacity | Kg | 40000 | ||
| 5 | Load Center | mm | 1250 | ||
| Dimensions | 6 | Lift Height | mm | 4000 | |
| 7 | Fork Size(LxWxT) | mm | 2600×300×130 | ||
| 8 | Fork Spread(outside)(Min./Max) | mm | 910/2830 | ||
| 9 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
| 10 | Fork Overhang | mm | 1180 | ||
| 11 | Length without forks | mm | 8170 | ||
| 12 | Overall Width | mm | 3600 | ||
| 13 | Mast Lowered Height | mm | 5040 | ||
| 14 | Overhead Guard Height | mm | 3820 | ||
| 15 | Outer turning Radius | mm | 7730 | ||
| Performance | 16 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 17 | Lifting | mm/s | 300 | ||
| 18 | Max.gradeability(Load) | % | 20 | ||
| 19 | Max.drawbar pull(Load) | KN | 240 | ||
| 20 | service Weight | kg | 53000 | ||

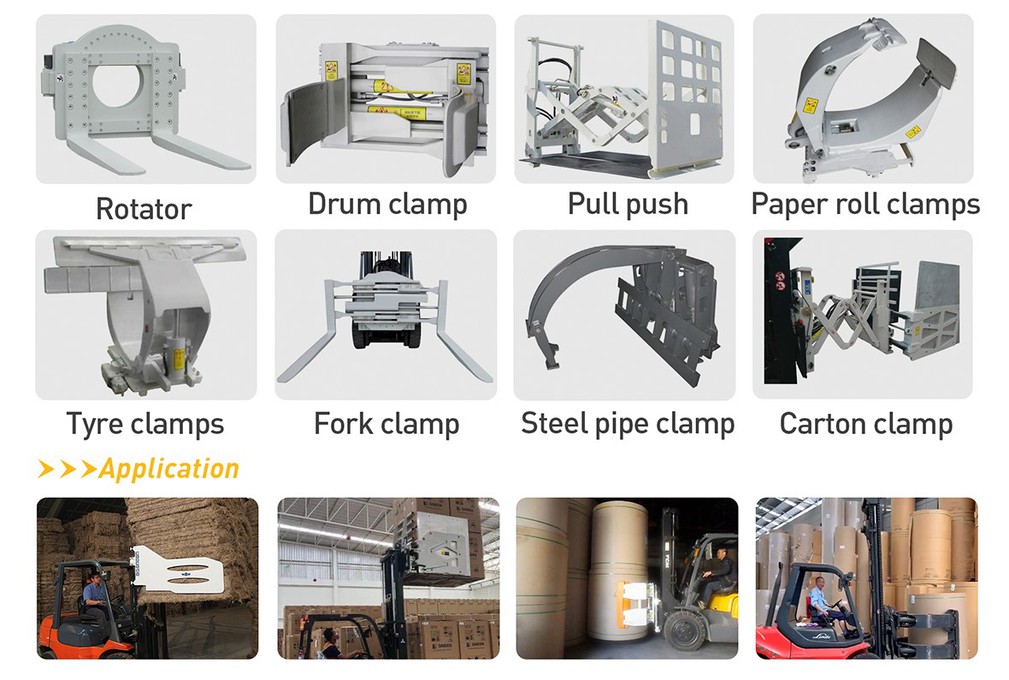

Attachment
certification
FAQ
Q: What is the capacity of the Large Capacity Diesel Forklift For Outdoor Projects?
Q: Can the Large Capacity Diesel Forklift For Outdoor Projects be used in rough terrain?
Q: What type of engine does the Large Capacity Diesel Forklift For Outdoor Projects have?
