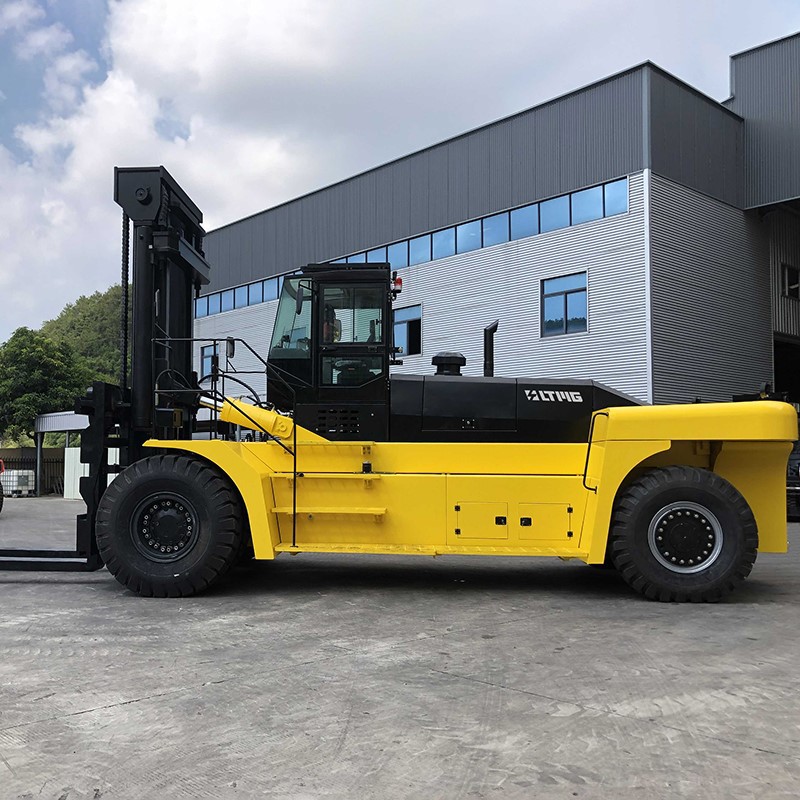

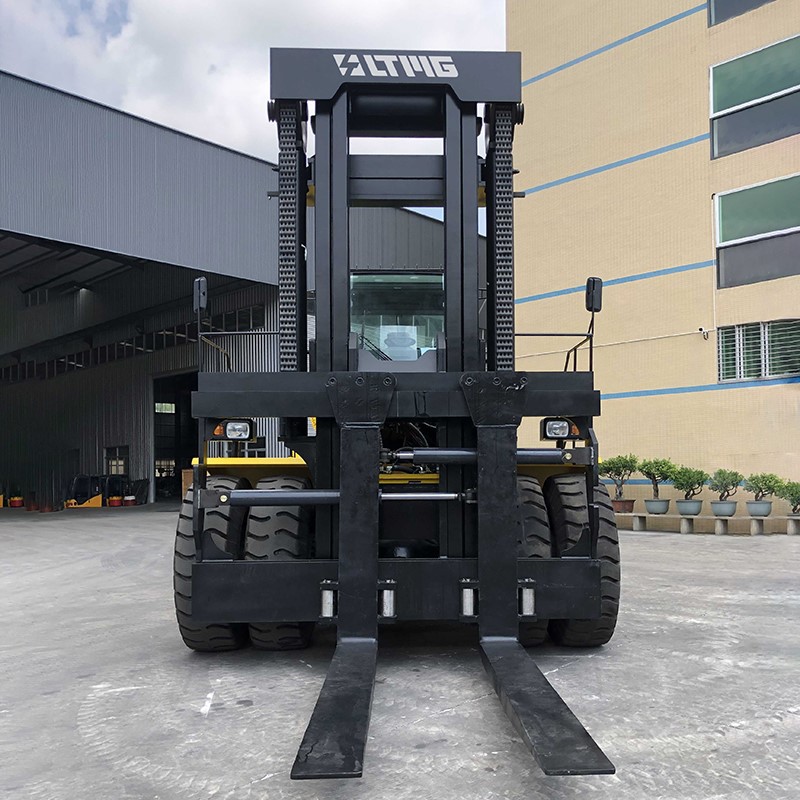

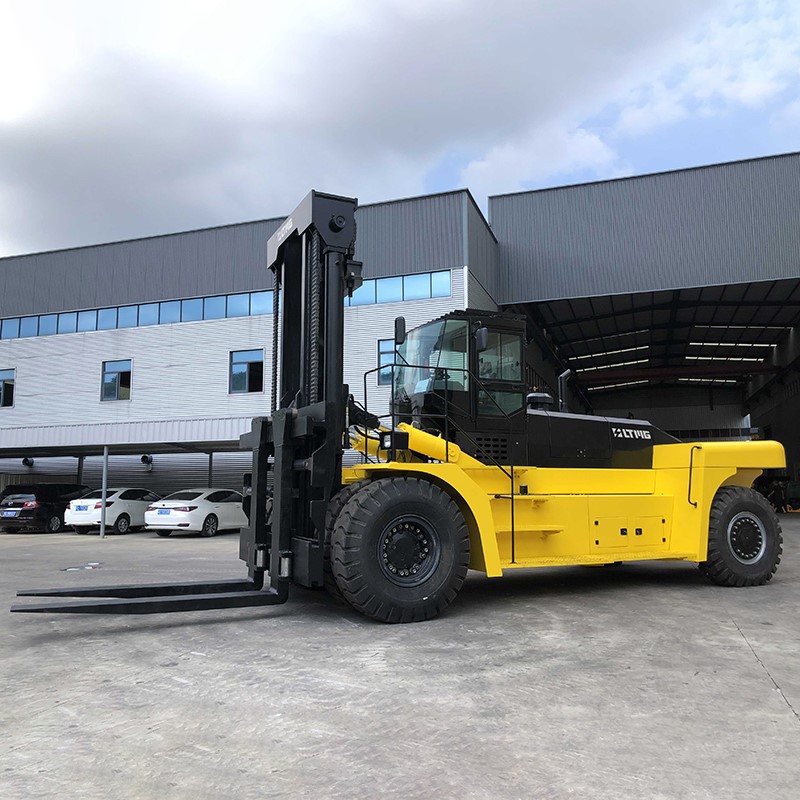

Giant Diesel Forklift

Model:FD500
Power type:Diesel
Rated capacity:50000kg
Lifting height:3600mm
Send Inquiry
Chat Now

Product Introduction

A 50-ton forklift, also known as a heavy-duty forklift or a heavy lifter, is a highly specialized piece of material handling equipment designed for extreme heavy lifting applications. Here are some of the primary uses of a 50-ton forklift :



1. Port Operations: At seaports and marine terminals, 50-ton forklifts are essential for moving and stacking very heavy shipping containers, transferring them between ships, trains, and trucks, and managing breakbulk cargo such as machinery and project cargoes.



2. Construction and Infrastructure: In large-scale construction projects, these forklifts are utilized to lift and position massive building materials, precast concrete elements, steel structures, and bridge segments, among others, where conventional lifting equipment is insufficient.



3. Mining and Quarrying: In mines and quarries, 50-ton forklifts can lift and transport heavy loads such as oversized rocks, extracted ores, and large pieces of mining equipment, assisting in material handling and site logistics.



4. Industrial Manufacturing: Heavy industries like steel mills, smelters, and heavy machinery producers employ 50-ton forklifts for handling heavy metal coils, billets, castings, and fabricated components, as well as for moving and installing heavy machinery.



5. Energy Sector: In power generation plants and refineries, these forklifts can be used to handle heavy generator components, transformers, and large tanks, as well as for plant decommissioning and refurbishment projects.



6. Military and Defense: Military bases and defense contractors sometimes rely on 50-ton forklifts to move and load heavy military equipment, supplies, and weaponry onto transport vehicles or ships.



7. Disaster Response and Recovery: During post-disaster cleanup and recovery efforts, these forklifts can be used to clear and lift heavy debris, relocate damaged structures, and distribute relief supplies.



8. Logistics and Warehousing: Although less common, in some specialized warehousing scenarios where very heavy or oversized loads are stored, a 50-ton forklift may be necessary for loading, unloading, and rearranging these massive items.



In essence, the 50-ton forklift is a powerhouse of material handling that excels in applications where extreme weightlifting capabilities are required, often in rugged, outdoor environments or industrial settings where there is no alternative means to manage such heavy loads.

3 ton forklift
5 ton forklift

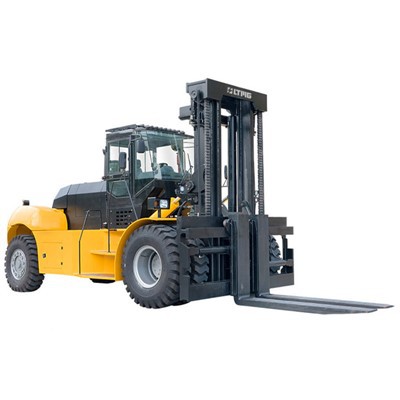

10 ton forklift+



Technical Specification
Model   FD500
Rated load kg 50000
Load center mm 1220
Power type   Diesel
Drving type   Seated / Hydraulic
Tyre types   Pneumatic
Max.height mm 7040
Lifting hight mm (300) 3600
Travel speed(with load/without load) km/h 22/26
Fork front sueface to the rear end of the vehicle mm 5760
Overall width mm 2750
Height to head guard mm 3240
Mast height(fork lowering) mm 3600
Fork dimension mm 2600*320*130
Fork carriage width mm 3160
Mast min ground(with load) mm 350
Wheelbase center min ground(with load) mm 480
Travel speed(with load/without load) mm/s 7730
Travel speed(with load/without load) Km/h 22/26
Front overhang % 1180
Rear overhang kg 1520
Max.lifting speed(with load/without load)   220/260
tractionn MPa 240
gradeability(with load/without load)   20/20
Driving brake   Hydraulic clamp disvc
Engine Model Weichai Weichai
After-sale service



At LTMG, we prioritize after-sale service over sales, underscoring our commitment to customer satisfaction. With a global network of over 50 agents, LTMG ensures access to professional after-sale service worldwide.



Every LTMG product comes with a one-year or 2000 working hours (which occurs first) quality warranty period. For specific clauses and policies, please refer to our website and product certificate for detailed information. Your satisfaction is our priority.



big diesel forklift in chile

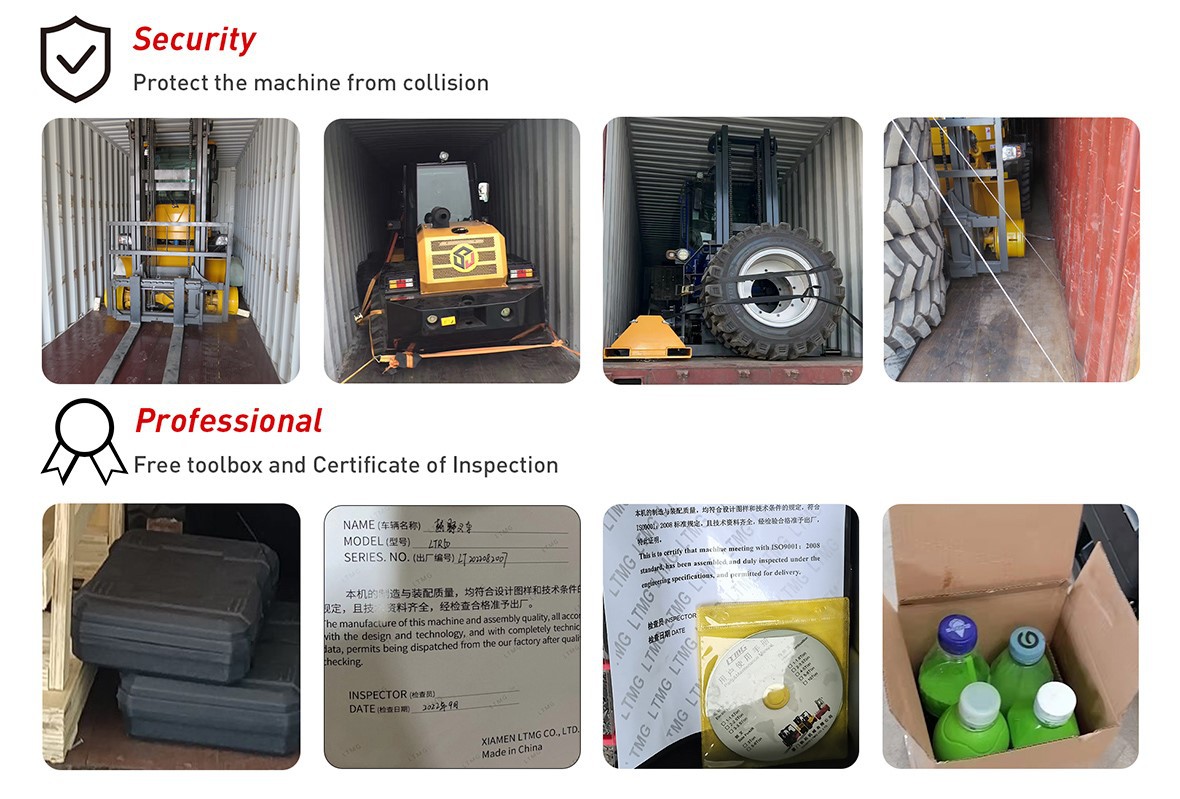

Shipment



Shiping plan 2

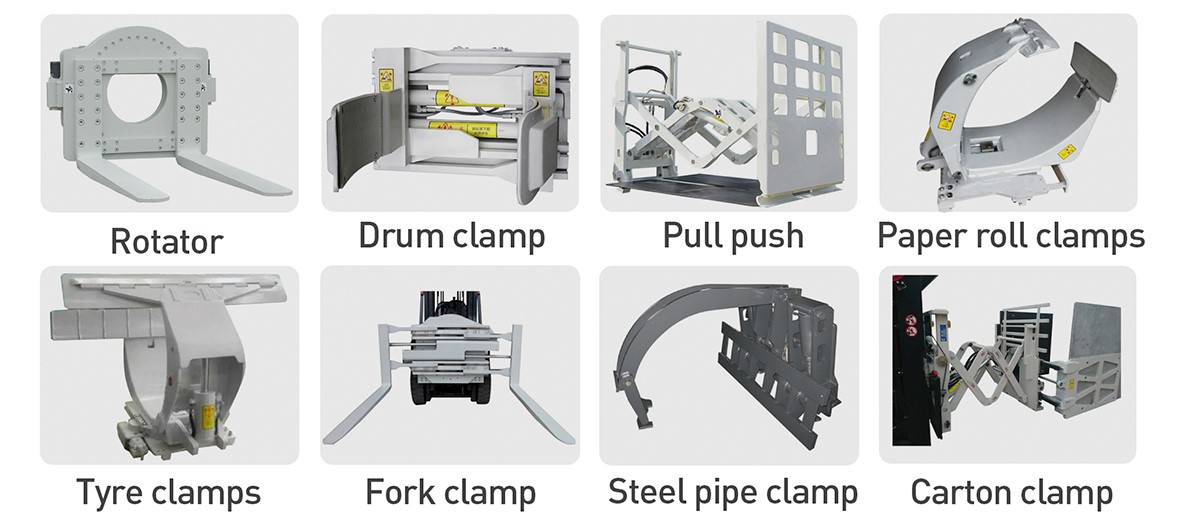

Forklift accessories



optional attachment

FAQ

Q: What Certificate do you have?

All products meet with the ISO9001 Quality System and have acquired CE certificate.

Q: Why choose us?

As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, such as diesel forklifts but also in-time delivery and comprehensive 7/24 after-sale services.

Q: How can you trust our company?

With 22 years of professional manufacturing experience, we can offer you suitable suggestions and the best prices.

Q: What are the payment methods

We accept payment via T/T, L/C, West Union, Moneygram, Paypal, and others are welcome.

Q: Could you please tell me your transportation method?

We arrange shipment by Sea, Train, Air, or Express, and the process takes approximately 15-20 days against the deposit.

Q: Can you tell me your warranty

We provide free spare parts if the problems are caused by us. In the case of man-made problems, we also offer spare parts, but they are charged. If you encounter any issues, feel free to call us directly.
