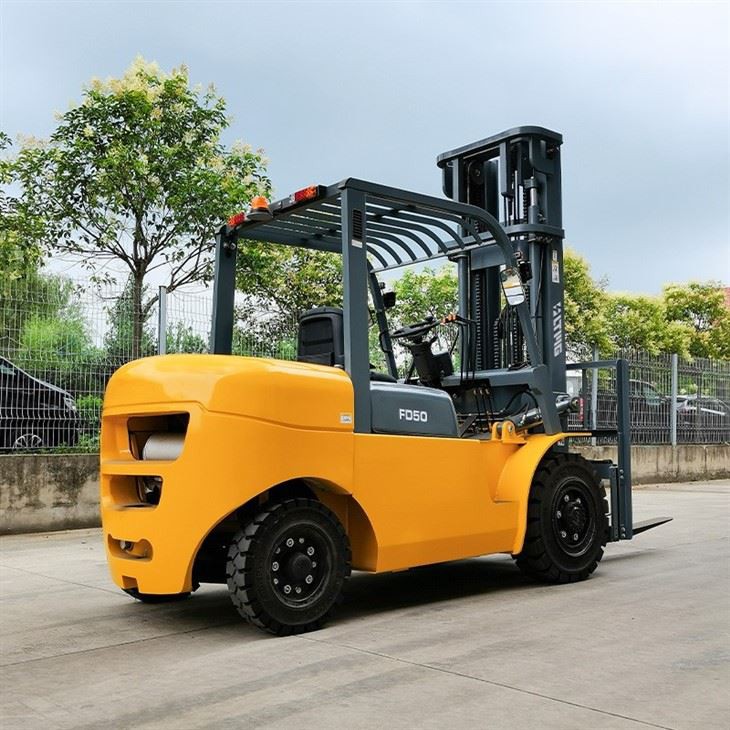

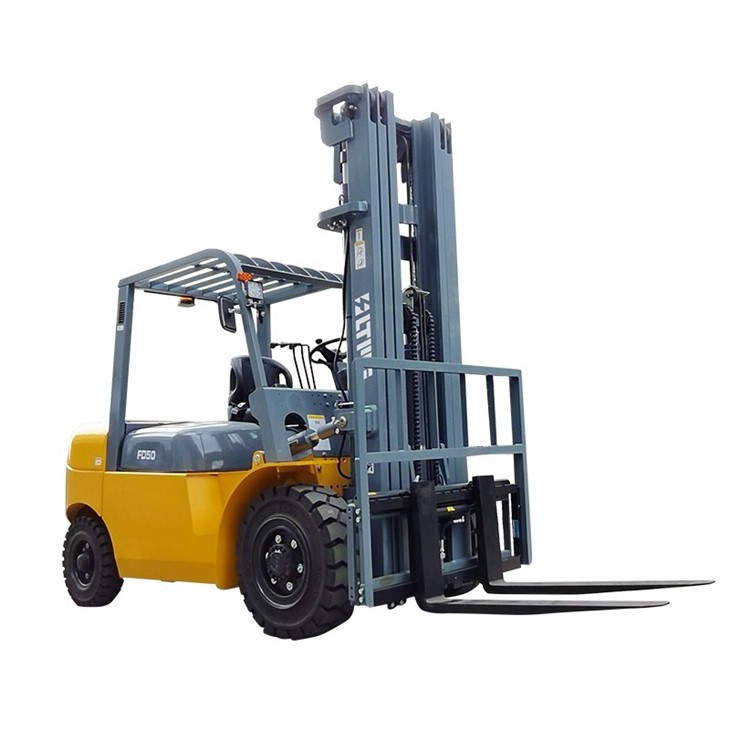

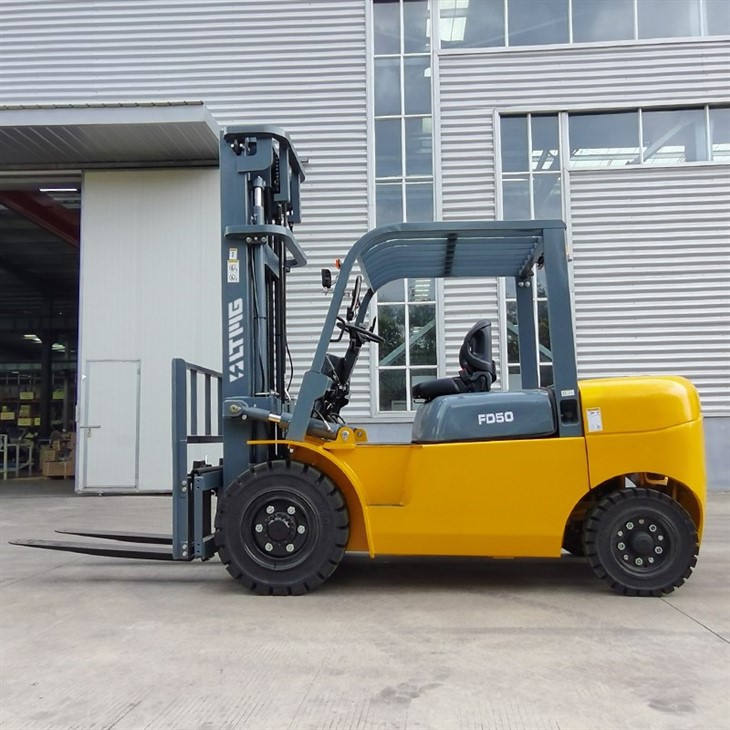

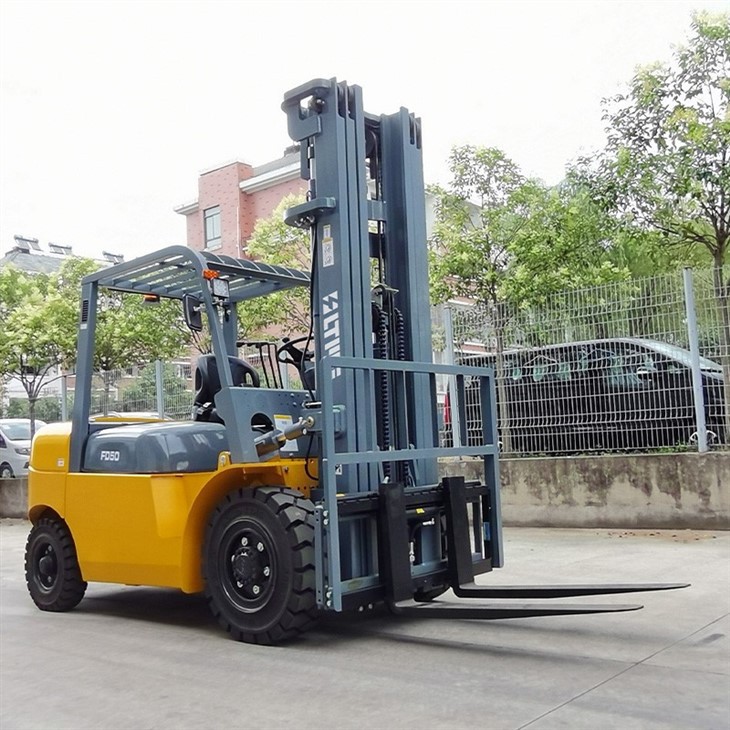

LTMG diesel forklift Features
The technical parameters of forklift is an important basis to measure the performance and scope of application of forklift, the following are some common technical parameters of forklift:
1. Rated Lift Capacity (Rated Load Capacity): the maximum load weight that the forklift can safely handle.
2. Load Center Distance (Load Centre): when the forklift is loaded with goods, the distance from the center of gravity of the goods to the front wall of vertical section of the forks, which influences the stability and load capacity of the forklift.
3. Maximum Lift Height (Maximum Lift Height): the maximum vertical distance from the upper plane of forklift forks to the ground, indicating the highest position to which the forklift can lift the goods.
4. Free Lift Height (Free Lift Height): the height to which the forklift forks can be lifted when the forklift has not raised the gantry.
5. Mast Tilting Angle (Mast Tilting Angle): the height to which the forklift can be lifted without raising the gantry.
6. Mast Tilting Angle (Mast Tilting Angle): the tilting angle of the forklift's gantry outside the vertical direction, which affects the stability of the cargo.
7. Maximum Lift/Lowering Speed (Maximum Lift/Lowering Speed): the maximum speed of the forklift when lifting or lowering the forks.
Similar products
fAQ Of lTMG
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
| General | Model | FD45 | FD50 | |||
| Power Type | Diesel | Diesel | ||||
| Rated Capacity | kg | 4500 | 5000 | |||
| Load Centre | mm | 500 | 500 | |||
| Characteristic&Dimension | Lift Height | mm | 3000 | 3000 | ||
| Fork Size | L×W×T | mm | 1070×150×50 | 1070×150×50 | ||
| Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | ||
| Fork Overhang (Wheel center to fork face) | mm | 579 | 579 | |||
| Ground Clearance(Bottom of mast) | mm | 150 | 150 | |||
| Overall Dimension | Length to face of fork(Without fork) | mm | 3260 | 3260 | ||
| Overall Width | mm | 1460 | 1460 | |||
| Mast Lowered Height | mm | 2270 | 2270 | |||
| Mast Extended Height(With backrest) | mm | 4165 | 4165 | |||
| Overhead Guard Height | mm | 2340 | 2340 | |||
| Turning Radius (outside) | mm | 2910 | 2910 | |||
| Performance | Speed | Travel (Full load) | km/h | 25 | 25 | |
| Lifting (Full load) | mm/s | 400 | 380 | |||
| Max.Gradeability | % | 20 | 20 | |||
| Chassis | Tyre | Front | mm | 300-15-18PR | 300-15-18PR | |
| Rear | mm | 7.00-12-12PR | 7.00-12-12PR | |||
| Wheelbase | mm | 2100 | 2100 | |||
| Self weight | kg | 6400 | 6700 | |||
| Power&Transmission | Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | (12/80) x 2 | |
| Engine | Model | 6BG1-02 | ||||
| Manufacture | ISUZU | |||||
| Rated output/r.p.m. | kw | 82.4/2000 | ||||
| Rated torque/r.p.m. | N·m | 416.8/1500 | ||||
| No.of Cylinder | 6 | |||||
| Bore×Stroke | mm | 105×125 | ||||
| Displacement | cc | 6494 | ||||
| Fuel Tank Capacity | L | 130 | ||||
| Transmission | Type | Hydraulic | ||||
| Stage | FWD/RVS | 2/1 | ||||
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;
