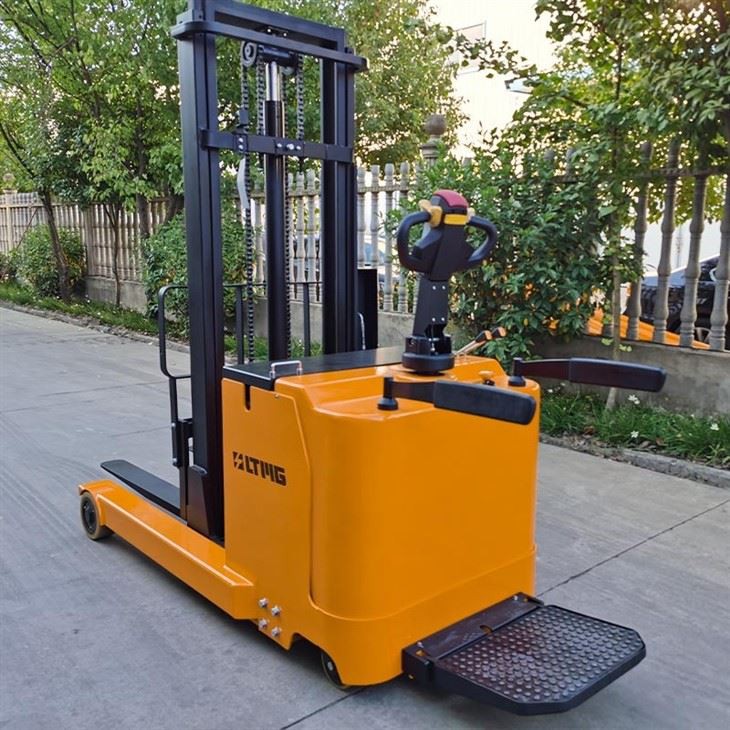

Electric Portable Pallet Stacker Forklift

Items:Electric Pallet Stacker Counterbalanced Weight Type
Power type: electric
Rated capacity: 1000 kg
Color:customized
Send Inquiry
Chat Now

Product Introduction

Electric portable pallet stacker forklifts offer numerous advantages over traditional gasoline-powered forklifts. These innovative machines provide cost savings, improved safety, and reliability, making them a popular choice for businesses of all sizes.



One significant advantage of electric portable pallet stacker forklifts is their low cost of operation. These machines do not require gasoline or other costly fuels, and they operate on rechargeable batteries that can be quickly and easily recharged. This means that businesses can save money on fuel costs, maintenance, and repairs, making them an excellent investment for long-term use.



Another advantage of electric portable pallet stacker forklifts is their increased safety. Unlike traditional forklifts, which emit harmful fumes and pose a risk of fire and injury, electric forklifts operate cleanly and quietly, reducing the risk of accidents and improving the overall workplace environment.



Additionally, electric portable pallet stacker forklifts are highly reliable and require minimal maintenance. They have fewer moving parts, reducing the risk of breakdowns, and are more energy-efficient, allowing them to run for longer periods without requiring recharging.

Overall, the advantages of electric portable pallet stacker forklifts are significant and make them an excellent choice for businesses looking to improve efficiency, save money, and promote workplace safety. By investing in these modern and innovative machines, businesses can enjoy a wide range of benefits that will help them to grow and achieve their goals.

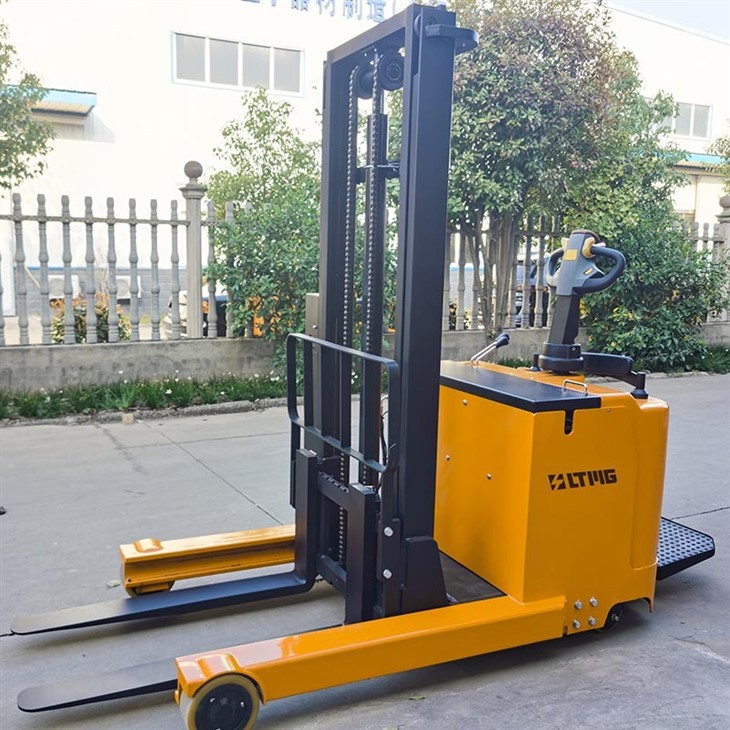

Electric Pallet Stacker

Electric Pallet Stacker Counterbalanced Weight Type

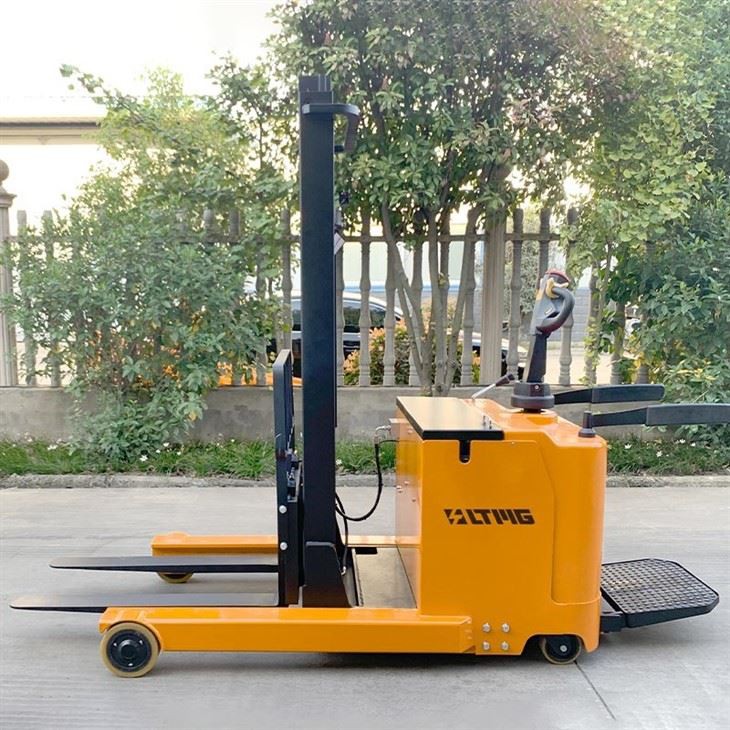

Electric Pallet Stacker

Technical parameters
Product name Electric Pallet Stacker (Counterbalanced Weight Type) (CDD*B )
Model No.   ERB-BW10 ERB-BW15 ERB-BW20
Capacity Kg 1000 1500 2000
Max. Lifting height H(mm) 2500 2500 2500
Load center C (mm) 500 500 500
Wheel type   Polyurethane solid tires
Brake   Electromagnetic
Pedal length mm 415 415 415
Fork size mm 1070*100 1070*100 1070*100
Fork spread mm 210-680 210-680 210-680
Overall length L (mm) 2814 2814 2814
Overall width S (mm) 983 983 983
Height-Mast Lowered H1 (mm) 1850 1850 1850
Maximum height when fork lifting H2 (mm) 3417 3417 3417
Turning radius WQ (mm) 1645 1745 1745
Min. stacking aisle mm 3080 3180 3325
Max. travel speed Km/h 4. 0〜5. 0 4. 0〜5. 0 4. 0〜5. 0
Grade ability % 5〜8 5〜8 5〜8
Total weight with battery Kg 〜1700 〜1775 〜1800
Driving Wheel mm 0230*75 0230*75 0230*75
Front wheel mm 0210*85 0210*85 0210*85
Balance wheel mm 0150*50 0150*50 0150*50
Battery capacity V/Ah 24/210 24/210 24/210
Charger-Int elli gent V/A 24/30 24/30 24/30
Driving motor Kw 1. 5 1. 5 2.5
Lifting motor Kw 2. 2 2. 2 2.2
Walking Adjustable Type   Holzer type accelerator
client feedback



counterbalance pallet stacker

contact us



electric stacker







FAQ

Q: What is your minimum order quantity, can you send me samples?

A:Our minimum order quantity is 1 set. Given that our product is machinery equipment, providing samples is challenging. Nevertheless, we can send you a catalog and extend a warm invitation for you to visit our company.

Q: What is your warranty?

A: In the event that issues are caused by our manufacturing, we will provide the necessary spare parts free of charge. If the problems are due to human error, we will still send the required spare parts, but they will be subject to a charge. For any concerns or issues, please feel free to contact us directly by phone.

Q: Can I request a change in the packaging and transportation methods?

A: Yes, we can modify the packaging and transportation methods based on your request. However, please note that you will be responsible for covering any additional costs and differences incurred during this process.
