Products Description
The 3-wheel electric forklift trucks available in Australia are an ideal solution for businesses looking for efficient and versatile material handling equipment. These forklifts are specially designed for indoor applications, with a compact and maneuverable design that allows them to access tight spaces with ease.
Safety is paramount when it comes to forklift trucks, and the 3-wheel electric forklifts in Australia are no exception. They come with an array of safety features, including a parking brake, horn, and a safety seat switch that ensures the operator stays in a safe position while the forklift is in motion.
Another significant advantage of these forklifts is their environmental friendliness. Being electric, they produce zero emissions, which is not only good for the environment but also for the health of your workers as they won't be exposed to harmful pollutants.
The 3-wheel electric forklifts in Australia offer excellent maneuverability, making them ideal for tight spaces. They feature a small turning radius, which allows the operator to easily navigate through narrow alleys and tight turns without damaging the products or the forklift itself.
Products parameter
Model |
FB20S |
||
Power type |
Electric |
||
Rated Capacity |
kg |
2000 |
|
Load Centre |
mm |
500 |
|
Lift Height |
mm |
3000 |
|
Fork Size |
L×W×T |
mm |
1070×120×40 |
Mast Tilt Angle |
F/R(α°/β°) |
Deg |
6°/6° |
Front Overhang(Wheel center to fork face) |
mm |
395 |
|
Tread |
(F/R) |
mm |
924/208 |
Ground Clearance(Bottom of mast) |
mm |
90 |
|
Fork Spread |
Min./Max. |
mm |
240/970 |
Overall Dimension |
Length to face of fork(Without fork) |
mm |
2105 |
Overall Width |
mm |
1100 |
|
Mast Lowered Height |
mm |
2010 |
|
Mast Extended Height(With backrest) |
mm |
3940 |
|
Overhead Guard Height |
mm |
2055 |
|
Turning Radius(outside) |
mm |
1690 |
|
Min. insecting aisle |
mm |
2300 |
|
Speed |
Travel (Empty load) |
km/h |
14 |
Lifting (Full load) |
mm/s |
300 |
|
Max. Gradeability |
% |
15 |
|
Tire |
Front |
18×7-8 |
|
Rear |
16×6-8 |
||
Wheelbase |
mm |
1460 |
|
Service Weight |
kg |
3760 |
|
Motor |
Driven Motor |
kw |
2×4.5 |
Lift Motor |
kw |
8.6 |
|
Battery |
Voltage/Capacity |
V/Ah |
48/560 |
Controller |
Manufacturer |
CURTIS |
|
Type |
AC |
||
Operating Pressure for Attachment |
Mpa |
14.5 |
about company
quality guarantee

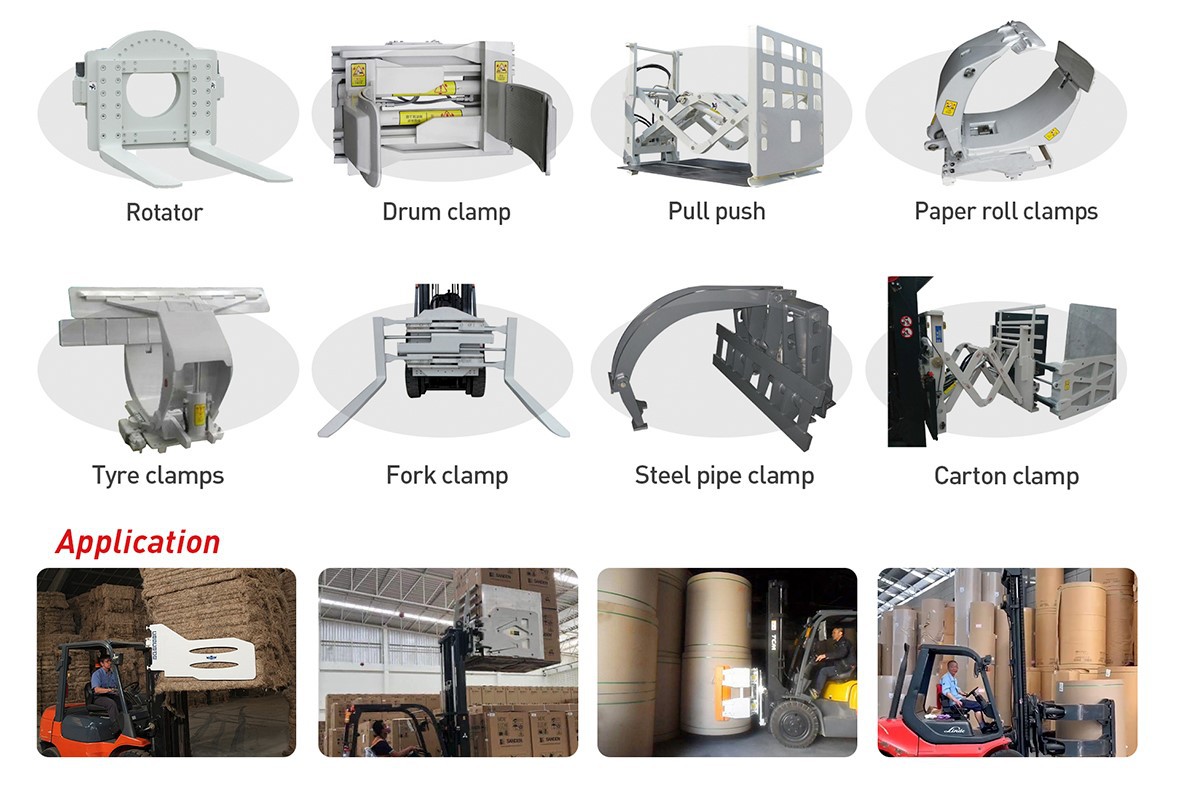

Products attachment
