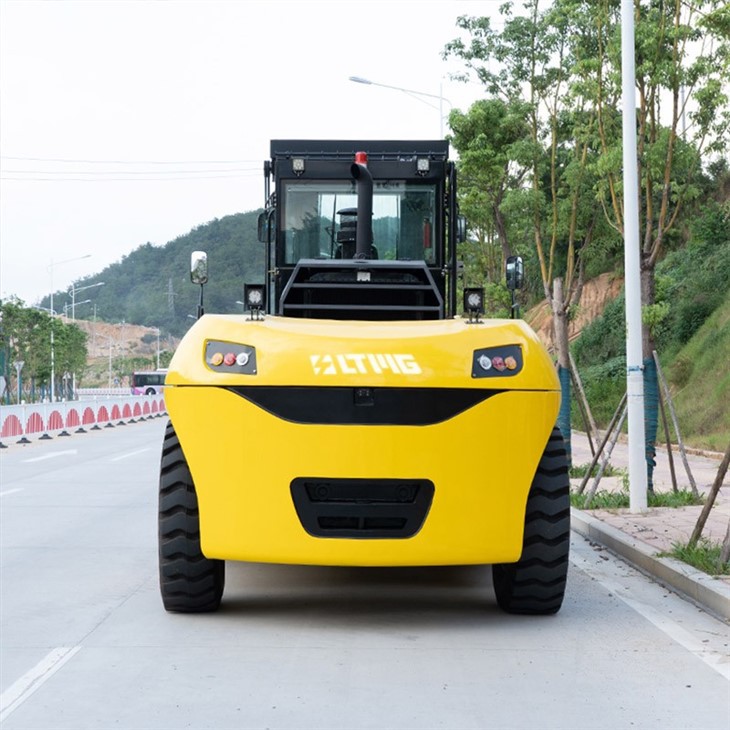

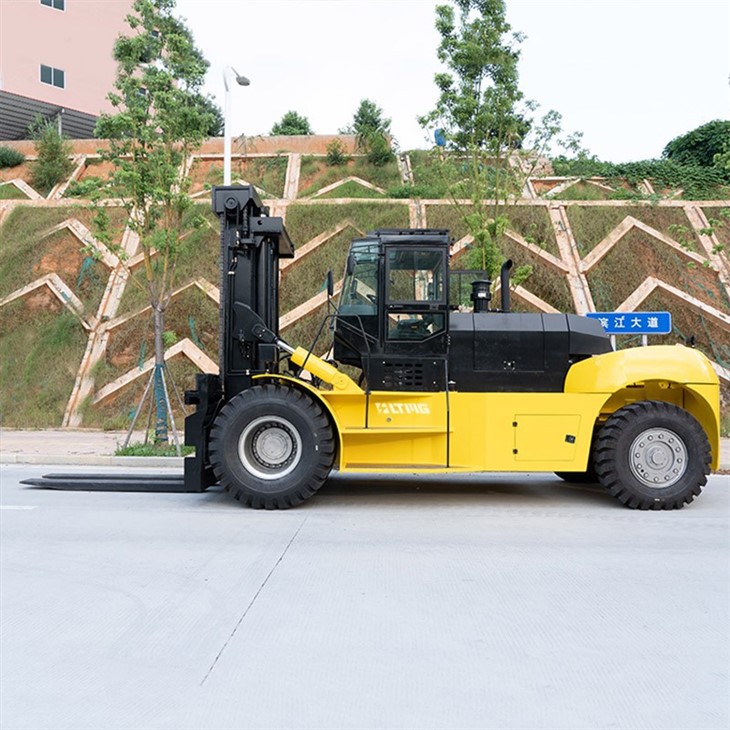

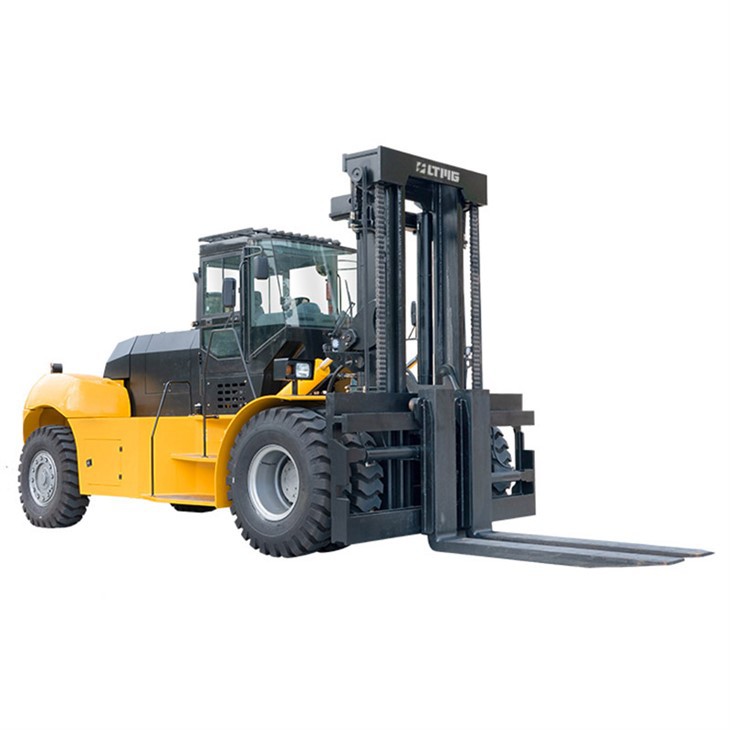

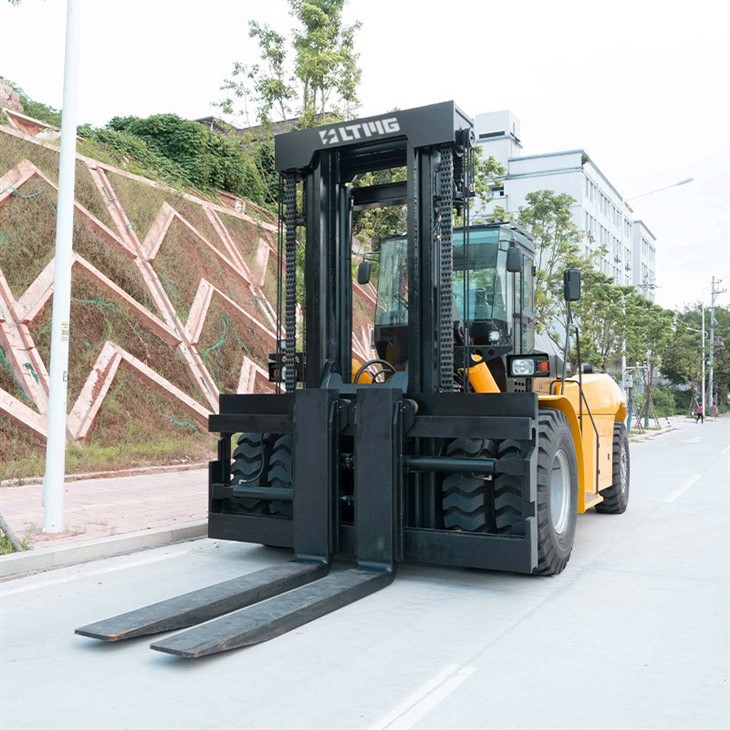

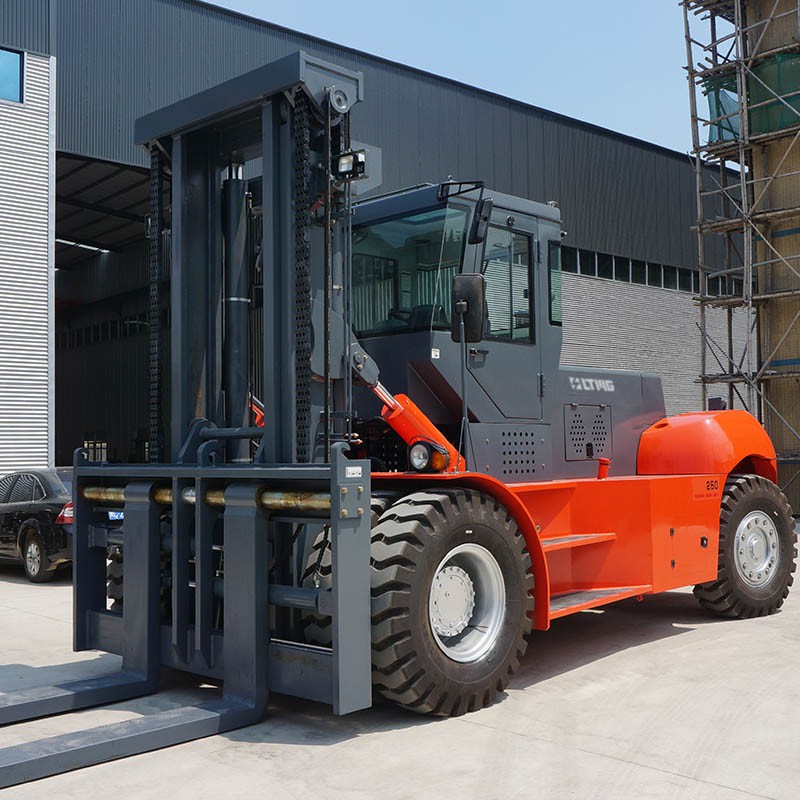

The 32-ton forklift is a powerful and versatile machine designed for heavy-duty industrial use. Its high lifting capacity makes it ideal for handling large loads in factories, warehouses, and construction sites.One of the primary usage scenarios for the 32-ton forklift is in ports and docks where it is used to load and unload cargo from ships and containers. Its ability to lift heavy loads and move them quickly and safely makes it an essential machine in these areas.
Another common usage scenario is in construction sites where the 32-ton forklift is used to lift and move heavy materials such as steel beams, concrete blocks, and machinery. Its robust construction and powerful engine make it perfect for handling rough terrain and tough working conditions.In large-scale industrial plants, the 32-ton forklift is often used to transport raw materials, finished products, and heavy machinery. It is an indispensable tool in many manufacturing operations, providing fast and efficient handling of materials and equipment.
The 32-ton forklift can also be used in large-scale storage and distribution centers where it can easily move and stack heavy pallets and containers. Its high lifting capacity and maneuverability make it an excellent choice for optimizing storage capacity and facilitating rapid retrieval of goods.Overall, the 32-ton forklift is a versatile and vital machine in many different industrial settings, providing reliable lifting and handling of heavy loads in factories, warehouses, construction sites, transportation hubs, and more.



Technical Specification
Technical Parameter | |||
Item | FD320 | ||
Features | Rated Load | Q(Kg) | 32000 |
Load Center | c(mm) | 1220 | |
Wheelbase | y(mm) | 4800 | |
Weight | Weight | kg | 42000 |
Chassis | Tire Specs:Front | 16.00-25 | |
Tire Specs:Rear | 16.00-25 | ||
Tires Qty,front/rear(X-dreve wheels) | 4/2 | ||
Wheel tread:Front | b3(mm) | 2430 | |
Wheel tread:Rear | b4(mm) | 2230 | |
Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 |
Mast height(fork lowering) | h1(mm) | 4150 | |
Mast lifting height | h2(mm) | 4000 | |
Max.height | h3(mm) | 6120 | |
height to head guard(height to cab) | h4(mm) | 3460 | |
Overall height(with forks) | L3(mm) | 9460 | |
Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 7060 | |
Overall width | b1(mm) | 3360 | |
Fork dimension | (mm) | 2400*320*120 | |
Fork carriage width | b2(mm) | 3000 | |
Mast min ground(with load) | m1(mm) | 400 | |
Wheelbase center min ground(with load) | m2(mm) | 460 | |
Min.turning Radius | Wa(mm) | 6600 | |
Travel speed(with load/without load) | km/h | 25/28 | |
Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 |
tractionn | KN | 200 | |
gradeability(with load/without load) | % | 20/20 | |
Driving brake | Hydraulic clamp disvc | ||
Engine | Engine brand/model | Optional one | WeiChai Engine |
WD10G240E | |||
Optional two | Dongfeng cummins | ||
Rated Output | 178(Kw) | ||
Cylinder No | 6 | ||
Others | Transmission gears(Front/rear) | 2/1 |
With technological innovation, our product configuration and parameters will continue to change without notice;

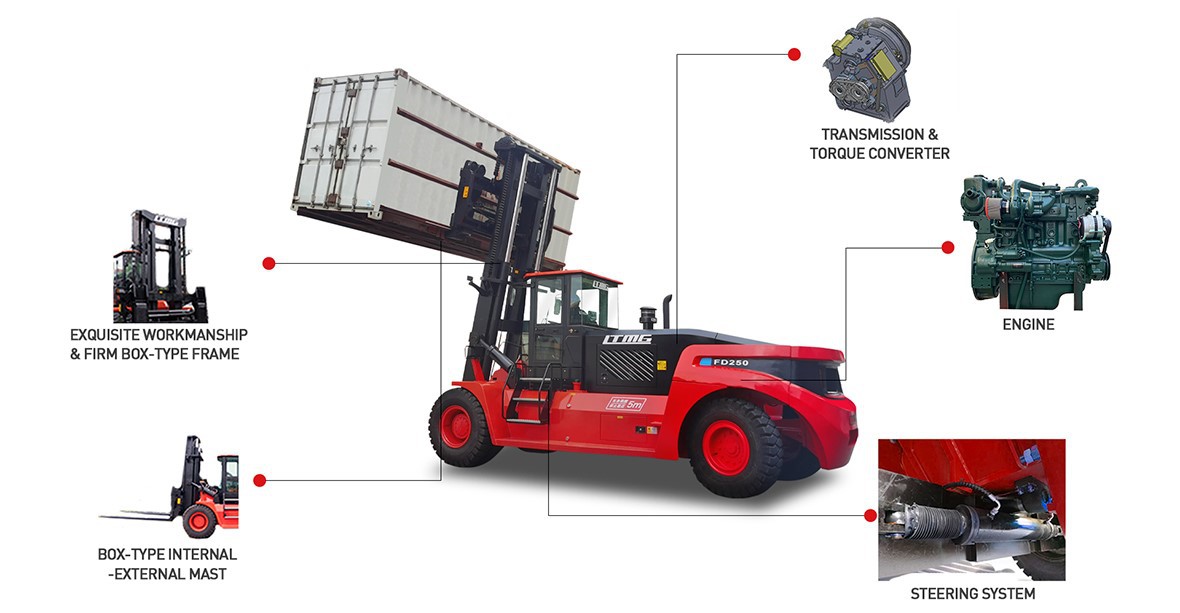

advantage

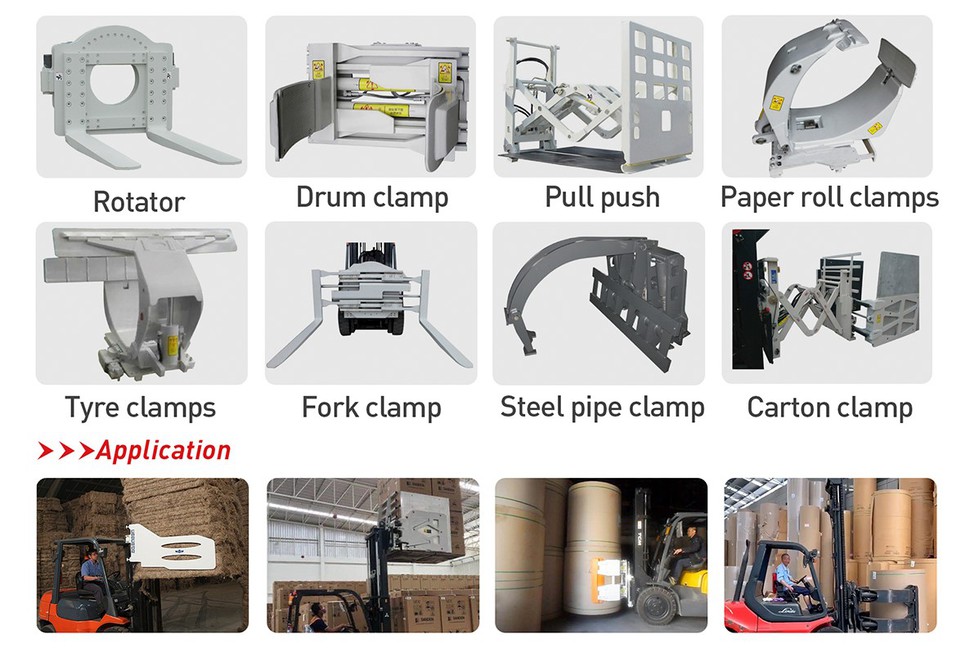

optional attachment
1.Fork positioner: Fork positioner is an innovative attachment that enhances the performance of forklifts by allowing them to adjust the distance between the forks. This attachment is perfect for warehouses, manufacturing plants, and logistics centers that require frequent handling of different sizes and types of loads.Fork positioner is a hydraulic device that enables the forklift operator to adjust the forks quickly and easily. With the help of a control lever mounted on the forklift cabin or handle, the operator can slide the forks in or out and position them at the optimal width for the load. This reduces the need for manual adjusting and saves time, effort, and labor costs.
Moreover, fork positioner improves the safety and accuracy of forklift operations by reducing the risk of pallet and product damage, as well as minimizing the risk of accidents caused by unstable loads. The attachment enables the forklift driver to align the forks with the load and grasp it securely, reducing the risk of load shifting or falling.
2.Side shift is a versatile mechanism that can be installed on various types of machinery to enhance maneuverability and productivity. It allows the operator to move the attachment horizontally with ease, up to several inches in any direction. With side shift, you can adjust the positioning of your equipment without the need to stop and reposition the entire machinery. It is particularly useful for material handling, pallet stacking, and excavation work. Side shift is compatible with many types of attachments, including forks, buckets, and blades. It is a great addition to any machinery that requires precise and efficient movement.
3.Forklift bale clamps are indispensable tools for material handling and transport in many industries. They are designed to efficiently and securely handle bales of materials, such as cotton, wool, hay, and paper. Forklift bale clamps are specially designed attachments that can be easily mounted onto the forklift truck. This allows the forklift to safely and easily transport and stack bales of various types of material.
One of the main advantages of using a forklift bale clamp is that it can handle a large amount of material at once, making it an efficient and cost-effective solution for material handling operations. The bale clamp's specialized design allows it to easily and securely grip bales of material, preventing damage and ensuring safe transport. Its design also allows for easy and quick attachment and detachment from the forklift truck.
FAQ
Q: What is the difference between pneumatic tires and solid tires on a 32-ton diesel forklift?
Q: Which type of tire is better for a 32-ton diesel forklift, pneumatic or solid?
Q: Are there any maintenance differences between pneumatic and solid tires on a 32-ton diesel forklift?
Yes, pneumatic tires require regular air pressure checks and may need to be repaired or replaced if punctured or damaged. Solid tires do not require air pressure checks and are generally maintenance-free, but may need to be replaced if they become worn or damaged.
