Product Introduction

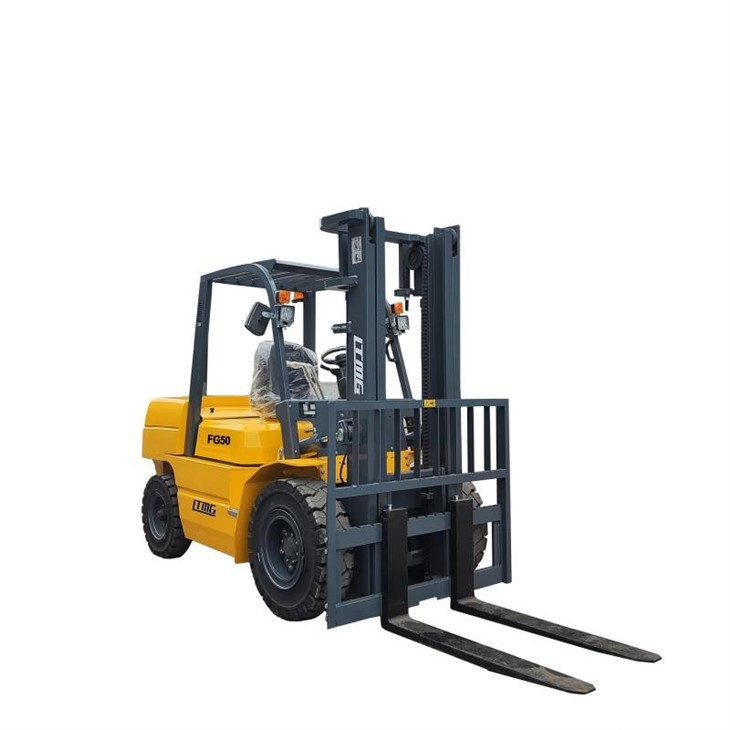

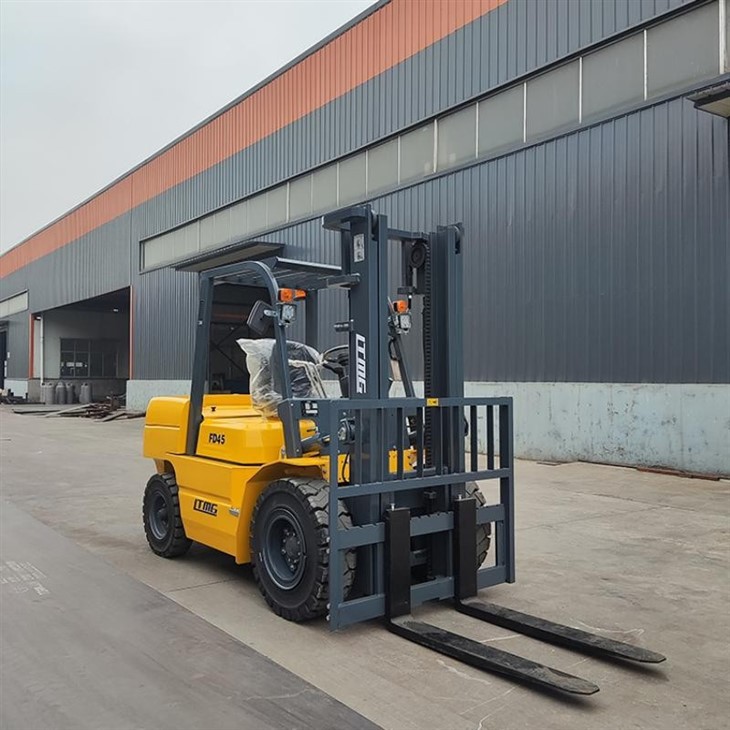

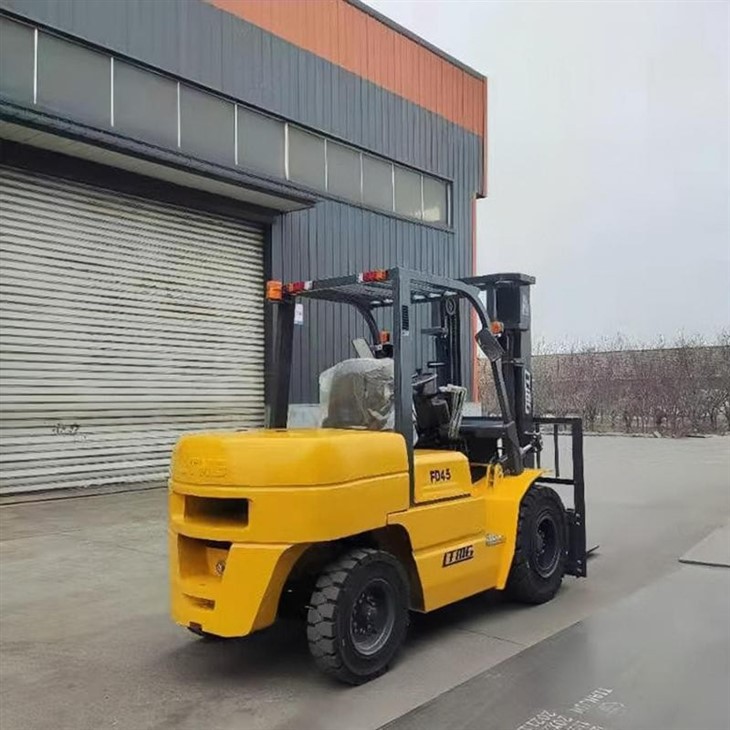

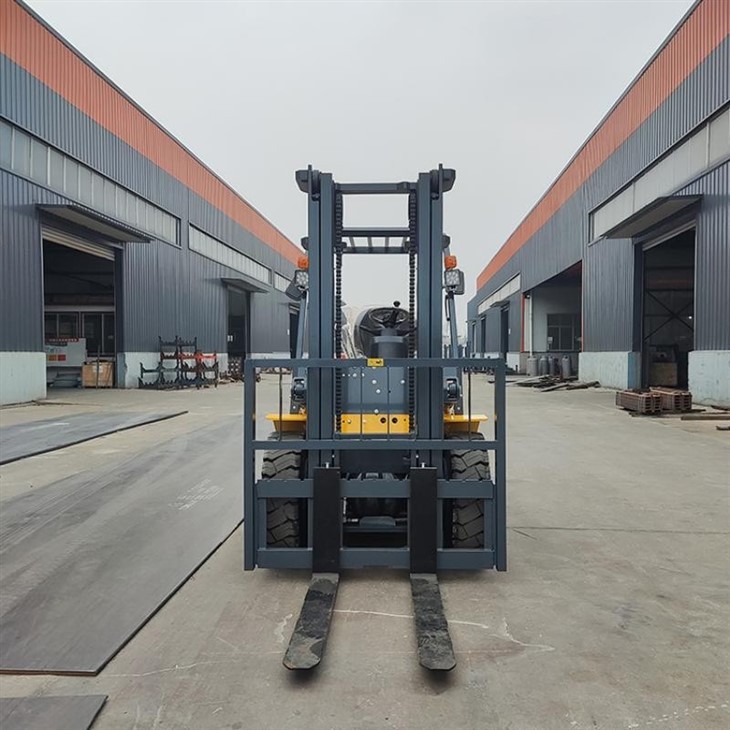

LTMG diesel forklift Features
The driver's cab provides a practical and comfortable working environment. Controls are within reach and easy to maneuver, and the seat has a variety of options, including an adjustable full-suspension seat. A clear 3.5-inch LCD display provides operators with important forklift information at a glance. A rear drive handle with integrated horn makes backing up more comfortable.
Forklift Intelligent Design hydraulics allow for fast lift speeds. Auxiliary hoses are centered on the free lift cylinders to eliminate hose twisting and the hoses are reliably secured with large radius bends to minimize hose scuffing. The tilt cylinders are sealed to minimize contamination, and the unibody frame is welded to many castings, including the drive axle housing, all of which reduces wear and tear on the forklift. A small turning radius and forklift footprint contribute to efficiency.

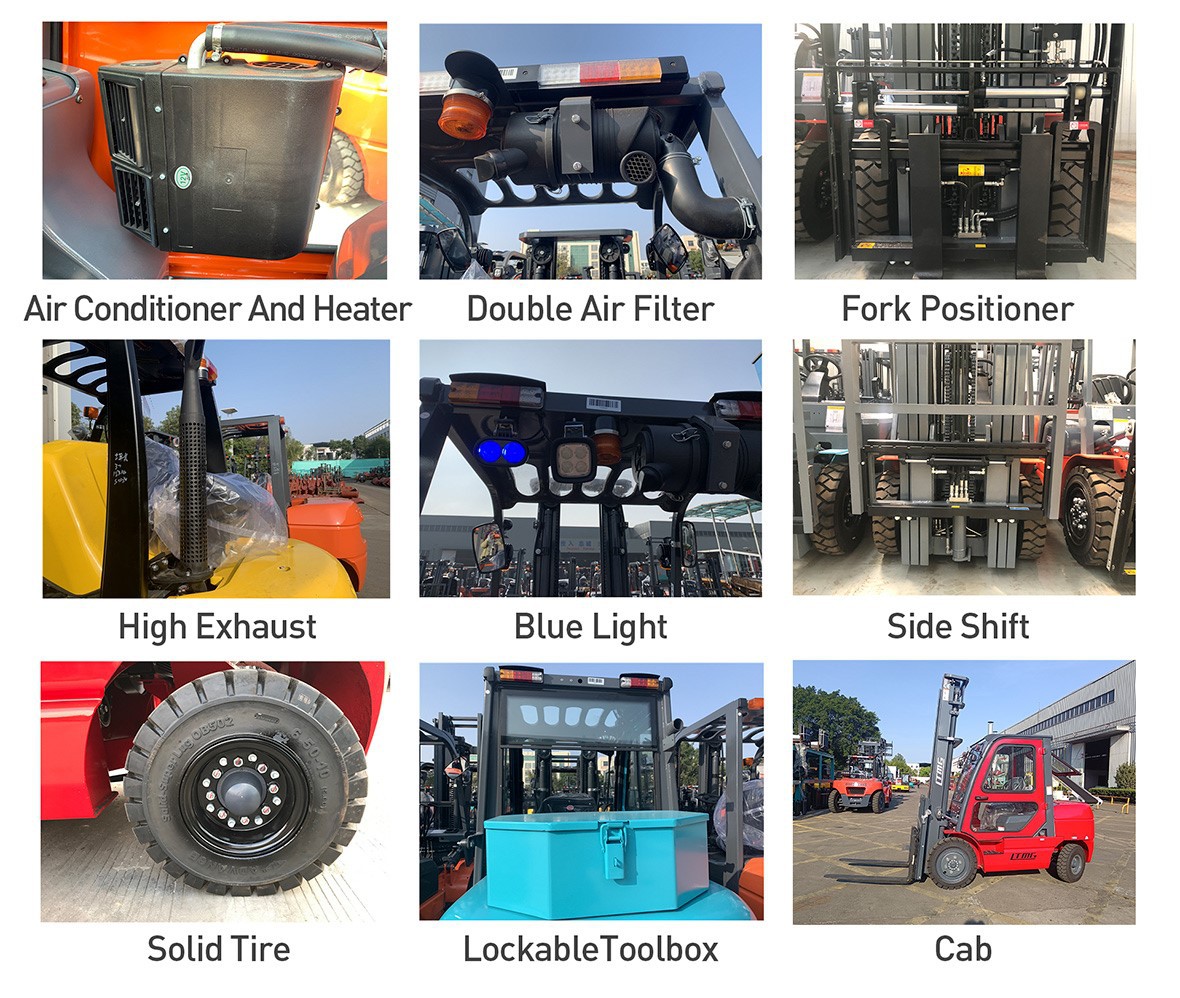

forklift optional parts
1.High Level Exhaust System: The forklift high level exhaust system is designed to improve the exhaust emissions of internal combustion forklift trucks in enclosed or semi-enclosed working environments. By locating the exhaust pipe above the vehicle, the high level exhaust effectively directs hot exhaust gases from the engine away from ground personnel and cargo, reducing noise and heat in the working environment, as well as minimizing potential respiratory hazards to the cargo and operator. In addition, the high exhaust design can avoid the slippery ground caused by exhaust gas when working on slippery ground, which improves the safety of operation.
2. Dual Air Filter System: The dual air filter system of forklift trucks refers to the installation of two air filters for the engine air intake system. This greatly improves the air filtration efficiency and reduces the possibility of dust and impurities entering the engine, thus effectively protecting the engine from damage and prolonging its service life. Double air filter design in the dusty or poor air quality environment is particularly useful to ensure that the engine always get enough clean air to maintain stable combustion efficiency and good power output.
Translated with DeepL.com (free version)

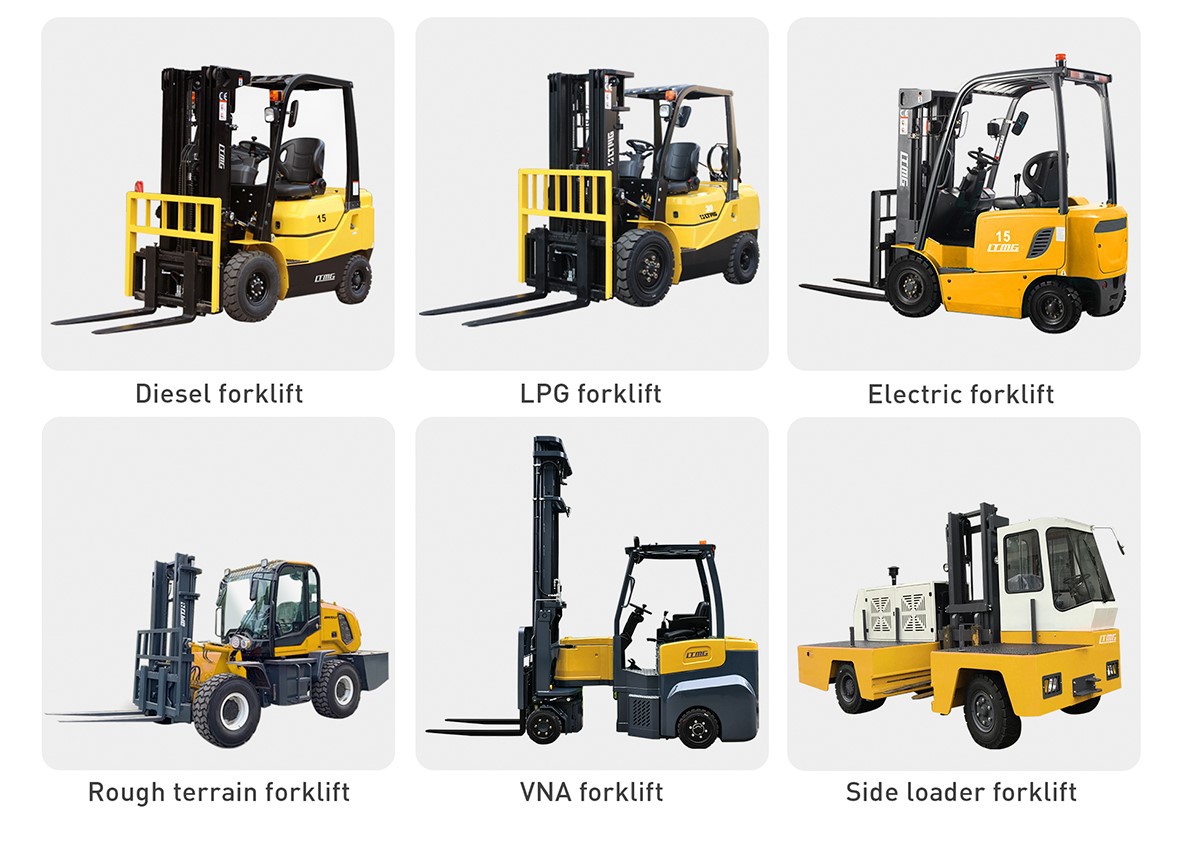

Similar products
fAQ Of lTMG
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
Products Details
|
Model |
FD40 |
|
|
Rated lifting load |
kg |
4000 |
|
Load center distance |
mm |
500 |
|
Free lifting height |
mm |
150 |
|
overal l length(With fork/Without fork) |
mm |
4000/2930 |
|
Width |
mm |
1290 |
|
Overhead guard height |
mm |
2180 |
|
Wheelbase |
mm |
1900 |
|
Minimum ground clearance |
mm |
140 |
|
Mast tit angle (front/rear) |
% |
6° /12° |
|
Tire no. (before) |
250-15-16PR |
|
|
Tire no. (after) |
7.00-12-12PR |
|
|
Mini mum turning radius (outer side) |
mm |
2710 |
|
Minimum right angle aisle width |
mm |
4750 |
|
Fork size |
mm |
1070×150×50 |
|
maximum working speed(Full-load/No-load) |
km/h |
19/19 |
|
maximum li fting speed(Full-load/No-load) |
mm/s |
340/380 |
|
maximum gradeability(Full-load/No-load) |
% |
15/20 |
|
Forklift weight |
kg |
4950 |
|
Engine model |
Quanchai4C4-50V31 |
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt,the specific confirmation of our international trade sales shall prevail;
