Container Handler Empty Container Stacker

Items: Container Handler
Power Type: electric
Rated Capacity: 8000kg
Send Inquiry
Chat Now

Product Introduction

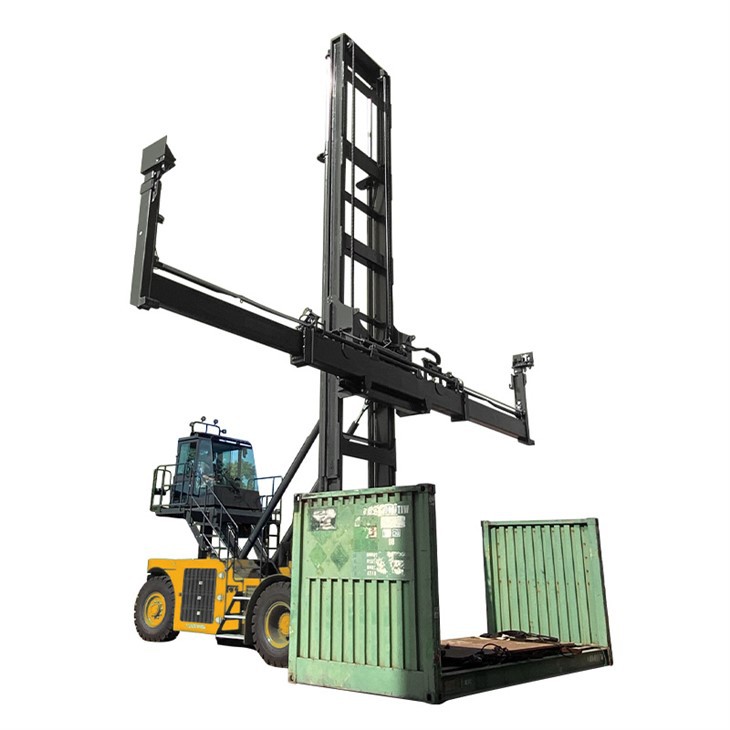

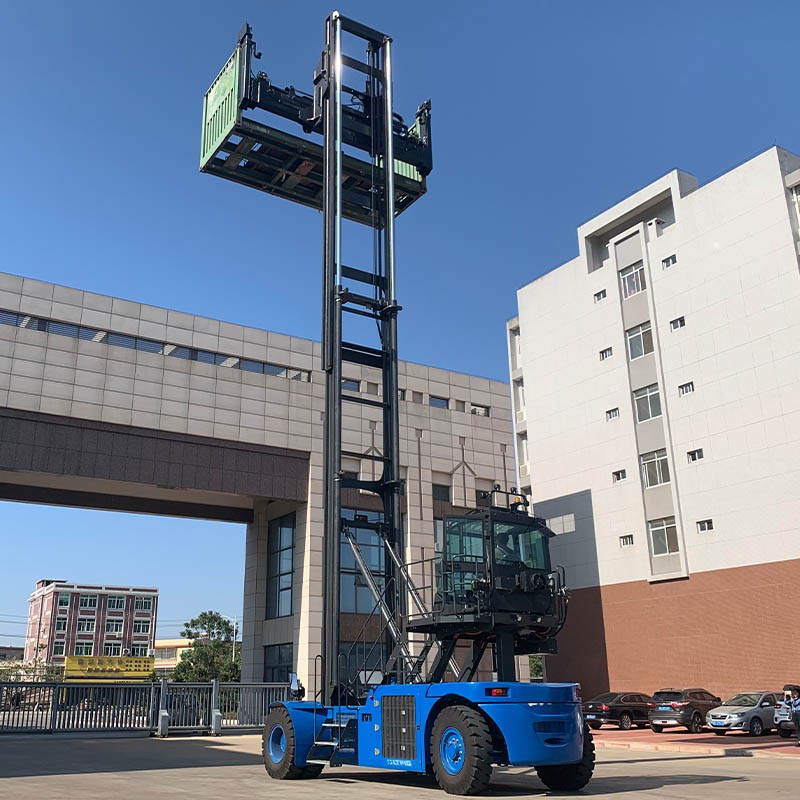

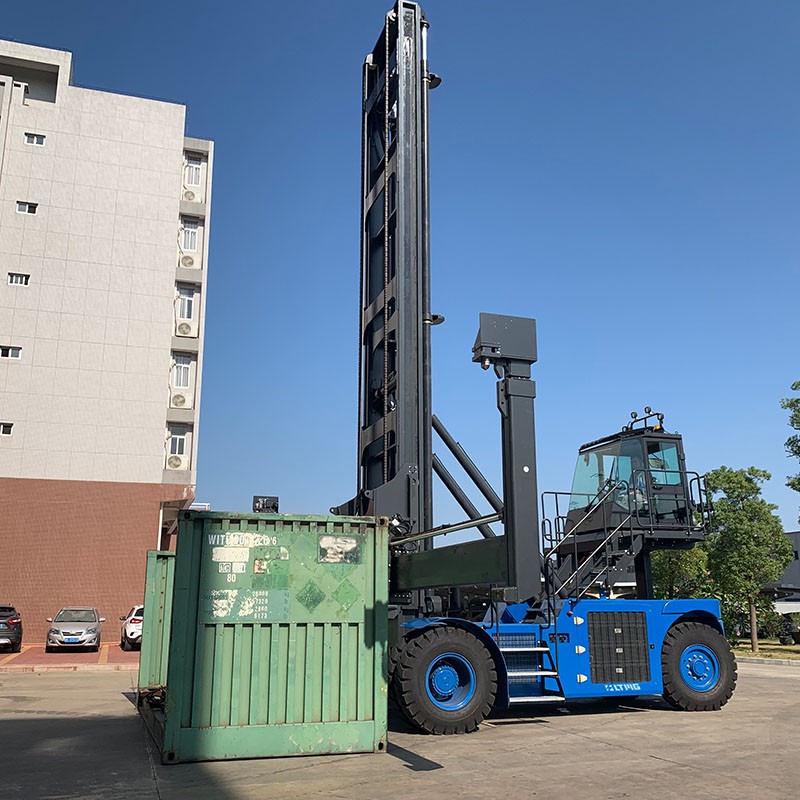

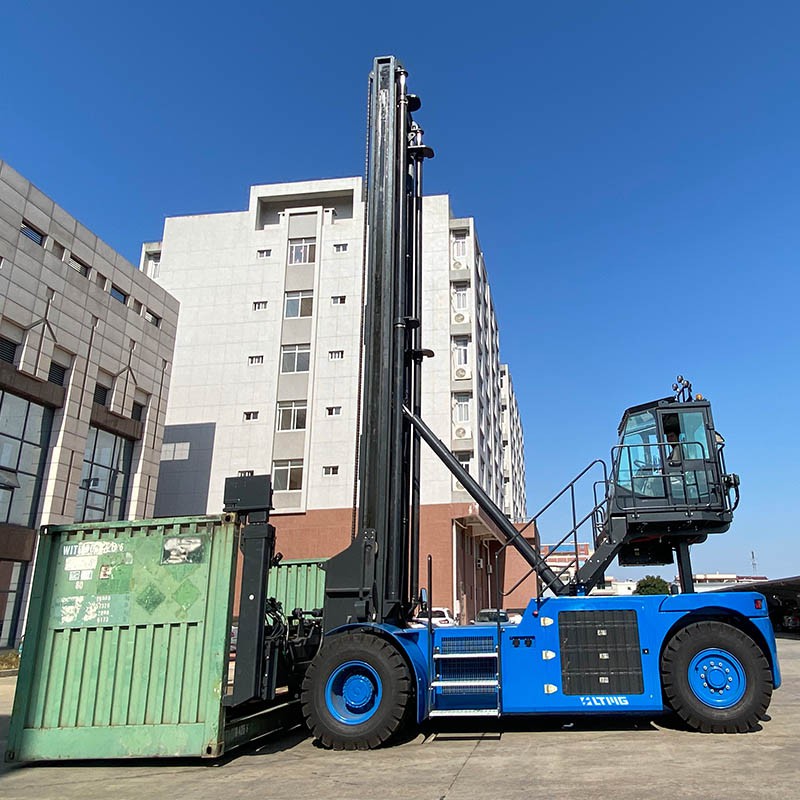

Introducing the 8 Ton Empty Container Handler, the ultimate solution for your container handling needs. This powerful equipment is designed to handle empty containers with ease, increasing productivity and efficiency in your operations.


One of the key features of this container handler is its easily accessible maintenance points, which allow for quick and simple maintenance tasks to be completed. This extends the maintenance cycle, increasing the overall availability of the equipment.


With a brand new smart cab design, the 8 Ton Empty Container Handler boasts an ergonomic design that allows the operator to easily control all components of the cab with ease. All actions can be completed through the manipulation of aviation-style levers, ensuring safety and ease of management. The cab can also be installed on a fixed mounting or a track-mounted system, which allows for hydraulic movement of the cab for better control during operation.


Safety is a top priority, and this container handler comes with multiple safety features that meet standard requirements. Additional features such as a backup camera, LED lighting, or a speed limiter can be installed to further bolster safety for your staff.


Upgraded to a heavy-duty lifting equipment, the new generation of Smart Series Empty Container Handlers is equipped with a heavy-duty steering axle, drive axle, and lifting chain to ensure normal operation of the equipment even in harsh working conditions. When lifting to the top of the stack, the heavy-duty axle improves equipment stability, ensuring the safety of the operator and the surrounding personnel.


Choose the 8 Ton Empty Container Handler for a reliable and efficient container handling solution that will improve your operations in many ways. With its convenient maintenance points, smart cab design, advanced safety features, and heavy-duty lifting equipment, this container handler is your best bet for effortless and speedy container handling.

empty container forklift

empty handler



LTMG container forklift


Products Parameter
Model CH80
Rated lifting capacity 8000kg
load center 1295mm
Front overhang 1198mm
wheelbase 4520mm
dead-weight 35880kg
Height when the gantry is retracted 3/4
Maximum lifting height (to rotary lock) h3 11111mm
The maximum height of the gantry during homework 19244mm
Height of roof protection frame (cab) 4326mm
Driver's seat height above ground 3226mm
overall length 6850mm
Vehicle length (excluding forks) 6682mm
Overall Width 2570mm
20 '/40' sling width 12150mm
Ground clearance of front axle 370mm
Wheelbase center ground clearance 380mm
Channel width (20 'foot container) 9900mm
Channel width (40 'foot container) 13500mm
Turning radius 6300mm



after-sale service

after-sale service





FAQ

Q: What makes the maintenance of this container handler easier?

A:One of the key features of this container handler is its easily accessible maintenance points, which allow for quick and simple maintenance tasks to be completed. This extends the maintenance cycle, increasing the overall availability of the equipment.

Q:How does the smart cab design enhance the handling of the container handler?

A: With a brand new smart cab design, the 8 Ton Empty Container Handler boasts an ergonomic design that allows the operator to easily control all components of the cab with ease. All actions can be completed through the manipulation of aviation-style levers, ensuring safety and ease of management.

Q: How long has LTMG been in the business?

A:LTMG has garnered a solid reputation in the industry for over 20 years. We hold relevant certifications and have received recognition for our commitment to quality and innovation. Our customers' testimonials and case studies stand as testimony to the trustworthiness of LTMG. We invite you to explore our track record and industry standing in detail.

Q: Are there different types of scissor lift platforms?

A: Yes, there are various types of scissor lift platforms to suit different needs. These include electric scissor lift platforms, diesel-powered scissor lift platforms, and rough terrain scissor lift platforms, to name a few.
