Chinese Electric Forklifts

Items: chinese electric forklifts Power type: electric Rated capacity: 2500 kg Lift height:3000 mm
Send Inquiry
Chat Now

Product Introduction

LTMG forklift

Products features

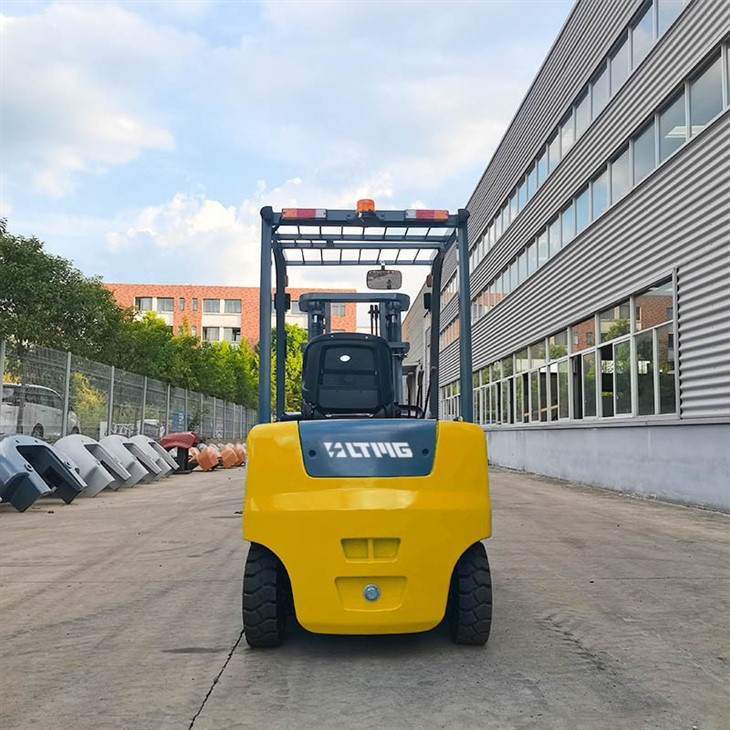

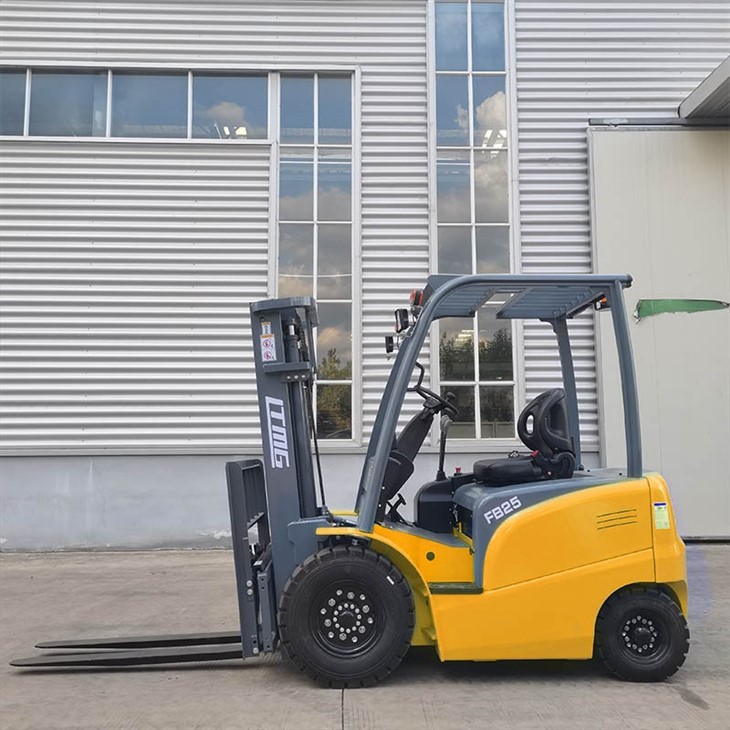

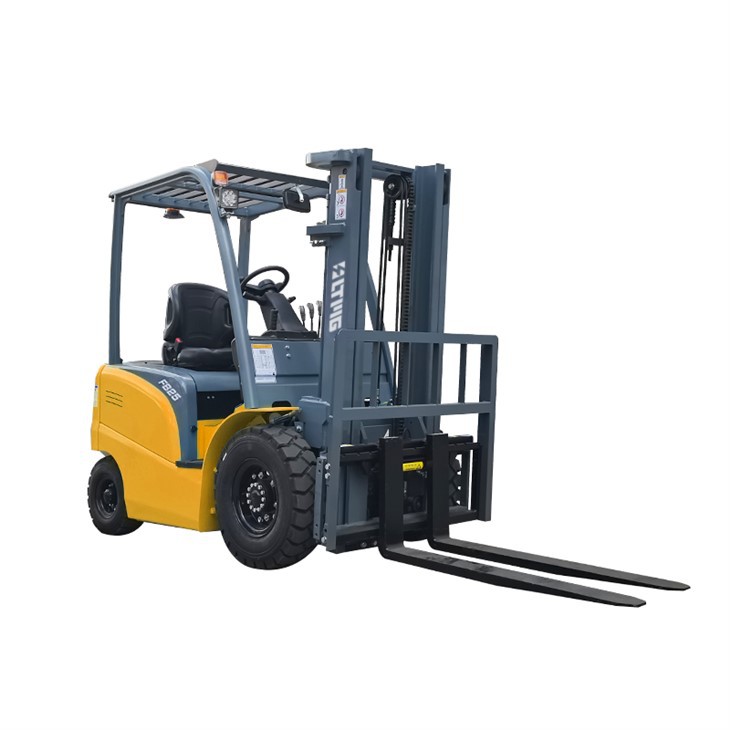

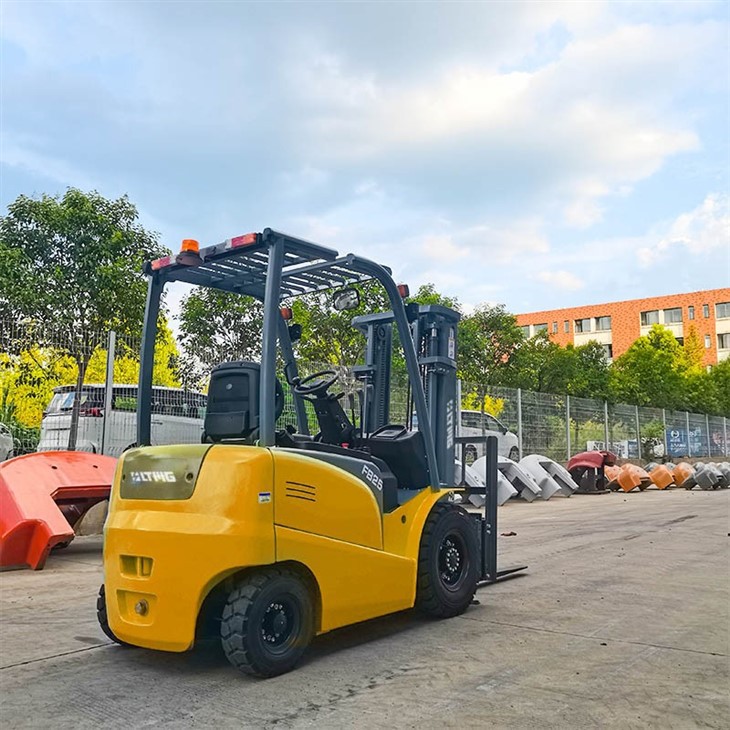

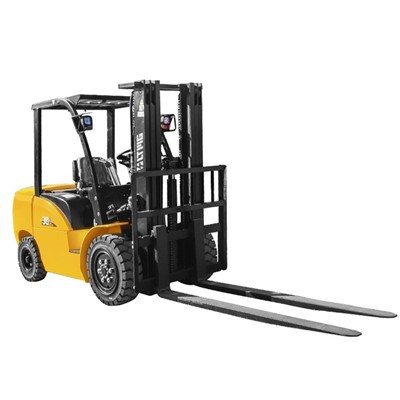

chinese electric forklifts

Introducing our cutting-edge 2.5 Ton Electric Forklift, a shining example of technological advancement and sustainability within the world of Chinese electric forklifts. Engineered to excel in efficiency, safety, and adaptability, this forklift embodies the finest qualities that define the future of electric-powered material handling solutions.



At the heart of our forklift lies a commitment to advanced energy solutions. We utilize square lithium iron phosphate batteries and modules, a technology widely embraced by commercial vehicles in mature economies. This strategic choice not only ensures environmental friendliness but also guarantees superior performance and reliability, placing our Chinese electric forklifts at the forefront of clean energy innovation.



The battery module is encased in a robust yet lightweight aluminum alloy frame, expertly crafted for durability and optimized heat dissipation. This design choice not only extends the lifespan of the battery but also enhances overall efficiency, ensuring our forklifts operate smoothly even during extended periods of usage.



Safety and efficiency are paramount in our design philosophy. Our forklifts boast a remarkable charging efficiency of up to 98%, significantly reducing downtime and energy wastage. Moreover, with a thermal runaway temperature threshold set at an impressive 600°C, our electric forklifts are built to withstand rigorous operational conditions while maintaining the highest safety standards.



Recognizing the challenges of cold climate operations, we've equipped our 2.5 Ton Electric Forklift with a standard electrical heating feature. This innovative adaptation ensures uninterrupted functionality in low-temperature environments, preventing freezing and preserving battery performance. Whether in the chilly warehouses of northern China or frosty winter mornings, our forklifts are always ready for action.



Embracing the essence of Chinese electric forklifts, our 2.5 Ton model harmoniously integrates innovation, eco-consciousness, and practicality. With a focus on delivering unmatched performance, even under extreme conditions, it sets a new benchmark for industrial vehicles. Trust our forklifts to enhance your operations with their blend of power, safety, and environmental responsibility, affirming the smart choice for businesses transitioning towards green logistics solutions.

new electric forklift
power forklift

attachment

side shiftproduct-15-15

OEM service

heli forkliftproduct-15-15

About LTMG

forklift LTMGproduct-15-15

About LTMG













Model

FB25

Rated Capacity

kg

2500

Load Centre

mm

500

Lift Height

mm

3000

Fork Size (L×W×T)

mm

1070×120×40

Mast Tilt Angle F/R (α°/β°)

Deg

6/12

Length to fork face of fork (Without fork)

mm

2360

Overall Width

mm

1160

Mast Lowered Height

mm

2055

Mast Extended Height (With backrest)

mm

3960

Overhead Guard Height

mm

2240

Turning Radius (outside)

mm

2075

Front Overhang (Wheel center to fork face)

mm

465

Tread (Front/Rear)

mm

960/950

Ground Clearance (Bottom of mast)

mm

110

Wheelbase

mm

1510

Fork Spread (Min./Max)

mm

240/1040

Travel Speed

km/h

14

Lifting Speed (Full load)

mm/s

270

Max. Gradeability

%

15

Service Weight

kg

4170

Front Tire×2

7.00-12-12PR

Rear Tire×2

18×7-8-14PR

Driven Motor

kw

11

Lift Motor

kw

8.6

Battery Standard

V/Ah

48/630

Controller Manufacturer

CURTIS AC

Operating Pressure for Attachment

Mpa

18

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
