Products features
electric 80 forklift

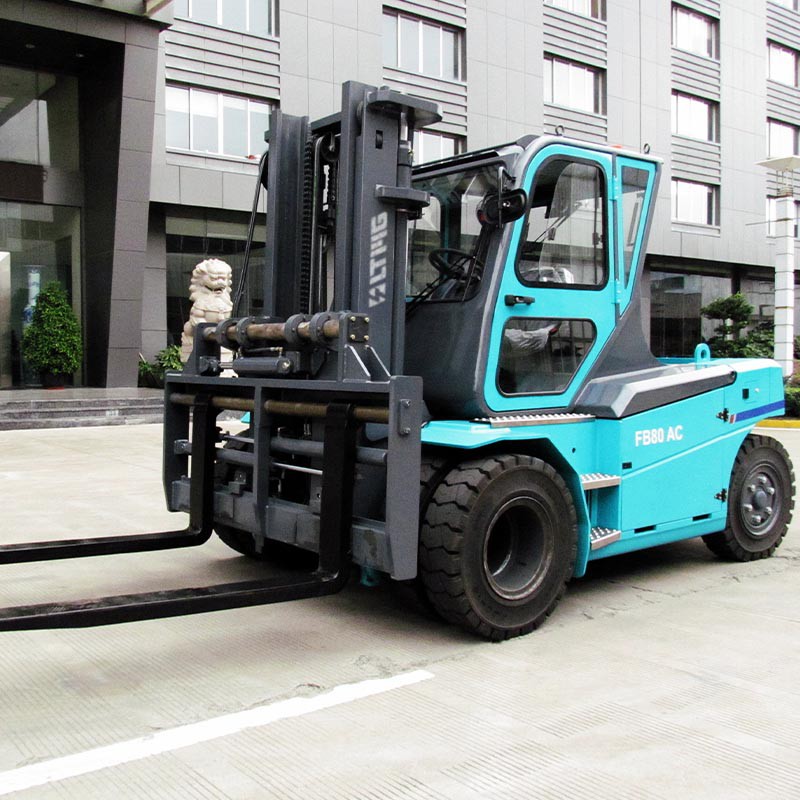

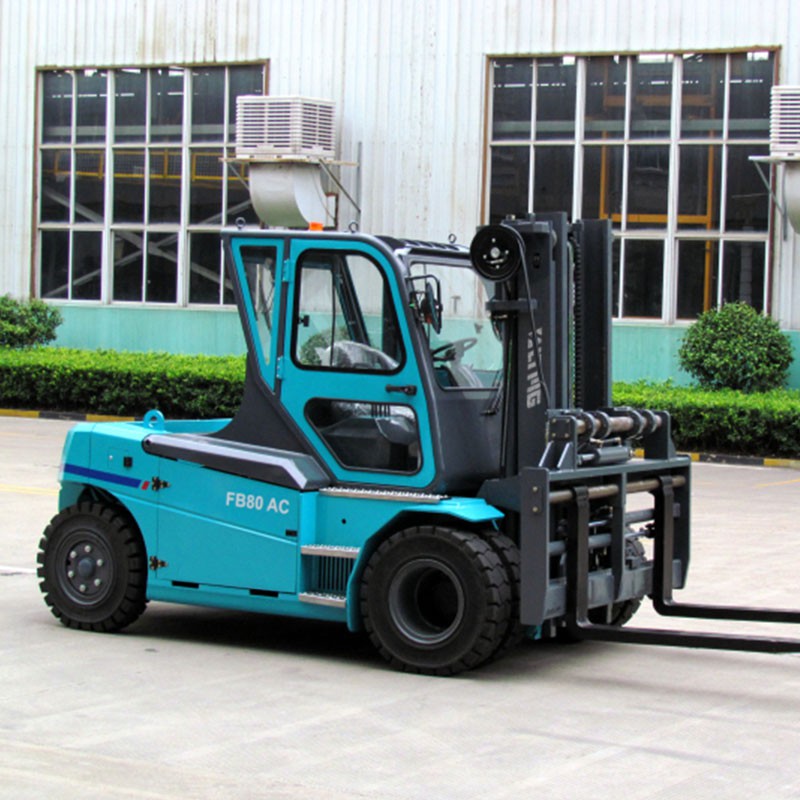

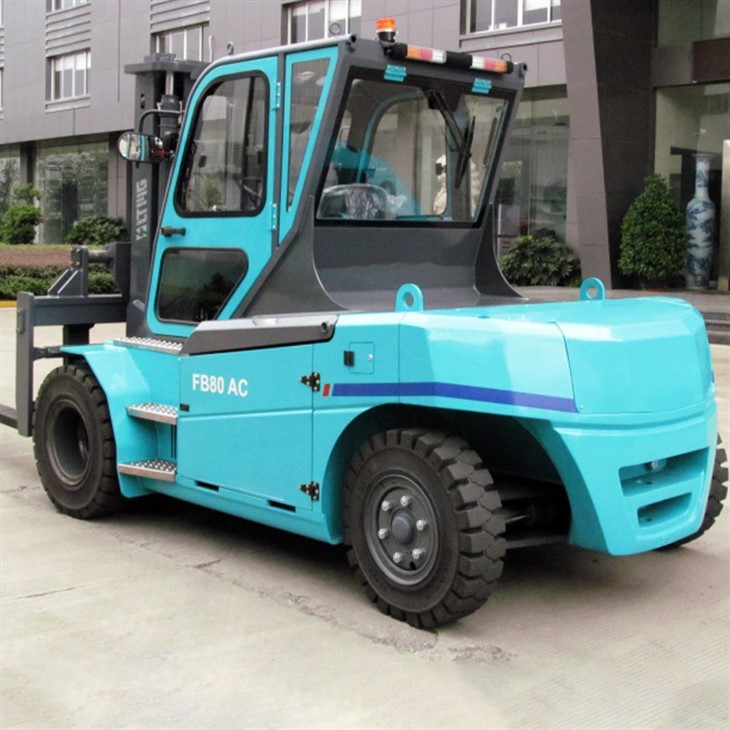

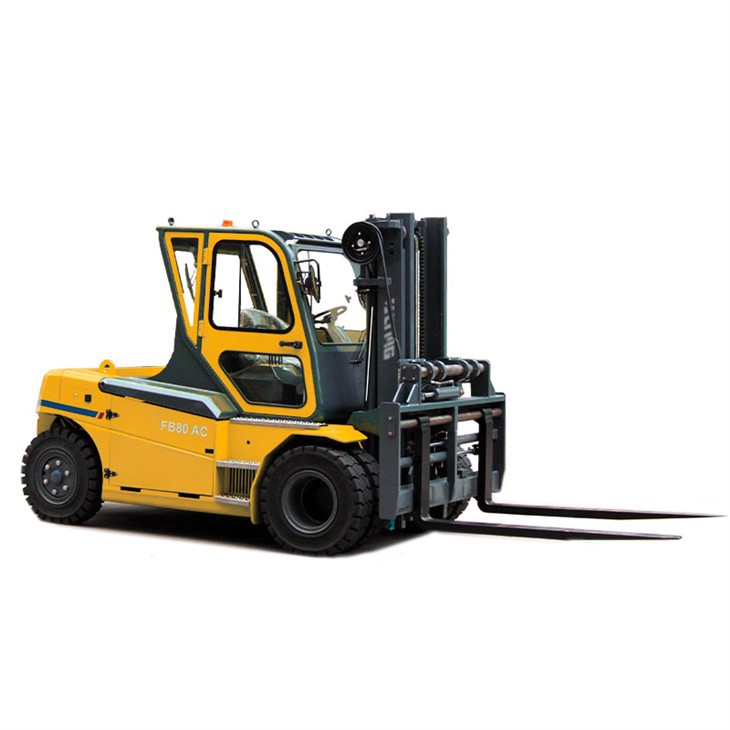

Introducing our state-of-the-art Electric 8-Ton Forklift, a powerhouse of innovation and performance that redefines heavy-duty material handling. Engineered with precision and operator comfort at its core, this electric forklift merges advanced ergonomics, enhanced visibility, and intelligent controls to deliver an unparalleled experience in the realm of electric 80 forklifts.
A standout feature of our Electric 8-Ton Forklift is its meticulously designed wide-view mast. The optimized structure ensures an unobstructed line of sight for the operator, enhancing safety and precision during lifting operations. Complementing this is an expanded fork carriage opening, providing a broader field of view and ample working space. Coupled with a thoughtful ergonomic layout, these elements significantly improve operator efficiency and minimize fatigue, even during extended use.
The multifunctional color-screen instrument panel takes user interaction to a new level. Boasting a clear graphical interface, it presents vital information in a concise, easy-to-read format. Recognizing the global market, the interface is ingeniously designed to switch between Chinese and English, catering to the diverse needs of both domestic and international customers. This versatility underscores our commitment to user-centric design in electric 80 forklift technology.
Step into the newly designed fully-suspended cab with a panoramic view, and witness a workspace that redefines clarity and comfort. The air conditioning system has been upgraded for uniform, powerful cooling, ensuring a pleasant working environment even in the hottest conditions. The cab's waterproof, dust-proof, heat-resistant, soundproof, and noise-reduction sealing design elevates driving comfort to unprecedented levels. Molded interior components add to the tactile comfort, while the integral frame constructed from profiled steel pipes reinforces the structure, guaranteeing exceptional durability and stability.
Control is at the heart of our Electric 8-Ton Forklift's design. The integrated handle and pilot remote control system facilitate flexible, pinpoint operation, ensuring tasks are executed with precision. The hydraulic brake system has undergone optimization to deliver a smooth, easily controllable braking experience, enhancing safety and control in all maneuvers. A suspension seat, adjustable in multiple directions and floating with the control platform, provides ultimate comfort for operators, ensuring fatigue-free operation throughout the day.
In summary, our Electric 8-Ton Forklift pushes the boundaries of what's possible in heavy-duty electric material handling. With its exceptional visibility, intuitive controls, advanced cab design, and emphasis on operator comfort, it represents the future of electric 80 forklifts. Experience enhanced productivity, safety, and operational ease – a testament to our dedication to innovation and excellence in electric forklift engineering.


attachment
OEM service
About LTMG
About LTMG
Model |
FB80 |
|
Rated Capacity |
kg |
8000 |
Load Centre |
mm |
600 |
Lift Height |
mm |
3000 |
Fork Size (L×W×T) |
mm |
1220×150×70 |
Mast Tilt Angle F/R (α°/β°) |
Deg |
6/10 |
Length to face of fork (Without fork) |
mm |
3780 |
Overall Width |
mm |
2200 |
Mast Lowered Height |
mm |
2600 |
Mast Extended Height (With backrest) |
mm |
4400 |
Overhead Guard Height |
mm |
2500 |
Turning Radius (outside) |
mm |
3350 |
Front Overhang (Wheel center to fork face) |
mm |
685 |
Tread (Front/Rear) |
mm |
1650/1718 |
Ground Clearance (Bottom of mast) |
mm |
200 |
Wheelbase |
mm |
2450 |
Fork Spread (Min./Max) |
mm |
300/2000 |
Travel Speed |
km/h |
14 |
Lifting Speed (Full load) |
mm/s |
300 |
Max. Gradeability |
% |
10 |
Service Weight |
kg |
12780 |
Front Tire |
9.00-16-14PR |
|
Rear Tire |
8.25-15-14PR |
|
Driven Motor |
kw |
14×2 |
Lift Motor |
kw |
25×2 |
Battery Standard |
V/Ah |
80/1200 |
Controller Manufacturer |
CURTIS AC |
|
Operating Pressure for Attachment |
Mpa |
18 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
