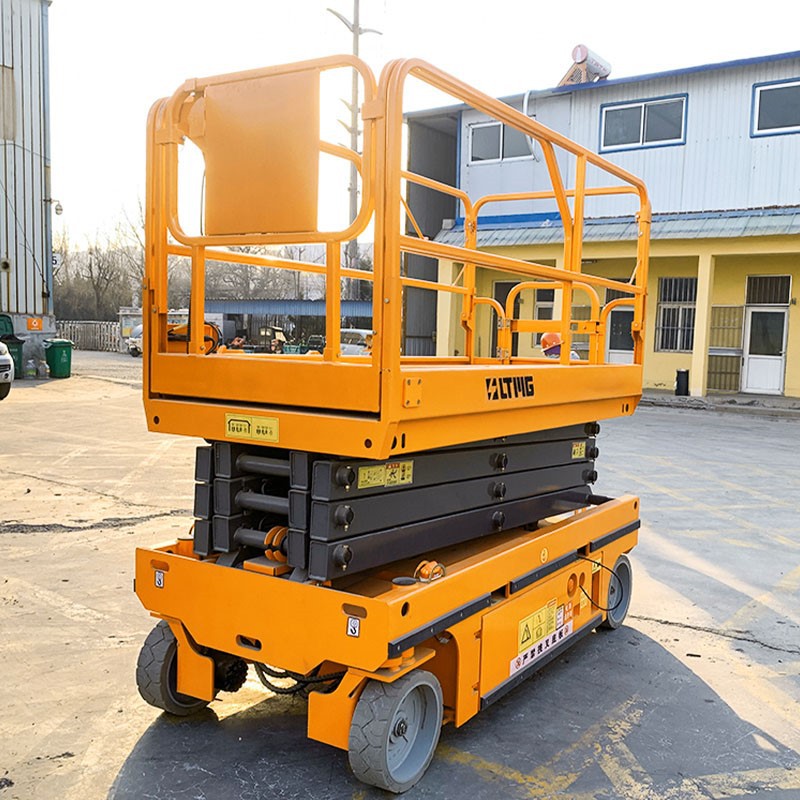

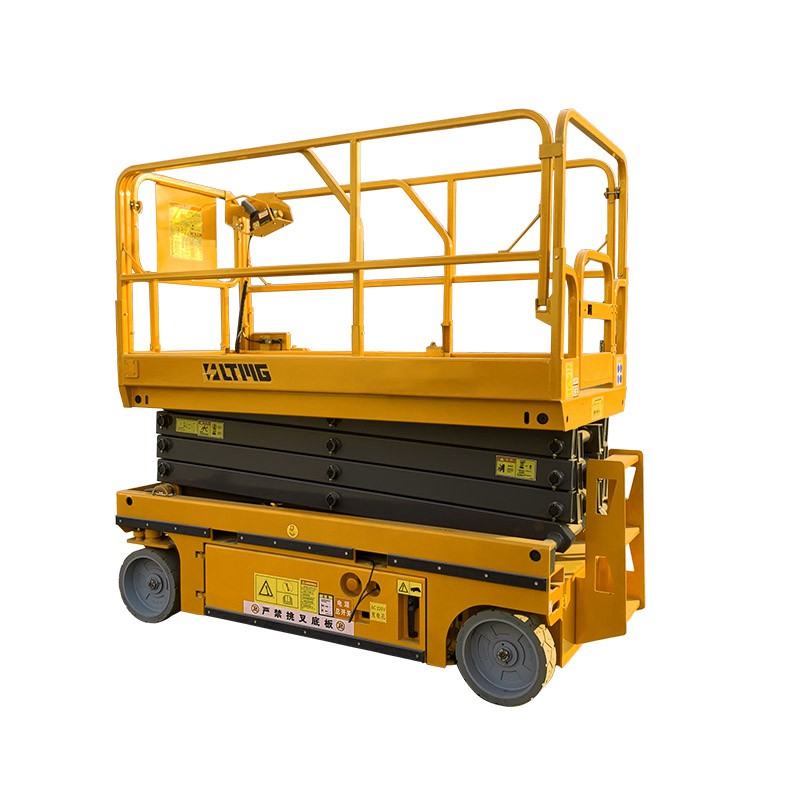

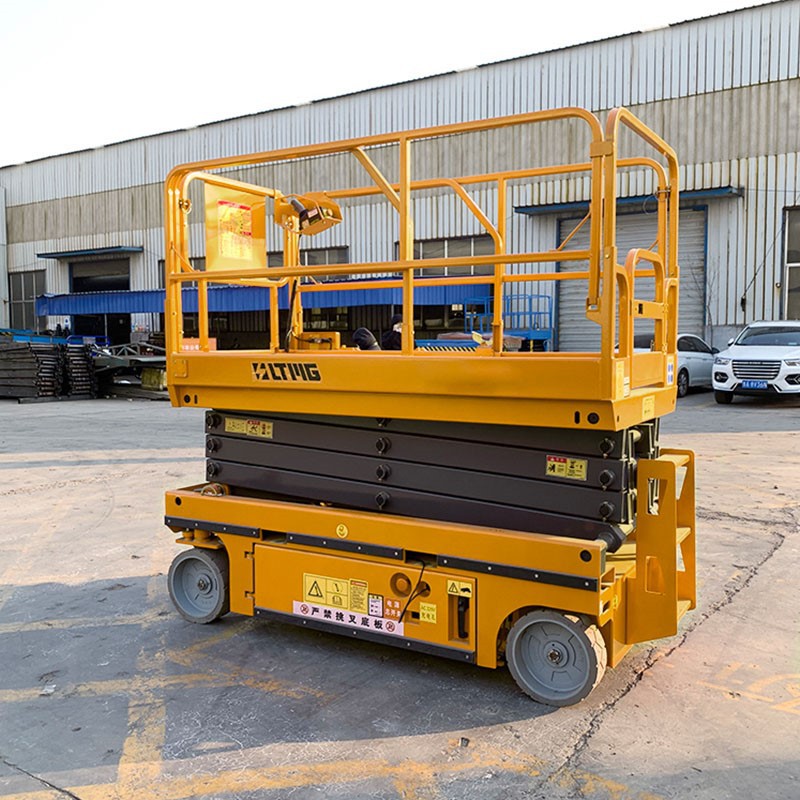

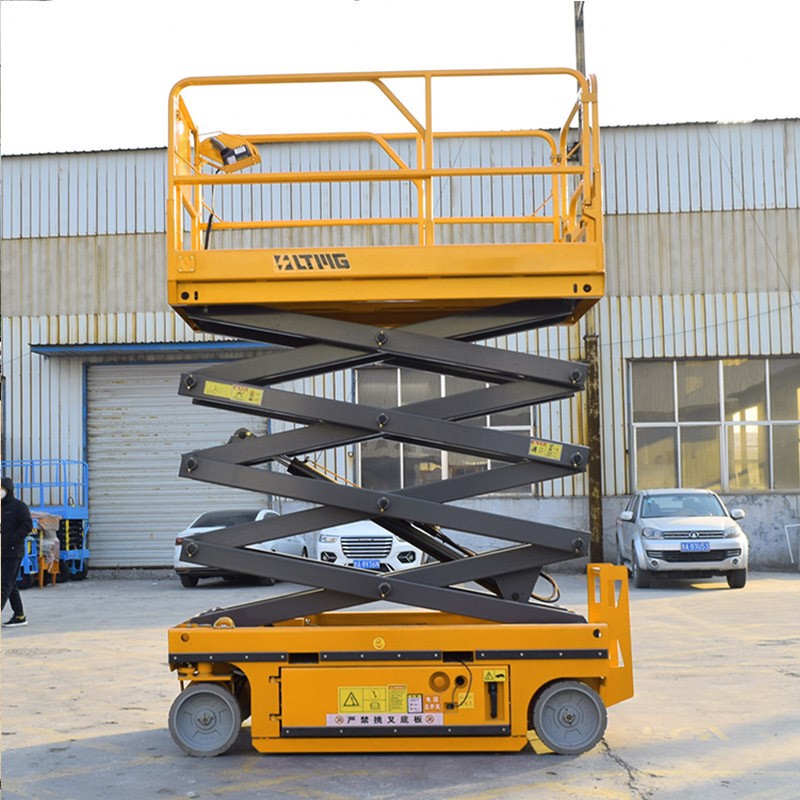

The aerial platform scissor lift is a type of aerial work platform that provides a stable and elevated platform for various tasks. It is characterized by a crisscrossing mechanism, resembling a pair of scissors, which enables vertical movement. The lift is typically powered by a hydraulic, pneumatic, or mechanical system that allows the platform to be raised and lowered.
1. Construction and Maintenance:
- Building Construction: Scissor lifts are extensively used in construction projects for tasks such as installing windows, painting, plastering, and electrical work. Their stable platforms provide a safe working environment at elevated heights.
- Facility Maintenance: Maintenance crews utilize extendable scissor lifts for repairing and maintaining buildings, facilities, and infrastructure. The lifts offer a secure platform for tasks like changing light fixtures, inspecting roofs, and cleaning windows.
2. Warehousing and Logistics:
- Material Handling: Scissor lifts are employed in warehouses to facilitate the picking and stacking of goods on shelves. They contribute to efficient inventory management and reduce the risk of injury associated with manual handling of heavy items.
3. Aerial Photography and Filming:
- Media Production: In the film and media industry, scissor lifts provide a stable and adjustable platform for aerial shots. They are used by cinematographers and photographers to capture unique perspectives, especially in large-scale productions.
4. Retail and Display:
- Visual Merchandising: Retailers use scissor lifts for setting up displays, arranging merchandise on high shelves, and decorating stores. The lifts help create visually appealing layouts without compromising safety.
5. Event Management:
- Stage Setup: Awp scissor lift play a crucial role in the event industry for setting up stages, lighting rigs, and sound systems. They provide a reliable platform for technicians and performers at varying heights.
6. Agriculture:
- Orchard Maintenance: Farmers and orchard workers use scissor lifts to access tall trees for pruning, harvesting, and pest control. The maneuverability of scissor lifts is particularly beneficial in orchards with tight spaces.
7. Airplane Maintenance:
- Aircraft Inspection and Repair: In the aviation sector,it's employed for routine maintenance, inspections, and repairs on aircraft. Their stability is essential when working on intricate tasks at elevated heights.
8. Emergency Services:
- Rescue Operations: Scissor lifts are utilized by emergency services for rescue operations in situations where traditional access methods may be challenging. They provide a stable platform for rescue personnel to reach and assist individuals in distress.
Specification
Model |
LTWP0608LD |
LTWP0810LD |
LTWP1012LD |
LTWP1214LD |
Safe working load |
240Kg |
320Kg |
300Kg |
300kg |
Max number of workers |
2 |
2 |
2 |
2 |
Max working height |
8m |
10m |
12m |
14m |
max platform height |
6m |
8m |
10m |
12m |
overall length |
2470mm |
2470mm |
2470mm |
2731mm |
overall width |
2280mm |
2280mm |
2280mm |
1661mm |
Overall height (guardrail not folded) |
1390mm |
1390mm |
1390mm |
1390mm |
Overall height (guardrail folded) |
2280mm |
2400mm |
2530mm |
2694 |
Working platform size |
1745mm |
1865mm |
1995mm |
2271 |
Platform extension size |
2270X1120 mm |
2270X1120 mm |
2270X1120 mm |
2270X1120 mm |
Min turning radius |
900mm |
900mm |
900mm |
900mm |
Lifting motor |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
Moving motor |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
Machine running speed |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
Rising / falling speed |
38/30sec |
45/36sec |
70/62sec |
70/62sec |
Battery |
8x6v/200Ah |
8x6v200Ah |
8x6v200Ah |
8x6v200Ah |
Battery charger |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
Climb Capability |
0.3 |
0.3 |
0.3 |
0.3 |
Max allowable working angle |
1.5°/2.5° |
1.5°/2.5° |
1.5°/2.5° |
1.5°/2.5° |
weight |
2400Kg |
2550Kg |
2840Kg |
3480kg |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

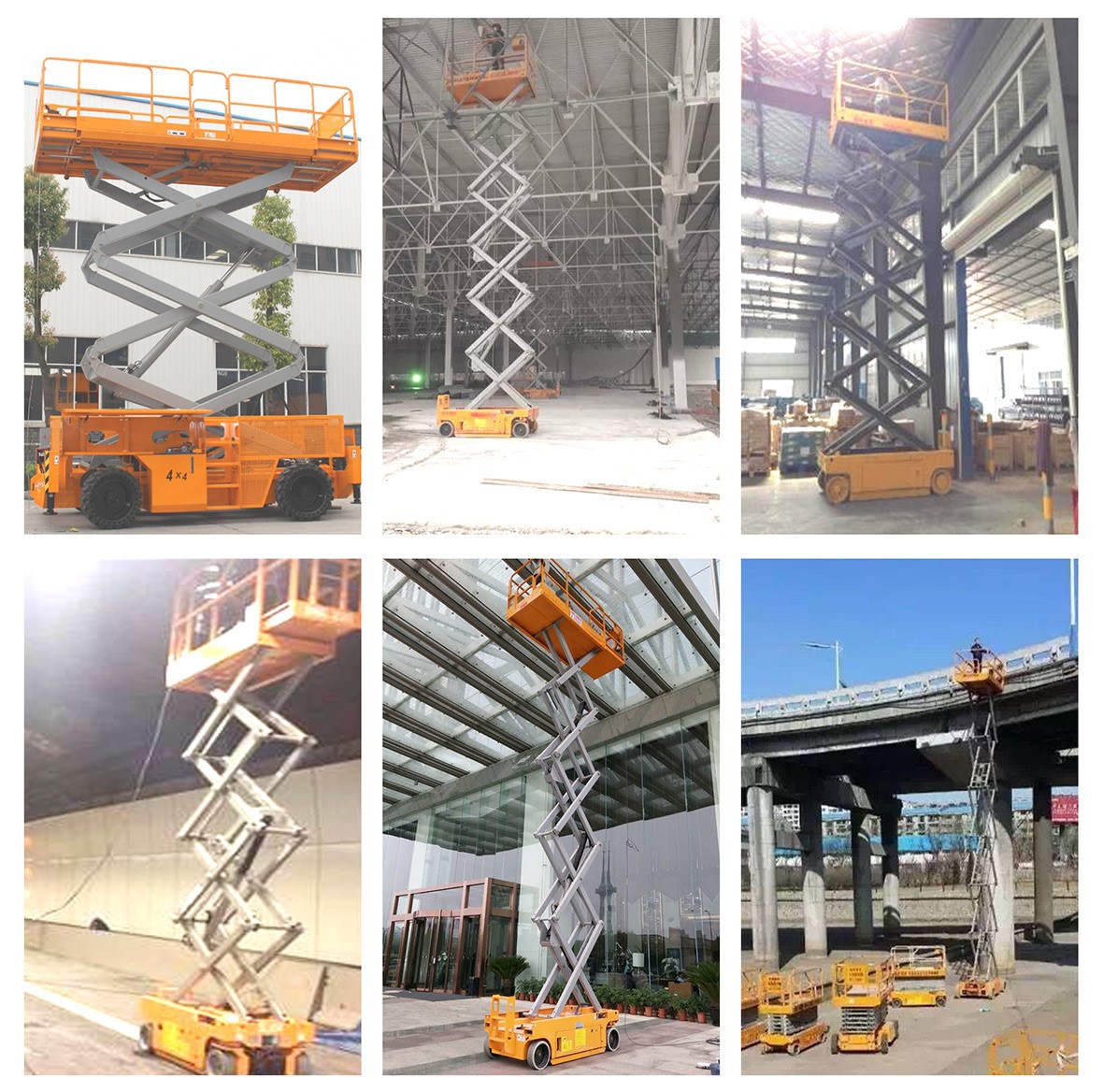

The application of scissor lift
Aerial platform scissor lifts are versatile lifting platforms commonly used across various industries due to their stability, efficiency, and safety features. These hydraulic-powered lifts consist of a crisscrossing mechanism resembling a pair of scissors, which allows for vertical movement.
LTMG customization service
FAQ
Q: What are the common applications of scissor lifts?
Q: What types of power sources do scissor lifts use?
Q: Are there different types of scissor lifts?
