Products Description

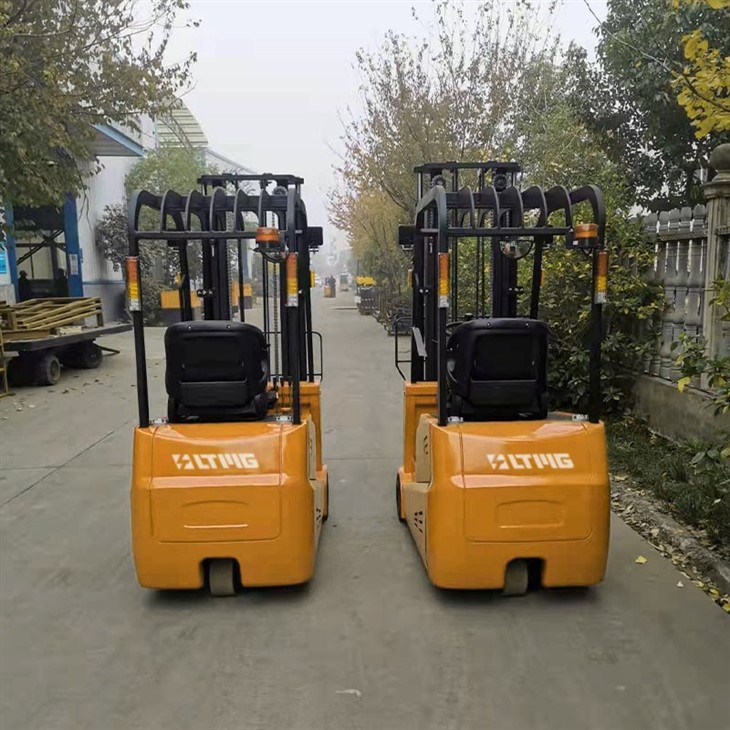

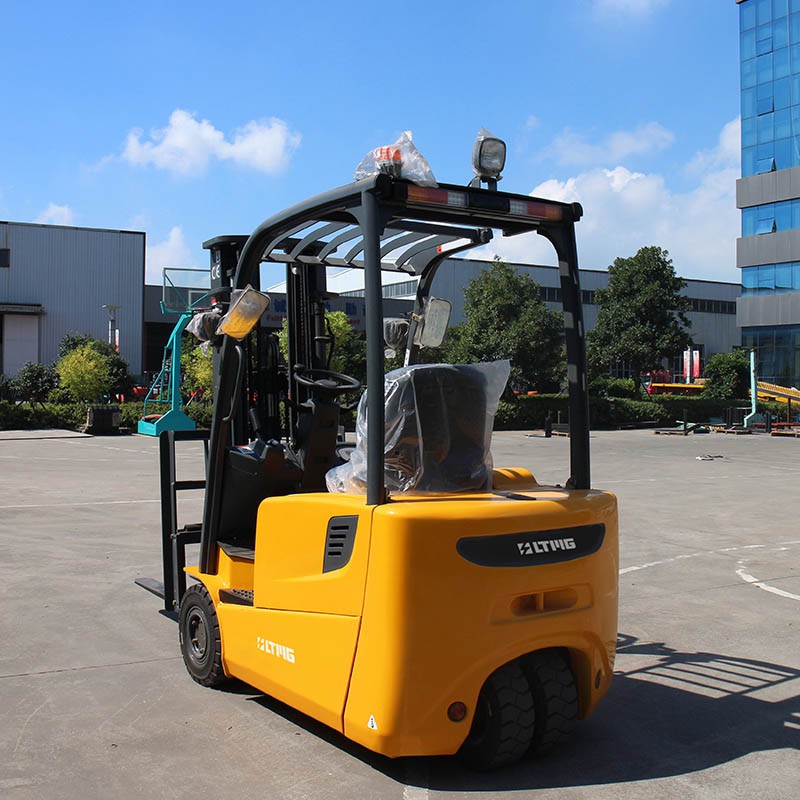

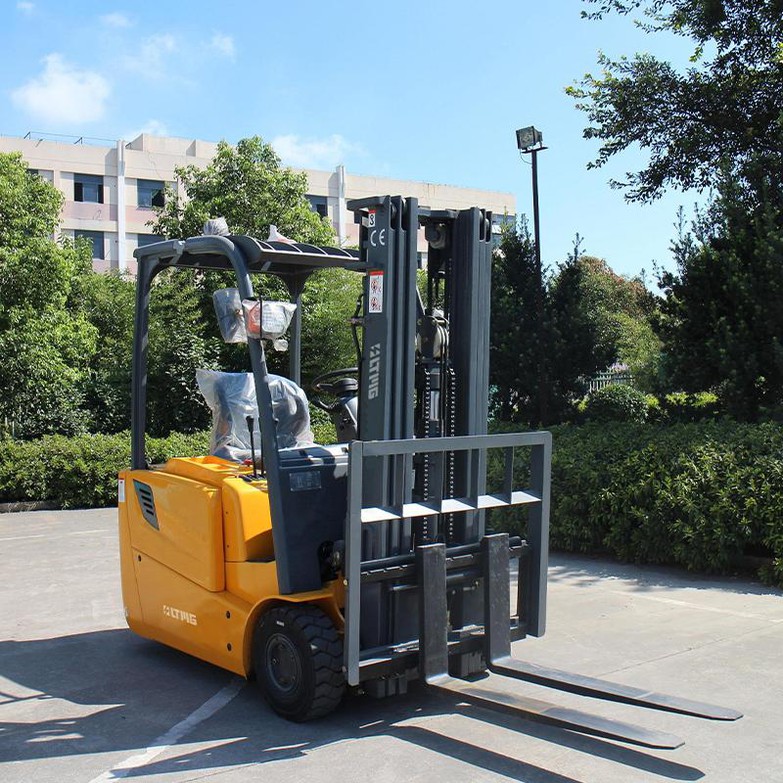

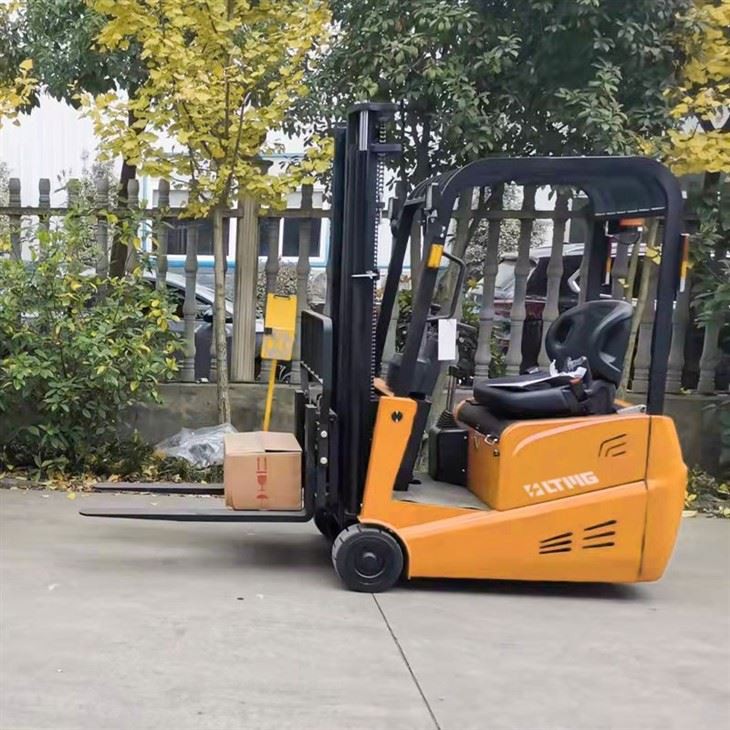

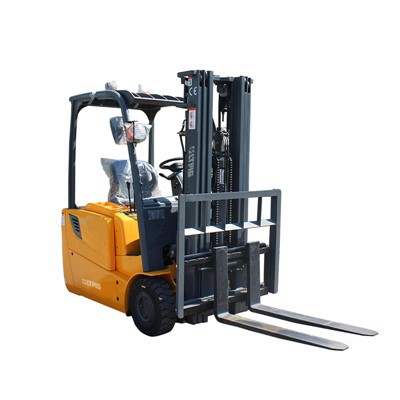

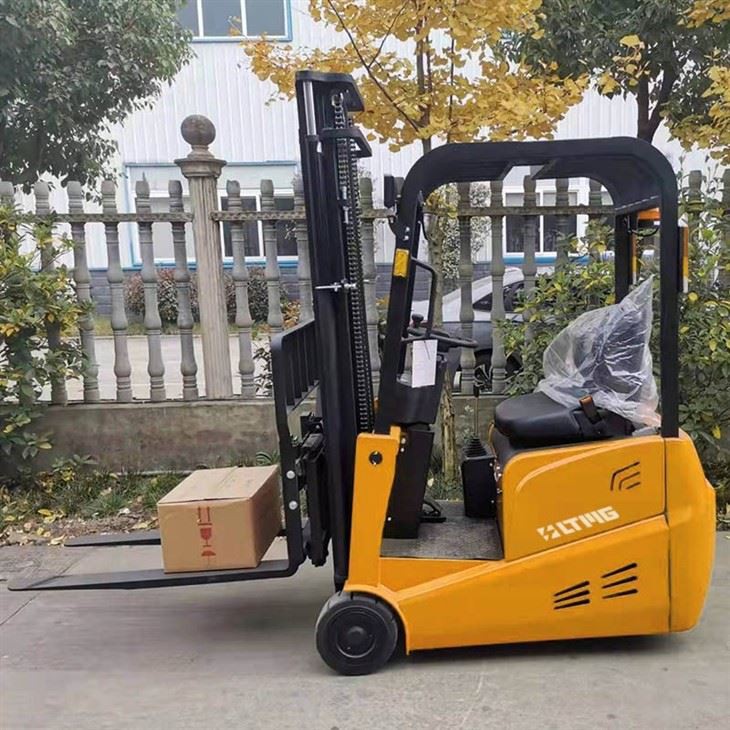

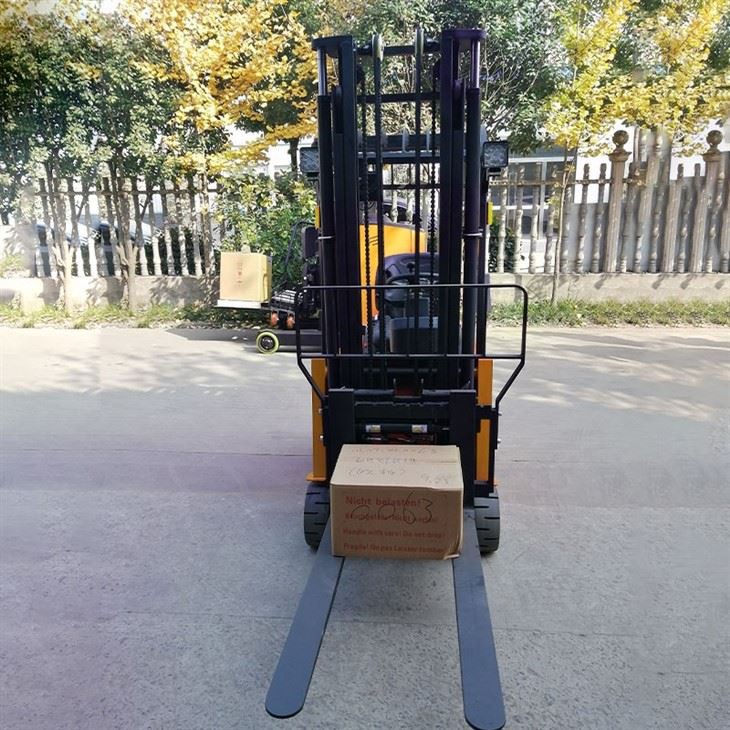

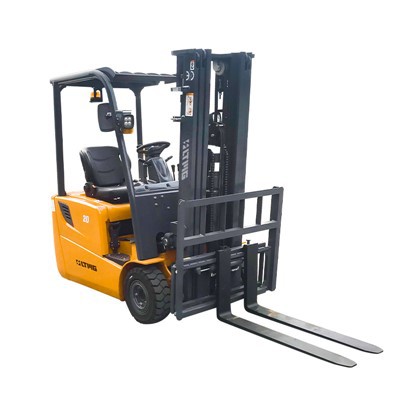

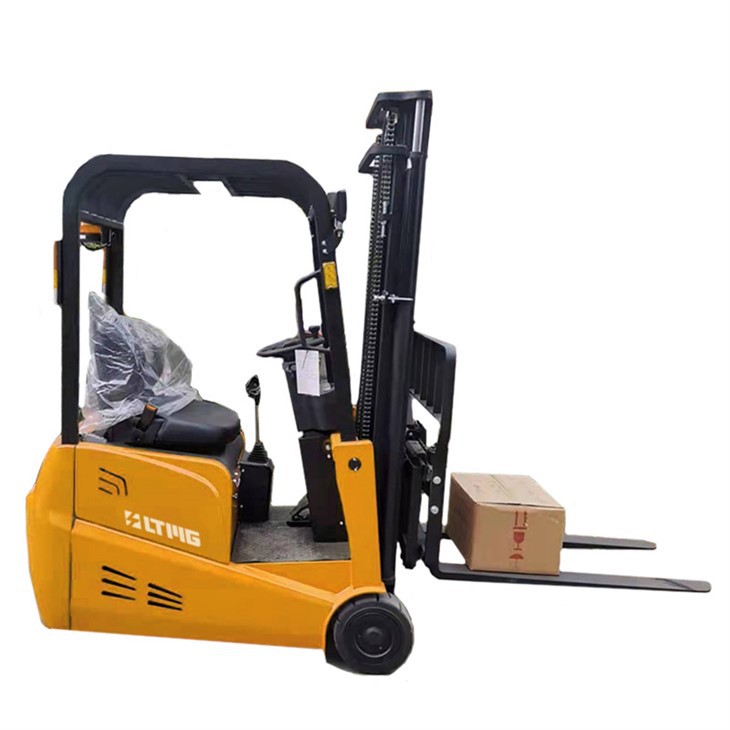

Introducing our cutting-edge 1 Ton VNA Narrow Channel Electric Forklift, a revolutionary addition to the world of materials handling that seamlessly combines efficiency, precision, and adaptability for confined spaces. Specifically designed for narrow aisle operations, this electric forklift embodies technological advancements that redefine the boundaries of maneuverability and performance in restricted warehouse environments.
At the heart of its agile performance lies a dual AC motor drive system paired with a brushless traction motor. This sophisticated combination enables rapid and ultra-smooth directional changes like never before. The enhanced responsiveness of this system directly translates to increased payload handling per operation and a substantial boost in overall work efficiency. Navigating through tight corners and along narrow channels becomes a breeze with this advanced drive technology, optimizing every movement in the VNA setting.
Emphasizing visibility and safety, our forklift incorporates a widened view mast design. This innovation not only significantly improves side-to-side stability during lifting operations but also broadens the operator's field of vision. The enhanced visibility reduces blind spots, ensuring safer operation and facilitating faster, more accurate placement of goods in tight confines, a crucial requirement for VNA narrow channel electric forklifts.
A standout feature is our in-house developed rear-wheel steering mechanism, which employs a rack-and-pinion steering system. This compact and high-performance design results in a steering system that is not only robust but also incredibly reliable, even in the most intense VNA applications. The system's compactness allows for tighter turning radii, maximizing space utilization within narrow aisles while maintaining superior control and stability.
Innovation continues with our pioneering upright drive wheels, engineered to deliver exceptional traction and transmission performance. This design choice ensures that power is transferred to the ground with utmost efficiency, even on slippery or uneven surfaces, providing the necessary grip and control for safe, efficient navigation in the most challenging VNA environments.
In summary, our 1 Ton VNA Narrow Channel Electric Forklift represents the pinnacle of compact materials handling solutions. With its dual AC motor system for unparalleled responsiveness, a wide-angled mast for superior visibility, a precision-engineered rear-wheel steering system, and innovative vertical drive wheels for optimized traction, this forklift is purpose-built to excel in the narrowest of spaces. It is a testament to how technology can be harnessed to increase productivity, safety, and efficiency in the modern warehouse landscape. Experience the future of narrow aisle operations today with our groundbreaking electric forklift.
About LTMG
attachment
certification
|
Characteristics |
Model |
FB10S |
FB15S |
|
|
Power Type |
Electric |
Electric |
||
|
Operation Type |
Seated Type |
Seated Type |
||
|
Load Capacity |
Q(Kg) |
1000 |
1500 |
|
|
Load Center |
C(mm) |
500 |
500 |
|
|
Load distance,centre of drive axle to fork |
X(mm) |
196 |
196 |
|
|
Wheelbase |
Y(mm) |
1130 |
1130 |
|
|
Weight |
Service Weight (with Battery) |
kg |
2120 |
2150 |
|
Wheels&Chassis |
Wheel Type |
Front Solid Tires/Rear PU Tires |
||
|
Driving Wheel |
②×w(mm) |
②230×110 |
②230×110 |
|
|
Front Wheel |
②×w(mm) |
②305×127 |
②305×127 |
|
|
Front Wheel Base |
mm |
752 |
752 |
|
|
Dimensions |
Mast tilting angle(forward/backward) |
2/4 |
2/4 |
|
|
Mast Height, Lowered |
h1(mm) |
2035 |
2035 |
|
|
Free Lift |
h2(mm) |
0 |
0 |
|
|
Lifting height |
h3(mm) |
3000 |
3000 |
|
|
Max. Height When Lifting |
h4(mm) |
3918 |
3918 |
|
|
Height of Overhead Guards |
h13(mm) |
1930 |
1930 |
|
|
Fork Clearance when Mast Lowered |
h(mm) |
35 |
35 |
|
|
Overall Length(Without/with Fork) |
12(mm) |
1610/2680 |
1610/2680 |
|
|
Overall Width |
b1(mm) |
880 |
880 |
|
|
Fork Size |
s/e/l(mm) |
35/100/1070 |
35/100/1070 |
|
|
Fork Spread |
b5(mm) |
210-580 |
210-580 |
|
|
Min. Ground Clearance |
m2(mm) |
60 |
60 |
|
|
Aisle Width for Pallet 1000*1200 crossways |
Ast(mm) |
2931 |
2931 |
|
|
Min. Turning Radius |
Wa(mm) |
1425 |
1425 |
|
|
Performance |
Max. Travel Speed(Unladen/Laden) |
km/h |
5.2/5 |
5.2/5 |
|
Lifting Speed(Unladen/Laden) |
m/s |
0.135/0.095 |
0.135/0.090 |
|
|
Lowering Speed(Unladen/Laden) |
m/s |
0.085/0.120 |
0.085/0.120 |
|
|
Max.gradeability,Unladen/laden |
% |
6/4 |
6/4 |
|
|
Service Brake |
Hydraulic Electromagnetic |
|||
|
Motor & Charger |
Drive Motor |
kw |
1.5AC |
2.5AC |
|
Lift Motor |
kw |
3.0DC |
3.0DC |
|
|
Battery Type |
Lead Acid |
Lead Acid |
||
|
Batteryvoltage/nominal capacity |
V/Ah |
24/270 |
24/300 |
|
|
Charger |
V/Ah |
24/40 |
24/40 |
|
|
other |
Type of Drive Control |
AC |
AC |
|
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
|
|
