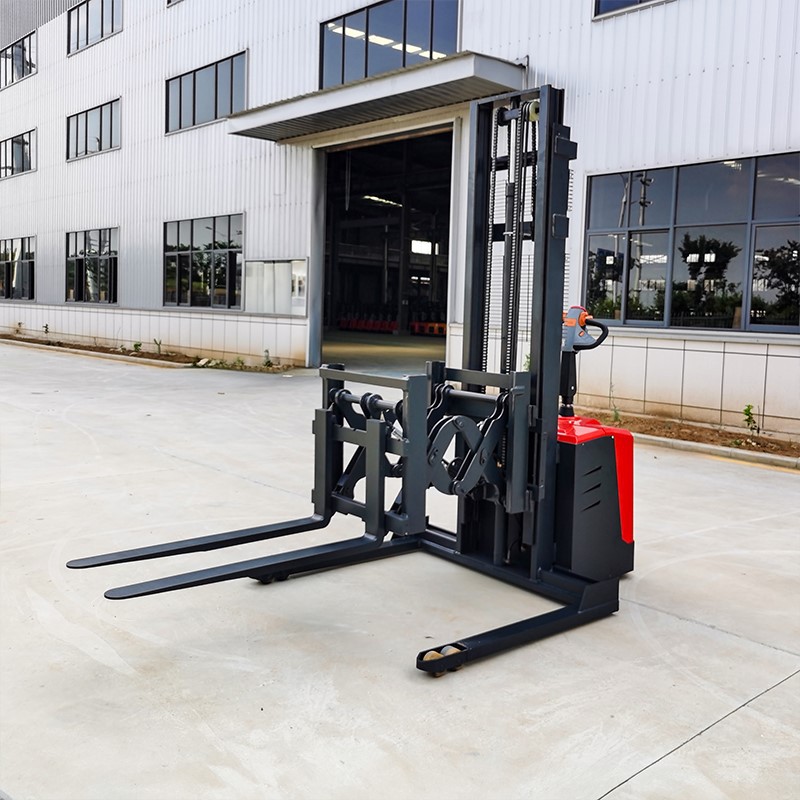

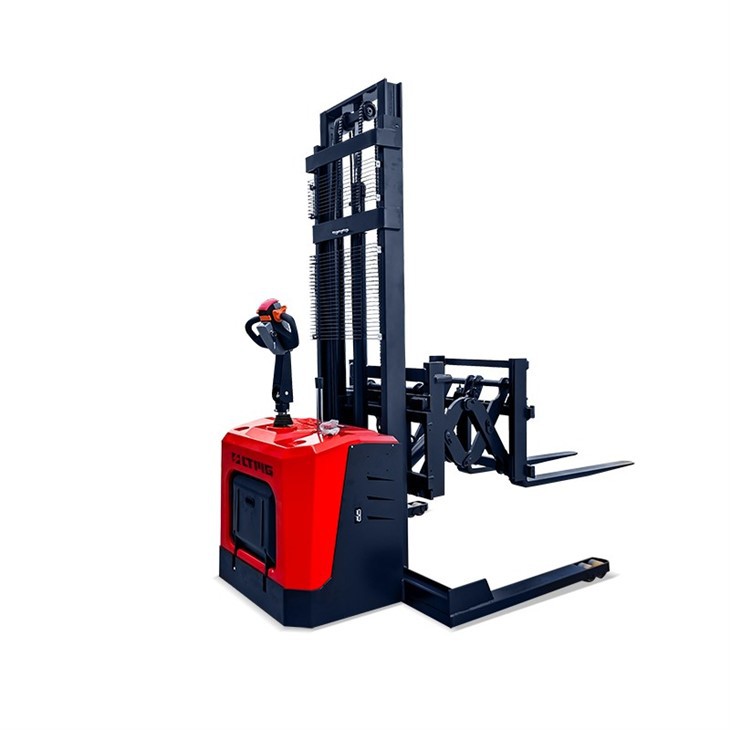

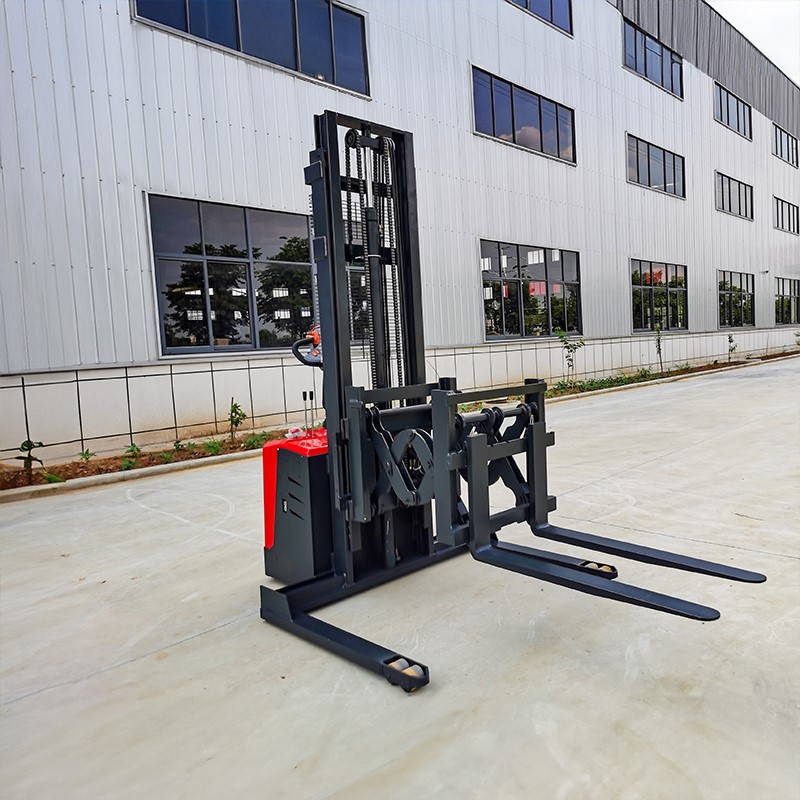

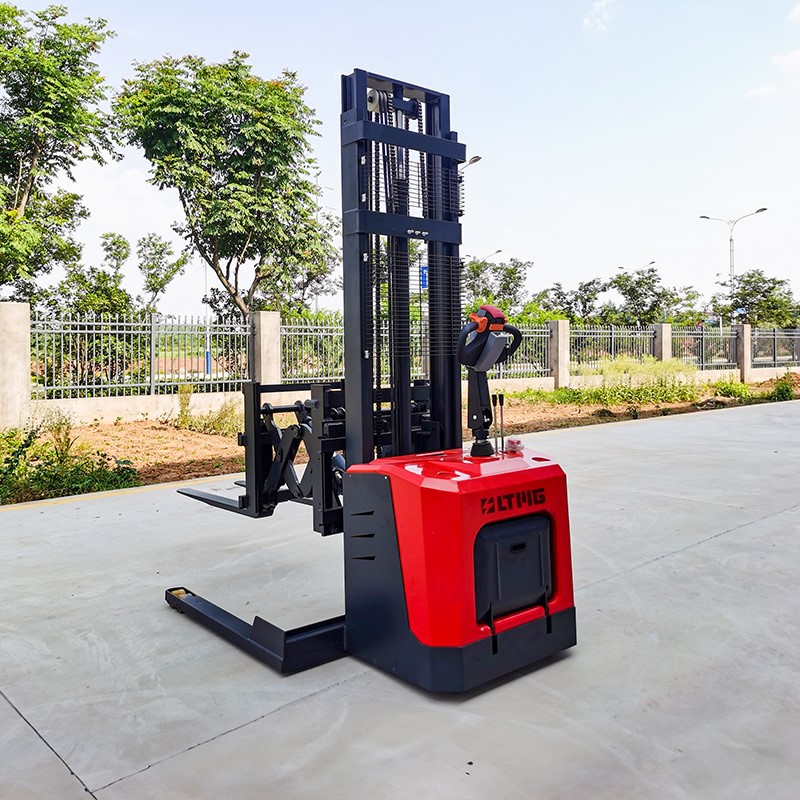

The LTMG electric scissor straddle stacker offers top performance, efficiency, and flexibility for material handling in tight spaces like warehouses and distribution centers.
1. High-Quality Hydraulic System: Smooth and precise lifting and lowering with a reliable hydraulic system.
2. Multifunctional Handle: All-in-one control for acceleration, horn, emergency reverse, and lifting.
3. Adjustable Fork and Scissor Reach: Forks move forward/backward, and the scissor mechanism extends for greater reach.
4. Efficient Vertical Motor: Powered by a high-efficiency vertical motor, this stacker delivers reliable and robust performance, ensuring long-lasting operational excellence.
5. Narrow Space Operation: Specifically engineered to operate efficiently in confined areas, making it perfect for environments with limited maneuvering space.
6. AC Controller and Certifications:Advanced AC controller, CE, and ISO certified for quality and safety.This electric stacker is a versatile and efficient solution for all your material handling needs.
The specifications of ERB15-25
|
Model |
ERB15 |
ERB20 |
ERB25 |
||
|
Drive type |
electric |
electric |
electric |
||
|
Driving Mode |
Standing type |
Standing type |
Standing type |
||
|
v |
kg |
1500 |
2000 |
2500 |
|
|
Load Centre |
mm |
500 |
500 |
500 |
|
|
Wheelbase |
mm |
1383 |
1383 |
1383 |
|
|
weight |
kg |
660 |
760/880 |
1010 |
|
|
Specification |
12C |
12C+12H |
12H |
||
|
Tyre |
Polyurethane wheel |
Polyurethane wheel |
Polyurethane wheel |
||
|
Drive wheel size (diameter × width) |
mm |
∅210×70 |
∅250×80 |
∅250×80 |
|
|
Front wheel size (diameter × width) |
mm |
∅80×70 |
∅80×70 |
∅80×70 |
|
|
Balancer size (diameter x width) |
mm |
∅125×50 |
∅125×50 |
∅125×50 |
|
|
Number of wheels (front/rear) (x=drive wheel) |
1x+2/4 |
1x+2/4 |
1x+2/4 |
||
|
Front wheelbase |
mm |
500 |
500 |
500 |
|
|
Rear wheelbase |
mm |
616 |
616 |
616 |
|
|
Overall height (with forks at lowest level) |
mm |
2080/1580/1830/2080/2330 |
|||
|
Total height (forks highest) |
mm |
2080/2560/3060/3560/4060 |
|||
|
Lifting height |
mm |
1600/2000/2500/3000/3500 |
|||
|
Fork height above ground (lowest) |
mm |
≤90 |
≤90 |
≤90 |
|
|
Operating handle height above ground (max/min) |
mm |
1520/1050 |
1520/1050 |
1520/1050 |
|
|
Overall vehicle length (with pedals up/down) |
mm |
2030/2420 |
2030/2420 |
2030/2420 |
|
|
Overall vehicle width |
mm |
852 |
852 |
852 |
|
|
Fork size |
mm |
170/60/1150 |
170/60/1150 |
180/60/1150 |
|
|
Fork outer width |
mm |
680 |
680 |
680 |
|
|
Minimum ground clearance |
mm |
30 |
30 |
30 |
|
|
Width of stacking aisle at right angles, pallet 1000x1200 (1200 along fork edges) |
mm |
2879 |
2879 |
2879 |
|
|
Turning radius (pedals retracted) |
mm |
1619 |
1619 |
1619 |
|
|
Travelling speed full/no load |
km/h |
3.5/4.5 |
3.5/4.5 |
4/5 |
|
|
Maximum lift speed unladen |
mm/s |
100 |
100 |
90 |
|
|
Maximum lifting speed with full load |
mm/s |
70 |
70 |
60 |
|
|
Maximum climbing capacity full/no load |
% |
3/5 |
3/8 |
3/5 |
|
|
Braking method |
electromagnetic brake |
electromagnetic brake |
electromagnetic brake |
||
|
Drive motor power |
kw |
DC0.75 |
AC1.5 |
AC1.5 |
|
|
Lifting motor power |
kw |
2.2 |
2.2 |
3 |
|
|
Battery voltage/capacity |
V/Ah |
2*12V/120Ah |
24V150AH/180Ah |
24V/210Ah |
|
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail;
The transportation of electric scissor straddle stacker
