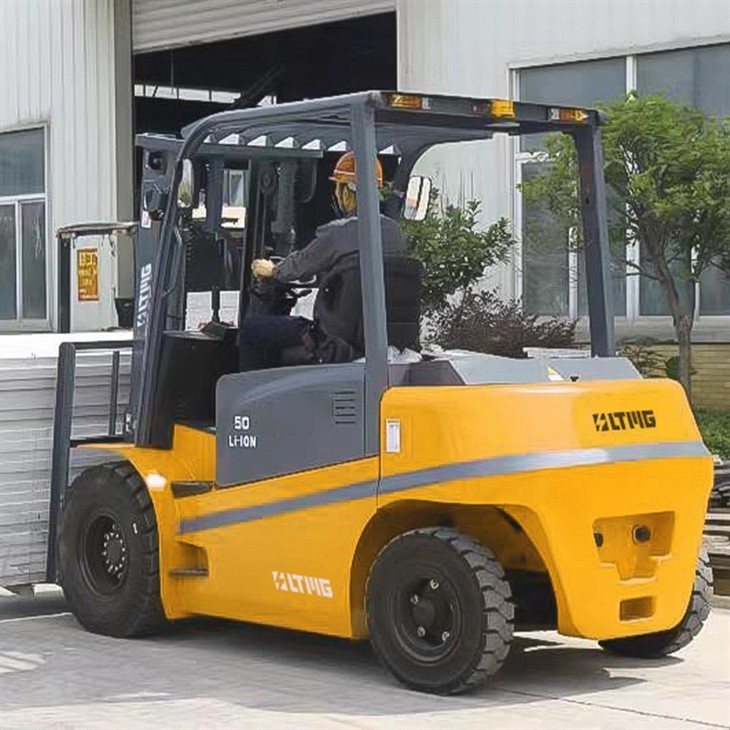

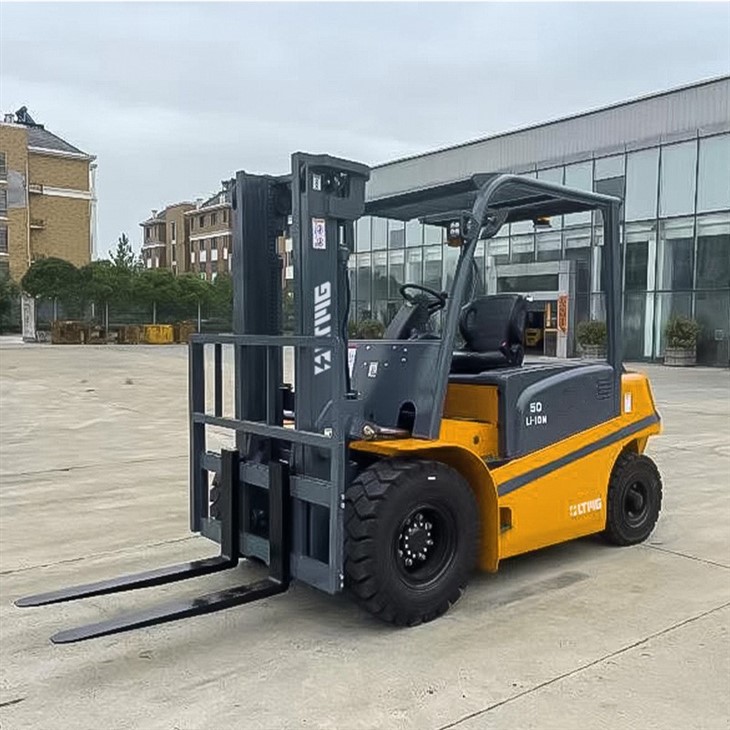

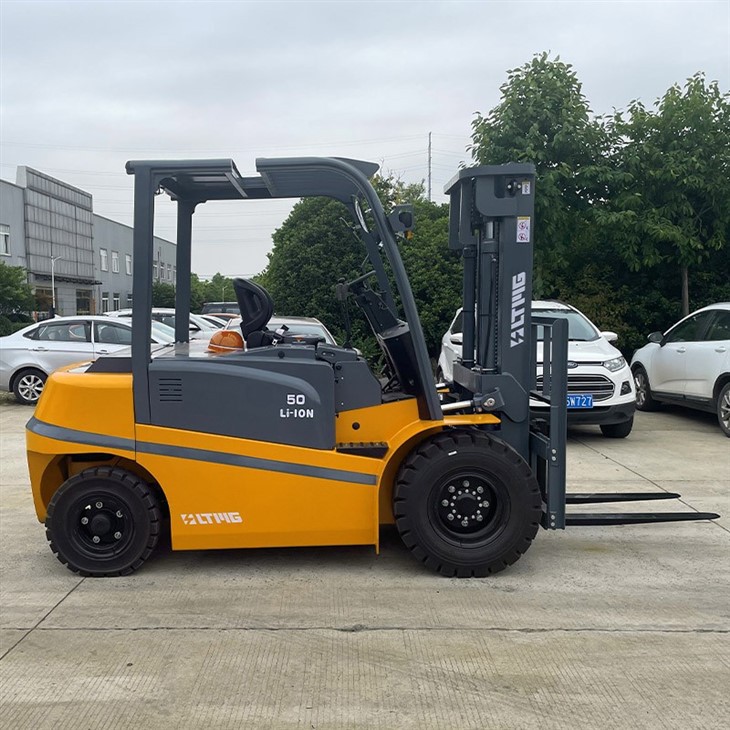

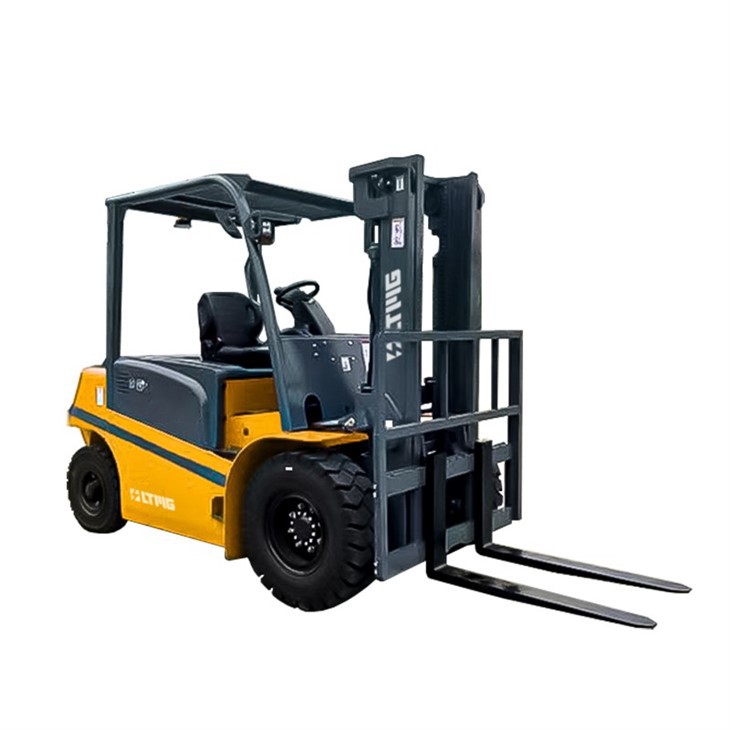

Four Wheels Full Electric Forklift

Powered type:battery
lifting height:3000mm
Mast:2 stages mast
Send Inquiry
Chat Now

Product Introduction

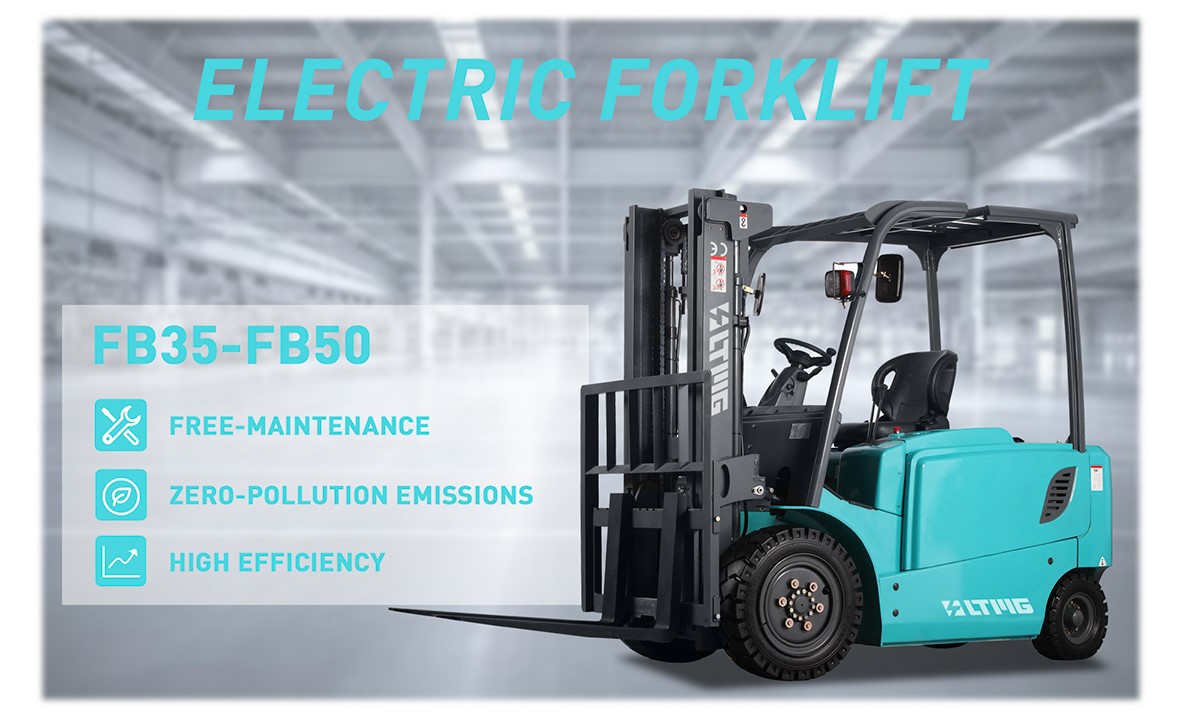

LTMG electric forklift truck



lithium forklift

electric forklift common optional attachment



Common forklift parts



Optional Accessories for Forklifts: Enhancing Performance and Comfort



Side Shifters: Side shifters are essential for precise placement of loads. They allow the operator to move the load laterally without having to reposition the entire forklift. This feature is particularly useful in tight spaces and can significantly improve productivity and efficiency.



Cab Enclosure: A well-designed cab enclosure can transform the operator's experience. It provides protection from the elements, reducing fatigue and increasing focus. Modern enclosures often come with ergonomic controls, ensuring a comfortable and safe working environment.



Blue Light Package: For operations in low-light conditions or at night, a blue light package can enhance visibility. This includes high-intensity LED lighting that illuminates the workspace without causing glare, improving safety and operational effectiveness.



Air Conditioning: An air-conditioned cab is a must in hot climates or during extended shifts. It helps maintain a comfortable temperature, reducing heat stress and the risk of fatigue-related accidents.



Telescopic Forks (Adjustable Fork Length): Telescopic forks offer the flexibility to handle a wider range of load sizes. By adjusting the length of the forks, operators can accommodate loads of varying widths, making the forklift more versatile and suitable for diverse tasks.

These optional features can tailor a forklift to specific operational needs, enhancing both the functionality of the machine and the comfort of the operator. Investing in these accessories can lead to improved job satisfaction, increased productivity, and a safer working environment.

Common problems and solve methods



Battery Discharge Problems



Issue: The battery may not hold a charge, or the forklift may not operate for the expected duration on a single charge.

Solution: Check the battery for any visible damage or leaks. Ensure the charging process is followed correctly, including the appropriate charging time. Regularly clean the battery terminals to maintain good electrical contact. If the battery is old, it may be time for replacement.



Motor Overheating

Issue: The motor may run hotter than normal, leading to decreased performance and potential damage.

Solution: Inspect the motor for any blockages in the cooling system. Ensure that the motor's ventilation is clear and that cooling fans are functioning properly. Overloading the forklift can also cause the motor to overheat, so always adhere to the load capacity guidelines.



Leakage from Hydraulic System

Issue: Leakage can lead to a loss of hydraulic fluid, affecting the lift and tilt functions.

Solution: Regularly inspect the hydraulic system for signs of leakage. Replace any damaged seals or hoses immediately. Ensure that the hydraulic oil is clean and at the correct level. If the problem persists, a professional inspection may be necessary to identify the source of the leak.



Electrical System Failures

Issue: The forklift may not start, or there may be intermittent electrical issues affecting operation.

Solution: Check the wiring for any signs of wear, fraying, or damage. Ensure that all connections are secure and corrosion-free. If the problem is more complex, such as with the control board or solenoids, it may require a specialist to diagnose and repair.







型号Model FB50(mini)
额定起重量Rated Capacity kg 5000
载荷中心距Load Center Distance mm 600
动力形式Power Type Lithium Battery
轴距Wheel Base mm 2250
车轮数量(前/后) Wheel Number(Front/Rear) 4×/2
前轮距Front Tread mm 1470
后轮距Rear Tread mm 1700
轮胎,前Tyre(Front) 8.25-15-14PR
轮胎,后Tyre(Rear) 8.25-15-14PR
前悬距 Front Overhang mm 590
门架倾角,前/后Mast Tilting Angle,Front/Rear 6/12
门架回缩时高度Height With Mast Retraction mm 2500
自由起升高度Free Lifting Height mm 200
最大起升高度 Max.Lifting Height mm 3000
作业时最大高度Max.Height After Lifting mm 4420
护顶架高度Overall Guard Height mm 2450
货叉尺寸长×宽×厚Fork Size:Length X Width X Thickness mm 1220×150×55
车体长度(不含货叉)Overall Length(Fork Excluded) mm 3440
车体宽度Overall Width mm 1995
转弯半径Turning Radjus mm 3250
门架离地间隙Ground Clearance Of Mast mm 200
轴距中心离地间隙(满载)   Ground Clearance Of Wheel Base Center(Loaded) mm 220
直角堆垛通道宽度(托盘1000×1000mm),间隙200mm
 Right Angle Stacking Aisle Width (Pallet 1000×1000mm,Clearance 200mm
mm 5085
直角堆垛通道宽度(托盘1200×1200mm),间隙200mm
Right Angle Stacking Aisle Width(Pallet 1200×1200mm,Clearance 200mm
mm 5285
货叉调节范围(外侧)最大/最小Lateral Fork Adjustment Max./Min mm 1840-300
行驶速度(满/空载)Travelling Speed (Loaded/Unloaded) km/h 14/16
起升速度(满/空载)Lifting Speed (Loaded/Unloaded) mm/s 360/400
下降速度Lowering Speed mm/s 420
爬坡能力(满载)Gradeability (Loaded) % 25
自重(含油水) Self Weight Kg 9000
蓄电池电压/容量Battery Voltage /Capacity V/Ah 76.8/560
蓄电池重量Battery Weight Kg 540
驱动电机功率-60分钟Driving Motor Power-60 Minutes Kw 30
起升电机功率(S315%)Lifting Motor Power(S315%) Kw 2X26
驱动电机控制方式Driving Motor Control Mode MOSFET/AC
起升电机控制方式Lifting Motor Control Mode MOSFET/AC
行车制动/停车制动Service Brake/Parking Brake Hydraulic /Mechanical
液压系统工作压力Hydraulic System Working Pressure Mpa 20.0



With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
