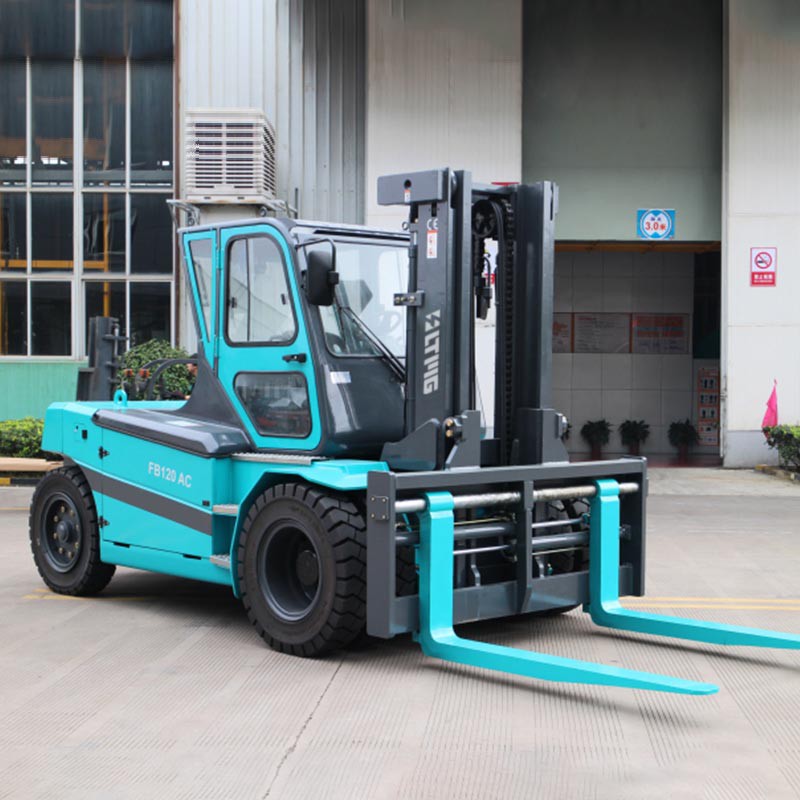

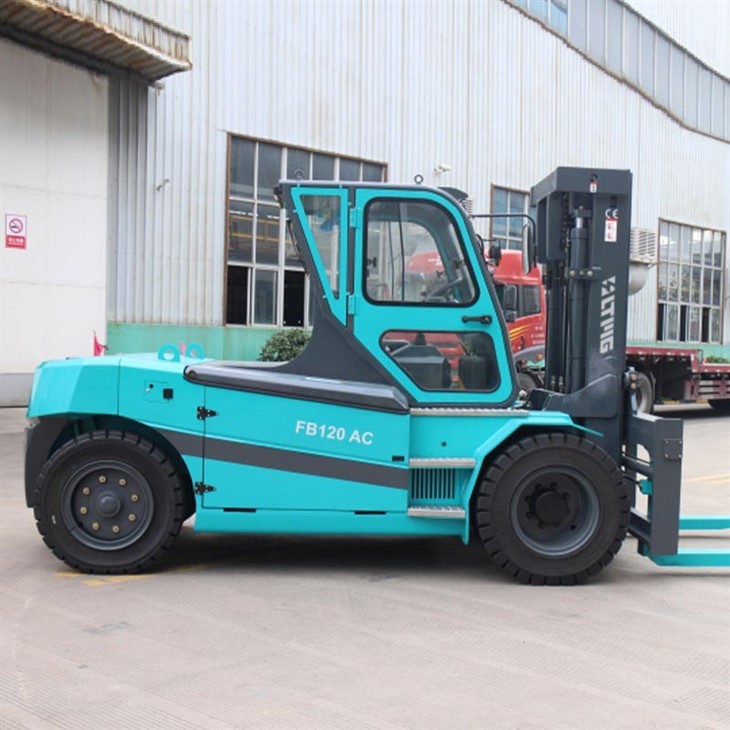

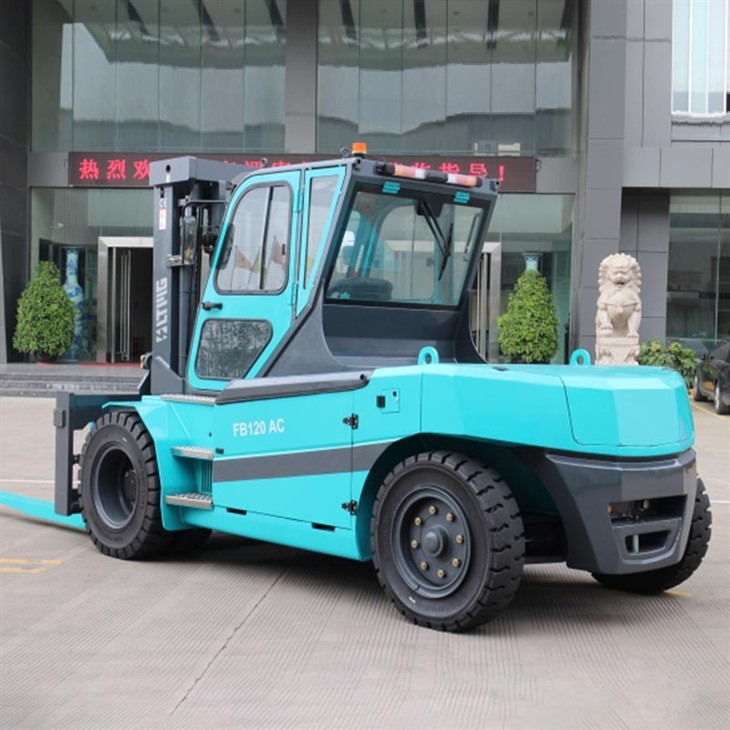

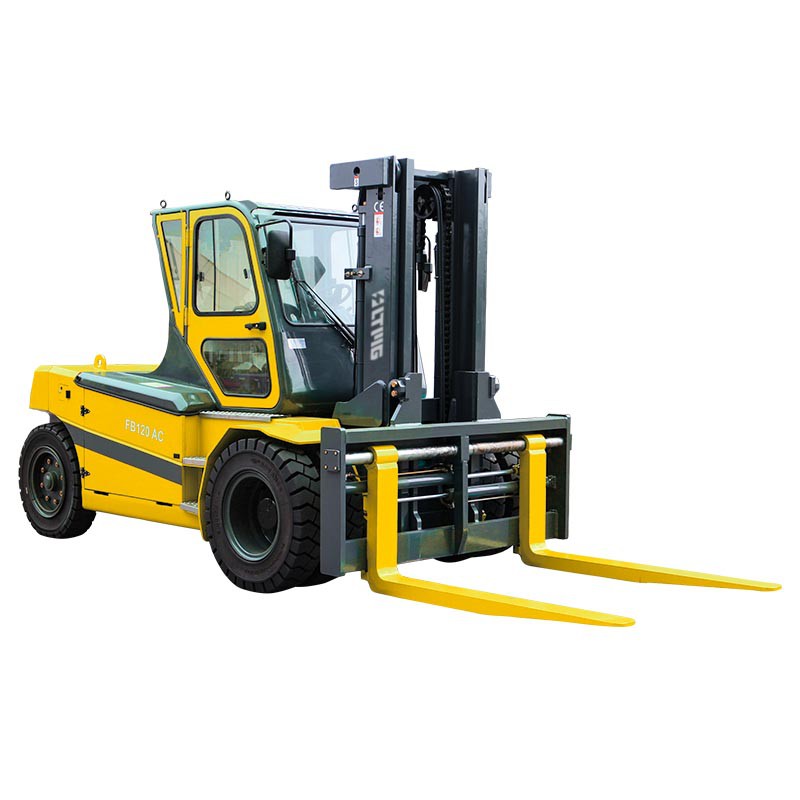

Large Electric Forklifts

Items: large electric forklifts
Power type: Electric
Rated capacity: 12000kg
Lifting height: 3000mm
Send Inquiry
Chat Now

Product Introduction

Products Description


Large electric forklifts are typically used for heavy-duty tasks that require a lifting capacity of between 10,000 to 90,000 pounds. They are the perfect solution for warehouses storing heavy goods or logistic operations involving stacking and unloading of containers. These electric machines come equipped with robust components such as tires, motors, and batteries that make them more durable and better suited for harsh working conditions. Furthermore, large electric forklifts operate at a higher voltage, giving them more power for lifting larger loads and providing increased efficiency, ultimately reducing overall operating costs.
On the other hand, small electric forklifts are more suitable for lighter loads. They have a lifting capacity of between 1,000 to 5,000 pounds and are ideal for smaller warehouses or retail shops that handle lighter goods. Because of their smaller size, phasing and maneuvering around tight spaces and narrow aisles is much easier and more effortless. Small electric forklifts are also beneficial since they produce less noise, making them perfect for indoor use.
Comparing the two types, there are several advantages to each option. Large electric forklifts are more expensive to purchase but are more durable and suitable for challenging jobs. They are capable of the heavy lifting that smaller machines cannot handle. While large electric forklifts can be more expensive to maintain, they are an excellent investment for businesses that demand high performance and dependability.
The small electric forklift, on the other hand, is more cost-effective both in purchasing and maintenance. They operate quietly and are ideal for small warehouses, indoor usage, and low lifting capacities. These machines are perfect for businesses on a budget or looking to grow their operations gradually.
In conclusion, choosing between large and small electric forklifts depends entirely on the lifting needs and demands of the business. As a buyer, it's essential to consider the load capacity, work environment, and budget when selecting the ideal electric forklift solution for your business. By doing so, businesses can optimize productivity, reduce operating costs, and increase efficiency throughout their operations.



high capacity electric lift truck



Products parameter



Model   FB120
Rated Capacity kg 12000
Load Centre mm 600
Lift Height mm 3000
Fork Size (L×W×T) mm 1220×175×85
Mast Tilt Angle F/R (α°/β°) Deg 6/10
Length to face of fork (Without fork) mm 4415
Overall Width mm 2250
Mast Lowered Height mm 2830
Mast Extended Height (With backrest) mm 4260
Overhead Guard Height mm 2640
Turning Radius (outside) mm 3850
Front Overhang (Wheel center to fork face) mm 845
Tread (Front/Rear) mm 1736/1754
Ground Clearance (Bottom of mast) mm 230
Wheelbase mm 2850
Fork Spread (Min./Max) mm 515/2055
Travel Speed km/h 14
Lifting Speed (Full load) mm/s 280
Max. Gradeability % 10
Service Weight kg 15800
Front Tire   9.00-20
Rear Tire   8.25-20
Driven Motor kw 14×2
Lift Motor kw 25×2
Battery Standard V/Ah 96/1250
Controller Manufacturer   CURTIS AC
Operating Pressure for Attachment Mpa 18

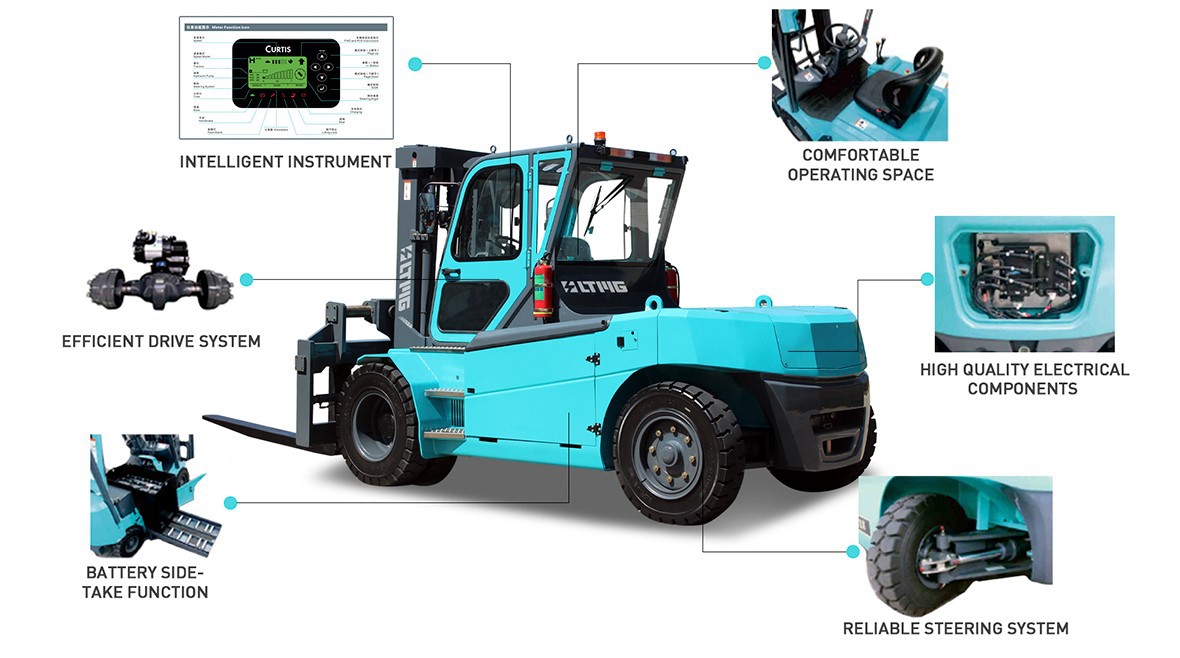

Products specification



specification of heavy duty electric forklift

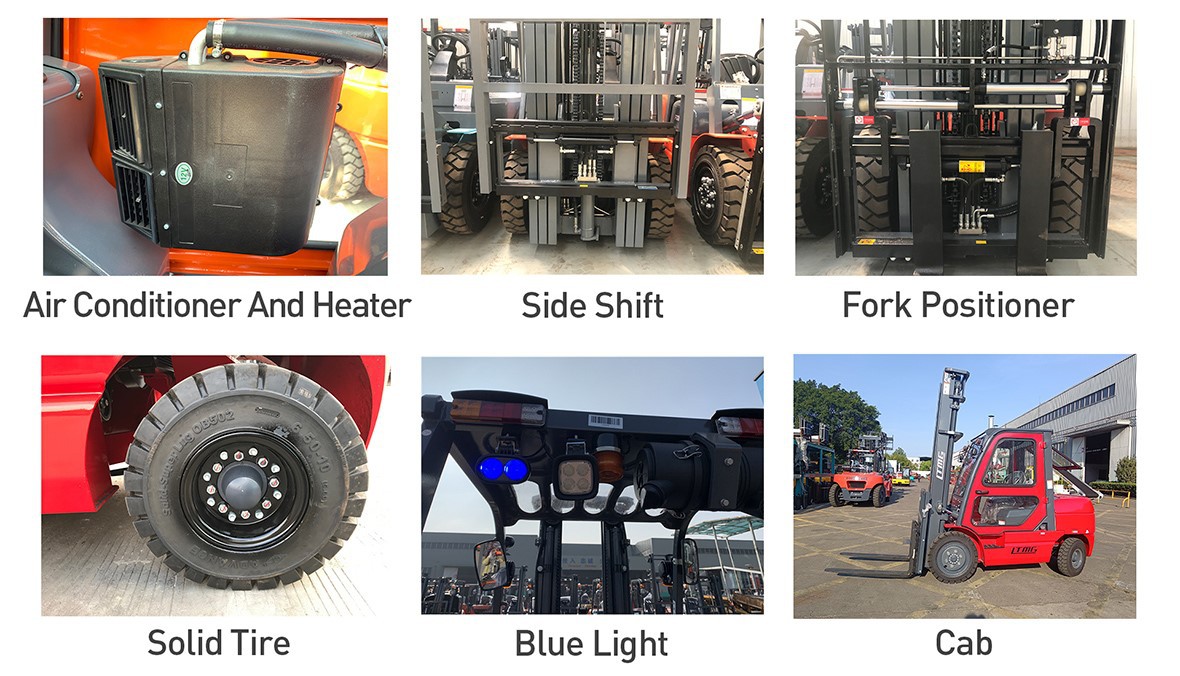

Products options



option of large electric forklift

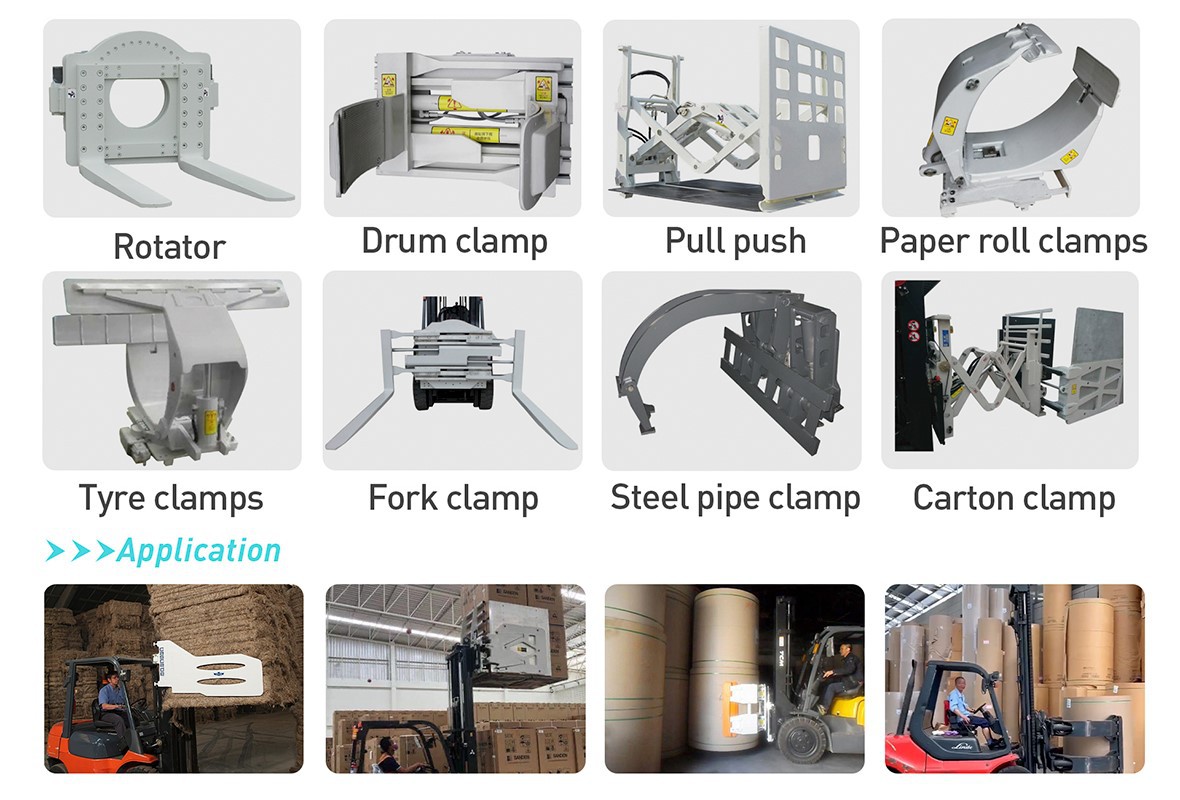

Products attachment



attachment of high capacity electric lift truck



FAQ

Q: How can I extend the battery life of my large electric forklift?

A: To maximize the battery life of your forklift, ensure that the battery is charged and maintained according to the manufacturer's instructions. Avoid overcharging or undercharging, and take care not to let the battery discharge completely before recharging. Additionally, limit the amount of time the forklift spends sitting idle, and train operators to use energy-efficient driving practices.

Q: What kind of maintenance is required for large electric forklifts?

A: Regular maintenance is necessary to keep large electric forklifts in good working condition. Check all fluid levels, including hydraulic oil and battery water, and replace as needed. Inspect the brakes, tires, steering, and electrical systems regularly, and replace any worn or damaged parts immediately. Finally, keep the forklift clean and free from debris that could cause damage or accidents.

Q: How can I ensure that my forklift is capable of handling heavy loads safely?

A: pecific model before attempting to transport heavy items. Additionally, ensure that your operators are familiar with proper loading procedures, and that they use appropriate attachments and accessories as necessary to distribute the load evenly. Finally, conduct frequent inspections to ensure that all components, including the forks, chains, and other lifting mechanisms, are functioning properly and free from damage or wear.
