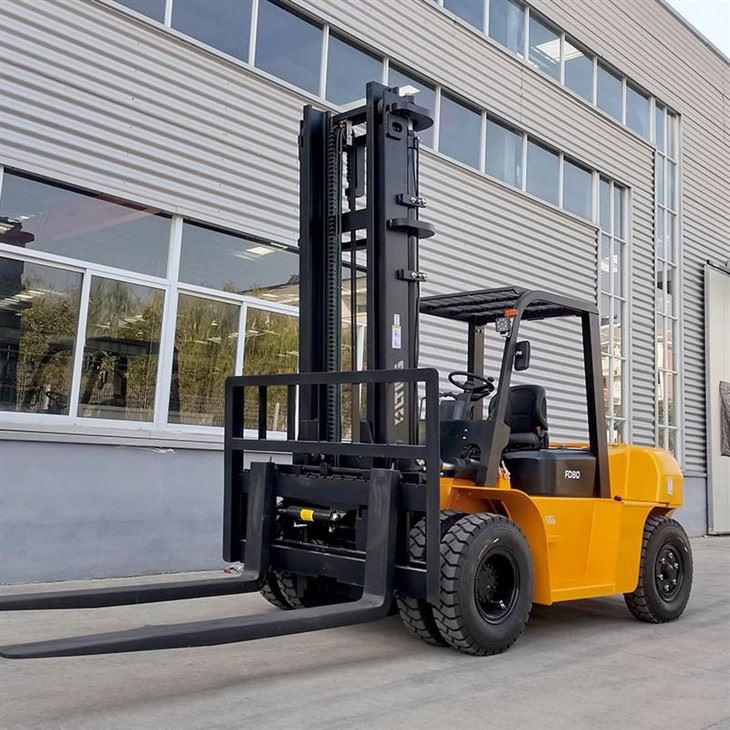

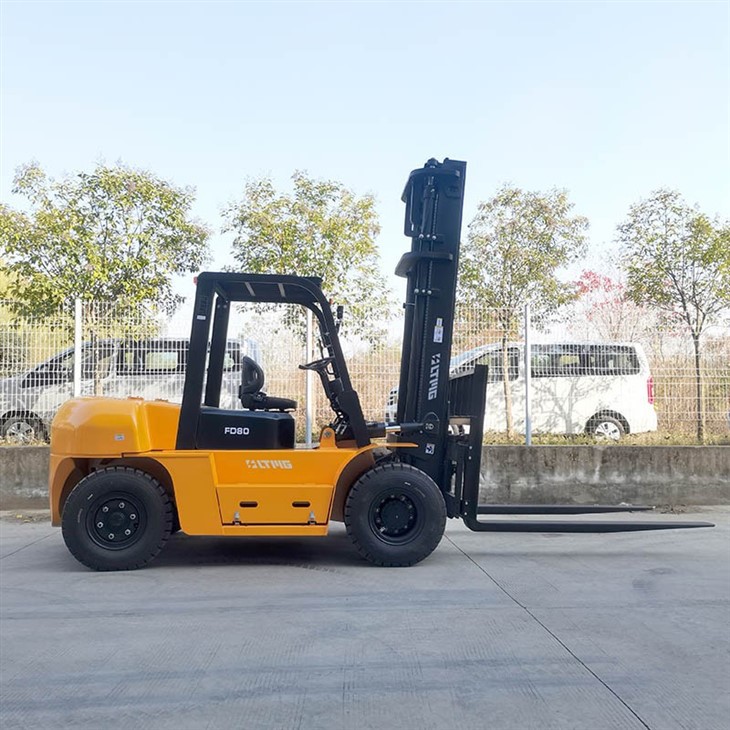

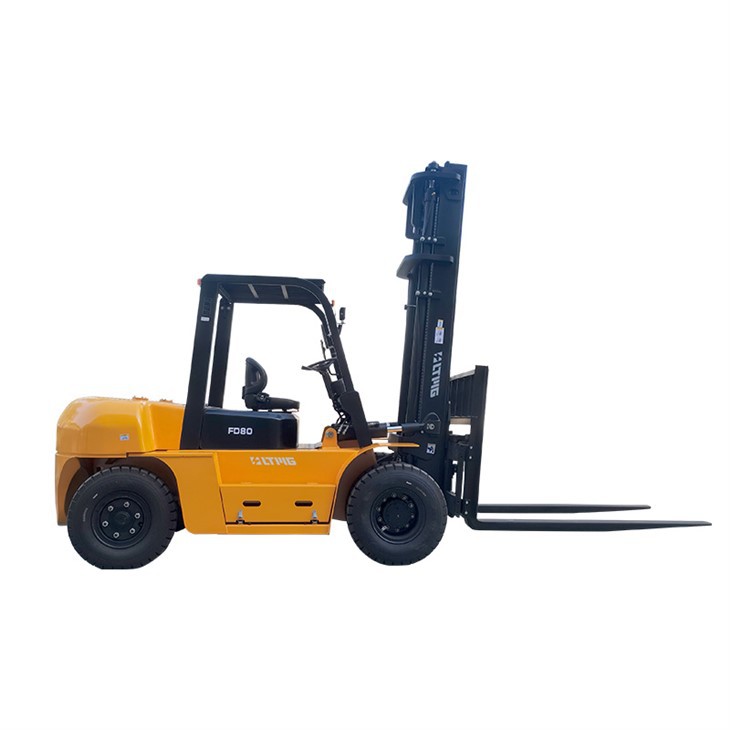

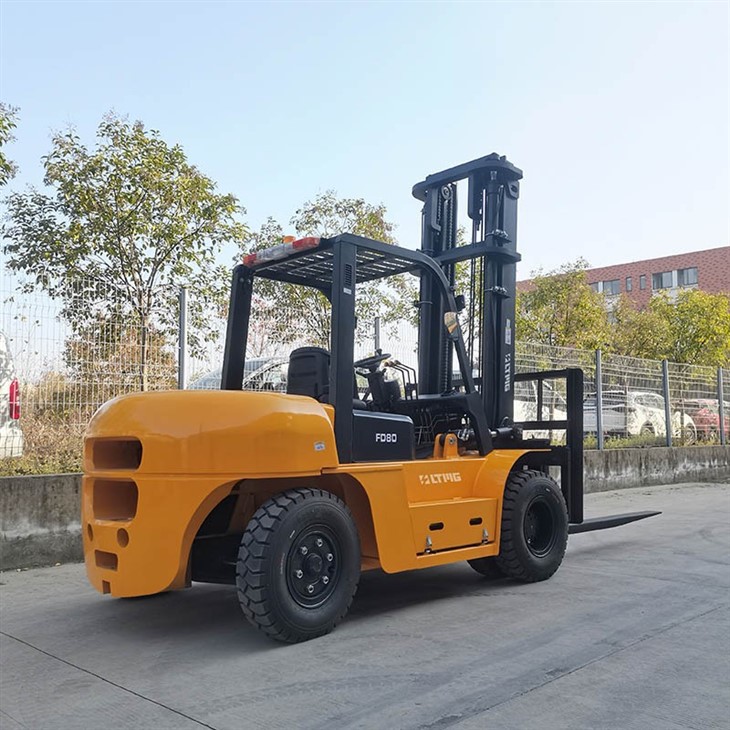

Forklift Diesel Semarang

Model:FD80
Power type:Diesel
Rated capacity:8000kg
Lifting height:3000mm
Send Inquiry
Chat Now

Product Introduction

The features and advantages of an 8-ton diesel forkliftar:



Features:1. Loading Capacity: An 8-ton diesel forklift has a substantial lifting capacity suitable for transporting heavy materials across various industries such as construction sites, warehouses, and ports.



2. Engine Technology: Equipped with a high-compression ratio diesel engine, these forklifts deliver high torque output and fuel efficiency, often featuring advanced technologies like common rail fuel injection systems to optimize power delivery and meet stringent emission standards (e.g., Euro III).



3. Transmission System: They may come with electronically controlled ZF hydraulic transmissions, offering multiple operating modes and diagnostic capabilities, enhancing overall control and adaptability to different work scenarios.



4. Braking System: Advanced braking systems such as fully enclosed wet-disc brakes ensure reliable stopping power and reduced maintenance needs.



5. Stability and Maneuverability: Designed with a balanced weight distribution for stability during lifting operations and optimized steering for improved maneuverability in tight spaces.6. Comfort and Ergonomics: The operator's cabin usually provides ergonomic controls, good visibility, and sound insulation to improve operator comfort and productivity over extended shifts.

diesel forklift truck for sale
diesel lift truck

diesel operated forklift









Technical Specification
Model   FD80
Power Type   Diesel
Rated Capacity kg 8000
Load Centre mm 600
Lift Height mm 3000
Fork Size mm 1220×150×70
Mast Tilt Angle   6°/12°
Fork Overhang (Wheel center to fork face) mm 595
Ground Clearance(Bottom of mast) mm 200
Length to face of fork(Without fork) mm 3440
Overall Width mm 2010
Mast Lowered Height mm 2500
Mast Extended Height(With backrest) mm 4415
Overhead Guard Height mm 2430
Turning Radius (outside) mm 3250
Travel (Full load) Km/h 28
Lifting (Full load) mm/s 430
Max.Gradeability % 20
Wheelbase mm 5800
Engine model   6BG1-02
Manufacture   ISUZU
Rated output/r.p.m. KW 82.4/2000
Rated torque/r.p.m. N.M 416/1600
No.of Cylinder   6
Bore×Stroke mm 105×125
Displacement cc 6494
Fuel Tank Capacity L 125
shipping

Shiping plan 2





Forklift accessories

optional attachment

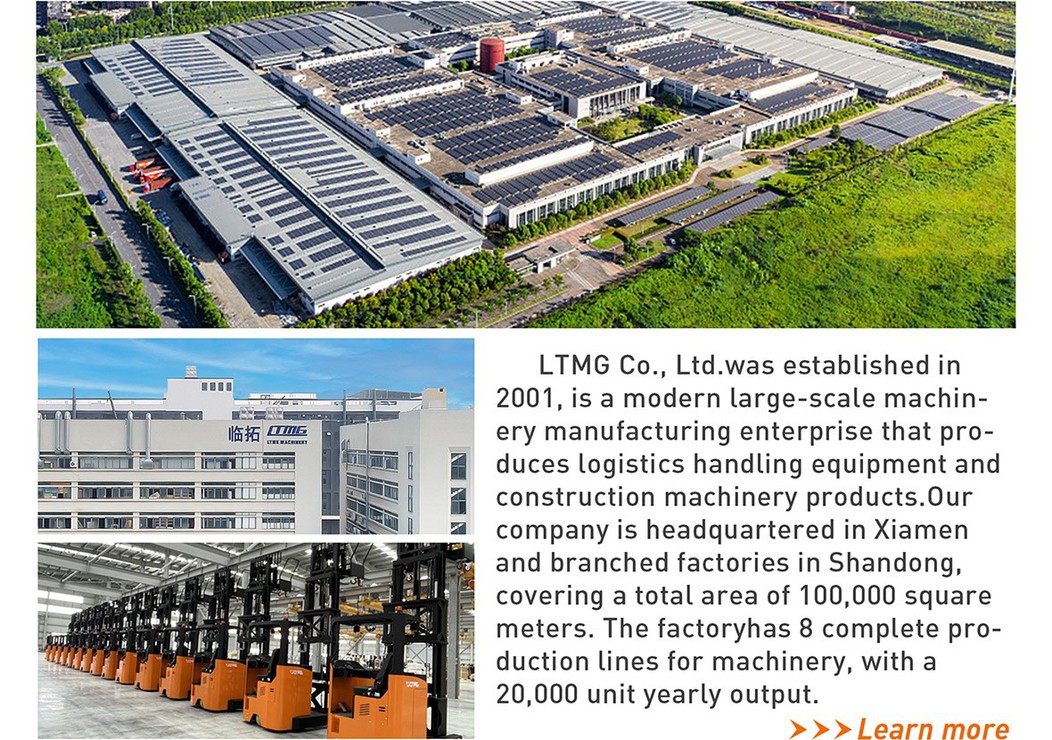

Company Introduction



Company Profile 2


FAQ

Q: Do you have a certificate?

All products meet with the ISO9001 Quality System and have acquired CE certificate.

Q: Why choose us?

As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, such as diesel forklifts but also in-time delivery and comprehensive 7/24 after-sale services.

Q: How can you trust our company?

With 22 years of professional manufacturing experience, we can offer you suitable suggestions and the best prices.

Q: What is the payment terms?

We accept payment via T/T, L/C, West Union, Moneygram, Paypal, and others are welcome.

Q: What are the transportation methods?

We arrange shipment by Sea, Train, Air, or Express, and the process takes approximately 15-20 days against the deposit.
